RF Filter

Total 16 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 12 low pass 1 Highpass 2 Notch 1
F Low MHz
475 2 476 1 479 1 480 11 484 1
–
Center frequency MHz
480 - 490 3 497 - 500 3 525 - 540.5 2 550 - 640 2 720 1
–
F High MHz
480 - 510 4 520 - 575 4 601 - 800 4 960 - 6000 4
–
IL on center frequency dB
0.5 2 1 4 1.5 1 2 3 4 1
–
Maximum loss of side frequency dB
1 - 1.5 3 1.7 - 1.8 2 2 - 2.5 8 3 - 3.5 2 6 1
–
Rejection dB
35 - 40 6 45 - 50 3 53 - 55 2 60 - 65 3 80 2
–
Connector
SMD 3 SMA 7 Microstrip needle 6
Power Handling
1 8 2 7 30 1
–
Filter type
LC 15 Cavity&waveguide 1
F Low：475 - 484 MHz× Clear all
matches 16 models Default Newest
ZHPF5-L0.48-3G-3099 Filter

Filter ZHPF5-L0.48-3G-3099

Passband0.48~3GHz, RejectionDC-370MHz≥40dB, SMD
In Stock View Details →
ZBF-L1010-1020-1944B11 Filter

Filter ZBF-L1010-1020-1944B11

Passband480~1520MHz, DC-420MHz≥53dB, 1700-2500MHz≥53dB, Pin
In Stock View Details →
ZLPF13-L480-545-962 Filter

Filter ZLPF13-L480-545-962

Passband480~545MHz, 0.63-1.5GHz≥65dBc, 1.5-2.1GHz≥40dBc, Pin
View Details →
ZHPF5-L460-6000-2194 Filter

Filter ZHPF5-L460-6000-2194

Passband480~6000MHz, DC-400MHz≥80dB, SMA
View Details →
ZBSF6-L476.4-496.4-4644 Filter

Filter ZBSF6-L476.4-496.4-4644

Stopband F476.4~496.4MHz, ≥50dB, PassbandDC~435MHz, 540~1000MHz, SMA
View Details →
ZBF5-L720-480-2249 Filter

Filter ZBF5-L720-480-2249

Passband480~960MHz, DC-300MHz≥40dBc, 1100-3000MHz≥40dBc, Pin
View Details →
ZBF5-L500-40-3841 Filter

Filter ZBF5-L500-40-3841

Passband480~520MHz, DC-440MHz≥40dB, 560-1500MHz≥40dB, SMA
View Details →
ZBF5-L480-0-1916 Filter

Filter ZBF5-L480-0-1916

Passband480MHz, 960-1000MHz≥70dBc, SMA
View Details →
ZBF3-L525-100-2006 Filter

Filter ZBF3-L525-100-2006

Passband475~575MHz, DC-325MHz≥50dB, 725-150050dB, Pin
View Details →

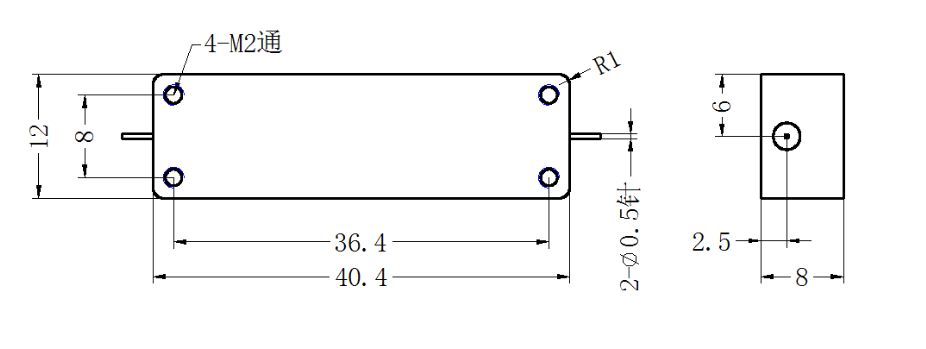

ZBF2-L645-310-2237 Filter

Filter ZBF2-L645-310-2237

Passband480~800MHz, DC-390MHz≥35dBc, 0.96-1.6GHz≥33dBc, Pin
View Details →
ZBF2-L497-26-3309 Filter

Filter ZBF2-L497-26-3309

Passband484~510MHz, DC-390MHz≥55dBc, 650-994MHz≥55dBc, SMA
View Details →

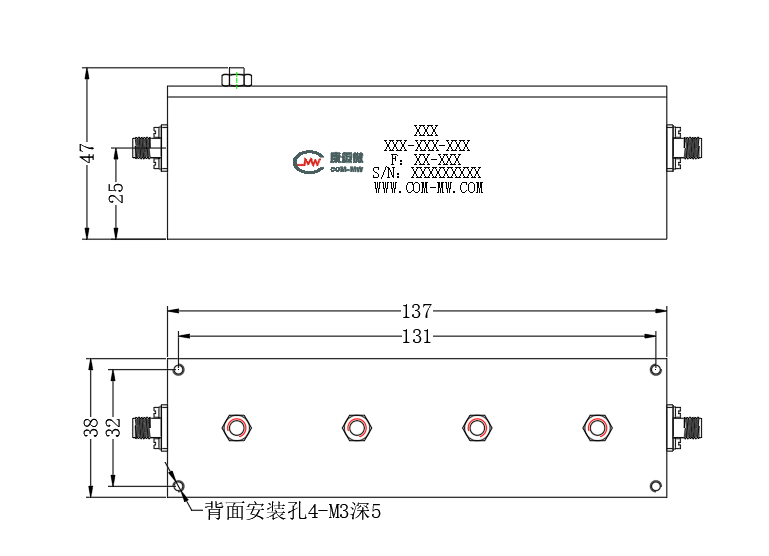

ZBF16-C480.125-1-322 Filter

Filter ZBF16-C480.125-1-322

Passband479.625~480.625MHz, DC~460.125MHz≥65dB, 500.125~800MHz≥65dB, SMA
View Details →
ZBF13-L550-140-3409 Filter

Filter ZBF13-L550-140-3409

Passband480~620MHz, DC-310MHz≥45dB, 720-1150MHz≥45dB, SMD
View Details →
ZBF13-L540.5-121-2473 Filter

Filter ZBF13-L540.5-121-2473

Passband480~601MHz, DC-0.42GHz≥40dBc, 0.67-2GHz≥40dBc, SMD
View Details →
ZBF13-L490-20-2229 Filter

Filter ZBF13-L490-20-2229

Passband480~500MHz, DC-450MHz≥60dB, 650-1000MHz≥60dB, Pin
View Details →
ATBF-500M-50M-L Filter

Filter ATBF-500M-50M-L

Passband475~525MHz, DC-420GHz≥40dB, 0.58-1.0GHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
