F Low：437.5 - 444.5 MHz× Clear all
matches 22 models Default Newest
ZBF13-L490-105-4014 Filter

Filter ZBF13-L490-105-4014

Passband437.5~542.5MHz, DC-355MHz≥40dB, 595MHz≥25dB, SMA
In Stock View Details →
ZBF5-L455-30-2332 Filter

Filter ZBF5-L455-30-2332

Passband440~470MHz, DC-405MHz≥40dB, 505-1500MHz≥40dB, SMD
In Stock View Details →
ZBF3-L510-140-4649 Filter

Filter ZBF3-L510-140-4649

Passband440~580MHz, DC-320MHz≥30dBc, 700-1000MHz≥30dBc, SMD
In Stock View Details →
ZBF5-L455-30-2310 Filter

Filter ZBF5-L455-30-2310

Passband440~470MHz, DC-400MHz≥40dB, 510-3000MHz≥40dB, SMA
In Stock View Details →
ZBF16-L450-22-049 Filter

Filter ZBF16-L450-22-049

Passband439-461MHz, 1.5GHz≥50dBc, 2-2.3GHz≥50dBc, SMD
In Stock View Details →
ZBF6-C453-30-4424 Filter

Filter ZBF6-C453-30-4424

Passband438~468MHz, DC-408MHz≥75dBc, 498-1500MHz≥75dBc, SMA
View Details →
ZBF5-L590-300-736 Filter

Filter ZBF5-L590-300-736

Passband440~740MHz, DC-240MHz≥50dB, 940-2400MHz≥50dB, SMA
View Details →
ZBF3-L510-140-3064 Filter

Filter ZBF3-L510-140-3064

Passband440~580MHz, DC-320MHz≥20dBc, 700-1000MHz≥30dBc, SMD
View Details →
ZBF3-L447-5-2426 Filter

Filter ZBF3-L447-5-2426

Passband444.5~499.5, 565-1000MHz≥30dB, MHz≥20dB, SMA
View Details →
ZBF20-L520-160-009 Filter

Filter ZBF20-L520-160-009

Passband440~600MHz, Passband IL2.50, 70-250MHz≥60dBc, 650-1100MHz≥30dBc, Passband VSWR1.50, SMA
View Details →
ZBF2-L720-560-2267 Filter

Filter ZBF2-L720-560-2267

Passband440~1000MHz, DC-150MHz≥40dBc, 1440-2520MHz≥50dBc, Pin
View Details →
ZBF2-C455-30-2719 Filter

Filter ZBF2-C455-30-2719

Passband440~470MHz, DC-345MHz≥80dBc, 345-415MHz≥60dBc, SMA
View Details →
ZBF2-C455-30-2718 Filter

Filter ZBF2-C455-30-2718

Passband440~470MHz, DC-345MHz≥80dBc, 345-415MHz≥60dBc, SMA
View Details →
ZBF16-C455-30-410 Filter

Filter ZBF16-C455-30-410

Passband440~470MHz, 465±50MHz≥50dBc, 900~3000MHz≥70dBc, SMA
View Details →
ZBF15-L480-84-321 Filter

Filter ZBF15-L480-84-321

Passband438~522MHz, F0±80MHz≥25dB, DC-340MHz≥65dBc, 860-1060MHz≥65dBc, Pin
View Details →
ZBF15-L480-84-204 Filter

Filter ZBF15-L480-84-204

Passband438~522MHz, DC-340MHz≥65dBc, 860-1060MHz≥65dBc, 1.4-3.5GHz≥80dB, GHz≥dB, Pin
View Details →
ZBF13-L620-360-3749 Filter

Filter ZBF13-L620-360-3749

Passband440~800MHz, DC-340MHz≥40dBc, 900-3000MHz≥40dBc, SMD
View Details →
ZBF13-L500-125-3765 Filter

Filter ZBF13-L500-125-3765

Passband437.5~562.5MHz, DC-200MHz≥50dBc, 2220-3000MHz≥55dBc, SMD
View Details →

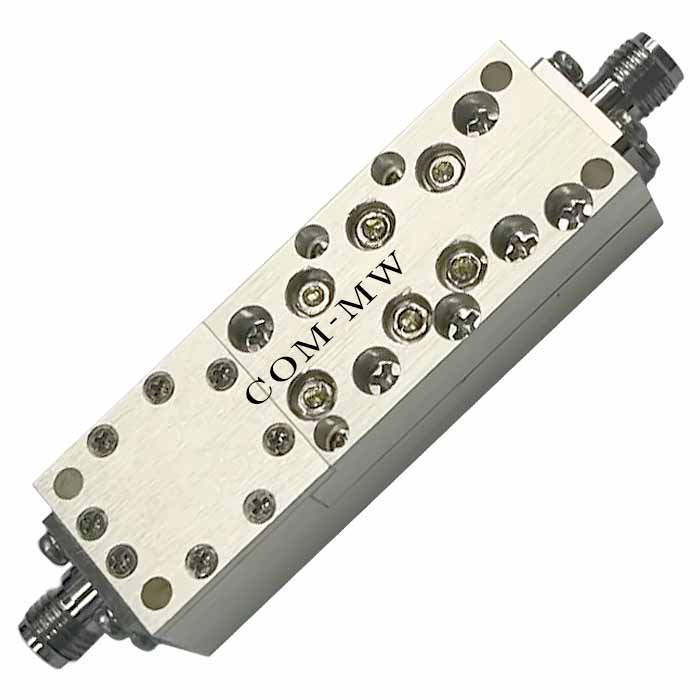

ZBF13-L490-105-3915 Filter

Filter ZBF13-L490-105-3915

Passband437.5~542.5MHz, 875-1627.5MHz≥20dB, 2155-3340MHz≥50dB, SMA
View Details →
ZBF13-L490-105-3914 Filter

Filter ZBF13-L490-105-3914

Passband437.5~542.5MHz, DC-355MHz≥25dB, 595-800MHz≥25dB, SMA
View Details →

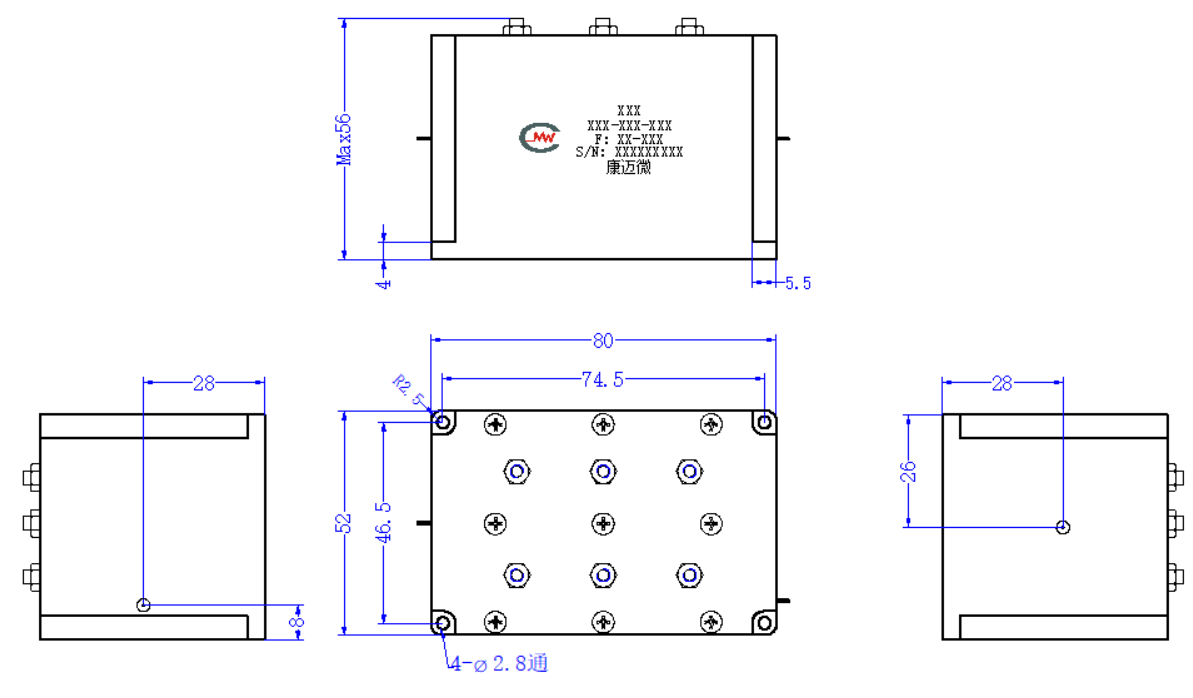

ZBF13-C460-40-2046 Filter

Filter ZBF13-C460-40-2046

Passband440~480MHz, 460±60MHz≥50dBc, 460±120MHz≥70dBc, Pin
View Details →
ZBF13-C455-30-3431 Filter

Filter ZBF13-C455-30-3431

Passband440~470MHz, DC-425MHz≥50dBc, 485-1000MHz≥50dBc, N
View Details →
