Filters
Filters 1
Feature
Bandpass 45 low pass 1 Highpass 4 Notch 2
F Low MHz
34 - 36 10 36.5 - 38.2 7 39 - 40.25 27 40.66 - 42.5 7 43.75 1
–
Center frequency MHz
36 - 42 12 42.5 - 46.52 15 47 - 52.5 8 55 - 67.5 6 70 4
–
F High MHz
36 - 40.6 10 40.7 - 50.5 10 51.75 - 60 16 65 - 98 9 100 - 1100 7
–
IL on center frequency dB
0.5 - 1 18 2 - 2.5 16 3 - 5 7 6 - 7 3 8 1
–
Maximum loss of side frequency dB
0.8 - 1.3 4 1.8 - 2.2 19 2.5 - 3.5 18 4 - 7 7 8 - 8.5 4
–
Rejection dB
12 - 25 6 30 - 35 5 40 - 45 27 50 - 55 6 60 - 100 8
–
Connector
SMD 36 SMA 14 Microstrip needle 2
Power Handling
0.5 - 1 30 2 - 5 19 10 - 15 3
–
Filter type
LC 51 stripline 1
F Low：34 - 43.75 MHz× Clear all
matches 52 models Default Newest
ZHPF5-L35-1100-3058 Filter

Filter ZHPF5-L35-1100-3058

Passband35~1100MHz, RejectionDC-20MHz≥35dB, SMD
In Stock View Details →
ZHPF5-L40-1100-3059 Filter

Filter ZHPF5-L40-1100-3059

Passband40~1100MHz, RejectionDC-20MHz≥35dB, SMD
In Stock View Details →
ZBF13-L46-20-266 Filter

Filter ZBF13-L46-20-266

Passband36~56MHz, DC-26MHz≥40dB, 66-300MHz≥40dB, SMD
In Stock View Details →
HF030 Filter

Filter HF030

Passband41~800MHz, 20-26MHz≥20dB, DC-20MHz≥40dB, SMA
In Stock View Details →
ZBF15-L70-60-858 Filter

Filter ZBF15-L70-60-858

Passband40~100MHz, DC-30MHz≥40dB, 125-1000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L46.5-20-2306 Filter

Filter ZBF5-L46.5-20-2306

Passband36.5~56.5MHz, DC-30.5MHz≥40dB, 64.5-500MHz≥40dB, SMA-K
In Stock View Details →
ZBF3-L70-56-1435 Filter

Filter ZBF3-L70-56-1435

Passband42~98MHz, DC-15MHz≥55dBc, 125-300MHz≥55dBc, SMD
In Stock View Details →
ZBF15-L46.52-20-725 Filter

Filter ZBF15-L46.52-20-725

Passband36.52~56.52MHz, , DC-30.52MHz≥40dB, 62.52MHz≥20dBc, SMD
In Stock View Details →
ZBF14-L70-60-713 Filter

Filter ZBF14-L70-60-713

Passband40~100MHz, DC-30MHz≥40dB, 120-800MHz≥40dB, SMA-K
In Stock View Details →
ZBF5-L46.52-20-1485 Filter

Filter ZBF5-L46.52-20-1485

Passband36.52~56.52MHz, DC-30.5MHz≥40dB, 62.5MHz≥30dB, SMD
In Stock View Details →
ZBF15-L42.5-2-1702 Filter

Filter ZBF15-L42.5-2-1702

Passband41.5~43.5MHz, DC-17.43MHz≥25dBc, 57.43-85.57MHz≥25dBc, SMD
In Stock View Details →
ZBF13-L47.75-15-1186 Filter

Filter ZBF13-L47.75-15-1186

Passband40.25~55.25MHz, 47.75±14.5MHz≥45dB, , SMD
In Stock View Details →
ZBF13-L46.52-15-1189 Filter

Filter ZBF13-L46.52-15-1189

Passband39.02~54.02MHz, 46.52±15.5MHz≥45dB, , SMD
In Stock View Details →
ZBF3-L67.5-55-1348 Filter

Filter ZBF3-L67.5-55-1348

Passband40~95MHz, dB, 120-1000MHz≥40dB, SMA
In Stock View Details →

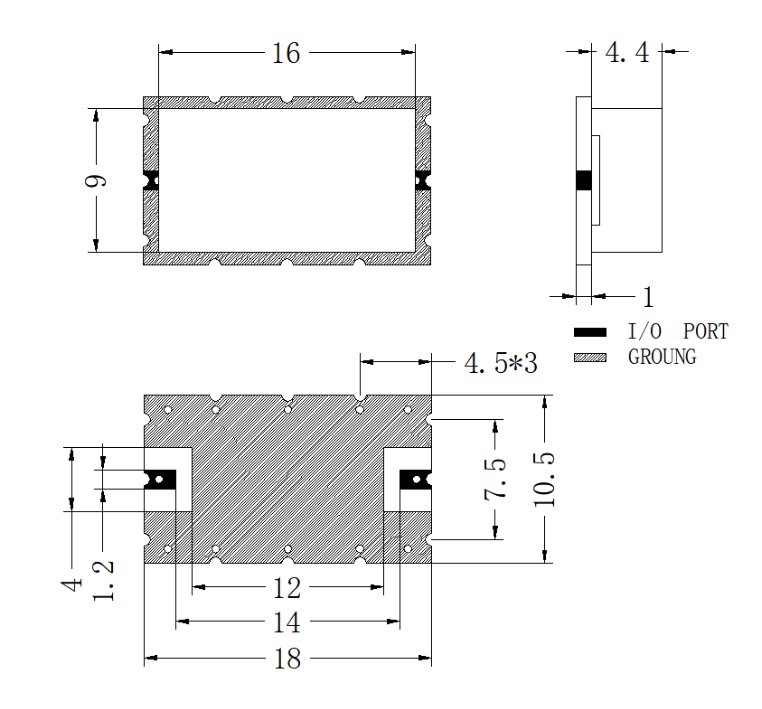

ZLPF2-L45-70-2163 Filter

Filter ZLPF2-L45-70-2163

Passband40~70MHz, 98-1000MHz≥45dBc, dB, SMD
View Details →
ZHPF3-L39-100-1743 Filter

Filter ZHPF3-L39-100-1743

Passband39~500MHz, DC-33MHz≥30dB, dB, SMD
View Details →
ZBSF6-L0-40-3834 Filter

Filter ZBSF6-L0-40-3834

Stopband F40MHz, ≥40dB, PassbandDC~37MHz, 43~300MHz, SMA
View Details →
ZBSF3-L40.66-40.7-3460 Filter

Filter ZBSF3-L40.66-40.7-3460

Stopband F40.66~40.7MHz, ≥40dB, PassbandDC~35.68MHz, 45.68~200MHz, SMA
View Details →
ZBF5-L60-50-1791 Filter

Filter ZBF5-L60-50-1791

Passband35~85MHz, DC-25MHz≥40dBc, 110-500MHz≥40dBc, Pin
View Details →
ZBF5-L52.5-25-1845 Filter

Filter ZBF5-L52.5-25-1845

Passband40~65MHz, DC-30MHz≥50dB, 80-200MHz≥50dB, SMA-K
View Details →
ZBF5-L50-20-2186 Filter

Filter ZBF5-L50-20-2186

Center Frequency50MHz, 1dB BW20~25MHz, DC-25MHz≥55dB, 75-200MHz≥55dB, SMD
View Details →
ZBF5-L50-20-2050 Filter

Filter ZBF5-L50-20-2050

Passband40~60MHz, DC-20MHz≥45dBc, 80-200MHz≥45dBc, SMA-K
View Details →
ZBF5-L50-20-2046 Filter

Filter ZBF5-L50-20-2046

Passband50MHz, 1dB BW20~23MHz, DC-5MHz≥50dB, 100-200MHz≥50dB, SMD
View Details →
ZBF3-L70-60-1975 Filter

Filter ZBF3-L70-60-1975

Passband40~100MHz, DC-25MHz≥30dB, 115-500MHz≥30dB, SMD
View Details →
