F Low：313.5 - 318 MHz× Clear all
matches 24 models Default Newest
ZBF6-C320-10-4144 Filter

Filter ZBF6-C320-10-4144

Passband315~325MHz, DC-305MHz≥40dB, 335~1400MHz≥40dB, SMA-K
In Stock View Details →
ZBSF6-C315-0-1621 Filter

Filter ZBSF6-C315-0-1621

Stopband F314~316MHz, ≥60dB, PassbandDC~285MHz, 345~1000MHz, SMA
View Details →
ZBSF6-C313.5-316.5-2081 Filter

Filter ZBSF6-C313.5-316.5-2081

Stopband F313.5~316.5MHz, ≥45dB, PassbandDC~283.5MHz, 346.5~1000MHz, SMA
View Details →
ZBF4-C315-2-1167 Filter

Filter ZBF4-C315-2-1167

Passband314~316MHz, 285MHz≥40dB, 345MHz≥40dB, SMA
View Details →
ZBF3-L375-120-3203 Filter

Filter ZBF3-L375-120-3203

Passband315~435MHz, DC-185MHz≥50dB, 565-1000MHz≥50dB, SMD
View Details →
ZBF20-L320-6-253 Filter

Filter ZBF20-L320-6-253

Passband317~323MHz, DC-290MHz≥40dBc, 350-500MHz≥40dBc, Pin
View Details →
ZBF2-C330-24-1814 Filter

Filter ZBF2-C330-24-1814

Passband318~342MHz, fo±30MHz≥40dB, dB,
View Details →
K6-315-315-30S502-006 Filter

Filter K6-315-315-30S502-006

Stopband F315~315MHz, ≥50dB, PassbandDC~285MHz, 345~1000MHz, SMA
View Details →
K6-315-315-30N50200-007 Filter

Filter K6-315-315-30N50200-007

Stopband F315~315MHz, ≥50dB, PassbandDC~285MHz, 345~1000MHz, N
View Details →

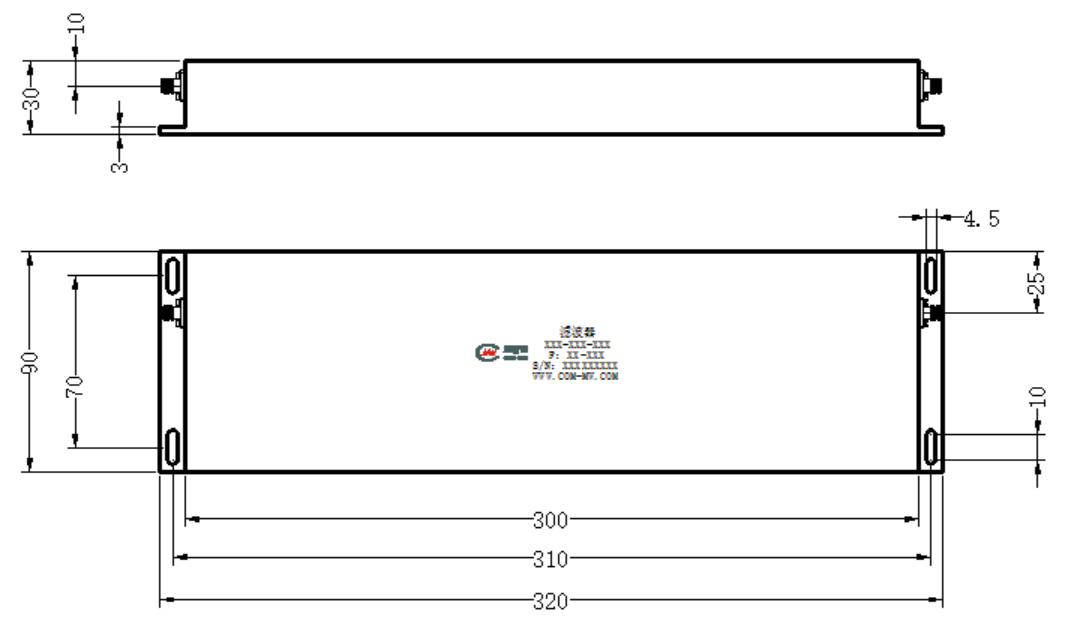

K6-315-315-10S602-004 Filter

Filter K6-315-315-10S602-004

Stopband F315~315MHz, ≥60dB, PassbandDC~305MHz, 325~1000MHz, SMA
View Details →
K6-315-315-10S502-002 Filter

Filter K6-315-315-10S502-002

Stopband F315~315MHz, ≥50dB, PassbandDC~305MHz, 325~1000MHz, SMA
View Details →
K6-315-315-10N60200-005 Filter

Filter K6-315-315-10N60200-005

Stopband F315~315MHz, ≥60dB, PassbandDC~305MHz, 325~1000MHz, N
View Details →

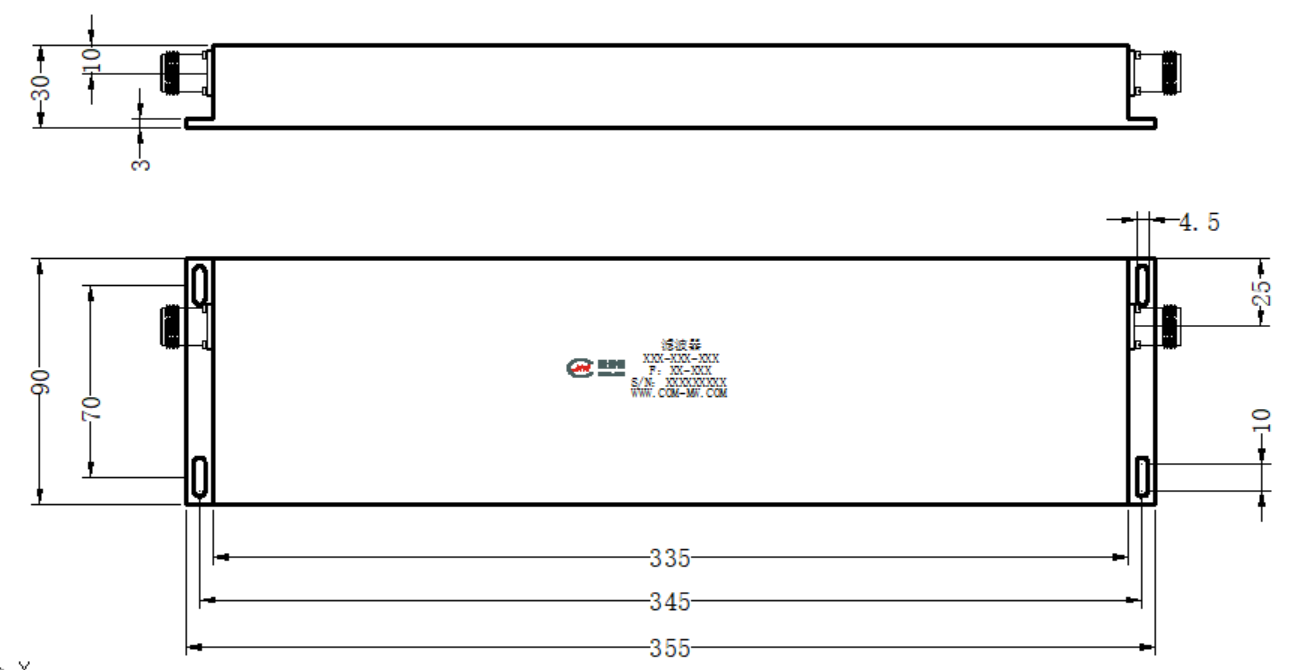

K6-315-315-10N50200-003 Filter

Filter K6-315-315-10N50200-003

Stopband F315~315MHz, ≥50dB, PassbandDC~305MHz, 325~1200MHz, N
View Details →
K6-315-315-1.5N80250-001 Filter

Filter K6-315-315-1.5N80250-001

Stopband F315~315MHz, ≥80dB, PassbandDC~313.5MHz, 316.5~1000MHz, N
View Details →
K6-313.5-316.5-30S605-012 Filter

Filter K6-313.5-316.5-30S605-012

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~283.5MHz, 346.5~1200MHz, N
View Details →
K6-313.5-316.5-30S605-011 Filter

Filter K6-313.5-316.5-30S605-011

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~283.5MHz, 346.5~1200MHz, SMA
View Details →
K6-313.5-316.5-30S505-007 Filter

Filter K6-313.5-316.5-30S505-007

Stopband F313.5~316.5MHz, ≥50dB, PassbandDC~283.5MHz, 346.6~1200MHz, SMA
View Details →
K6-313.5-316.5-30N50200-009 Filter

Filter K6-313.5-316.5-30N50200-009

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~283.5MHz, 346.5~1200MHz, N
View Details →

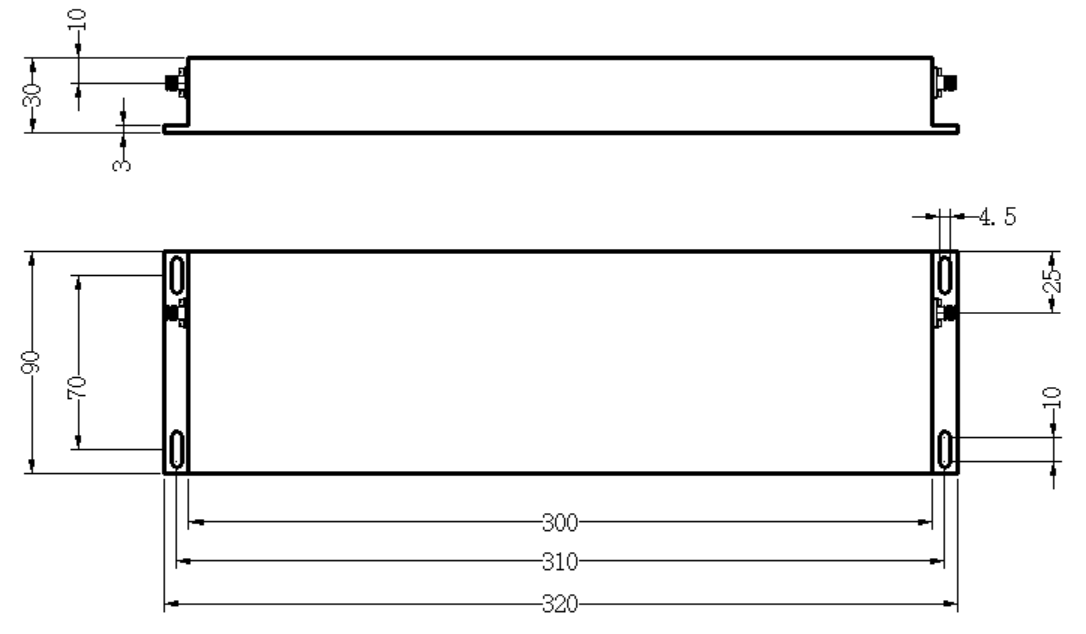

K6-313.5-316.5-10S605-004 Filter

Filter K6-313.5-316.5-10S605-004

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~303.5MHz, 326.5~1200MHz, SMA
View Details →
K6-313.5-316.5-10S505-001 Filter

Filter K6-313.5-316.5-10S505-001

Stopband F313.5~316.5MHz, ≥50dB, PassbandDC~303.5MHz, 326.5~1200MHz, SMA
View Details →
K6-313.5-316.5-10N605-005 Filter

Filter K6-313.5-316.5-10N605-005

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~303.5MHz, 326.5~1200MHz, N
View Details →

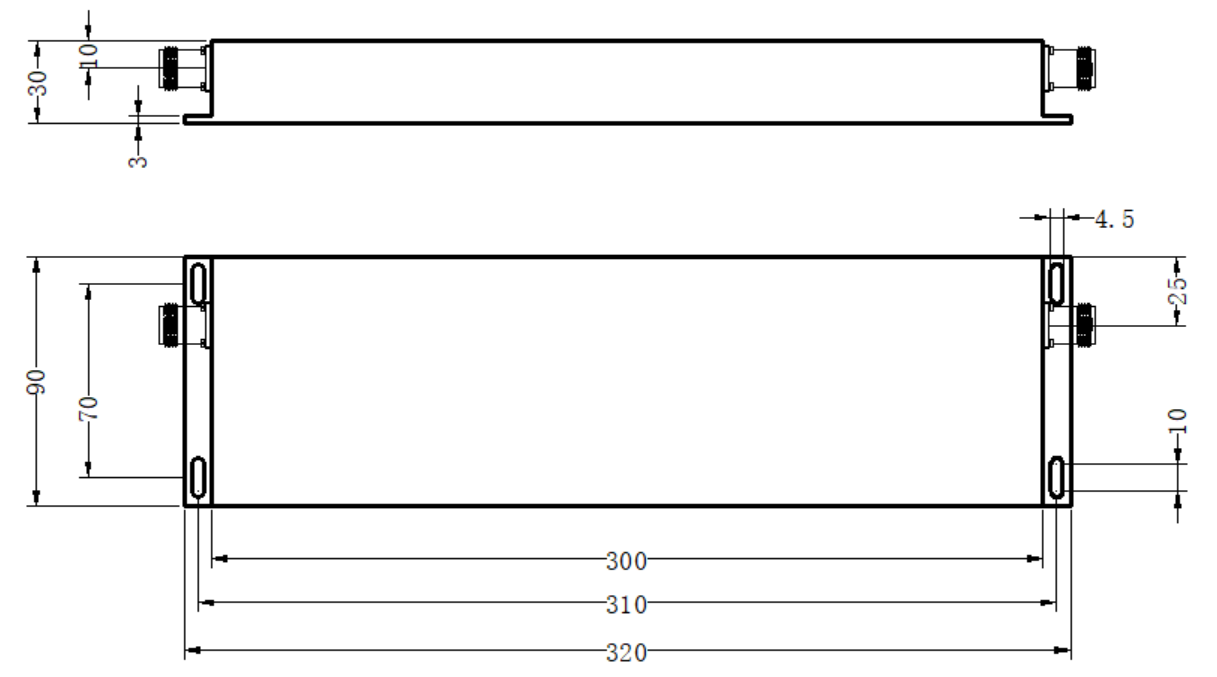

K6-313.5-316.5-10N60200-006 Filter

Filter K6-313.5-316.5-10N60200-006

Stopband F313.5~316.5MHz, ≥60dB, PassbandDC~303.5MHz, 326.5~1200MHz, N
View Details →
K6-313.5-316.5-10N505-002 Filter

Filter K6-313.5-316.5-10N505-002

Stopband F313.5~316.5MHz, ≥50dB, PassbandDC~303.5MHz, 326.5~1200MHz, N
View Details →

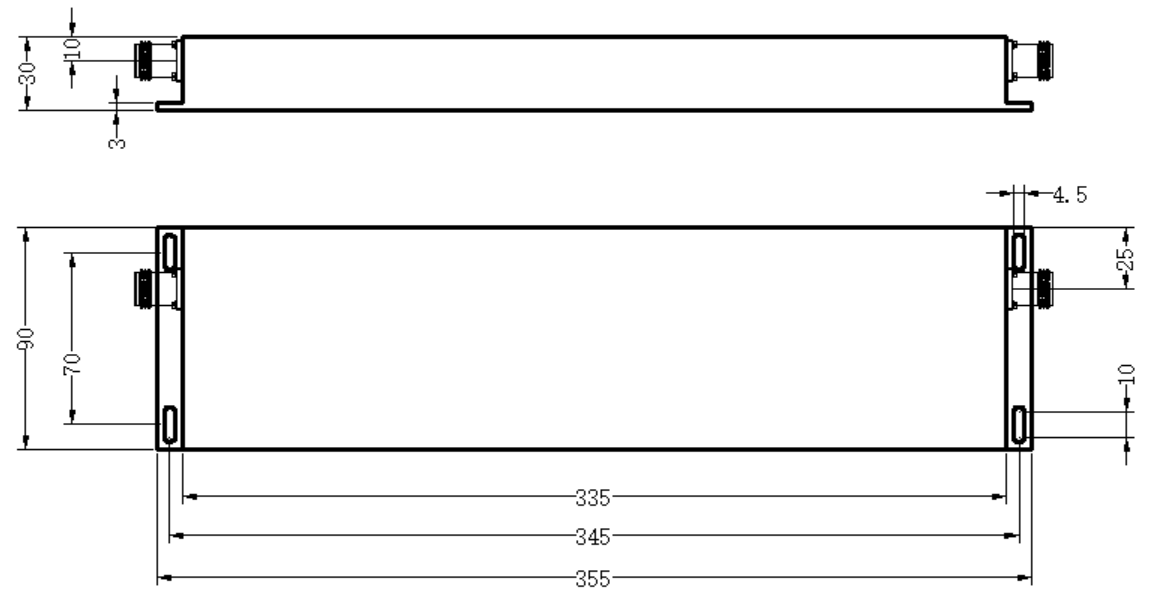

K6-313.5-316.5-10N50200-003 Filter

Filter K6-313.5-316.5-10N50200-003

Stopband F313.5~316.5MHz, ≥50dB, PassbandDC~303.5MHz, 326.5~1200MHz, N
View Details →
