RF Filter

Total 19 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 19
F Low MHz
215 5 217.5 1 220 11 222 1 222.2 1
–
Center frequency MHz
215 - 240 5 250 - 300 5 307.2 - 320 3 370 - 451 3 720 3
–
F High MHz
215 - 260 3 265 - 300 4 380 - 407.5 5 420 - 522 3 688 - 1220 4
–
IL on center frequency dB
0.5 1 1 11 1.2 1 2 6
–
Maximum loss of side frequency dB
1 - 1.2 2 1.5 - 2 10 2.5 - 3 7
–
Rejection dB
30 - 35 3 40 - 45 9 50 - 60 7
–
Connector
SMD 8 SMA 4 Microstrip needle 7
Power Handling
1 6 2 11 5 1 10 1
–
Filter type
LC 19
F Low：215 - 222.2 MHz× Clear all
matches 19 models Default Newest
ZBF5-L720-1000-3656 Filter

Filter ZBF5-L720-1000-3656

Passband220~1220MHz, DC-100MHz≥40dBc, 1500-3000MHz≥40dBc, SMA
In Stock View Details →
ZBF5-L720-1000-1102 Filter

Filter ZBF5-L720-1000-1102

Passband220~1220MHz, DC-100MHz≥40dBc, 1500-3000MHz≥40dBc, Pin
View Details →
ZBF5-L320-200-918 Filter

Filter ZBF5-L320-200-918

Passband220~420MHz, DC-160MHz≥40dBc, 520-1000MHz≥40dBc, Pin
View Details →
ZBF5-L300-140-1559 Filter

Filter ZBF5-L300-140-1559

Center Frequency300MHz, 1dB BW140~170MHz, DC-183MHz≥25dBc, 433-500MHz≥25dBc, SMD
View Details →
ZBF5-L250-60-676 Filter

Filter ZBF5-L250-60-676

Passband220~280MHz, DC-150MHz≥40dBc, 350-500MHz≥40dBc, Pin
View Details →
ZBF5-L240-50-1699 Filter

Filter ZBF5-L240-50-1699

Passband215~265MHz, DC-140MHz≥40dB, 340-1000MHz≥40dB, Pin
View Details →
ZBF5-L215-0-3676 Filter

Filter ZBF5-L215-0-3676

Passband215MHz, 265-700MHz≥60dB, SMD
View Details →
ZBF3-L307.2-170-4268 Filter

Filter ZBF3-L307.2-170-4268

Passband222.2~392.2MHz, DC-187MHz≥35dB, 427-1000MHz≥35dB, SMD
View Details →
ZBF20-L260-80-008 Filter

Filter ZBF20-L260-80-008

Passband220~300MHz, Passband IL2.50dB, 70-150MHz≥60dBc, 400-1100MHz≥60dBc, Passband VSWR1.50, SMA
View Details →
ZBF20-L220-0-348 Filter

Filter ZBF20-L220-0-348

Passband215~225MHz, DC-190MHz≥45dBc, 250-1000MHz≥45dBc, SMA
View Details →
ZBF2-L312.5-190-2202 Filter

Filter ZBF2-L312.5-190-2202

Passband217.5~407.5MHz, DC-140MHz≥50dBc, 500-2325MHz≥50dBc, Pin
View Details →
ZBF15-L372.5-300-1304 Filter

Filter ZBF15-L372.5-300-1304

Passband222.5~522.5MHz, DC-190MHz≥30dBc, 570-3000MHz≥30dB, SMD
View Details →
ZBF15-L370-300-017 Filter

Filter ZBF15-L370-300-017

Passband220~520MHz, DC-100MHz≥40dBc, 614.4MHz≥40dBc, SMD
View Details →
ZBF15-L300-160-1024 Filter

Filter ZBF15-L300-160-1024

Passband220~380MHz, DC-180MHz≥40dBc, 420-1200MHz≥40dBc, SMD
View Details →
ZBF15-L240-40-540 Filter

Filter ZBF15-L240-40-540

Passband220~260MHz, DC-180MHz≥50dBc, 300-3000MHz≥50dBc, SMD
View Details →

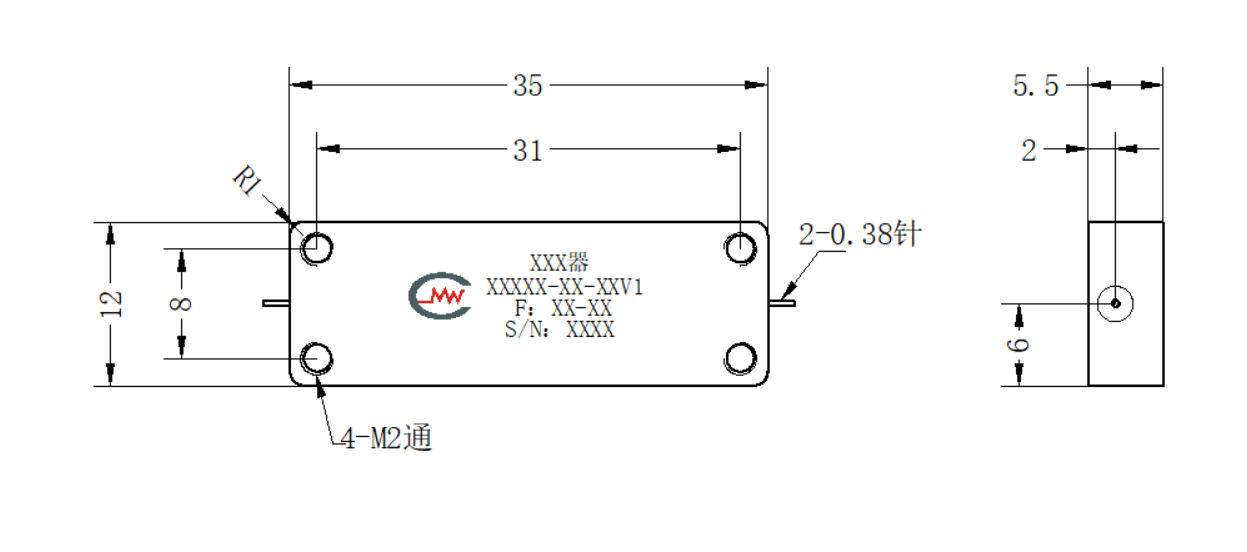

ZBF13-L720-1000-1130 Filter

Filter ZBF13-L720-1000-1130

Passband220~1220MHz, 100-140MHz≥10dBc, 1420-1560MHz≥10dBc, Pin
View Details →
ZBF13-L451.5-453-2276 Filter

Filter ZBF13-L451.5-453-2276

Passband215~688MHz, DC-175MHz≥40dBc, 850-2100MHz≥40dBc, SMA
View Details →
ZBF13-L240-50-2119 Filter

Filter ZBF13-L240-50-2119

Passband215~265MHz, F0±120MHz≥50dBc, SMD
View Details →
ZBF-L300-120-B1 Filter

Filter ZBF-L300-120-B1

Passband220~380MHz, DC-110MHz≥30dB, 440-800MHz≥30dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
