Filters
Filters 1
Feature
Bandpass 29 Highpass 1 Notch 1
F Low MHz
21500 23 21580 1 21600 4 21650 2 21675 1
–
Center frequency MHz
21800 - 22200 22 22250 - 22600 3 22850 - 24000 3 24050 - 30000 2
–
F High MHz
21950 - 22400 3 22500 - 22850 20 23500 - 24200 3 25800 - 30000 4 38500 1
–
IL on center frequency dB
1 - 2 25 3 - 4 3 4.8 - 5.4 2
–
Maximum loss of side frequency dB
1.5 - 1.6 3 2 - 2.5 16 3 - 3.5 7 4 - 5 3 5.8 - 6.5 2
–
Rejection dB
40 - 45 5 48 - 50 11 55 - 60 6 65 - 70 8 75 1
–
Connector
SMA 9 2.92 1 Microstrip pad 6 Microstrip needle 15
Power Handling
1 - 2 7 3.16 - 5 9 10 - 15 15
–
Filter type
Cavity&waveguide 24 stripline 1 Thin film 3 MEMS 3
F Low：21500 - 21675 MHz× Clear all
matches 31 models Default Newest
STBP220-0R9-M658 Thin film filter

Thin film filter STBP220-0R9-M658

Bandwidth21.5-22.4GHz, Rejection40@DC-20.5GHz, 40@23.5-30.0GHz
In Stock View Details →
STBP226-2R0-M206 Thin film filter

Thin film filter STBP226-2R0-M206

Bandwidth21.6-23.6GHz, Rejection40@DC-19.3GHz, 40@25.3-47.0GHz
In Stock View Details →
WLMX218222K Filter

Filter WLMX218222K

Passband21500~22500MHz, 20.45&23.75GHz≥30dB, 20.3&23.9GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
WLMX215225K Filter

Filter WLMX215225K

Passband21500~22500MHz, 20.5&23.55GHz≥30dB, 19.45&24.35GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
WLMX215225-2K Filter

Filter WLMX215225-2K

Passband21500~22500MHz, 20.7&23.25GHz≥30dB, 20.65&23.35GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP237-4R2-M311 Thin film filter

Thin film filter STBP237-4R2-M311

Bandwidth21.6-25.8GHz, Rejection40@DC-18.6GHz, 40@29.2-36.0GHz
In Stock View Details →
ZBF25-C22-1G-215 Filter

Filter ZBF25-C22-1G-215

Passband21.5~22.5GHz, DC-20.5GHz≥50dB, 23.5-44GHz≥50dB, SMA
In Stock View Details →
ZBF6-C22000-1000-1009 Filter

Filter ZBF6-C22000-1000-1009

Passband21.5~22.5GHz, DC-20GHz≥60dB, 23.5-40GHz≥60dB, SMA-KDetachable
In Stock View Details →
ZBF25-C22-1G-212 Filter

Filter ZBF25-C22-1G-212

Passband21.5~22.5GHz, DC-20.4GHz≥50dB, 20.4-21GHz≥30dB, SMA
In Stock View Details →

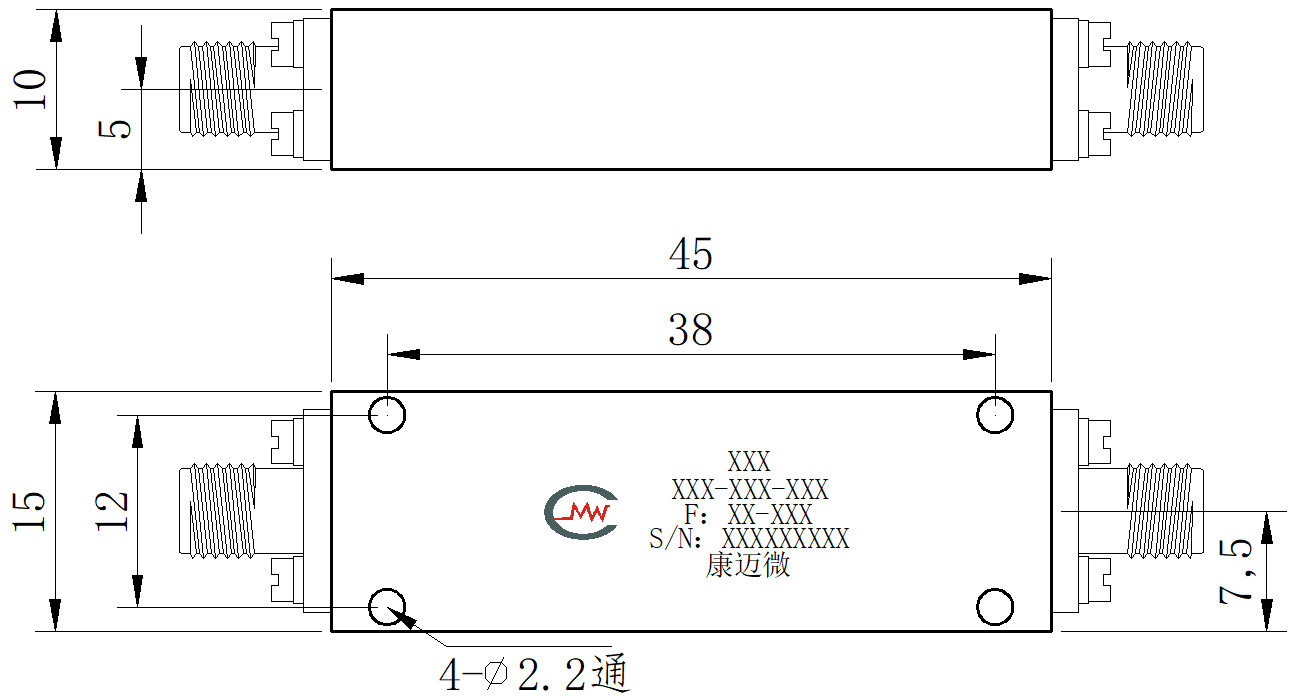

ZHPF4-M21.6-30G-1342 Filter

Filter ZHPF4-M21.6-30G-1342

Passband21.6~30GHz, DC-18GHz≥50dB, dB, SMA
View Details →
ZBF8-C22-1G-3186 Filter

Filter ZBF8-C22-1G-3186

Passband21.5~22.5GHz, DC-15GHz≥50dBc, 15-19.35GHz≥35dBc, Pin
View Details →
ZBF8-C22-1G-2969 Filter

Filter ZBF8-C22-1G-2969

Passband21.5~22.5GHz, 15G-19.35GHz≥35dBc, 24.7G-26GHz≥48dBc, Pin
View Details →
ZBF5-C30-17G-2111 Filter

Filter ZBF5-C30-17G-2111

Passband21.5~38.5GHz, DC-19GHz≥40dB, 42-50GHz≥45dB, 2.92
View Details →
ZBF5-C22.25-1.2G-1976 Filter

Filter ZBF5-C22.25-1.2G-1976

Passband21.65~22.85GHz, DC-20.5GHz≥60dB, 23.25-23.5GHz≥35dB, SMA
View Details →

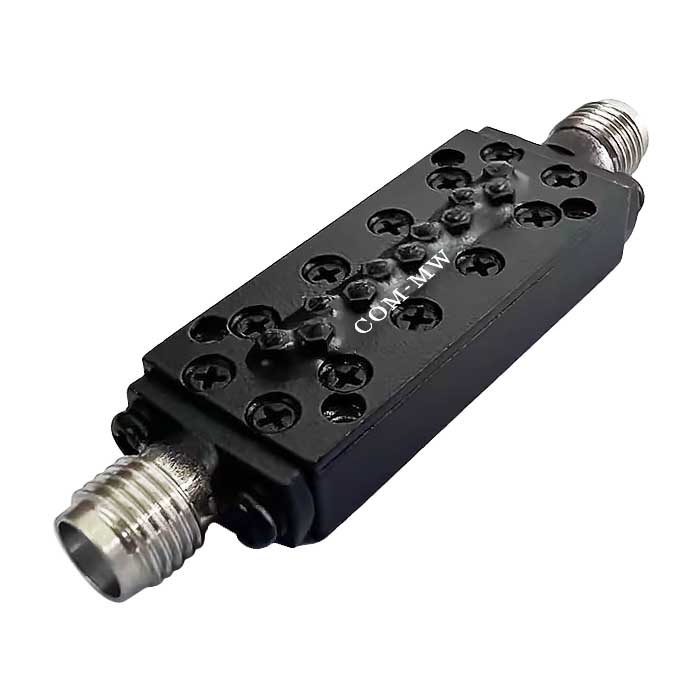

ZBF5-C22-1G-2824 Filter

Filter ZBF5-C22-1G-2824

Passband21.5~22.5GHz, DC-21GHz≥50dBc, 22.6-35GHz≥35dBc, SMA
View Details →
ZBF5-C22-1G-2495 Filter

Filter ZBF5-C22-1G-2495

Passband21.5~22.5GHz, DC-18GHz≥60dB, 23GHz≥50dB, SMA
View Details →
ZBF5-C21.8-0.44G-415 Filter

Filter ZBF5-C21.8-0.44G-415

Passband21.58~22.02GHz, 20-20.8GHz≥55dBc, 22.8-37GHz≥55dBc, SMA
View Details →
ZBF4-C22.5-2G-157 Filter

Filter ZBF4-C22.5-2G-157

Passband21.5~23.5GHz, DC-18GHz≥55dBc, 23.8-35GHz≥45dBc, Pin
View Details →
ZBF4-C22.2-1.05G-1457 Filter

Filter ZBF4-C22.2-1.05G-1457

Passband21.675~22.725GHz, DC-21GHz≥55dBc, 23-30GHz≥70dBc, Pin
View Details →

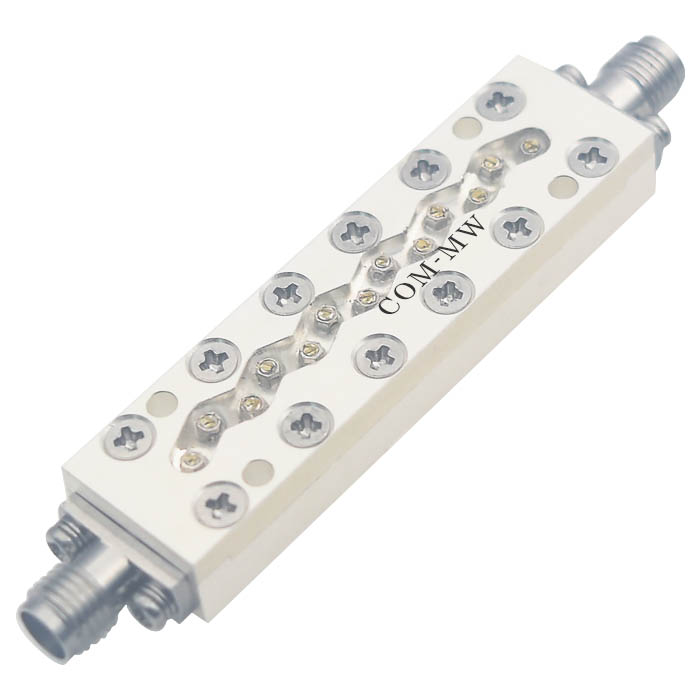

ZBF25-C22-1G-897 Filter

Filter ZBF25-C22-1G-897

Passband21.5~22.5GHz, DC-21GHz≥65dB, 23-40GHz≥65dB, SMA
View Details →
ZBF2-C22-1G-2026 Filter

Filter ZBF2-C22-1G-2026

Passband21.5~22.5GHz, DC-20.2GHz≥65dBc, 22.8-40GHz≥30dBc, Pin
View Details →

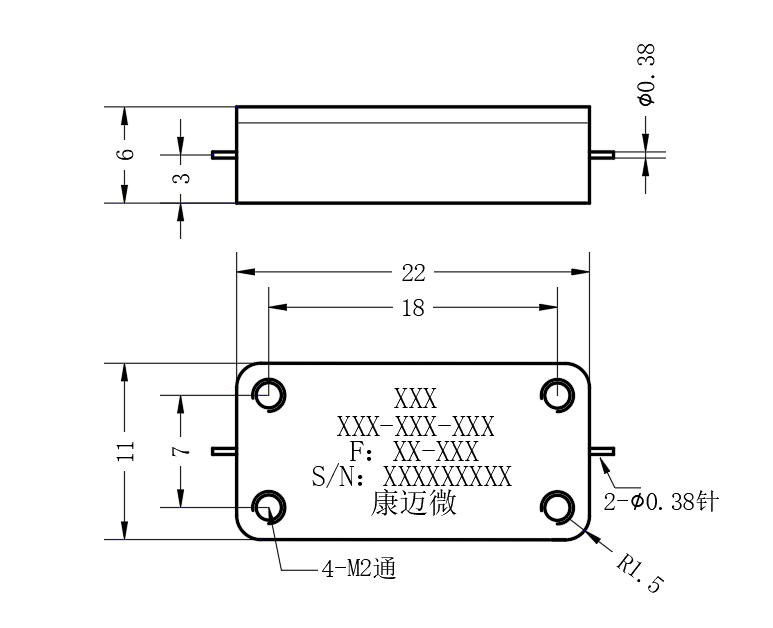

ZBF14-C22-1G-702 Filter

Filter ZBF14-C22-1G-702

View Details →

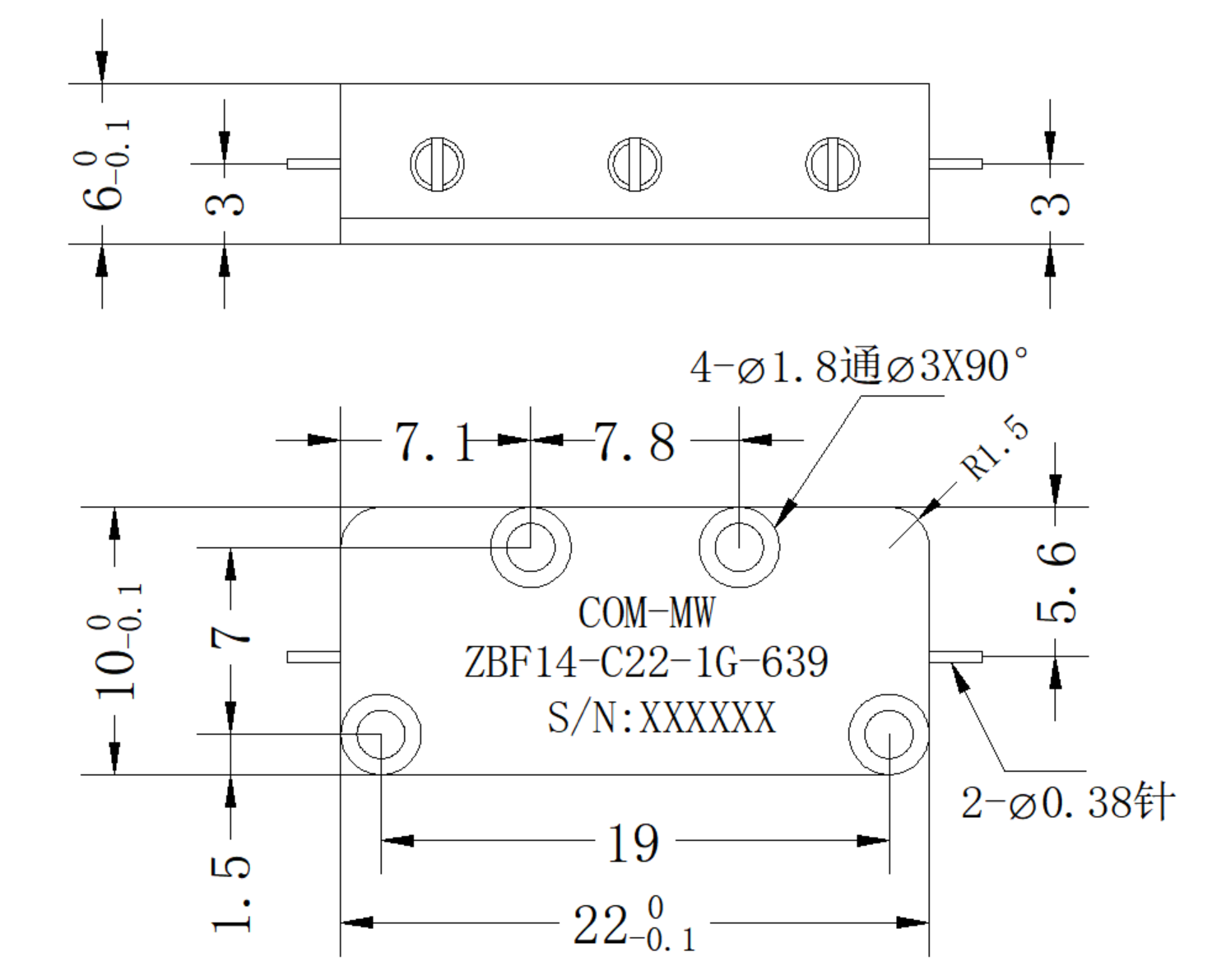

ZBF14-C22-1G-639 Filter

Filter ZBF14-C22-1G-639

Passband21.5~22.5GHz, DC-19GHz≥52dBc, 24-30GHz≥50dBc, Pin
View Details →
ZBF13-C24.05-4.9G-2557 Filter

Filter ZBF13-C24.05-4.9G-2557

Passband21.6~26.5GHz, DC-19GHz≥50dBc, 19-20.3GHz≥40dBc, Pin
View Details →
