Filters
Filters 1
Feature
Notch 12
F Low MHz
1877.5 1 1878.5 1 1879.7 1 1879.8 5 1879.9 4
–
F High MHz
1880.1 4 1880.2 5 1880.3 1 1881.5 1 1882.5 1
–
Maximum loss of side frequency dB
0.75 - 1 3 1.5 - 2 3 2.5 - 3 6
–
Rejection dB
40 7 45 1 50 3 55 1
–
Connector
SMA 10 N 2
Power Handling
15 2 50 9 150 1
–
Filter type
Cavity&waveguide 12
F Low：1877.5 - 1879.9 MHz× Clear all
matches 12 models Default Newest
ZBSF6-C1879.9-1880.1-6133 Filter

Filter ZBSF6-C1879.9-1880.1-6133

Stopband F1879.9~1880.1MHz, ≥45dB, PassbandDC~1878.2MHz, 1881.8~4000MHz, SMA
View Details →

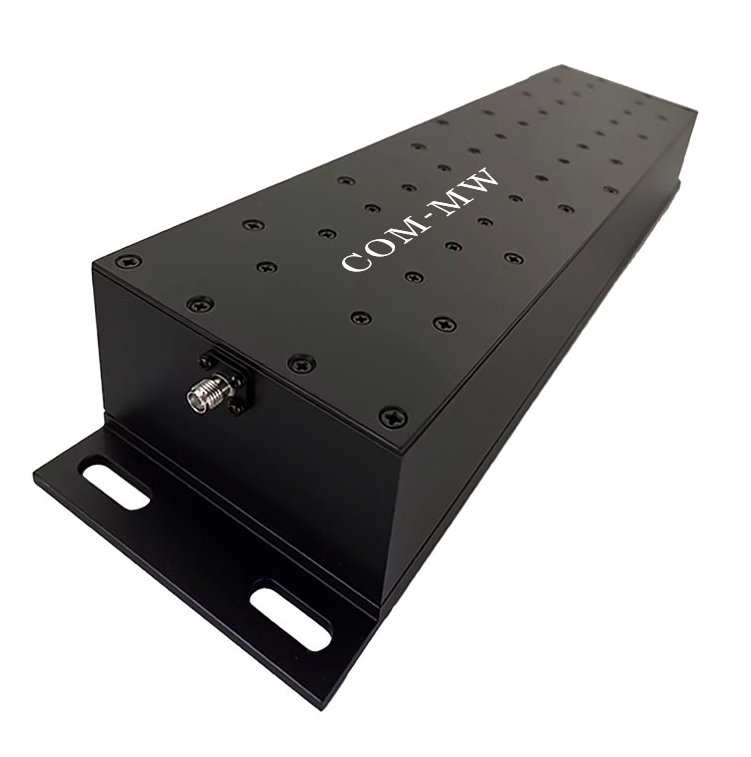

ZBSF6-C1879.9-1880.1-5926 Filter

Filter ZBSF6-C1879.9-1880.1-5926

Stopband F1879.9~1880.1MHz, ≥40dB, PassbandDC~1878.3MHz, 1881.7~4000MHz, SMA
View Details →

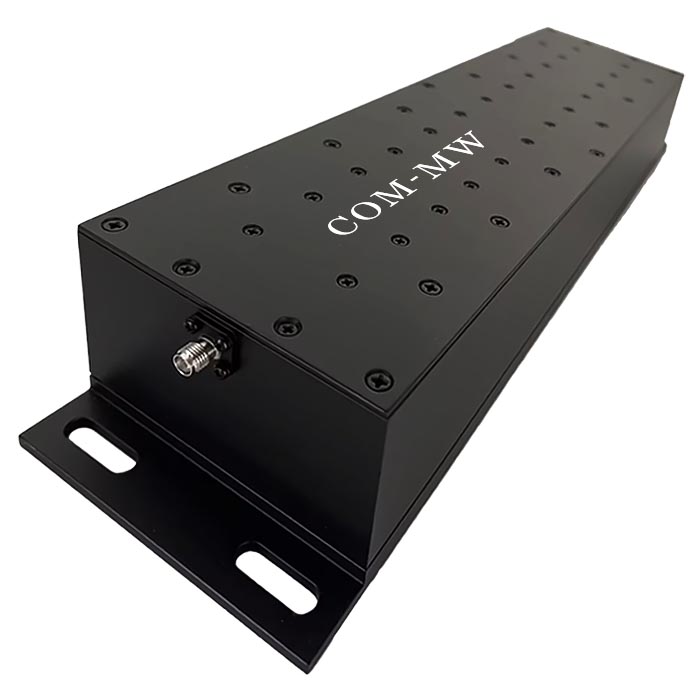

ZBSF6-C1879.9-1880.1-4094 Filter

Filter ZBSF6-C1879.9-1880.1-4094

Stopband F1879.9~1880.1MHz, ≥50dB, PassbandDC~1878.1MHz, 1881.9~4000MHz, SMA
View Details →
ZBSF6-C1879.9-1880.1-2606 Filter

Filter ZBSF6-C1879.9-1880.1-2606

Stopband F1879.9~1880.1MHz, ≥50dB, PassbandDC~1869.9MHz, 1890.1~4000MHz, SMA
View Details →

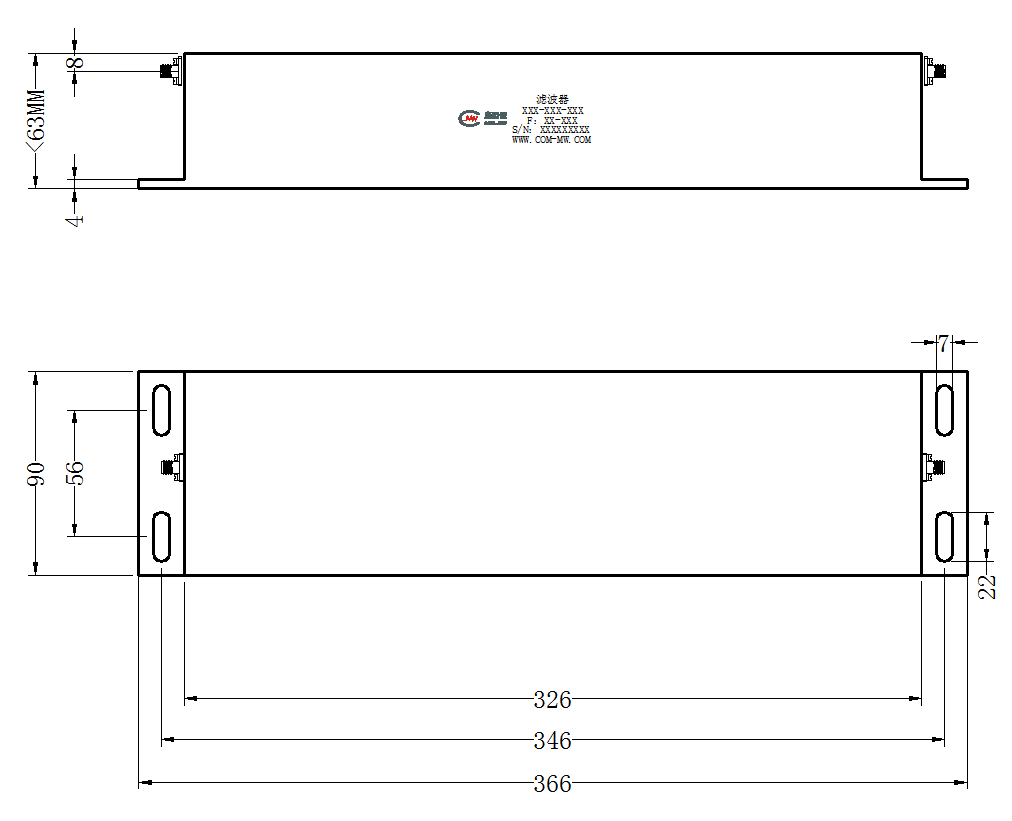

ZBSF6-C1879.8-1880.2-3153 Filter

Filter ZBSF6-C1879.8-1880.2-3153

Stopband F1879.8~1880.2MHz, ＞40dB, PassbandDC~1878.4MHz, 1881.6~3000MHz, SMA
View Details →
ZBSF6-C1879.7-1880.3-4665 Filter

Filter ZBSF6-C1879.7-1880.3-4665

Stopband F1879.7~1880.3MHz, ≥40dB, PassbandDC~1878.2MHz, 1881.8~4000MHz, SMA
View Details →

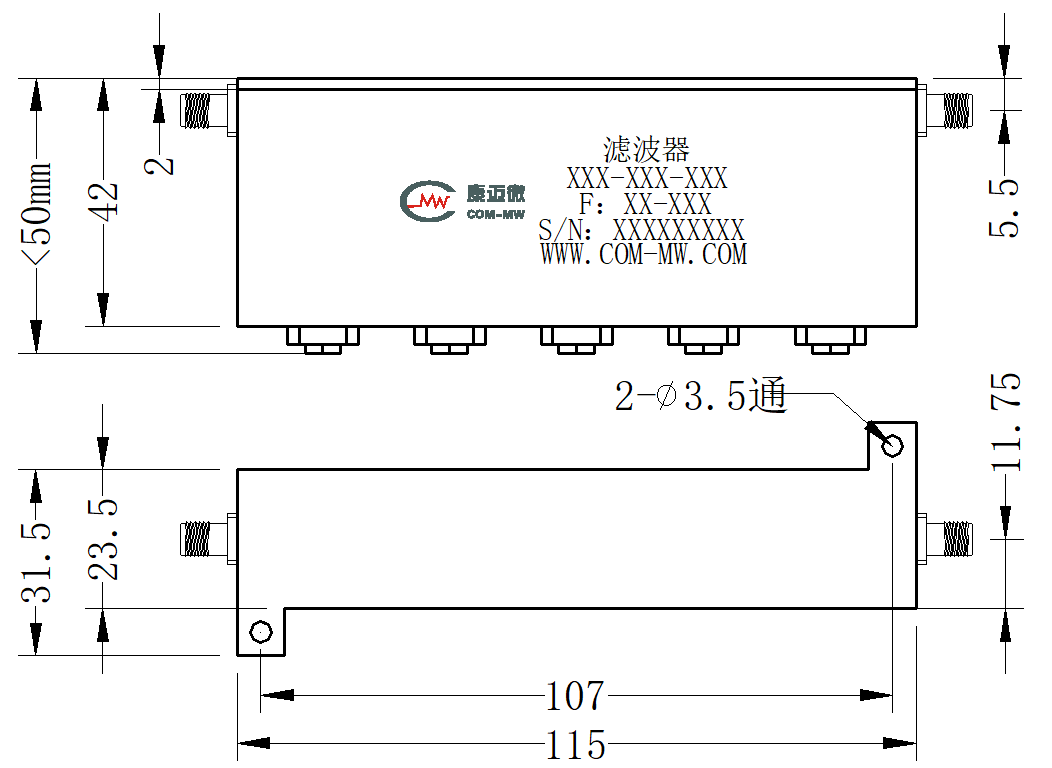

ZBSF6-C1878.5-1881.5-3157 Filter

Filter ZBSF6-C1878.5-1881.5-3157

Stopband F1878.5~1881.5MHz, ≥40dB, PassbandDC~1860MHz, 1900~5000MHz, SMA
View Details →

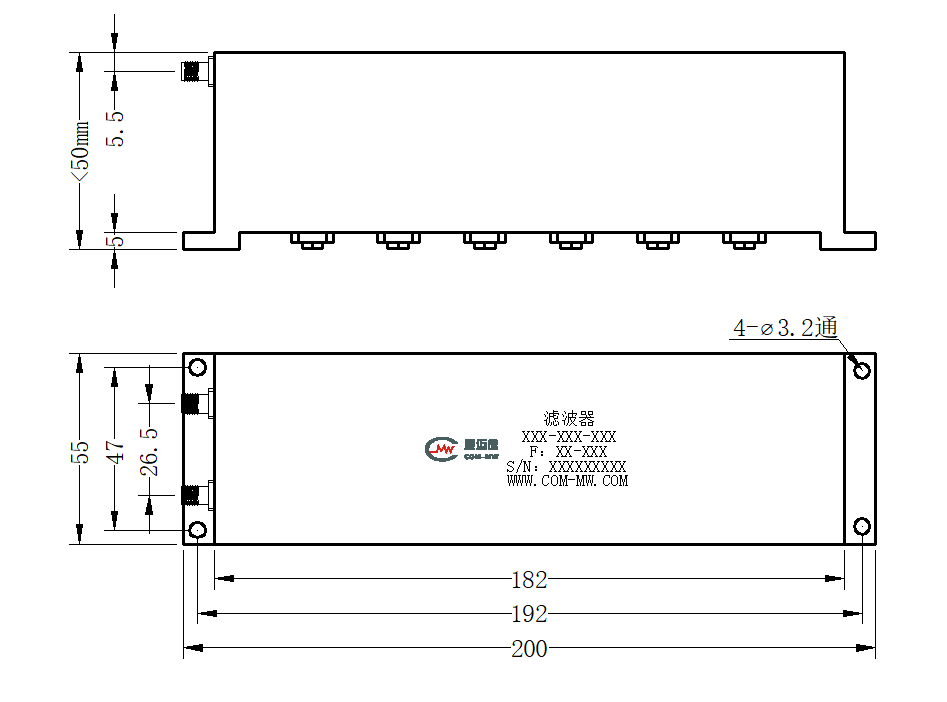

ZBSF6-C1877.5-1882.5-4024 Filter

Filter ZBSF6-C1877.5-1882.5-4024

Stopband F1877.5~1882.5MHz, ≥55dB, PassbandDC~1867.5MHz, 1892.5~3500MHz, SMA
View Details →
K6-1879.8-1880.2-5S5050-003 Filter

Filter K6-1879.8-1880.2-5S5050-003

Stopband F1879.8~1880.2MHz, ≥50dB, PassbandDC~1874.8MHz, 1885.2~4000MHz, SMA
View Details →
K6-1879.8-1880.2-5N50150-004 Filter

Filter K6-1879.8-1880.2-5N50150-004

Stopband F1879.8~1880.2MHz, ≥50dB, PassbandDC~1874.8MHz, 1885.2~4000MHz, N
View Details →
K6-1879.8-1880.2-3S4050-001 Filter

Filter K6-1879.8-1880.2-3S4050-001

Stopband F1879.8~1880.2MHz, ≥40dB, PassbandDC~1876.8MHz, 1883.2~4000MHz, SMA
View Details →
K6-1879.8-1880.2-3N4050-002 Filter

Filter K6-1879.8-1880.2-3N4050-002

Stopband F1879.8~1880.2MHz, ≥40dB, PassbandDC~1876.8MHz, 1883.2~4000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
