RF Filter

Total 16 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 5 Notch 11
F Low MHz
1852 1 1852.4 1 1860 6 1865 3 1870 5
–
Center frequency MHz
1880 1 1920 3 2065 1
–
F High MHz
1875 - 1890 9 1900 - 1907.6 2 1908 - 1975 4 2270 1
–
IL on center frequency dB
1 2 2 3
–
Maximum loss of side frequency dB
2 5 2.5 6 3 4 3.1 1
–
Rejection dB
40 1 50 5 55 1 60 9
–
Connector
SMA 8 N 4 Microstrip needle 4
Power Handling
1 5 15 1 50 6 100 2 150 2
–
Filter type
LC 4 Cavity&waveguide 12
F Low：1852 - 1870 MHz× Clear all
matches 16 models Default Newest
ZBSF6-C1870-1890-3179 Filter

Filter ZBSF6-C1870-1890-3179

Stopband F1870~1890MHz, ≥50dB, PassbandDC~1860MHz, 1900~4000MHz, SMA
View Details →
ZBSF6-C1852.4-1907.6-4555 Filter

Filter ZBSF6-C1852.4-1907.6-4555

Stopband F1852.4~1907.6MHz, ≥40dB, PassbandDC~1842.4MHz, 1917.6~4000MHz, SMA
View Details →
ZBF3-L2065-410-627 Filter

Filter ZBF3-L2065-410-627

Passband1860~2270MHz, DC-1200MHz≥60dB, 3000-4000MHz≥60dB, Pin
View Details →

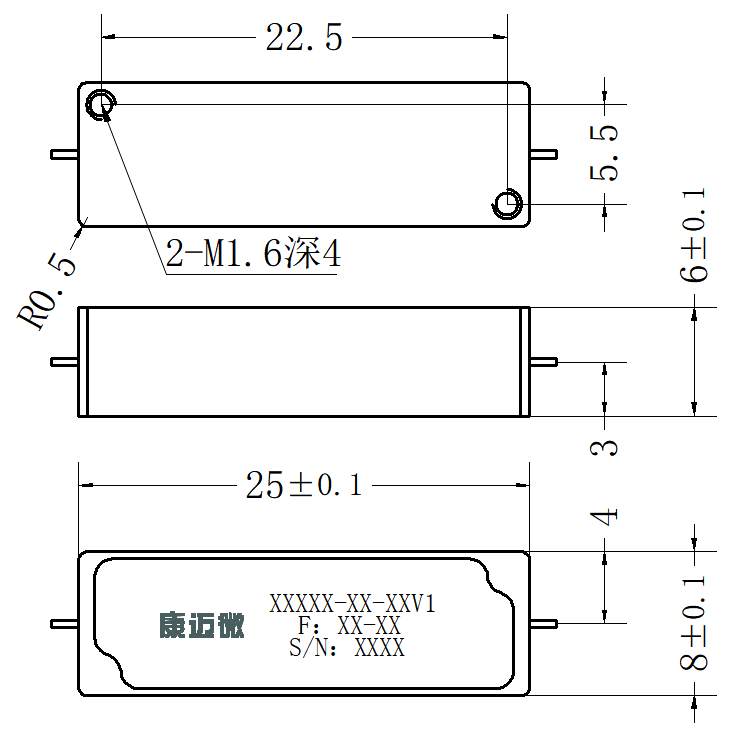

ZBF3-L1920-110-4246 Filter

Filter ZBF3-L1920-110-4246

Passband1865~1975MHz, DC-1550MHz≥60dB, 2600-4000MHz≥60dB, Pin
View Details →
ZBF3-L1920-110-3770 Filter

Filter ZBF3-L1920-110-3770

Passband1865~1975MHz, DC-1696MHz≥60dB, 2150-4000MHz≥60dB, Pin
View Details →
ZBF3-L1920-110-2148 Filter

Filter ZBF3-L1920-110-2148

Passband1865~1975MHz, DC-1690MHz≥60dB, 2150-5000MHz≥60dB, Pin
View Details →

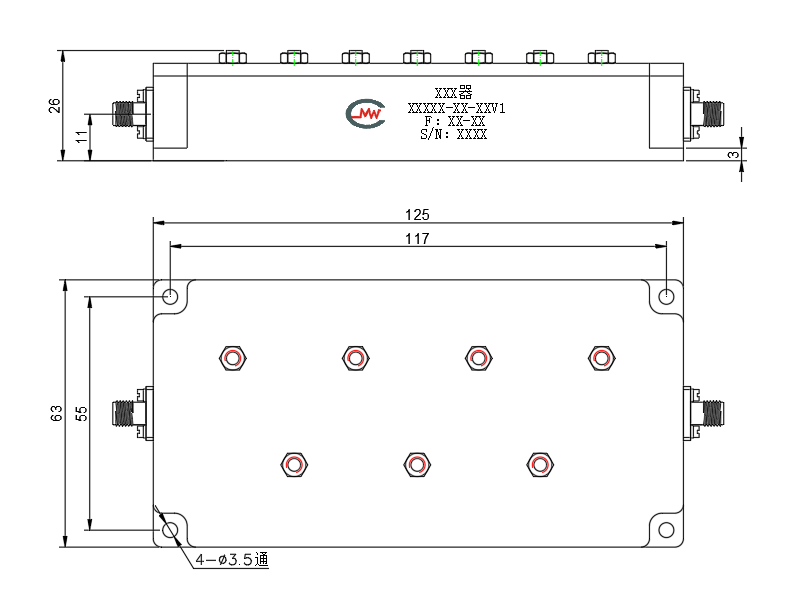

ZBF16-C1880-40-217 Filter

Filter ZBF16-C1880-40-217

Passband1860~1900MHz, DC~1837MHz≥60dBc, 1923~3500MHz≥60dBc, SMA
View Details →
K6-1870-1890-8S5050-001 Filter

Filter K6-1870-1890-8S5050-001

Stopband F1870~1890MHz, ≥50dB, PassbandDC~1862MHz, 1898~4500MHz, SMA
View Details →
K6-1870-1890-8N5050-002 Filter

Filter K6-1870-1890-8N5050-002

Stopband F1870~1890MHz, ≥50dB, PassbandDC~1862MHz, 1898~4500MHz, N
View Details →
K6-1870-1890-15S60100-003 Filter

Filter K6-1870-1890-15S60100-003

Stopband F1870~1890MHz, ≥60dB, PassbandDC~1855MHz, 1905~6000MHz, SMA
View Details →
K6-1870-1890-15N60150-004 Filter

Filter K6-1870-1890-15N60150-004

Stopband F1870~1890MHz, ≥60dB, PassbandDC~1855MHz, 1905~6000MHz, N
View Details →
K6-1860-1875-8S5050-001 Filter

Filter K6-1860-1875-8S5050-001

Stopband F1860~1875MHz, ≥50dB, PassbandDC~1852MHz, 1883~4500MHz, SMA
View Details →
K6-1860-1875-8N5050-002 Filter

Filter K6-1860-1875-8N5050-002

Stopband F1860~1875MHz, ≥50dB, PassbandDC~1852MHz, 1883~4500MHz, N
View Details →
K6-1860-1875-15S60100-003 Filter

Filter K6-1860-1875-15S60100-003

Stopband F1860~1875MHz, ≥60dB, PassbandDC~1845MHz, 1890~6000MHz, SMA
View Details →
K6-1860-1875-15N60150-004 Filter

Filter K6-1860-1875-15N60150-004

Stopband F1860~1875MHz, ≥60dB, PassbandDC~1845MHz, 1890~6000MHz, N
View Details →
B2/1852-1908 Notch filter

Notch filter B2/1852-1908

Stopband F1852~1908MHz, ≥55dB, PassbandDC~1812MHz, 1948~4500MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
