RF Filter

Total 21 models
Categories
Categories RF Filter
RF Filter16037
RF Filter15365 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller641
Limiter77 RF Switch359 Equalizer45 Switching filter62 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 21
F Low MHz
1650 21
–
Center frequency MHz
1670 - 1700 2 1750 - 1800 9 1900 - 1915 2 1925 - 2250 4 2400 4
–
F High MHz
1690 - 1750 2 1850 - 1950 9 2150 - 2180 2 2200 - 2850 4 3150 4
–
IL on center frequency dB
1 8 2 12 10 1
–
Maximum loss of side frequency dB
1.5 - 2 7 2.5 - 2.7 3 3 - 3.5 10 11 1
–
Rejection dB
30 2 40 6 50 5 60 7 65 1
–
Connector
SMD 2 SMA 4 Microstrip needle 15
Power Handling
1 9 2 10 5 2
–
Filter type
LC 20 Cavity&waveguide 1
F Low：1650 - 1650 MHz× Clear all
matches 21 models Default Newest
ZBF15-L1800-300-859 Filter

Filter ZBF15-L1800-300-859

Passband1650~1950MHz, DC-1450MHz≥40dBc, 2150-5000MHz≥40dBc, SMA
In Stock View Details →
ZBF15-L1800-300-862 Filter

Filter ZBF15-L1800-300-862

Passband1650~1950MHz, DC-1400MHz≥40dBc, 2200-5000MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L1750-200-1071 Filter

Filter ZBF15-L1750-200-1071

Passband1650~1850MHz, DC-1500MHz≥40dB, 2020-5500MHz≥40dB, SMA
In Stock View Details →
ZBF5-L1800-300-2205 Filter

Filter ZBF5-L1800-300-2205

Passband1650~1950MHz, 2400-5000MHz≥50dB, Pin
View Details →
ZBF5-L1750-200-1519 Filter

Filter ZBF5-L1750-200-1519

Passband1650~1850MHz, DC-1500MHz≥40dBc, 1500-1550MHz≥20dBc, Pin
View Details →
ZBF5-L1700-100-1604 Filter

Filter ZBF5-L1700-100-1604

Passband1650~1750MHz, DC-1450MHz≥60dBc, 3000-3300MHz≥50dBc, Pin
View Details →
ZBF5-L1670-15-2054 Filter

Filter ZBF5-L1670-15-2054

Center Frequency1670MHz, 1dB BW15~40MHz, 1625MHz≥38dBc, 1715MHz≥40dBc, SMA
View Details →
ZBF5-C2400-1500-2147 Filter

Filter ZBF5-C2400-1500-2147

Passband1650~3150MHz, 1550-1600MHz≥50dB, 3200-3250MHz≥50dB, SMA
View Details →
ZBF3-L2400-1500-1907 Filter

Filter ZBF3-L2400-1500-1907

Passband1650~3150MHz, DC-900MHz≥40dB, 3900-5000MHz≥40dB, Pin
View Details →
ZBF3-L2250-1200-2407 Filter

Filter ZBF3-L2250-1200-2407

Passband1.65~2.85GHz, DC-1.3GHz≥30dBc, 3.2-5GHz≥30dBc, Pin
View Details →
ZBF3-L2250-1200-2005 Filter

Filter ZBF3-L2250-1200-2005

Passband1650~2850MHz, DC-1425MHz≥50dB, 3100-5000MHz≥50dB, Pin
View Details →
ZBF3-L2250-1200-1921 Filter

Filter ZBF3-L2250-1200-1921

Passband1650~2850MHz, DC-1350MHz≥30dB, 3150-5000MHz≥30dB, Pin
View Details →
ZBF3-L1925-550-4584 Filter

Filter ZBF3-L1925-550-4584

Passband1650~2200MHz, DC-1000MHz≥20dBc, 2800-4500MHz≥20dBc, SMD
View Details →
ZBF3-L1800-300-599 Filter

Filter ZBF3-L1800-300-599

Passband1650~1950MHz, DC-1100MHz≥30dB, 3300-5000MHz≥60dB, Pin
View Details →
ZBF15-L2400-1500-419 Filter

Filter ZBF15-L2400-1500-419

Passband1650~3150MHz, DC-1000MHz≥30dBc, 4900-6750MHz≥55dBc, Pin
View Details →
ZBF15-L2400-1500-1804 Filter

Filter ZBF15-L2400-1500-1804

Passband1650~3150MHz, DC-700MHz≥40dB, 900MHz≥30dB, 4600MHz≥40dB, 4700-7000MHz≥45dB, Pin
View Details →
ZBF15-L1750-200-570 Filter

Filter ZBF15-L1750-200-570

Passband1650~1850MHz, DC-1.4GHz≥60dBc, 2.08GHz≥40dBc, Pin
View Details →
ZBF15-L1750-200-548 Filter

Filter ZBF15-L1750-200-548

Passband1650~1850MHz, DC-1.2GHz≥60dB, 2.05-2.4GHz≥40dB,
View Details →
ZBF15-L1750-200-1778 Filter

Filter ZBF15-L1750-200-1778

Passband1650~1850MHz, DC-1250MHz≥65dBc, 1350-1550MHz≥35dBc, Pin
View Details →
ZBF13-L1915-530-2169 Filter

Filter ZBF13-L1915-530-2169

Passband1650~2180MHz, DC-1.55GHz≥41dBc, 2.4-3.3GHz≥41dBc, Pin
View Details →

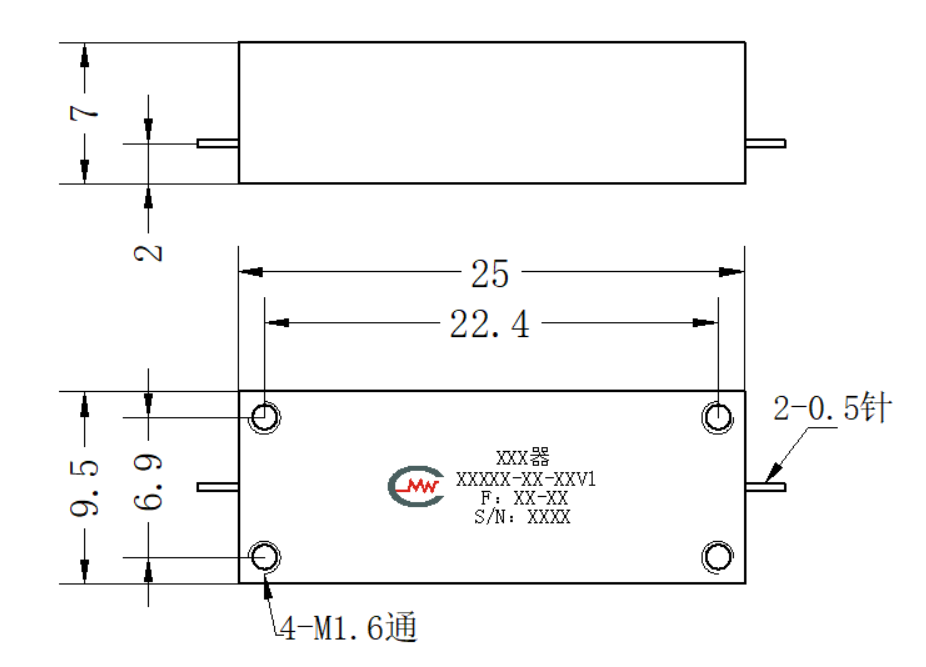

ZBF13-L1900-500-2003 Filter

Filter ZBF13-L1900-500-2003

Passband1650~2150MHz, DC-1.5GHz≥41dBc, 2.3-3.3GHz≥41dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
