RF Filter

Total 613 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 503 low pass 8 Highpass 28 Notch 74
F Low MHz
1265 - 1327 157 1330 - 1410 144 1415 - 1447 108 1447.9 - 1492.5 63 1495 - 1550 141
–
Center frequency MHz
1200 - 1402 78 1410 - 1473.5 84 1474 - 1544.5 95 1550 - 1690 82 1700 - 4500 160
–
F High MHz
1204 - 1430 67 1432 - 1500 135 1505 - 1625 120 1626 - 2200 147 2220 - 18000 144
–
IL on center frequency dB
0.2 - 0.5 88 0.6 - 1 212 1.5 - 2.5 135 3 - 4.5 52 5 - 8.5 10
–
Maximum loss of side frequency dB
0.3 - 1 103 1.2 - 2 224 2.2 - 3.4 199 3.5 - 6 80 6.5 - 10 7
–
Rejection dB
14 - 29.999 23 30 - 42 216 43 - 50 180 52 - 75 169 80 - 100 23
–
Connector
Other 16 SMD 100 SMA 241 N 40 Microstrip pad 13 Microstrip needle 193 SMP 6 TNC 2
Power Handling
0.1 - 2 317 3 - 10 137 12 - 31.62 62 40 - 100 84 150 - 500 13
–
Filter type
LC 346 Cavity&waveguide 207 stripline 22 MEMS 1 MMIC 2 Dielectric 29 FBAR 5
F Low：1265 - 1550 MHz× Clear all
matches 613 models Default Newest
ZBF5-L1800-1000-2279 Filter

Filter ZBF5-L1800-1000-2279

Passband1300~2300MHz, DC-1000MHz≥40dB, 2700-3500MHz≥40dB, SMD
In Stock View Details →
ZBF5-L1800-1000-3388 Filter

Filter ZBF5-L1800-1000-3388

Passband1300~2300MHz, DC-1.1GHz≥40dB, 2.5-5.5GHz≥40dB, SMD
In Stock View Details →
BF064 Filter

Filter BF064

Passband1350~1650MHz, DC-750MHz≥20dB, 2160-3700MHz≥20dB, SMD, Substitutes SXBP-1500+
In Stock View Details →
ZBF9-D1450-100-3248 Filter

Filter ZBF9-D1450-100-3248

Passband1400~1500MHz, DC-1350MHz≥40dB, 1550-2100MHz≥40dB, SMD
In Stock View Details →
WLD014031K Filter

Filter WLD014031K

Passband1400~3050MHz, 950MHz≥35dBc, 3750MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
WLD013020K Filter

Filter WLD013020K

Passband1300~2150MHz, 1030MHz≥25dBc, 2500MHz≥25dBc, Microstrip pad, MMIC
In Stock View Details →
ZHPF5-L1.4-6G-3112 Filter

Filter ZHPF5-L1.4-6G-3112

Passband1.4~6GHz, RejectionDC-1.15GHz≥35dB, SMD
In Stock View Details →
ZBF15-L2000-1000-632 Filter

Filter ZBF15-L2000-1000-632

Passband1500~2500MHz, DC-1200MHz≥40dBc, 2900-5000MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L1525-350-1076 Filter

Filter ZBF15-L1525-350-1076

Passband1350~1700MHz, DC-1210MHz≥40dB, 1890-5800MHz≥40dB, SMA
In Stock View Details →
ZBF13-L1800-500-1544 Filter

Filter ZBF13-L1800-500-1544

Passband1550~2050MHz, DC-1.35GHz≥40dB, 2.3-5GHz≥40dB, SMD
In Stock View Details →
ZBF15-L1700-600-634 Filter

Filter ZBF15-L1700-600-634

Passband1400~2000MHz, DC-1120MHz≥40dBc, 2350-5000MHz≥40dBc, SMD
In Stock View Details →

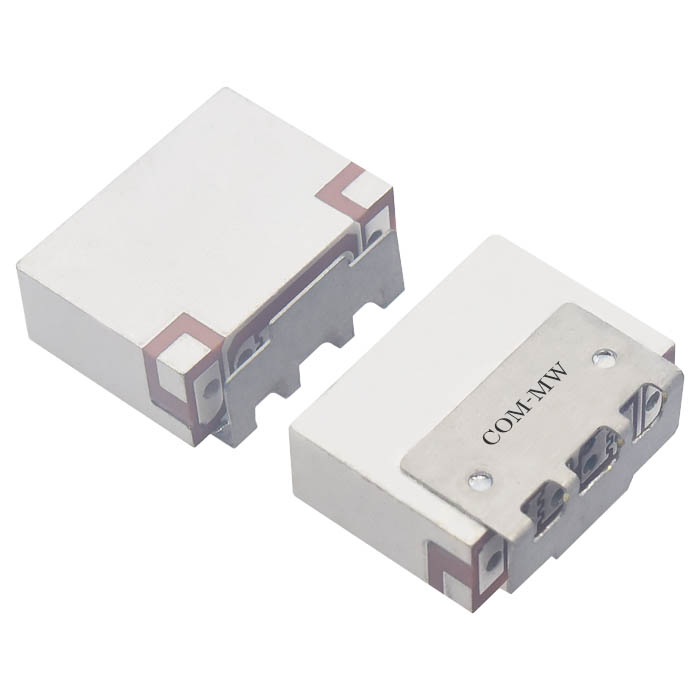

ZBF9-D1400-180-2923 Filter

Filter ZBF9-D1400-180-2923

Passband1310~1490MHz, DC-1210MHz≥45dBc, 1590MHz≥45dBc, SMD
In Stock View Details →
ZBF16-C1585-70-360 Filter

Filter ZBF16-C1585-70-360

Passband1550~1620MHz, DC~1280MHz≥70dB, 1280~1400MHz≥60dB, 2000~6000MHz≥60dB, SMA
In Stock View Details →
ZBF14-L1800-600-770 Filter

Filter ZBF14-L1800-600-770

Passband1500~2100MHz, DC-1200MHz≥40dB, 2520-5000MHz≥40dB, SMD
In Stock View Details →
ZBF9-D1550-100-3249 Filter

Filter ZBF9-D1550-100-3249

Passband1500~1600MHz, DC-1450MHz≥40dB, 1650-2200MHz≥40dB, SMD
In Stock View Details →
WLMF1550B020AK Filter

Filter WLMF1550B020AK

Passband1550MHz, DC-1.5GHz≥3540dB, 1.6-3GHz≥3550dB, Microstrip pad, FBAR
In Stock View Details →
WLMF1500B000AK Filter

Filter WLMF1500B000AK

Passband1500MHz, 1.4GHz≥4050dB, 1.6GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
WLMF1400B050AK Filter

Filter WLMF1400B050AK

Passband1400MHz, 1.3GHz≥2528dB, 1.5GHz≥2528dB, Microstrip pad, FBAR
In Stock View Details →
WLMF1400B009AK Filter

Filter WLMF1400B009AK

Passband1400MHz, 1.373GHz≥2025dB, 1.427GHz≥2025dB, Microstrip pad, FBAR
In Stock View Details →

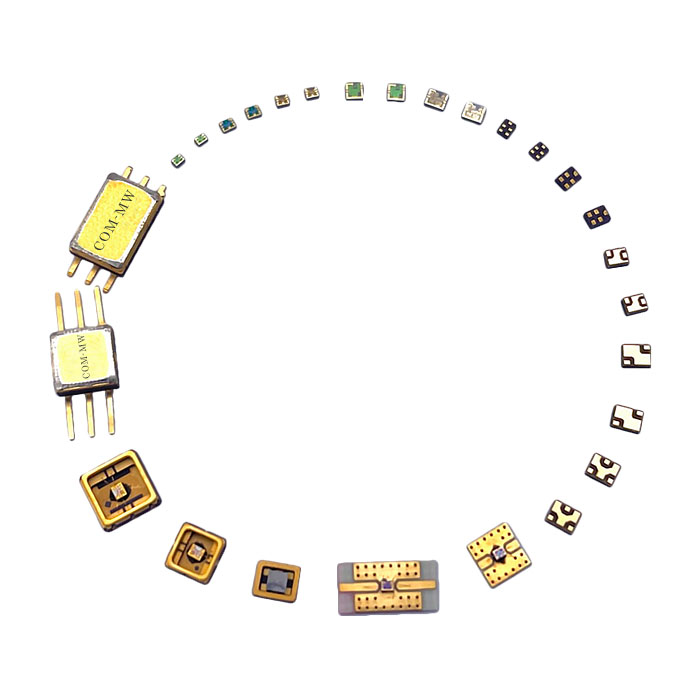

WLMF1400B000AK Filter

Filter WLMF1400B000AK

Passband1400MHz, 1.3GHz≥4050dB, 1.5GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
ZBF15-L1.8-1G-671 Filter

Filter ZBF15-L1.8-1G-671

Passband1.3~2.3GHz, DC-1.2GHz≥30dB, 2.4-6.5GHz≥30dB, 2.4-6.5GHz≥27dB,
In Stock View Details →

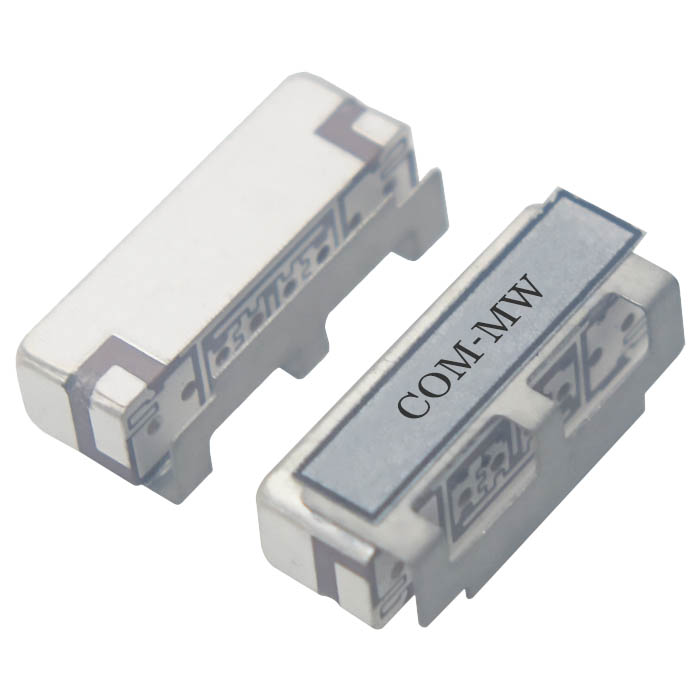

ZBF9-D1350-100-3247 Filter

Filter ZBF9-D1350-100-3247

Passband1300~1400MHz, DC-1250MHz≥40dB, 1450MHz≥40dB, SMD
In Stock View Details →
ZBF13-D1290-50-3265 Filter

Filter ZBF13-D1290-50-3265

Passband1265~1315MHz, 965-1015MHz≥65dB, 1015-1140MHz≥85dB, SMD
In Stock View Details →
ZBF5-L1575.5-103-2322 Filter

Filter ZBF5-L1575.5-103-2322

Passband1524~1627MHz, DC-1424MHz≥40dB, 1727-7000MHz≥40dB, SMA
In Stock View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
