Filters
Filters 1
Feature
Bandpass 59 Notch 4
F Low MHz
1447.9 - 1452.5 20 1454 - 1462.5 12 1468 - 1477 8 1480 - 1487 12 1490 - 1492.5 11
–
Center frequency MHz
1450 - 1470 6 1474 - 1500 33 1501 - 1670 6 1675 - 1950 9 2000 - 2500 4
–
F High MHz
1450 - 1487.5 9 1495 - 1520 18 1525 - 1583 17 1710 - 2420 11 2450 - 3025 8
–
IL on center frequency dB
0.3 - 0.5 7 1 - 2 37 3 - 4 9 4.5 - 6 4 7.5 1
–
Maximum loss of side frequency dB
0.6 - 1.5 15 1.6 - 2.5 22 2.8 - 4 17 4.3 - 5.5 5 6 - 8.5 4
–
Rejection dB
20 - 35 13 40 - 45 14 50 - 55 13 60 - 70 19 75 - 100 4
–
Connector
Other 1 SMD 6 SMA 25 N 2 Microstrip needle 29
Power Handling
1 - 2 32 5 - 10 18 20 - 30 6 50 - 80 5 100 - 150 2
–
Filter type
LC 32 Cavity&waveguide 26 stripline 1 Dielectric 4
F Low：1447.9 - 1492.5 MHz× Clear all
matches 63 models Default Newest
ZBF9-D1500-25-1896 Filter

Filter ZBF9-D1500-25-1896

Passband1487.5~1512.5MHz, DC-1347MHz≥50dB, 1653MHz≥50dB, Microstrip pad
In Stock View Details →
ZBF8-D1500-100-3406 Filter

Filter ZBF8-D1500-100-3406

Passband1450~1550MHz, DC-1420MHz≥30dB, 1580-1800MHz≥30dB, SMD
In Stock View Details →
ZBF5-L1500-30-2321 Filter

Filter ZBF5-L1500-30-2321

Passband1485~1515MHz, DC-1445MHz≥40dB, 1555-4000MHz≥40dB, SMA
In Stock View Details →
ZBF2-C1500-30-2657 Filter

Filter ZBF2-C1500-30-2657

Passband1485~1515MHz, MHz≥dB, 1400MHzMHz≥45dBc, 1600-3000MHzMHz≥45dBc, Pin
In Stock View Details →
ZBF2-C1500-20-2638 Filter

Filter ZBF2-C1500-20-2638

Passband1490~1510MHz, f0±100~±300MHzMHz≥42dBc, dB, Pin
In Stock View Details →
ZBF-BL1500-30-2049 Filter

Filter ZBF-BL1500-30-2049

Passband1485~1515MHz, DC-1.4GHz≥40dBc, 1.6-8GHz≥40dBc, Pin
In Stock View Details →
ZBF15-L1500-40-1073 Filter

Filter ZBF15-L1500-40-1073

Passband1480~1520MHz, DC-1320MHz≥40dB, 1640-4000MHz≥40dB, SMD
In Stock View Details →

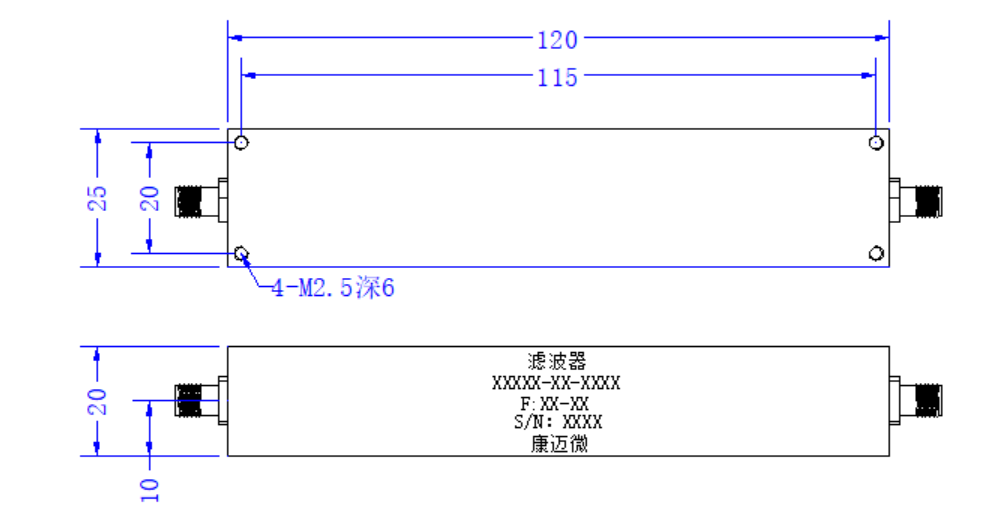

ZBSF6-C1485-1515-2943 Filter

Filter ZBSF6-C1485-1515-2943

Stopband F1485~1515MHz, ≥30dB, PassbandDC~1465MHz, 1535~3000MHz, SMA
View Details →
ZBSF6-C1447.9-1462.9-5074 Filter

Filter ZBSF6-C1447.9-1462.9-5074

Stopband F1447.9~1462.9MHz, ≥40dB, PassbandDC~1437.9MHz, 1472.9~3000MHz, SMA
View Details →
ZBF9-D1500-64-2235 Filter

Filter ZBF9-D1500-64-2235

Passband1468~1532MHz, 1435MHz≥45dB, 1565MHz≥45dB, SMD
View Details →

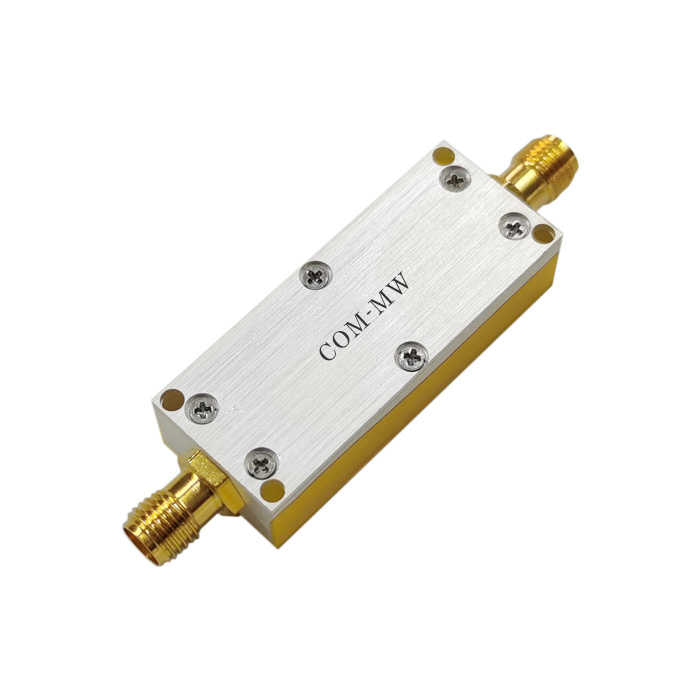

ZBF9-D1500-100-2380 Filter

Filter ZBF9-D1500-100-2380

Passband1450~1550MHz, DC-1420MHz≥35dB, 1580MHz≥35dB, SMA
View Details →
ZBF6-C1505-30-5662 Filter

Filter ZBF6-C1505-30-5662

Passband1490~1520MHz, DC-1300MHz≥60dB, 1425-1455MHz≥40dB, 1560-1635MHz≥40dB, 1650-3000MHz≥60dB, MCX
View Details →
ZBF6-C1495-5-2513 Filter

Filter ZBF6-C1495-5-2513

Passband1492.5~1497.5MHz, DC-1485MHz≥30dB, 1505-3000MHz≥30dB, SMA
View Details →
ZBF6-C1485-5-2512 Filter

Filter ZBF6-C1485-5-2512

Passband1482.5~1487.5MHz, DC-1475MHz≥30dB, 1495-3000MHz≥30dB, SMA
View Details →
ZBF6-C1475-5-2511 Filter

Filter ZBF6-C1475-5-2511

Passband1472.5~1477.5MHz, DC-1465MHz≥30dB, 1485-3000MHz≥30dB, SMA
View Details →

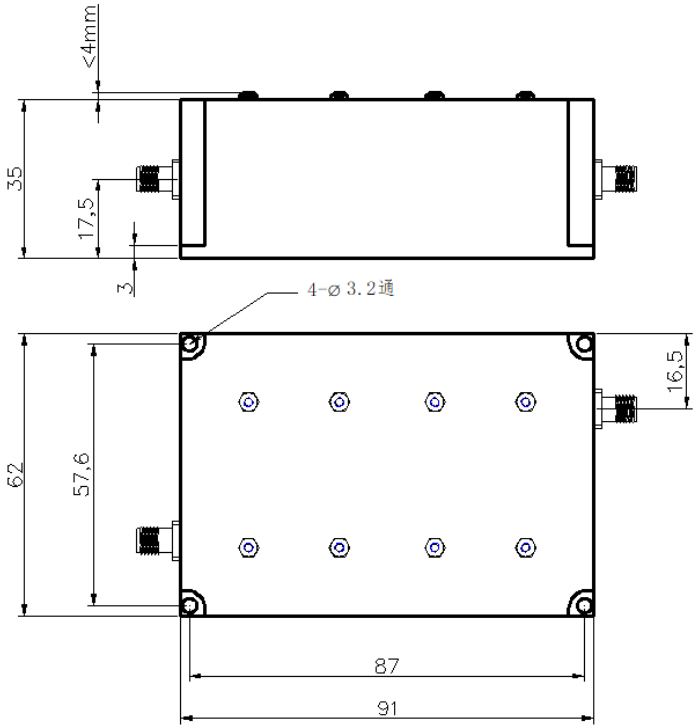

ZBF6-C1470-50-4626 Filter

Filter ZBF6-C1470-50-4626

Passband1455~1495MHz, 1255-1355MHz≥dB, 1595-1695MHz≥dB, SMA
View Details →
ZBF6-C1465-5-2510 Filter

Filter ZBF6-C1465-5-2510

Passband1462.5~1467.5MHz, DC-1455MHz≥30dB, 1475-3000MHz≥30dB, SMA
View Details →
ZBF6-C1455-5-2509 Filter

Filter ZBF6-C1455-5-2509

Passband1452.5~1457.5MHz, DC-1445MHz≥30dB, 1465-3000MHz≥30dB, SMA
View Details →
ZBF5-L2250-1550-3128 Filter

Filter ZBF5-L2250-1550-3128

Passband1475~3025MHz, DC-1GHz≥40dBc, 3.5-5GHz≥40dBc, Pin
View Details →
ZBF5-L2100-1220-997 Filter

Filter ZBF5-L2100-1220-997

Passband1490~2710MHz, DC-1200MHz≥70dBc, 3200-4200MHz≥70dBc, Pin
View Details →
ZBF5-L1500-30-3818 Filter

Filter ZBF5-L1500-30-3818

Center Frequency1500MHz, 1dB BW30~40MHz, dB, dB, Pin
View Details →
ZBF5-L1500-0-1979 Filter

Filter ZBF5-L1500-0-1979

Center Frequency1500MHz, 1dB BW50MHz, 1000-1400MHz≥50dB, 1600-2000MHz≥50dB, Pin
View Details →
ZBF5-L1450-0-1531 Filter

Filter ZBF5-L1450-0-1531

Passband1450MHz, DC-1300MHz≥60dB, 1600-1750MHz≥70dB, Pin
View Details →

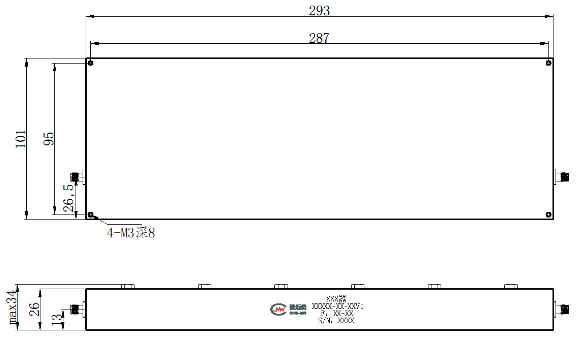

ZBF4-C1474-44-589 Filter

Filter ZBF4-C1474-44-589

Passband1452~1496MHz, DC-1442MHz≥80dB, 1506-3000MHz≥80dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
