Filters
Filters 1
Feature
Bandpass 18 Notch 2
F Low MHz
1447.9 2 1448 1 1450 13 1452 3 1452.5 1
–
Center frequency MHz
1450 - 1455 3 1460 - 1474 2 1475 - 1495 3 1500 - 1825 5 1925 - 1950 5
–
F High MHz
1450 - 1457.5 3 1462.9 - 1496 4 1500 - 1550 6 1583 - 2400 3 2450 4
–
IL on center frequency dB
0.5 4 1 8 2 3 3 2 6 1
–
Maximum loss of side frequency dB
1 - 1.5 5 2 - 2.5 9 3 - 4 4 4.3 - 6 2
–
Rejection dB
30 - 35 4 40 - 45 5 50 - 52 6 55 - 60 2 70 - 80 3
–
Connector
SMD 2 SMA 6 N 1 Microstrip needle 11
Power Handling
1 - 2 8 5 - 10 8 20 - 30 2 50 - 150 2
–
Filter type
LC 10 Cavity&waveguide 8 Dielectric 2
F Low：1447.9 - 1452.5 MHz× Clear all
matches 20 models Default Newest
ZBF8-D1500-100-3406 Filter

Filter ZBF8-D1500-100-3406

Passband1450~1550MHz, DC-1420MHz≥30dB, 1580-1800MHz≥30dB, SMD
In Stock View Details →
ZBSF6-C1447.9-1462.9-5074 Filter

Filter ZBSF6-C1447.9-1462.9-5074

Stopband F1447.9~1462.9MHz, ≥40dB, PassbandDC~1437.9MHz, 1472.9~3000MHz, SMA
View Details →
ZBF9-D1500-100-2380 Filter

Filter ZBF9-D1500-100-2380

Passband1450~1550MHz, DC-1420MHz≥35dB, 1580MHz≥35dB, SMA
View Details →
ZBF6-C1455-5-2509 Filter

Filter ZBF6-C1455-5-2509

Passband1452.5~1457.5MHz, DC-1445MHz≥30dB, 1465-3000MHz≥30dB, SMA
View Details →
ZBF5-L1450-0-1531 Filter

Filter ZBF5-L1450-0-1531

Passband1450MHz, DC-1300MHz≥60dB, 1600-1750MHz≥70dB, Pin
View Details →
ZBF4-C1474-44-589 Filter

Filter ZBF4-C1474-44-589

Passband1452~1496MHz, DC-1442MHz≥80dB, 1506-3000MHz≥80dB, SMA
View Details →

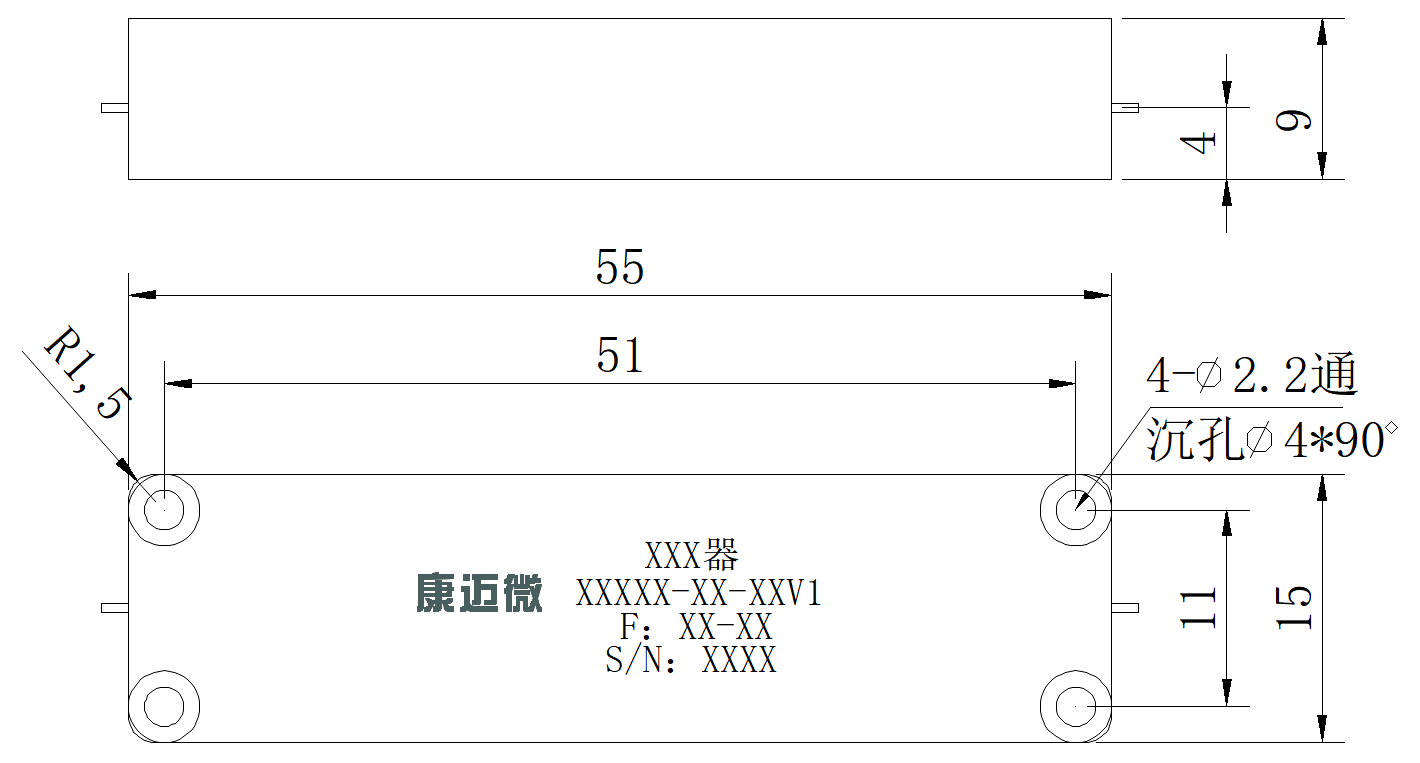

ZBF3-L1950-1000-4602 Filter

Filter ZBF3-L1950-1000-4602

Passband1450~2450MHz, 1110-1150MHz≥50dBc, 2650-2700MHz≥50dBc, Pin
View Details →

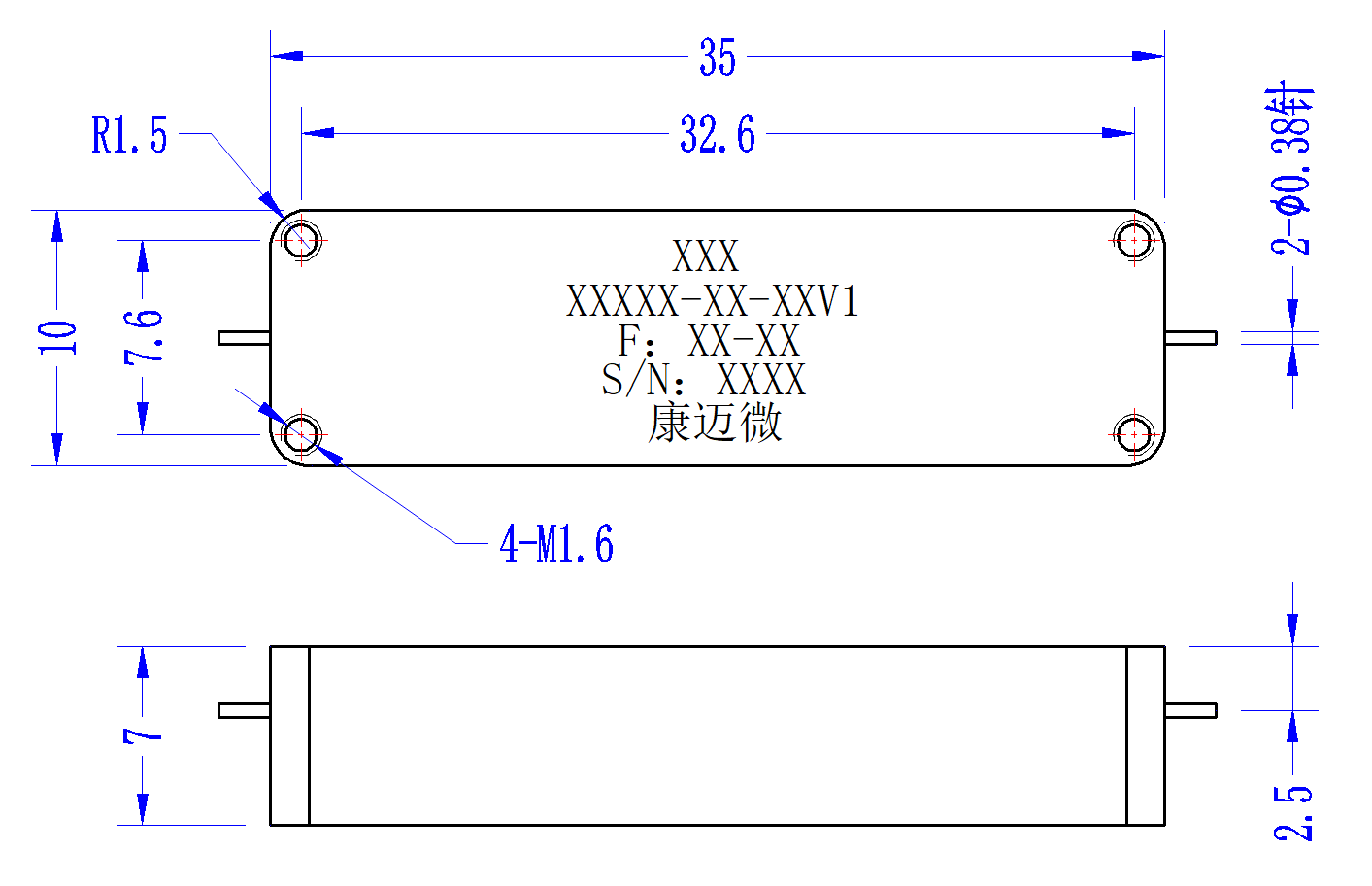

ZBF3-L1950-1000-3710 Filter

Filter ZBF3-L1950-1000-3710

Passband1450~2450MHz, DC-1100MHz≥45dBc, 2750-4500MHz≥45dBc, Pin
View Details →
ZBF3-L1500-100-4385 Filter

Filter ZBF3-L1500-100-4385

Passband1450~1550MHz, DC-1300MHz≥55dBc, 1700-3500MHz≥55dB, Pin
View Details →

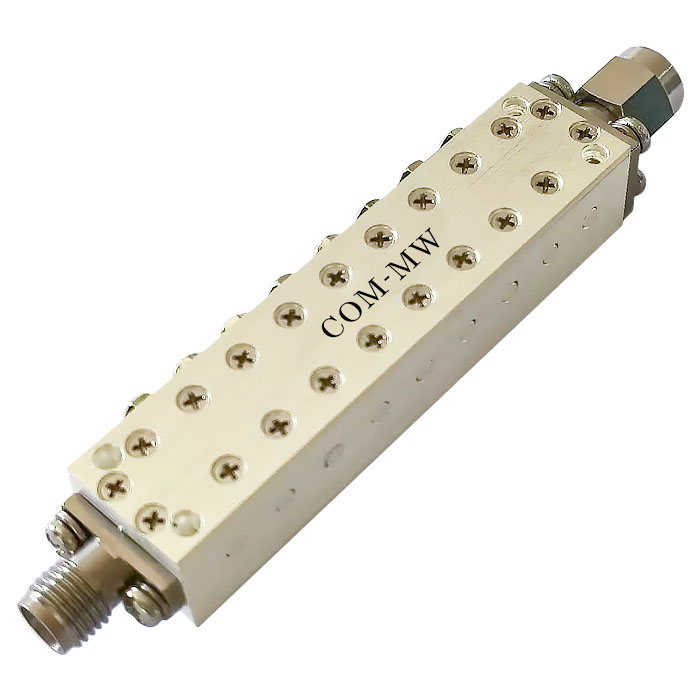

ZBF3-C1460-20-3363 Filter

Filter ZBF3-C1460-20-3363

Passband1450~1470MHz, DC-1400MHz≥40dB, 1520-4000MHz≥40dB, SMA
View Details →

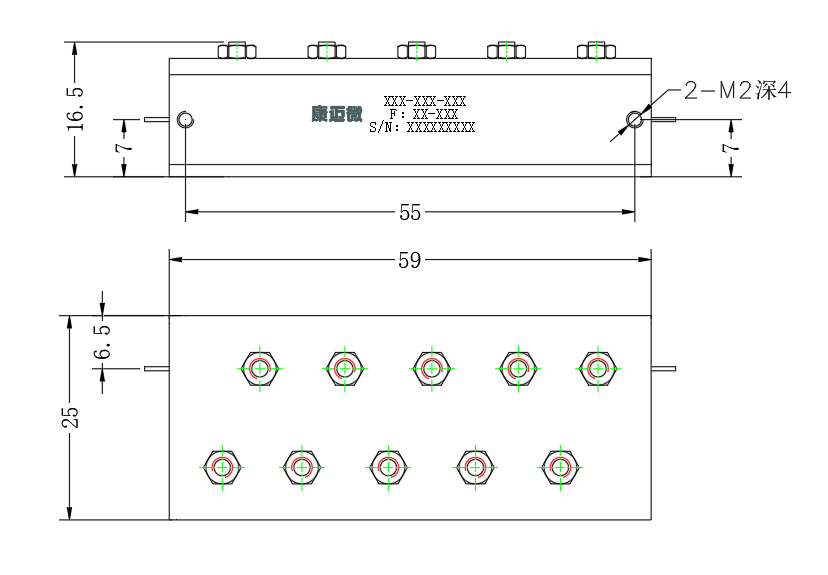

ZBF16-C1925-950-271 Filter

Filter ZBF16-C1925-950-271

Passband1450~2400MHz, DC~1000MHz≥50dBc, 2900~3400MHz≥50dBc, SMA
View Details →
ZBF16-C1475-50-240 Filter

Filter ZBF16-C1475-50-240

Passband1485~1515MHz, 1310~1370MHz≥30dBc, 1550~1650MHz≥30dBc, N
View Details →
ZBF15-L1950-1000-2769 Filter

Filter ZBF15-L1950-1000-2769

Passband1450~2450MHz, DC-975MHz≥50dBc, 2.9-5GHz≥45dBc, Pin
View Details →

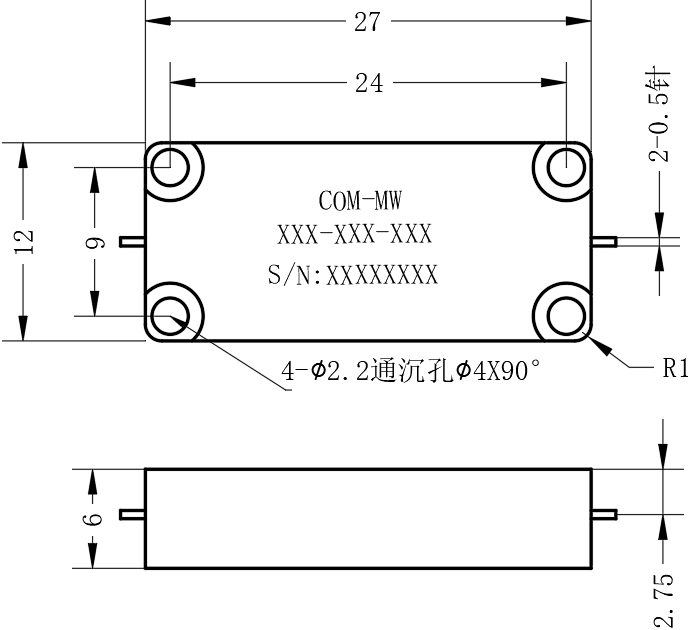

ZBF15-L1500-100-782 Filter

Filter ZBF15-L1500-100-782

Passband1450~1550MHz, 1370-1390MHz≥20dB, f0±150MHz≥50dBc, Pin
View Details →
ZBF14-L1495-86-700 Filter

Filter ZBF14-L1495-86-700

View Details →
ZBF14-C1495-94-003 Filter

Filter ZBF14-C1495-94-003

Passband1448~1452MHz, DC-1280MHz≥52dBc, 1.77-2.5GHz≥52dBc, Pin
View Details →
ZBF13-L1495-86-1891 Filter

Filter ZBF13-L1495-86-1891

Passband1452~1538MHz, DC-1295MHz≥50dB, 1695-3000MHz≥50dB, Pin 0.5mm
View Details →
XPF-L1825M750M-T Filter

Filter XPF-L1825M750M-T

Passband1450~2200MHz, DC-1.10GHz≥40dBc, 2.9-5.0GHz≥40dBc, SMD
View Details →
XPF-L1.95G1G-Z2 Filter

Filter XPF-L1.95G1G-Z2

Passband1.45~2.45GHz, DC-1.10GHz≥40dBc, 2.75-5.0GHz≥40dBc, Pin
View Details →

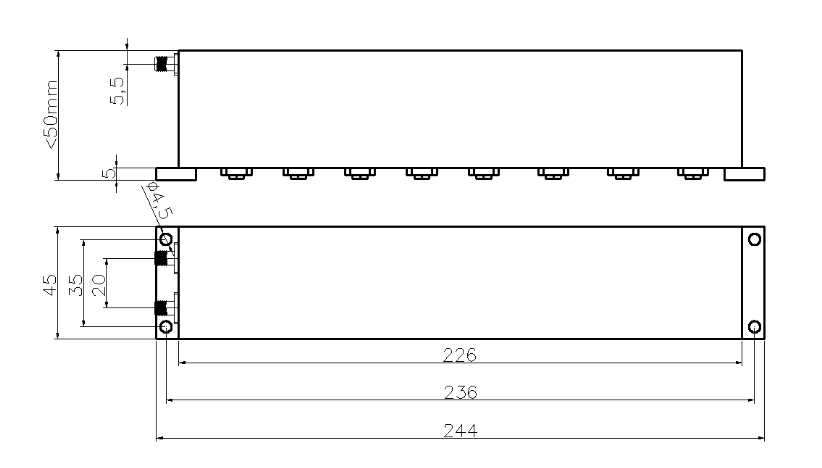

OQZBSF6-C1447.9-1462.9-3415 Filter

Filter OQZBSF6-C1447.9-1462.9-3415

Stopband F1447.9~1462.9MHz, ≥50dB, PassbandDC~1427.9MHz, 1482.9~4000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
