Filters
Filters 1
Feature
Bandpass 3 Notch 12
F Low MHz
1432 15
–
Center frequency MHz
1452 2 1474.5 1
–
F High MHz
1472 2 1512 3 1517 10
–
IL on center frequency dB
0.5 1 2 2
–
Maximum loss of side frequency dB
0.8 1 2 2 3 10 3.5 2
–
Rejection dB
30 - 50 8 55 - 60 5 70 - 73 2
–
Connector
SMA 5 N 8 Microstrip needle 2
Power Handling
2 - 20 2 40 - 50 7 80 - 100 6
–
Filter type
LC 1 Cavity&waveguide 14
F Low：1432 - 1432 MHz× Clear all
matches 15 models Default Newest
K6-1432-1517-10N50100-002 Filter

Filter K6-1432-1517-10N50100-002

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1422MHz, 1527~4000MHz, N
In Stock View Details →
K6-1432-1517-10S50100-001 Filter

Filter K6-1432-1517-10S50100-001

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1422MHz, 1527~4000MHz, SMA
In Stock View Details →
ZBSF6-C1432-1517-955 Filter

Filter ZBSF6-C1432-1517-955

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1200MHz, 1800~4500MHz, N
View Details →
ZBSF6-C1432-1517-868 Filter

Filter ZBSF6-C1432-1517-868

Stopband F1432~1517MHz, ≥60dB, PassbandDC~1422MHz, 1527~4000MHz, SMA
View Details →
ZBSF6-C1432-1517-3536 Filter

Filter ZBSF6-C1432-1517-3536

Stopband F1432~1517MHz, ≥60dB, PassbandDC~1422MHz, 1527~3000MHz, N
View Details →
ZBSF6-C1432-1512-5883 Filter

Filter ZBSF6-C1432-1512-5883

Stopband F1432~1512MHz, ≥60dB, PassbandDC~1422MHz, 1522~6000MHz, N
View Details →
ZBSF6-C1432-1512-5858 Filter

Filter ZBSF6-C1432-1512-5858

Stopband F1432~1512MHz, ≥60dB, PassbandDC~1427MHz, 1517~4000MHz, N
View Details →
ZBSF6-C1432-1512-5673 Filter

Filter ZBSF6-C1432-1512-5673

Stopband F1432~1512MHz, ≥50dB, PassbandDC~1427MHz, 1517~3000MHz, N
View Details →
ZBF3-C1474.5-85-1915 Filter

Filter ZBF3-C1474.5-85-1915

Passband1432~1517MHz, DC-1422MHz≥50dB, 1527-2000MHz≥50dB, N
View Details →
ZBF13-L1452.66-40-2398 Filter

Filter ZBF13-L1452.66-40-2398

Passband1432.66~1472.66MHz, DC-1288MHz≥30dBc, 1.65-3GHz≥30dBc, Pin
View Details →
ZBF13-C1452.66-40-2397 Filter

Filter ZBF13-C1452.66-40-2397

Passband1432.66~1472.66MHz, DC-1288MHz≥73dBc, 1.65-3GHz≥50dBc, Pin
View Details →

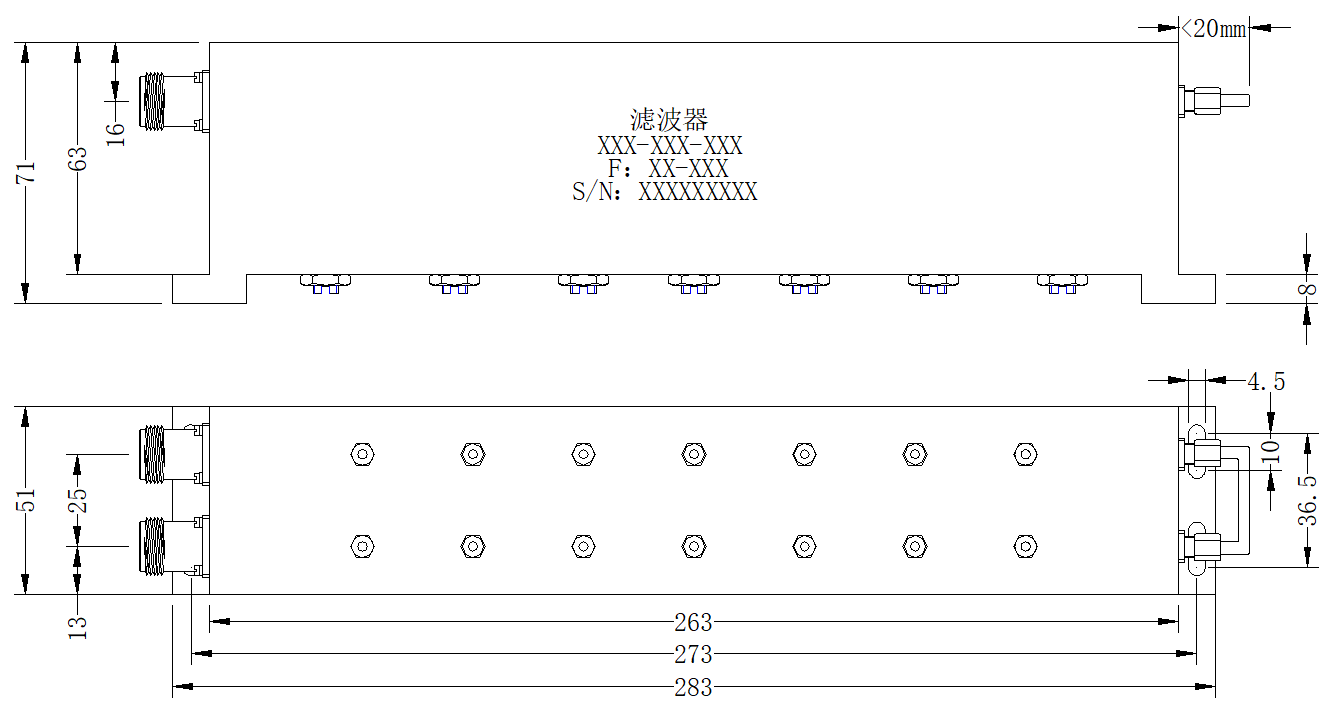

TRF-1432M30-1517M-70N1 Notch filter

Notch filter TRF-1432M30-1517M-70N1

Stopband F1432~1517MHz, ≥70dB, PassbandDC~1402MHz, 1547~4500MHz, N
View Details →
K6-1432-1517-20S5050-003 Filter

Filter K6-1432-1517-20S5050-003

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1412MHz, 1537~4500MHz, SMA
View Details →
K6-1432-1517-20N5050-004 Filter

Filter K6-1432-1517-20N5050-004

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1412MHz, 1537~4500MHz, N
View Details →

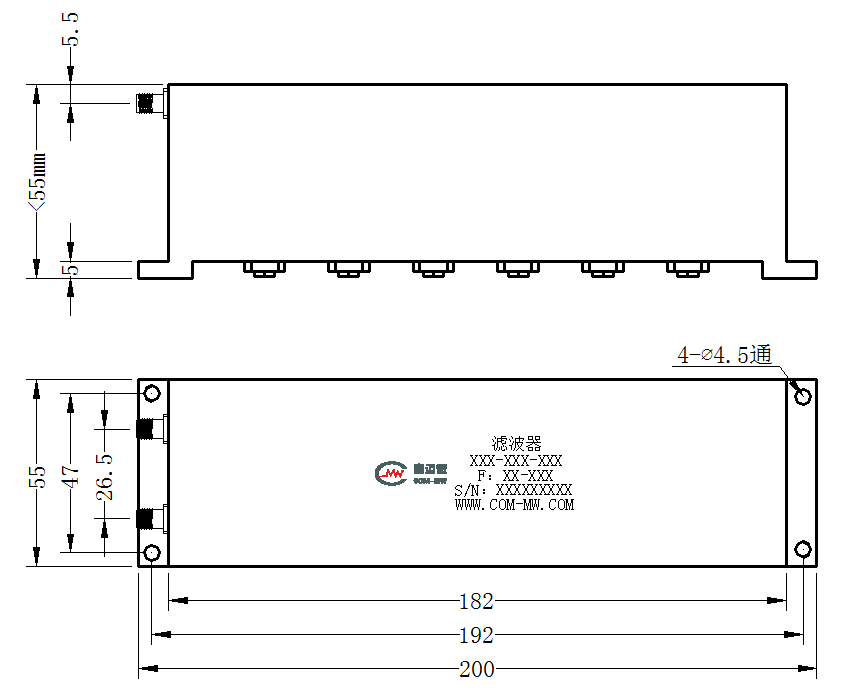

B50-1432-1517 Notch filter

Notch filter B50-1432-1517

Stopband F1432~1517MHz, ≥55dB, PassbandDC~1392MHz, 1557~4500MHz, SMA
View Details →
