RF Filter

Total 31 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 28 low pass 1 Highpass 1 Notch 1
F Low MHz
1350 31
–
Center frequency MHz
1375 - 1395 3 1400 - 1425 7 1500 - 1600 12 1650 - 1775 3 1950 - 2025 3
–
F High MHz
1400 - 1450 7 1470 - 1650 10 1700 - 2150 8 2200 - 2700 6
–
IL on center frequency dB
0.3 - 0.5 3 1 - 1.5 16 2 - 3 9
–
Maximum loss of side frequency dB
0.6 - 1 4 1.2 - 2 12 2.5 - 3.5 13 4 - 5 2
–
Rejection dB
20 - 30 3 35 - 40 14 42 - 45 5 50 - 60 7 70 2
–
Connector
Other 1 SMD 11 SMA 7 N 2 Microstrip needle 9
Power Handling
1 - 2 21 5 - 10 5 12 - 30 2 40 - 50 2 100 1
–
Filter type
LC 24 Cavity&waveguide 6 Dielectric 1
F Low：1350 - 1350 MHz× Clear all
matches 31 models Default Newest
BF064 Filter

Filter BF064

Passband1350~1650MHz, DC-750MHz≥20dB, 2160-3700MHz≥20dB, SMD, Substitutes SXBP-1500+
In Stock View Details →
ZBF15-L1525-350-1076 Filter

Filter ZBF15-L1525-350-1076

Passband1350~1700MHz, DC-1210MHz≥40dB, 1890-5800MHz≥40dB, SMA
In Stock View Details →
ZBF13-L1500-300-1541 Filter

Filter ZBF13-L1500-300-1541

Passband1350~1650MHz, DC-1.08GHz≥40dB, 1.95-4.5GHz≥40dB, SMA
In Stock View Details →
ZBF15-L1525-350-1077 Filter

Filter ZBF15-L1525-350-1077

Passband1350~1700MHz, DC-1210MHz≥40dB, 1890-6000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L1500-300-3600 Filter

Filter ZBF5-L1500-300-3600

Passband1350~1650MHz, DC-1000MHz≥30dBc, SMD
In Stock View Details →
ZBF13-L1500-300-3707 Filter

Filter ZBF13-L1500-300-3707

Passband1350~1650MHz, DC-1200MHz≥45dBc, 1800-5000MHz≥45dBc, SMD
In Stock View Details →
ZBF3-L1420-140-4651 Filter

Filter ZBF3-L1420-140-4651

Passband1350~1490MHz, DC-1180MHz≥40dBc, 1800-1810MHz≥70dBc, SMD
In Stock View Details →
ZLPF15-L1-2320-1478 Filter

Filter ZLPF15-L1-2320-1478

Passband1350~2320MHz, 2.6-5GHz≥40dB, dB, Pin
View Details →
ZHPF15-L1350-2000-1830 Filter

Filter ZHPF15-L1350-2000-1830

Passband1350~2700MHz, DC-960MHz≥42dBc, 1200MHz≥22dBc, Pin
View Details →
ZBSF6-C1350-1470-3734 Filter

Filter ZBSF6-C1350-1470-3734

Stopband F1350~1470MHz, ≥70dB, PassbandDC~1330MHz, 1490~3000MHz, SMA
View Details →
ZBF9-D1395-90-3047 Filter

Filter ZBF9-D1395-90-3047

Passband1350~1440MHz, DC-1300MHz≥45dB, 1490MHz≥45dB, SMD
View Details →
ZBF6-L1400-100-3540 Filter

Filter ZBF6-L1400-100-3540

Passband1350~1450MHz, 1250MHz≥45dB, 1550MHz≥45dB, Pin 0.5mm
View Details →
ZBF5-L1525-350-2133 Filter

Filter ZBF5-L1525-350-2133

Passband1350~1700MHz, DC-1000MHz≥60dBc, 2000-3500MHz≥60dBc, Pin
View Details →
ZBF5-L1400-100-1603 Filter

Filter ZBF5-L1400-100-1603

Passband1350~1450MHz, 1650-1750MHz≥60dBc, 1750-3000MHz≥50dBc, Pin
View Details →
ZBF4-C1525-350-409 Filter

Filter ZBF4-C1525-350-409

Passband1350~1700MHz, DC-1250MHz≥40dB, 1800-4000MHz≥40dB, N
View Details →
ZBF3-L1775-850-2569 Filter

Filter ZBF3-L1775-850-2569

Passband1350~2200MHz, DC-925MHz≥40dB, 2625-3600MHz≥40dB, SMA
View Details →
ZBF3-L1650-600-596 Filter

Filter ZBF3-L1650-600-596

Passband1350~1950MHz, DC-800MHz≥60dB, 2390-3900MHz≥60dB, Pin
View Details →
ZBF3-L1420-140-3066 Filter

Filter ZBF3-L1420-140-3066

Passband1350~1490MHz, DC-1180MHz≥40dBc, 1800-1810MHz≥70dBc, SMD
View Details →
ZBF3-L1379.5-59-2825 Filter

Filter ZBF3-L1379.5-59-2825

Passband1350~1409MHz, 1625-1785MHz≥40dBc, dB, SMD
View Details →

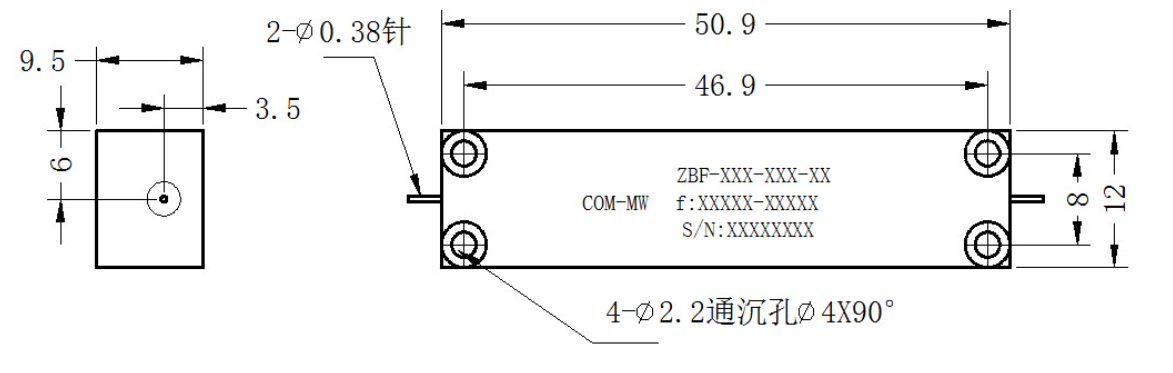

ZBF2-L2025-1350-2282 Filter

Filter ZBF2-L2025-1350-2282

Passband1350~2700MHz, DC-1050MHz≥40dBc, 3-4GHz≥40dBc, Pin
View Details →

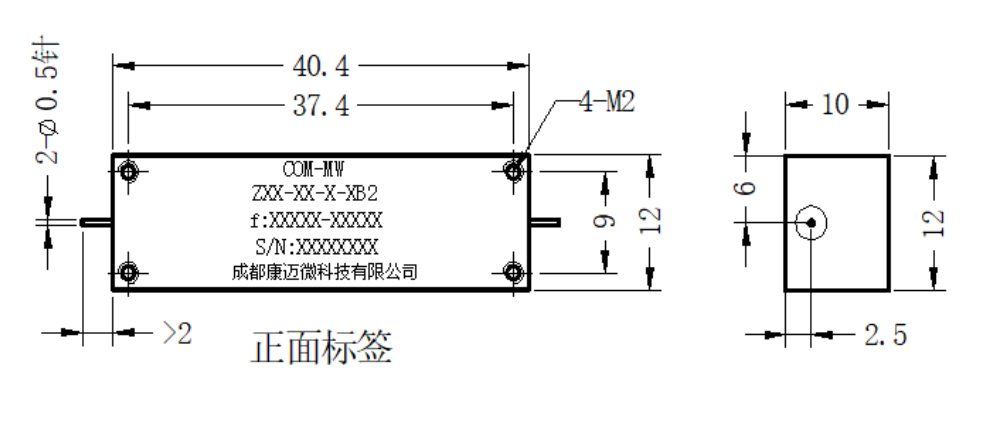

ZBF2-L1500-300-1687 Filter

Filter ZBF2-L1500-300-1687

Passband1350~1650MHz, DC-1.1GHz≥60dBc, 2-5GHz≥60dBc, Pin
View Details →

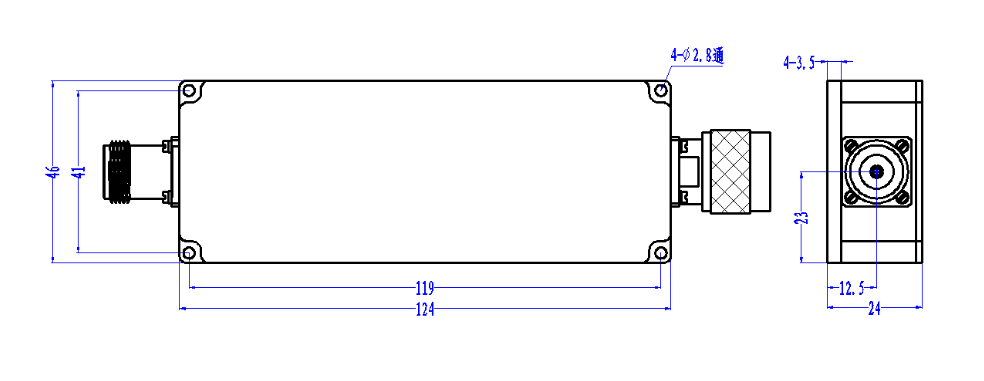

ZBF2-C1525-350-2400 Filter

Filter ZBF2-C1525-350-2400

Passband1350~1700MHz, DC-1.3GHz≥30dB, 1.75-3GHz≥30dB,
View Details →

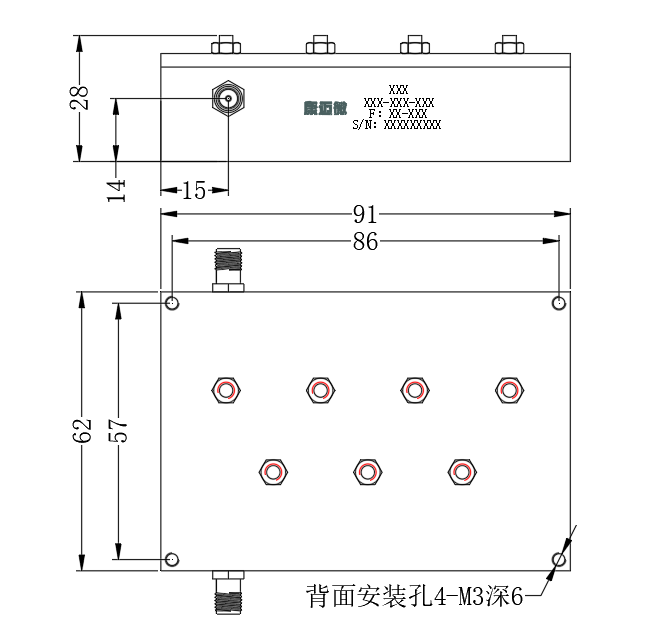

ZBF16-C1375-50-531 Filter

Filter ZBF16-C1375-50-531

Passband1350~1400MHz, DC~1320MHz≥60dBc, 1430~2500MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L1750-800-969 Filter

Filter ZBF15-L1750-800-969

Passband1350~2150MHz, DC-950MHz≥40dBc, 2.4-4GHz≥40dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
