Filters
Filters 1
Feature
Bandpass 22 Highpass 2
F Low MHz
130 24
–
Center frequency MHz
140 15 150 3 155 2 180 2
–
F High MHz
150 - 170 18 180 - 230 4 2000 - 5000 2
–
IL on center frequency dB
0.4 - 1 9 1.5 - 2 10 3 - 4 3
–
Maximum loss of side frequency dB
0.8 - 1.5 5 2 - 3 14 3.5 - 4 3 4.5 - 5 2
–
Rejection dB
15 - 20 3 30 - 40 10 43 - 45 2 50 - 60 9
–
Connector
SMD 11 SMA 3 N 1 Microstrip pad 1 Microstrip needle 8
Power Handling
0.5 - 1 12 2 - 5 10 100 - 120 2
–
Filter type
LC 24
F Low：130 - 130 MHz× Clear all
matches 24 models Default Newest
BF085 Filter

Filter BF085

Passband130~150MHz, DC-108MHz≥40dB, 172-900MHz≥40dB, SMD
In Stock View Details →
HF002 Filter

Filter HF002

Highpass F130~2000MHz, DC-37MHz≥40dB, 48MHz≥20dB, SMD, /
In Stock View Details →
BF042 Filter

Filter BF042

Passband130~150MHz, 110MHz≥20dB, 185MHz≥20dB, SMD, Replace SXBP-140+
In Stock View Details →
BF016 Filter

Filter BF016

Passband130~150MHz, DC-100MHz≥20dB, 178-3000MHz≥20dB, Substitutes RBP-140+
In Stock View Details →
ZBF14-L140-20-160 Filter

Filter ZBF14-L140-20-160

Passband130~150MHz, DC-115MHz≥40dB, 170-500MHz≥40dB, SMA
In Stock View Details →
ZBF13-L150-40-3697 Filter

Filter ZBF13-L150-40-3697

Passband130~170MHz, DC-110MHz≥40dBc, 190-1000MHz≥40dBc, SMD
In Stock View Details →
ZHPF13-L130-5000-3351 Filter

Filter ZHPF13-L130-5000-3351

Passband130~5000MHz, DC-100MHz≥15dB, SMA
View Details →
ZBF6-L155-50-5865 Filter

Filter ZBF6-L155-50-5865

Passband130~180MHz, DC-90MHz≥60dBc, 250-360MHz≥60dBc, Pin
View Details →
ZBF5-L180-100-3660 Filter

Filter ZBF5-L180-100-3660

Passband130~230MHz, DC-50MHz≥50dBc, 310-600MHz≥50dBc, Pin
View Details →
ZBF5-L140-20-2393 Filter

Filter ZBF5-L140-20-2393

Passband130~150MHz, DC-115MHz≥40dBc, Pin
View Details →
ZBF3-L180-100-3475 Filter

Filter ZBF3-L180-100-3475

Passband130~230MHz, DC-110MHz≥40dBc, 250-500MHz≥40dBc, SMD
View Details →
ZBF3-L150-40-3846 Filter

Filter ZBF3-L150-40-3846

Passband130~170MHz, DC-100MHz≥45dB, 210-1000MHz≥45dB, Microstrip pad
View Details →
ZBF20-L140-20-284 Filter

Filter ZBF20-L140-20-284

Passband130~150MHz, DC-108MHz≥50dB, 172-400MHz≥50dB, SMD
View Details →
ZBF2-L140-20-2205 Filter

Filter ZBF2-L140-20-2205

Passband130~150MHz, 280MHz≥50dBc, 115-165MHz≥50dBc, Pin
View Details →
ZBF15-L140-20-179 Filter

Filter ZBF15-L140-20-179

Passband130~150MHz, DC-90MHz≥40dBc, 190-800MHz≥40dBc, SMD
View Details →
ZBF15-L140-20-1726 Filter

Filter ZBF15-L140-20-1726

Passband130~150MHz, DC-50MHz≥50dBc, 10010dBc, 260-320MHz≥50dBc, dB, Pin
View Details →
ZBF15-L140-20-1521 Filter

Filter ZBF15-L140-20-1521

Passband130~150MHz, DC-80MHz≥40dBc, 300-1200MHz≥40dBc, SMD
View Details →
ZBF13-L150-40-728 Filter

Filter ZBF13-L150-40-728

Passband130~170MHz, BW-40dB/BW-3dB, dB, SMD
View Details →
ZBF13-L140-20-635 Filter

Filter ZBF13-L140-20-635

Passband130~150MHz, DC-115MHz≥60dB, 165-500MHz≥60dB, SMD
View Details →
ZBF13-L140-20-2512 Filter

Filter ZBF13-L140-20-2512

Passband130~150MHz, F0±40MHz≥20dB, DC-70MHz≥40dB, SMA
View Details →
ZBF13-L140-20-2144 Filter

Filter ZBF13-L140-20-2144

Passband130~150MHz, DC-113MHz≥40dBc, 167-500MHz≥40dBc, Pin
View Details →
ZBF13-L140-20-2135 Filter

Filter ZBF13-L140-20-2135

Center Frequency140MHz, 20MHz, F0±50MHz≥35dB, 0.25-0.5GHz≥50dB, Pin
View Details →
ZBF13-L140-20-1860 Filter

Filter ZBF13-L140-20-1860

Passband130~150MHz, F0±50MHz≥35dBc, 0.25-0.5GHz≥50dBc
View Details →

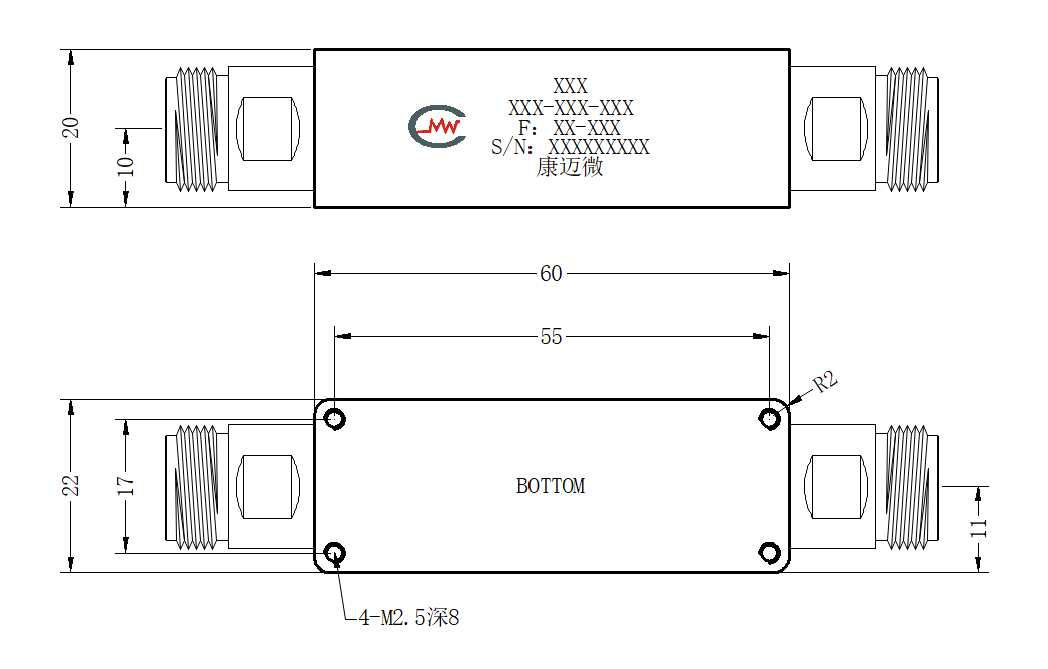

XPF-L155M50M-N Filter

Filter XPF-L155M50M-N

Passband130~180MHz, DC-95MHz≥30dB, 235-600MHz≥30dB, N
View Details →
