RF Filter

Total 25 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 21 low pass 2 Highpass 2
F Low MHz
111 4 112 2 113 1 113.6 9 115 9
–
Center frequency MHz
128 2 140 9 153.6 10
–
F High MHz
144 - 145 2 165 - 167 7 169 - 190 4 193.6 - 196 10 450 - 2000 2
–
IL on center frequency dB
1 12 1.5 2 2 6 3 1 20 1
–
Maximum loss of side frequency dB
0.8 - 1 3 1.5 - 2 11 2.5 - 3 9 4 - 21 2
–
Rejection dB
20 - 25 2 30 - 35 5 40 - 45 11 50 - 56 4 60 3
–
Connector
SMD 13 SMA 1 N 1 Microstrip needle 10
Power Handling
0.01 - 1 9 2 - 5 13 15 - 50 3
–
Filter type
LC 24 SAW 1
F Low：111 - 115 MHz× Clear all
matches 25 models Default Newest
BF088 Filter

Filter BF088

Passband115~165MHz, DC-95MHz≥40dB, 185-500MHz≥40dB, SMD
In Stock View Details →
ZBF5-L153.6-80-2327 Filter

Filter ZBF5-L153.6-80-2327

Passband113.6~193.6MHz, DC-91.2MHz≥40dB, 216-500MHz≥40dB, SMD
In Stock View Details →
ZBF14-L140-50-716 Filter

Filter ZBF14-L140-50-716

Passband115~165MHz, DC-100MHz≥40dB, 185-500MHz≥40dB, SMA-K
In Stock View Details →
ZBF15-L140-58-035 Filter

Filter ZBF15-L140-58-035

Passband111~169MHz, DC-80MHz≥45dBc, 200-1000MHz≥45dBc, Pin
In Stock View Details →

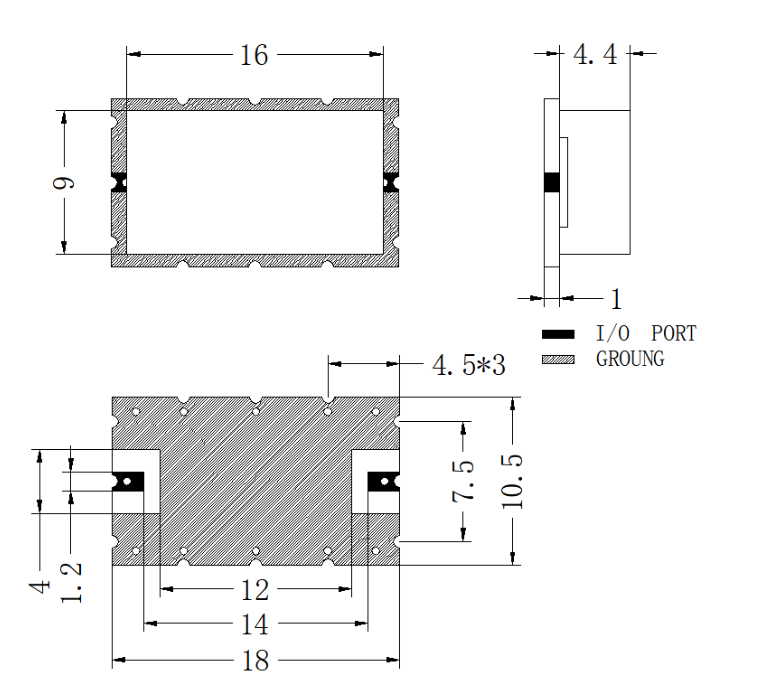

ZLPF2-L115-190-2165 Filter

Filter ZLPF2-L115-190-2165

Passband115~190MHz, 250-1500MHz≥45dBc, dB, SMD
View Details →

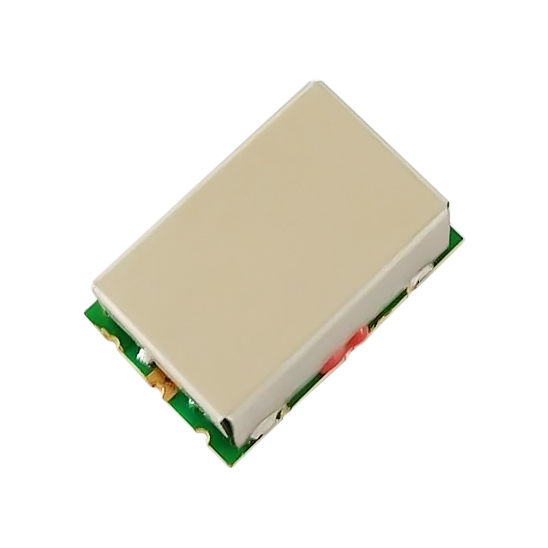

ZLPF14-L115-190-624 Filter

Filter ZLPF14-L115-190-624

Passband115~190MHz, 230-1300MHz≥40dBc, dB, Microstrip pad,
View Details →
ZHPF13-L115-450-3216 Filter

Filter ZHPF13-L115-450-3216

Passband115~450MHz, DC-100MHz≥40dB, N
View Details →
ZHPF13-L112-2000-3326 Filter

Filter ZHPF13-L112-2000-3326

Passband112~2000MHz, DC-106.38MHz≥20dBc, 106.38-108MHz≥10dBc, Pin
View Details →
ZBF9-S140-53-2981 Filter

Filter ZBF9-S140-53-2981

Center Frequency140MHz, -3dB BW53MHz, -40dB BW61MHz, SMD
View Details →
ZBF5-L153.6-80-1632 Filter

Filter ZBF5-L153.6-80-1632

Passband113.6~193.6MHz, SMD
View Details →

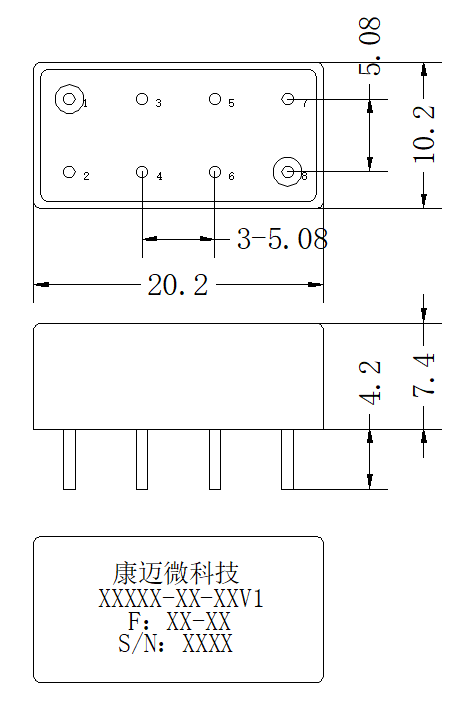

ZBF3-L140-50-527 Filter

Filter ZBF3-L140-50-527

Passband115~165MHz, DC-85MHz≥40dB, 215-500MHz≥40dB, Pin
View Details →
ZBF2-L153.6-80-1765 Filter

Filter ZBF2-L153.6-80-1765

Passband113.6~193.6MHz, DC-11.2MHz≥60dBc, 11.2-91.2MHz≥60dBc, Pin
View Details →

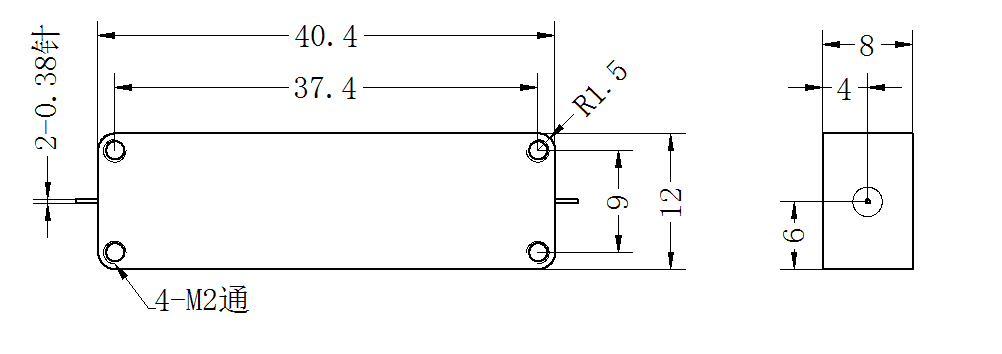

ZBF2-L140-54-2016 Filter

Filter ZBF2-L140-54-2016

Passband113~167MHz, DC-90MHz≥50dB, 190-500MHz≥50dB, Pin
View Details →

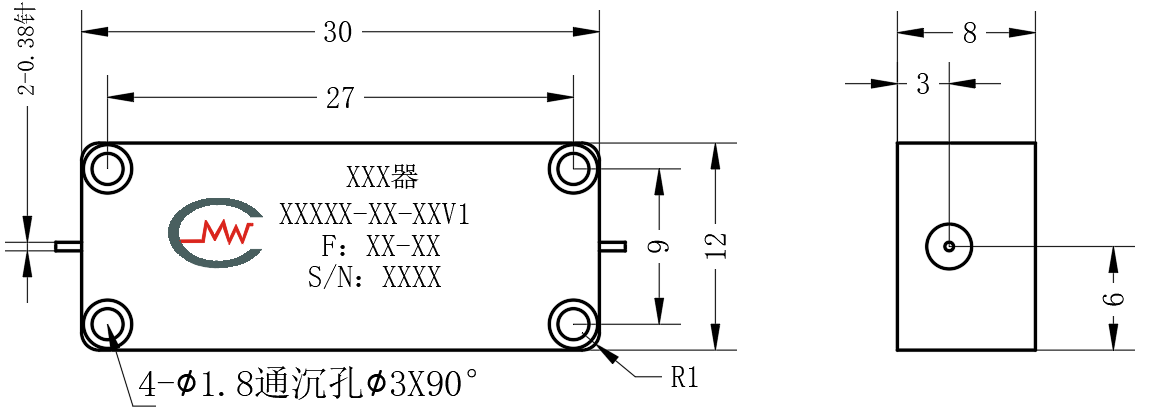

ZBF15-L153.6-85-1051 Filter

Filter ZBF15-L153.6-85-1051

Passband111.1~196.1MHz, dB, dB, Pin
View Details →
ZBF15-L153.6-80-1601 Filter

Filter ZBF15-L153.6-80-1601

Passband113.6~193.6MHz, DC-60MHz≥56dBc, 80MHz≥50dBc, 97MHz≥40dB, SMD
View Details →
ZBF15-L153.6-80-1473 Filter

Filter ZBF15-L153.6-80-1473

Passband113.6~193.6MHz, DC-91.2MHz≥35dB, 216-400MHz≥35dB, SMD
View Details →
ZBF15-L153.6-80-1323 Filter

Filter ZBF15-L153.6-80-1323

Passband113.6~193.6MHz, DC-60MHz≥56dBc, 80MHz≥50dBc, 97MHz≥40dB, SMD
View Details →
ZBF15-L140-50-1753 Filter

Filter ZBF15-L140-50-1753

Passband115~165MHz, 230-500MHz≥35dBc, DC-50MHz≥35dBc, Pin
View Details →
ZBF13-L153.6-80-513 Filter

Filter ZBF13-L153.6-80-513

Passband113.6~193.6MHz, DC-91.2MHz≥35dBc, 216-500MHz≥35dBc, SMD
View Details →
ZBF13-L153.6-80-1567 Filter

Filter ZBF13-L153.6-80-1567

Passband113.6~193.6MHz, DC-91.4MHz≥50dBc, 216-500MHz≥50dBc, SMD
View Details →
ZBF13-L140-50-900 Filter

Filter ZBF13-L140-50-900

Passband115~165MHz, DC-80MHz≥25dBc, 80-90MHz≥15dBc, Pin
View Details →

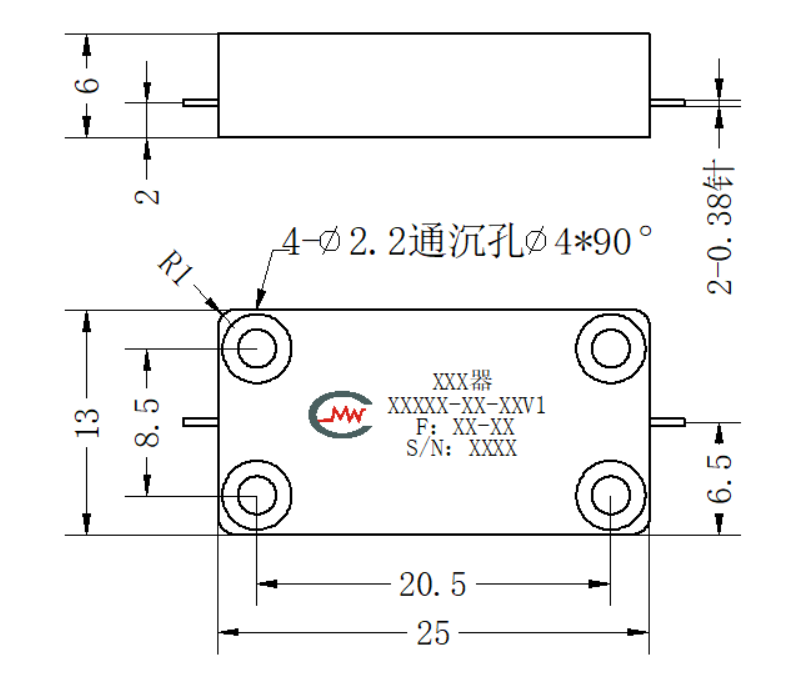

ZBF13-L128-34-2493 Filter

Filter ZBF13-L128-34-2493

Passband111~145MHz, DC-96.8MHz≥30dB, 159.2-300MHz≥30dB, Pin
View Details →

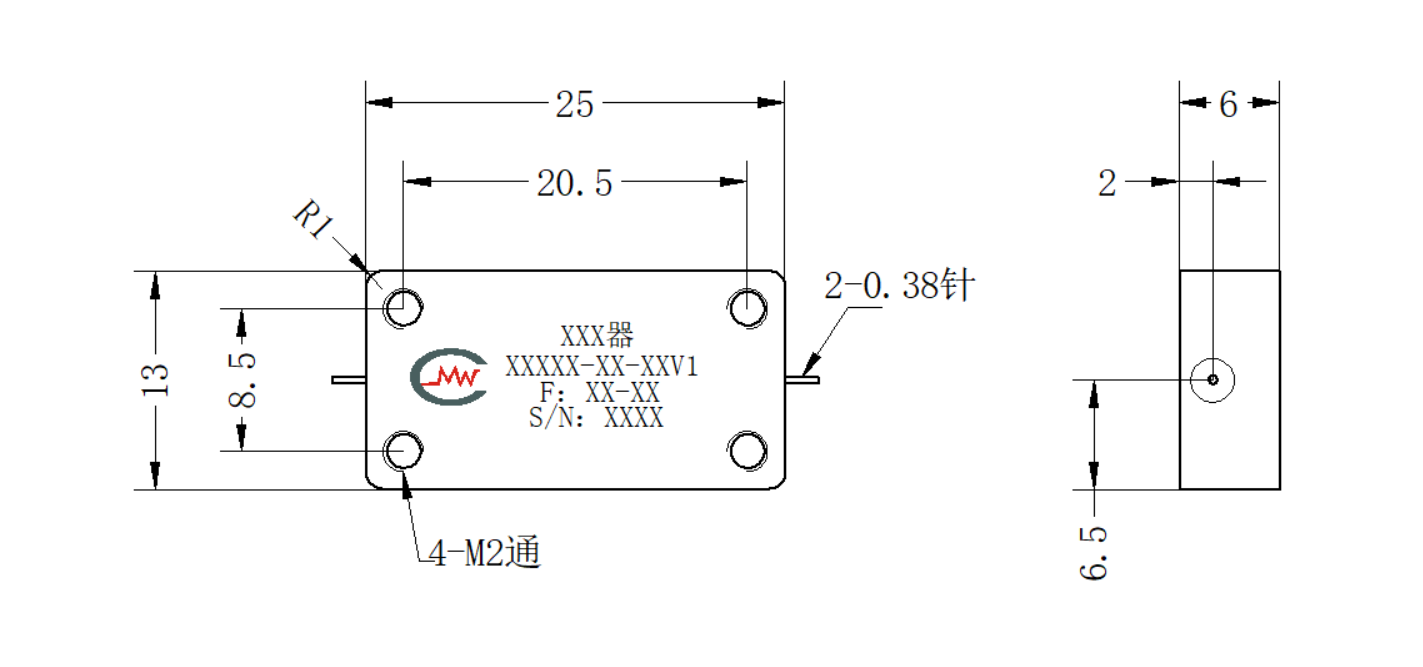

ZBF13-L128-32-1122 Filter

Filter ZBF13-L128-32-1122

Passband112~144MHz, 88-96&160-170MHz≥35dB, 70-88&170-230MHz≥40dB, Pin
View Details →
ZBF-L153.6-80-S2010 Filter

Filter ZBF-L153.6-80-S2010

Passband113.6~193.6MHz, DC-101MHz≥25dB, 206-500MHz≥25dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
