Filters
Filters 1
Feature
Bandpass 25 low pass 6 Highpass 2
F Low MHz
0.9 1 1 10 1.45 1 1.5 19 1.9 2
–
Center frequency MHz
1.925 - 2.4 4 2.7 - 3.2 3 3.5 - 11 4 13 - 16.5 11 23.25 - 43.25 3
–
F High MHz
1 - 2.9 5 3.5 - 7 7 10 - 30 13 31.5 - 85 5 100 - 1600 3
–
IL on center frequency dB
0.3 - 0.5 8 1 - 2 15 3 - 4 2
–
Maximum loss of side frequency dB
0.5 - 1 12 1.2 - 1.5 7 2 - 3 12 5 - 6 2
–
Rejection dB
20 - 30 3 35 - 40 17 45 - 48 3 50 - 55 5 60 - 70 5
–
Connector
Other 1 SMD 12 SMA 12 Microstrip needle 7 SMP 1
Power Handling
0.5 - 1 16 2 - 3 11 5 - 20 6
–
Filter type
LC 33
F Low：0.9 - 1.9 MHz× Clear all
matches 33 models Default Newest
ZHPF20-L1-100-224 Filter

Filter ZHPF20-L1-100-224

Passband1~100MHz, DC-0.75MHz≥40dB, SMA-MF
In Stock View Details →
ZBF15-L15.75-28.5-660 Filter

Filter ZBF15-L15.75-28.5-660

Passband1.5~30MHz, DC-1MHz≥40dB, 40-150MHz≥40dB, SMA-K
In Stock View Details →
ZBF3-L15.75-28.5-1077 Filter

Filter ZBF3-L15.75-28.5-1077

Passband1.5~30MHz, DC-1MHz≥40dB, 40-200MHz≥40dB, SMD
In Stock View Details →
ZBF3-L3.5-4-B1A Filter

Filter ZBF3-L3.5-4-B1A

Passband1.5~5.5MHz, DC-0.75MHz≥20dB, 11-100MHz≥20dB, SMD
In Stock View Details →
ZBF3-L43.25-83.5-3374 Filter

Filter ZBF3-L43.25-83.5-3374

Passband1.5~85MHz, DC-1.1MHz≥20dB, 100-500MHz≥15dB, SMD
In Stock View Details →
ZLPF15-L100-1600-389 Filter

Filter ZLPF15-L100-1600-389

Passband100~1600MHz, 2000-6000MHz≥35dBc, dB, Pin
In Stock View Details →
ZBF3-L15.75-28.5-178 Filter

Filter ZBF3-L15.75-28.5-178

Passband1.5~30MHz, DC-1MHz≥45dB, 60-80MHz≥40dB, SMA
In Stock View Details →
ZLPF20-L0-1-174 Filter

Filter ZLPF20-L0-1-174

PassbandDC~1MHz, 2-1500MHz≥40dB, dB, BNC
View Details →

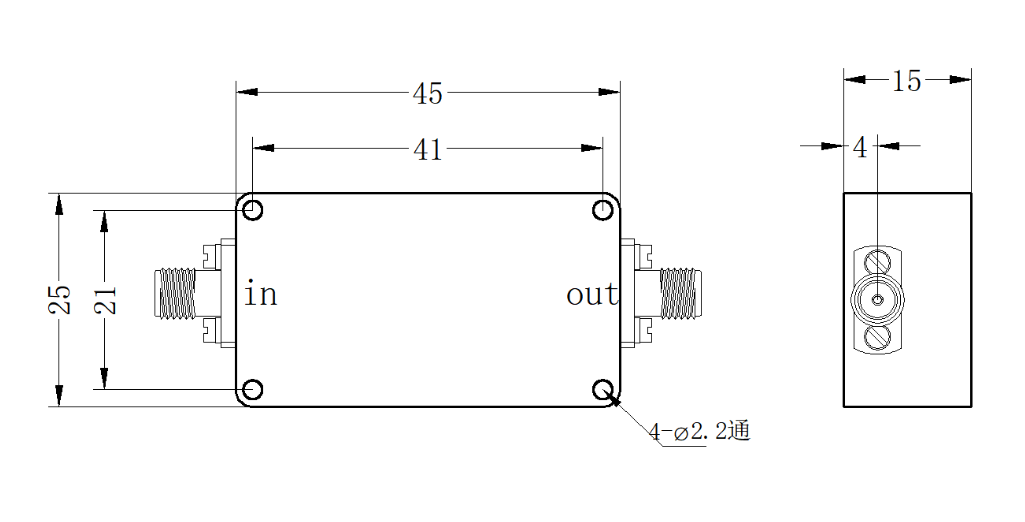

ZLPF2-L1.5-30-2333 Filter

Filter ZLPF2-L1.5-30-2333

Passband1.5~30MHz, 40-100MHz≥50dBc, dB, SMA
View Details →

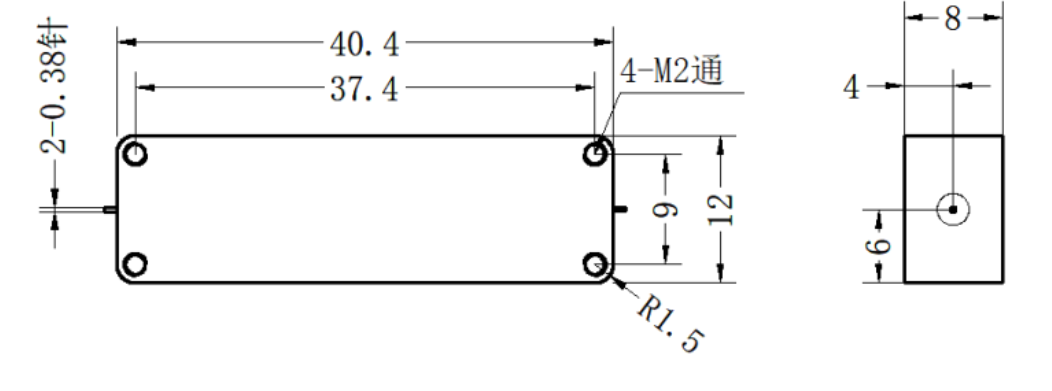

ZLPF2-L0-160-1826 Filter

Filter ZLPF2-L0-160-1826

Passband1~160MHz, 256-500MHz≥50dBc, dB, Pin
View Details →

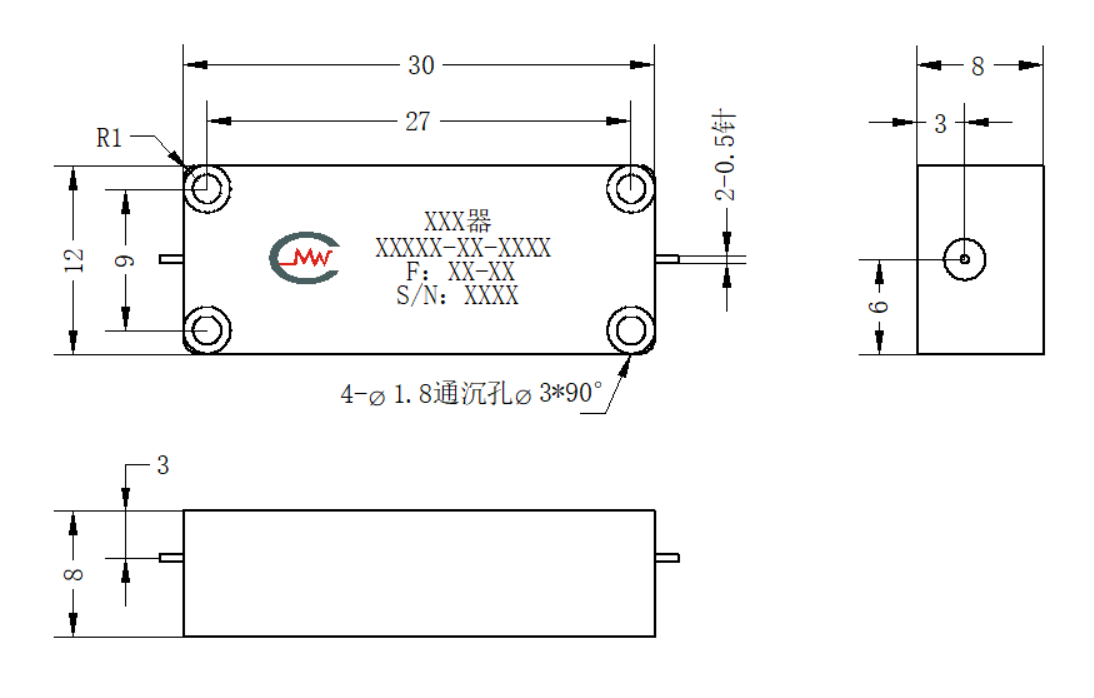

ZLPF13-L1.5-5.5-1639 Filter

Filter ZLPF13-L1.5-5.5-1639

Passband1.5~5.5MHz, 7-100MHz≥50dBc, Pin
View Details →
ZLPF13-L1.5-30-1435 Filter

Filter ZLPF13-L1.5-30-1435

Passband1.5~30MHz, 40MHz≥10dBc, 50MHz≥48, Pin
View Details →
ZHPF20-L1-10-186 Filter

Filter ZHPF20-L1-10-186

Passband1~10MHz, DC-0.6MHz≥60dB, dB, SMA
View Details →
ZBF5-L25.5-49-3326 Filter

Filter ZBF5-L25.5-49-3326

Passband1~50MHz, DC-0.5MHz≥50dBc, 80-150MHz≥50dBc, SMP
View Details →
ZBF5-L15.75-28.5-1751 Filter

Filter ZBF5-L15.75-28.5-1751

Passband1.5~30MHz, DC-1MHz≥40dBc, 40-100MHz≥40dBc, SMA-K
View Details →
ZBF5-L13-24-3182 Filter

Filter ZBF5-L13-24-3182

Passband1~25MHz, DC-0.5MHz≥40dBc, 30-100MHz≥40dBc, Pin
View Details →
ZBF3-L3.5-4-1876 Filter

Filter ZBF3-L3.5-4-1876

Passband1.5~5.5MHz, DC-0.1MHz≥40dB, 9.5-100MHz≥40dB, SMD
View Details →
ZBF3-L23.25-43.5-4011 Filter

Filter ZBF3-L23.25-43.5-4011

Passband1.5~45MHz, DC-1MHz≥40dB, 55-200MHz≥40dB, SMD
View Details →

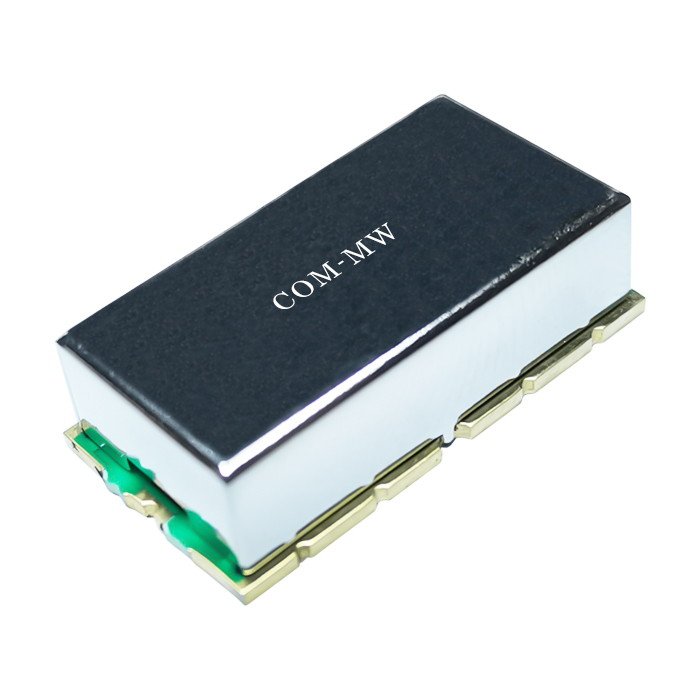

ZBF3-L2.7-1.6-4640 Filter

Filter ZBF3-L2.7-1.6-4640

Passband1.9~3.5MHz, DC-0.7MHz≥60dBc, 3.8MHz≥20dBc, SMD
View Details →

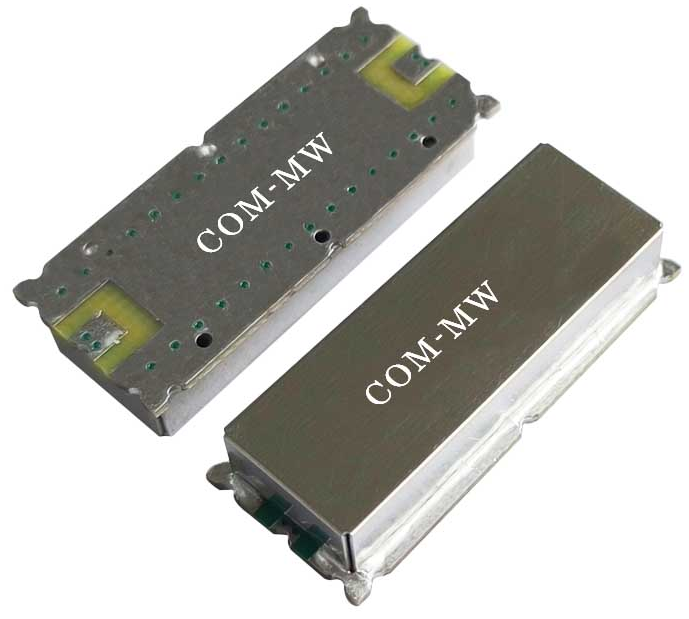

ZBF3-L2-1-4473 Filter

Filter ZBF3-L2-1-4473

Passband1.5~2.5MHz, DC-1.25MHz≥35dB, 3-30MHz≥45dB, SMD
View Details →
ZBF3-L16.5-30-750 Filter

Filter ZBF3-L16.5-30-750

Passband1.5~31.5MHz, DC-0.75MHz≥40dB, 63-300MHz≥40dB, SMD
View Details →
ZBF3-L16.5-30-4496 Filter

Filter ZBF3-L16.5-30-4496

Passband1.5~31.5MHz, DC-0.75MHz≥40dB, 0.75-1MHz≥25dB, SMD
View Details →
ZBF3-L15.75-28.5-2082 Filter

Filter ZBF3-L15.75-28.5-2082

Passband1.5~30MHz, DC-0.5MHz≥40dB, 40-100MHz≥70dB, SMA
View Details →

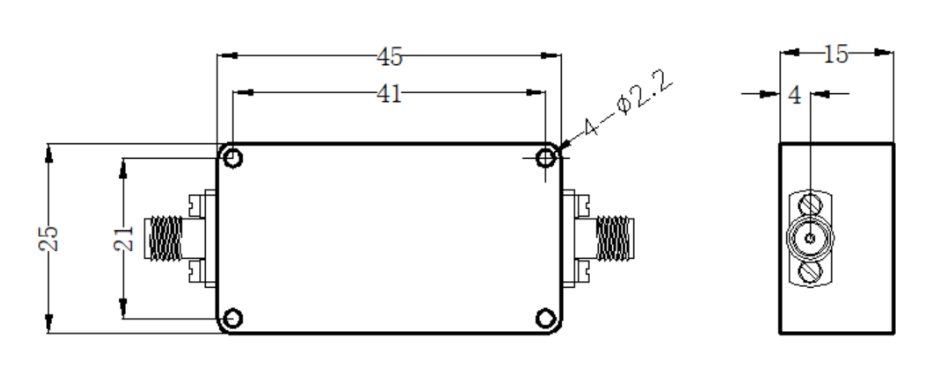

ZBF2-L15.75-28.5-1783 Filter

Filter ZBF2-L15.75-28.5-1783

Passband1.5~30MHz, DC-1MHz≥45dBc, 50-200MHz≥40dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
