Filters
Filters 1
Feature
Bandpass 21
F Low MHz
6950 - 7400 5 7450 - 7650 7 7900 - 8050 3 8700 - 8900 3 8920 - 8976 3
–
Center frequency MHz
8000 - 8225 4 8250 - 8350 8 8500 - 8900 4 8925 - 9018 5
–
F High MHz
9045 1 9050 11 9060 1 9080 1 9100 7
–
IL on center frequency dB
0.5 - 1 12 2 - 2.5 7 2.7 - 3.5 2
–
Maximum loss of side frequency dB
1 - 1.5 2 1.8 - 2 10 3 - 3.5 8 3.7 1
–
Rejection dB
40 - 50 5 55 - 59.999 2 60 - 65 10 70 - 75 2 85 - 90 2
–
Connector
SMA 13 Microstrip pad 2 Microstrip needle 6
Power Handling
1 1 2 4 5 5 10 10 20 1
–
Filter type
Cavity&waveguide 17 Coaxial 1 Thin film 2
F High：9045 - 9100 MHz× Clear all
matches 21 models Default Newest
STBP8R2-1R8-K508 Thin film filter

Thin film filter STBP8R2-1R8-K508

Bandwidth7.3-9.1GHz, Rejection40@DC-6.2GHz, 40@10.5-18.0GHz
In Stock View Details →
STBP8R5-1R2-K570 Thin film filter

Thin film filter STBP8R5-1R2-K570

Bandwidth7.9-9.1GHz, Rejection40@DC-6.9GHz, 40@10.6-18.0GHz
In Stock View Details →
ZBF13-C8.3-1.6G-2859 Filter

Filter ZBF13-C8.3-1.6G-2859

Passband7.5~9.1GHz, DC-6.6GHz≥65dBc, 9.7-16GHz≥30dBc, SMA
In Stock View Details →
ZBF5-C8250-1600-789 Filter

Filter ZBF5-C8250-1600-789

Passband7450~9050MHz, DC-6.8GHz≥55dBc, 9.64-19GHz≥55dBc, SMA
In Stock View Details →
CC0138 Filter

Filter CC0138

Bandwidth8.75-9.1GHz, Rejection40@DC-7.8GHz, 38@10.2-22.5GHz
In Stock View Details →

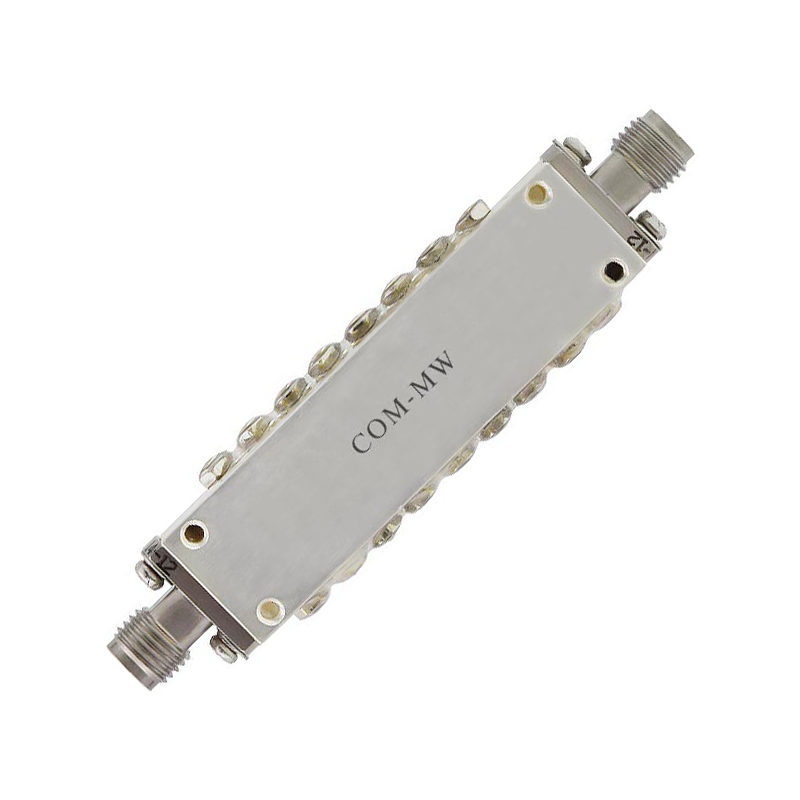

ZBF2-C8550-1000-2635 Filter

Filter ZBF2-C8550-1000-2635

Passband8050~9050MHz, 16.1-18.1GHz≥60dBc, , SMA
In Stock View Details →
ZBF6-C9000-90-4444 Filter

Filter ZBF6-C9000-90-4444

Passband8955~9045MHz, DC-8660MHz≥50dB, 9350-25135MHz≥50dB, SMA
View Details →

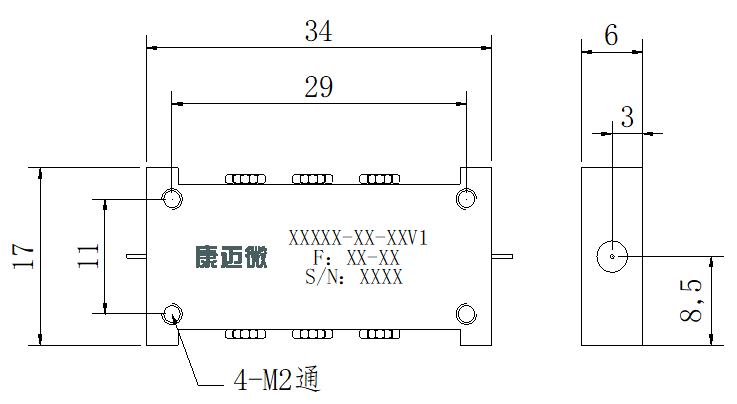

ZBF4-C8350-1400-170 Filter

Filter ZBF4-C8350-1400-170

Passband7650~9050MHz, DC-5500MHz≥65dBc, 10200-15000MHz≥65dBc, SMA
View Details →
ZBF4-C8.25-1.6G-662 Filter

Filter ZBF4-C8.25-1.6G-662

Passband7450~9050MHz, DC-5000MHz≥50dBc, 10200-16000MHz≥65dBc, Pin
View Details →
ZBF3-C8.5-1.1G-4381 Filter

Filter ZBF3-C8.5-1.1G-4381

Passband7950~9050MHz, 6500-7500MHz≥45dBc, 9500-16000MHz≥45dBc, Pin
View Details →
ZBF20-C9018-84-095 Filter

Filter ZBF20-C9018-84-095

Passband8976~9060MHz, DC-8178MHz≥85dBc, 9858-12000MHz≥75dBc, SMA
View Details →
ZBF2-C8-2.1G-2034 Filter

Filter ZBF2-C8-2.1G-2034

Passband6.95~9.05GHz, DC-6.6GHz≥60dBc, 9.4-18GHz≥60dBc,
View Details →
ZBF16-C9000-200-468 Filter

Filter ZBF16-C9000-200-468

Passband8.9~9.1GHz, 2~6GHz≥60dB, 10~11GHz≥55dB, 11GHz≥60dB,
View Details →
ZBF13-C9600-160-3962 Filter

Filter ZBF13-C9600-160-3962

Passband8920~9080MHz, DC-8690MHz≥60dB, 9.3-18GHz≥60dB, Pin
View Details →
ZBF13-C8900-400-2343 Filter

Filter ZBF13-C8900-400-2343

Center Frequency8900MHz, Passband8700~9100MHz, DC-8.5GHz≥50dB, 9.5-18GHz≥50dB, SMA
View Details →

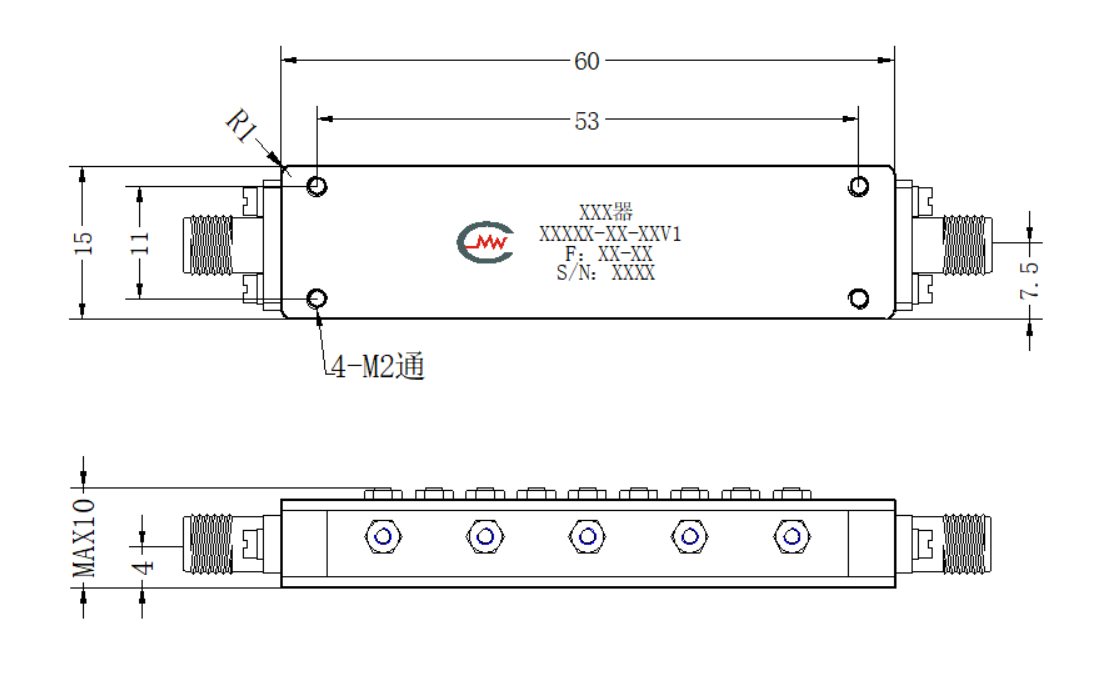

ZBF13-C8350-1400-1792 Filter

Filter ZBF13-C8350-1400-1792

Passband7650~9050MHz, F0±1GHz≥40dBc, 10.5-12GHz≥70dBc, SMA
View Details →

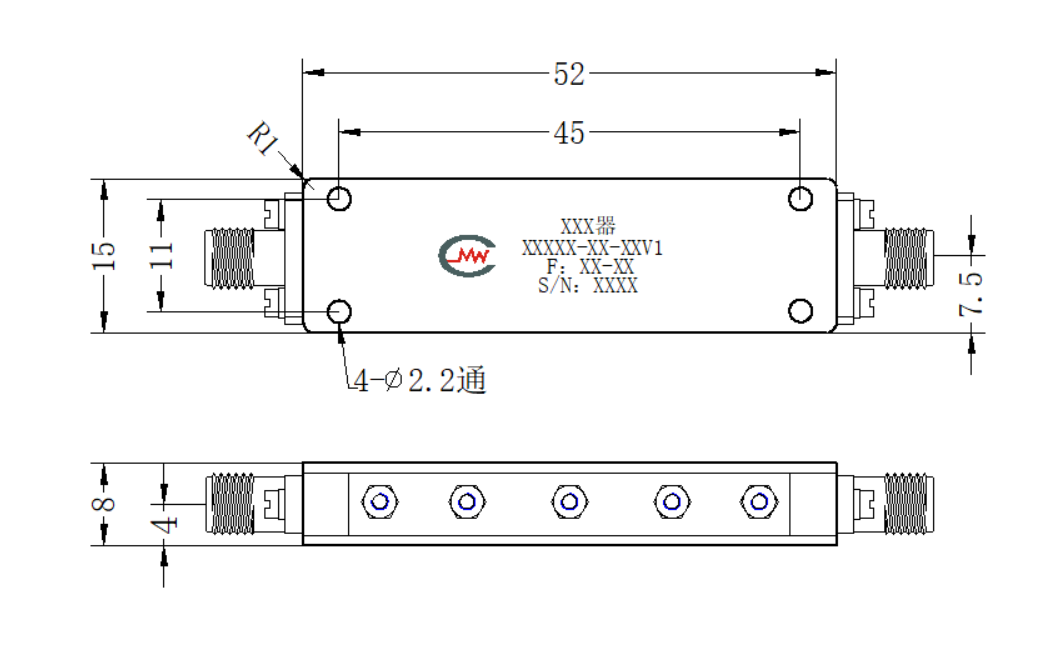

ZBF13-C8250-1600-1305 Filter

Filter ZBF13-C8250-1600-1305

Passband7.45~9.05GHz, F0±1.5GHz≥45dBc, DC-6.6GHz≥75dBc, SMA
View Details →
ZBF13-C8.25-1.7G-1347 Filter

Filter ZBF13-C8.25-1.7G-1347

Passband7.4~9.1GHz, DC-6.3GHz≥65dBc, 10.2-14.8GHz≥65dBc, SMA
View Details →

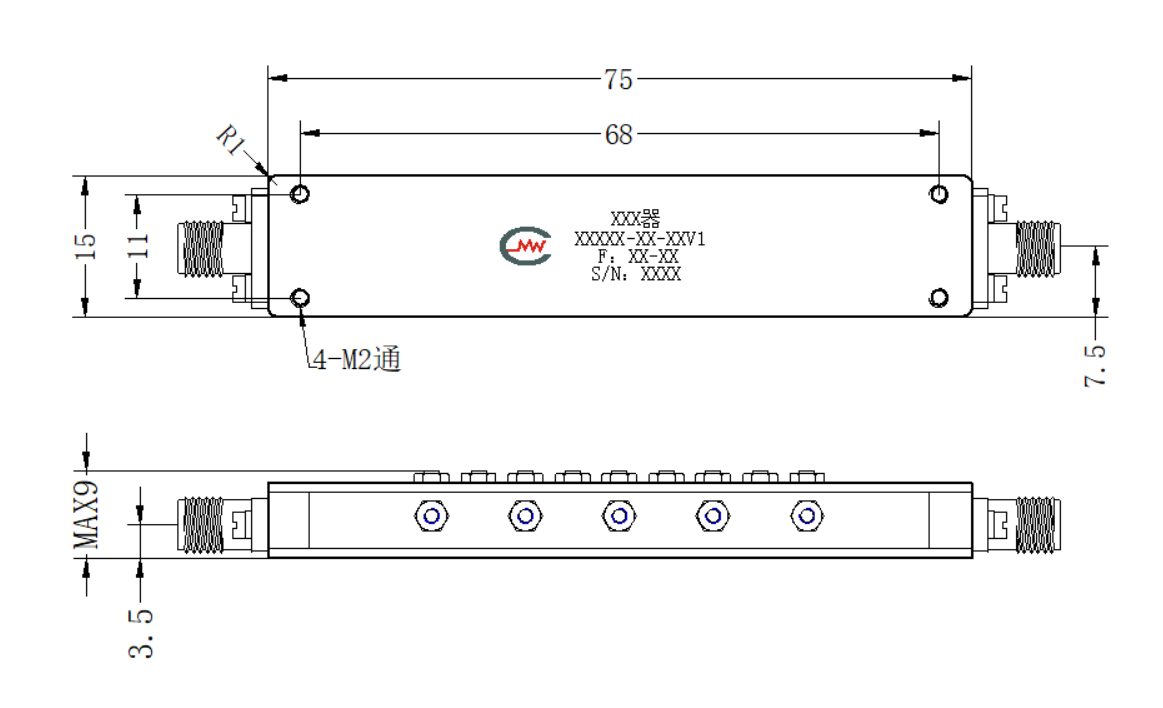

ZBF13-C8.25-1.6G-1364 Filter

Filter ZBF13-C8.25-1.6G-1364

Passband7.45~9.05GHz, DC-6MHz≥65dBc, 7.25GHz≥50dBc, SMA
View Details →
ZBF13-C8.23-1.65G-672 Filter

Filter ZBF13-C8.23-1.65G-672

Passband7400~9050MHz, DC-6.23GHz≥50dBc, 10.23GHz≥50dBc, Pin
View Details →
ZBF13-C8-2.1G-888 Filter

Filter ZBF13-C8-2.1G-888

Passband6.95~9.05GHz, DC-6.5GHz≥47dBc, 9.6-12.3GHz≥55dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
