F High：8800 - 8900 MHz× Clear all
matches 35 models Default Newest
CA0296 SMD Filter

SMD Filter CA0296

Bandwidth8.1-8.8GHz, Rejection35@DC-7.2GHz, 40@9.7-17.0GHz
In Stock View Details →
CA0286 SMD Filter

SMD Filter CA0286

Bandwidth6.4-8.8GHz, Rejection40@DC-5.0GHz, 40@10.2-15.5GHz
In Stock View Details →
CA0172 SMD Filter

SMD Filter CA0172

Bandwidth8.45-8.85, Rejection40@DC-7.5GHz, 35@10.0-20.0GHz
In Stock View Details →

Thin film filter STBP8R1-1R5-N464

Bandwidth7.3-8.8GHz, Rejection40@DC-6.5GHz, 35@9.6-17.0GHz
In Stock View Details →
STBP8R6-0R6-K341 Thin film filter

Thin film filter STBP8R6-0R6-K341

Bandwidth8.3-8.9GHz, Rejection40@DC-7.0GHz, 40@10.2-19.0GHz
In Stock View Details →
STBP8R8-0R2-M249 Thin film filter

Thin film filter STBP8R8-0R2-M249

Bandwidth8.7-8.9GHz, Rejection40@DC-7.9GHz, 40@9.5-21.0GHz
In Stock View Details →
STBP7R8-2R2-K253 Thin film filter

Thin film filter STBP7R8-2R2-K253

Bandwidth6.7-8.9GHz, Rejection40@DC-5.1GHz, 40@10.6-17.0GHz
In Stock View Details →
STBP8R3-1R3-K349 Thin film filter

Thin film filter STBP8R3-1R3-K349

Bandwidth7.6-8.9GHz, Rejection35@DC-6.6GHz, 40@10.0-18.5GHz
In Stock View Details →
STBP7R8-2R2-M500 Thin film filter

Thin film filter STBP7R8-2R2-M500

Bandwidth6.7-8.9GHz, Rejection40@DC-5.6GHz, 35@10.3-18.0GHz
In Stock View Details →
STBP7R5-2R8-M444 Thin film filter

Thin film filter STBP7R5-2R8-M444

Bandwidth6.1-8.9GHz, Rejection40@DC-4.9GHz, 40@10.4-17.5GHz
In Stock View Details →
CC0296 Filter

Filter CC0296

Bandwidth8.1-8.8GHz, Rejection40@DC-7.1GHz, 40@9.7-17.5GHz
In Stock View Details →
SM0001 MEMS Filter

MEMS Filter SM0001

Bandwidth8.2-8.8GHz, Rejection40@DC-7.4GHz, 45@9.8-23.0GHz,
In Stock View Details →
CC0172 Filter

Filter CC0172

Bandwidth8.45-8.85GHz, Rejection38@DC-7.4GHz, 38@10.0-20.5GHz
In Stock View Details →
CC0094 Filter

Filter CC0094

Bandwidth6.9-8.8GHz, Rejection40@DC-5.4GHz, 40@10.9-22.5GHz
In Stock View Details →
ZBSF6-M8430-8850-2108 Filter

Filter ZBSF6-M8430-8850-2108

Stopband F8430~8850MHz, ≥60dB, PassbandDC~8170MHz, 9110~18000MHz, SMA
View Details →
ZBSF6-C8400-8900-2706 Filter

Filter ZBSF6-C8400-8900-2706

Stopband F8400~8900MHz, ≥40dB, PassbandDC~8200MHz, 9100~10000MHz, SMA
View Details →
ZBF5-C8.68-0.37G-3289 Filter

Filter ZBF5-C8.68-0.37G-3289

Passband8.5~8.87GHz, DC-8.292GHz≥45dB, 9-15GHz≥45dB, SMP
View Details →

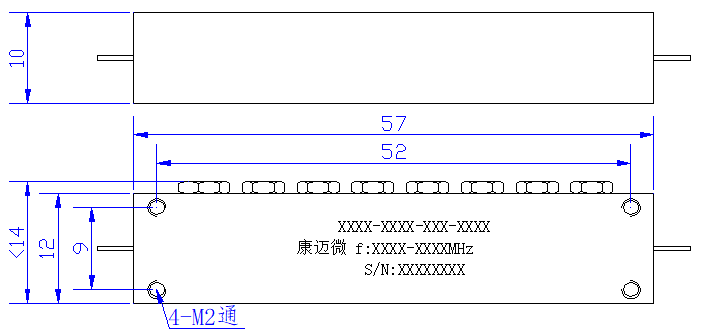

ZBF5-C8.35-1.1G-2733 Filter

Filter ZBF5-C8.35-1.1G-2733

Passband7.8~8.9GHz, 6.6-7.3GHz≥50dBc, DC-6.6GHz≥80dBc, Pin
View Details →
ZBF5-C8.2-1.4G-989 Filter

Filter ZBF5-C8.2-1.4G-989

Passband7.5~8.9GHz, DC-7.3GHz≥40dBc, 10-20GHz≥40dBc, SMA
View Details →
ZBF5-C8.15-1.3G-3409 Filter

Filter ZBF5-C8.15-1.3G-3409

Passband7.5~8.8GHz, DC-6GHz≥70dBc, 6-6.9GHz≥60dBc, Pin
View Details →
ZBF4-C8290-1020-272 Filter

Filter ZBF4-C8290-1020-272

Passband7780~8800MHz, DC-7520MHz≥35dBc, 9360-12000MHz≥85dBc, Pin
View Details →
ZBF4-C8.8-0G-512 Filter

Filter ZBF4-C8.8-0G-512

Passband8.8~8.8GHz, DC-8.7GHz≥85dBc, 8.9-15GHz≥85dBc, Pin
View Details →
ZBF4-C8.7-0.4G-1633 Filter

Filter ZBF4-C8.7-0.4G-1633

Passband8.5~8.9GHz, DC-8GHz≥20dBc, 9.6-16GHz≥40dBc, Pin
View Details →

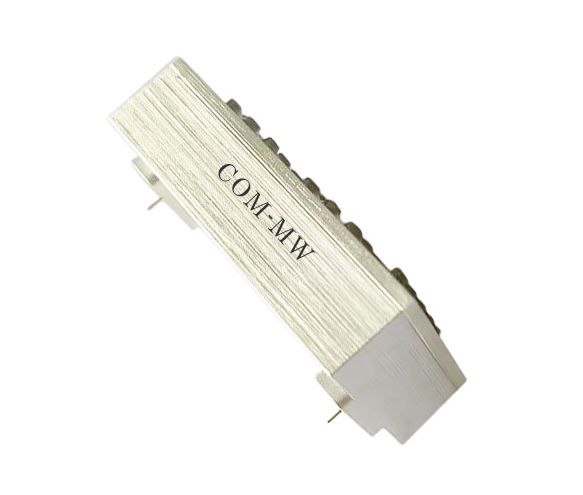

ZBF4-C8.7-0.4G-1515 Filter

Filter ZBF4-C8.7-0.4G-1515

Passband8.5~8.9GHz, DC-8GHz≥60dBc, 9.6-16GHz≥74dBc, Pin
View Details →
