Filters
Filters 1
Feature
Bandpass 28 Notch 9
F Low MHz
430 - 570 7 769 - 803 3 828 - 839 15 840 - 860 7 863 - 866 5
–
Center frequency MHz
650 - 720 7 820 - 836.5 3 850 - 855 16 865 - 866.5 2
–
F High MHz
866 4 867 2 869 1 870 26 872 4
–
IL on center frequency dB
0.5 - 1 10 1.8 - 2 3 3 - 4 15
–
Maximum loss of side frequency dB
1 - 2 12 2.5 - 3.5 10 3.8 - 4.5 13 5.5 - 6 2
–
Rejection dB
20 - 35 4 40 - 41 9 45 - 50 11 60 - 65 11 70 2
–
Connector
SMD 8 SMA 13 N 2 Microstrip needle 14
Power Handling
1 - 2 25 5 - 20 3 50 - 100 8
–
Filter type
LC 28 Cavity&waveguide 9
F High：866 - 872 MHz× Clear all
matches 37 models Default Newest
BF062 Filter

Filter BF062

Passband769~872MHz, 550MHz≥20dB, 920MHz≥20dB, SMD, Replace SXBP-820+
In Stock View Details →
BF069 Filter

Filter BF069

Passband770~870MHz, DC-450MHz≥20dB, 1420-2500MHz≥20dB, Industrial grade, Substitutes SYBP-820+
In Stock View Details →
ZBF15-L850-44-1080 Filter

Filter ZBF15-L850-44-1080

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L854.5-31-2314 Filter

Filter ZBF5-L854.5-31-2314

Passband839~870MHz, DC-780MHz≥40dB, 920-3500MHz≥40dB, SMA
In Stock View Details →
ZBF15-L850-44-1079 Filter

Filter ZBF15-L850-44-1079

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMA
In Stock View Details →
ZBF5-L854.5-31-2337 Filter

Filter ZBF5-L854.5-31-2337

Passband839~870MHz, DC-780MHz≥40dB, 920-3000MHz≥40dB, SMD
In Stock View Details →
ZBF2-L850-44-801 Filter

Filter ZBF2-L850-44-801

Passband828~872MHz, f0±75MHz≥35dBc, Pin
In Stock View Details →
ZBSF6-L851-870-6153 Filter

Filter ZBSF6-L851-870-6153

Stopband F851~870MHz, ≥50dB, PassbandDC~775MHz, 945~4000MHz, SMA
View Details →
ZBSF6-C866-869-5350 Filter

Filter ZBSF6-C866-869-5350

Stopband F866~869MHz, ≥60dB, PassbandDC~861MHz, 874~4000MHz, SMA
View Details →
ZBSF6-C865-867-3494 Filter

Filter ZBSF6-C865-867-3494

Stopband F865~867MHz, ≥40dB, PassbandDC~860MHz, 872~3000MHz, N
View Details →
ZBSF6-C863-870-5840 Filter

Filter ZBSF6-C863-870-5840

Stopband F863~870MHz, ≥50dB, PassbandDC~858MHz, 875~4000MHz, SMA
View Details →
ZBSF3-C866-870-2997 Filter

Filter ZBSF3-C866-870-2997

Stopband F866~870MHz, ≥45dB, PassbandDC~850MHz, 890~1000MHz, SMA
View Details →
ZBF6-C866.5-1-5153 Filter

Filter ZBF6-C866.5-1-5153

Passband866~867MHz, DC-855MHz≥70dB, 878-2000MHz≥70dB, SMA
View Details →
ZBF3-L855-30-3419 Filter

Filter ZBF3-L855-30-3419

Passband840~870MHz, DC-400MHz≥45dBc, 1800-2500MHz≥45dBc, SMD
View Details →
ZBF3-L850-47.6-841 Filter

Filter ZBF3-L850-47.6-841

Passband830~870MHz, DC-720MHz≥40dB, 1000-3500MHz≥40dB, SMA
View Details →
ZBF3-L850-40-1384 Filter

Filter ZBF3-L850-40-1384

Passband830~870MHz, DC-780MHz≥45dBc, 920-500045dBc, Pin
View Details →
ZBF3-L720-300-3368 Filter

Filter ZBF3-L720-300-3368

Passband570~870MHz, DC-460MHz≥40dB, 980-2000MHz≥40dB, SMD
View Details →
ZBF3-L670-400-4351 Filter

Filter ZBF3-L670-400-4351

Passband470~870MHz, DC-365MHz≥20dB, 965-2700MHz≥20dB, SMD
View Details →

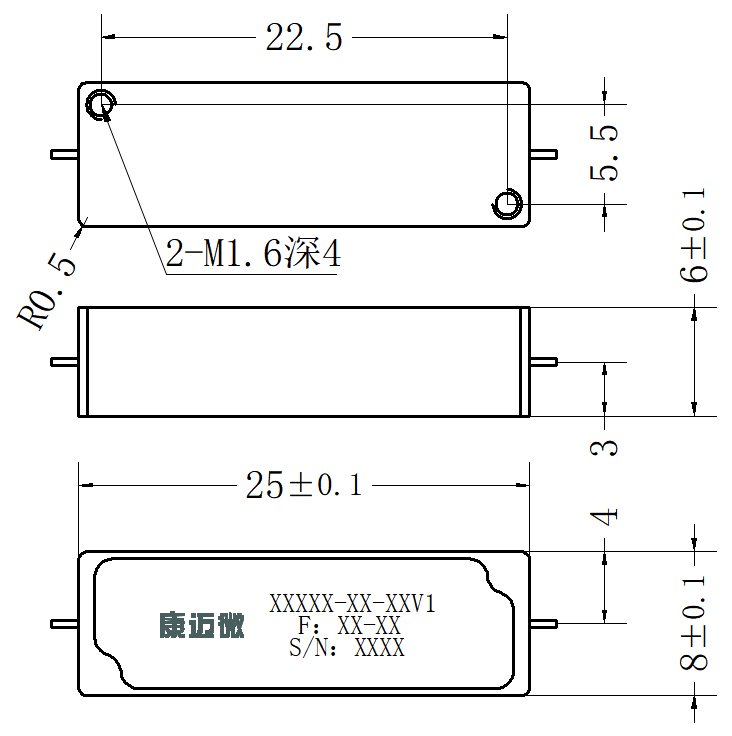

ZBF3-L650-440-4108 Filter

Filter ZBF3-L650-440-4108

Passband430~870MHz, DC-370MHz≥45dB, 930-2000MHz≥45dB, Pin
View Details →

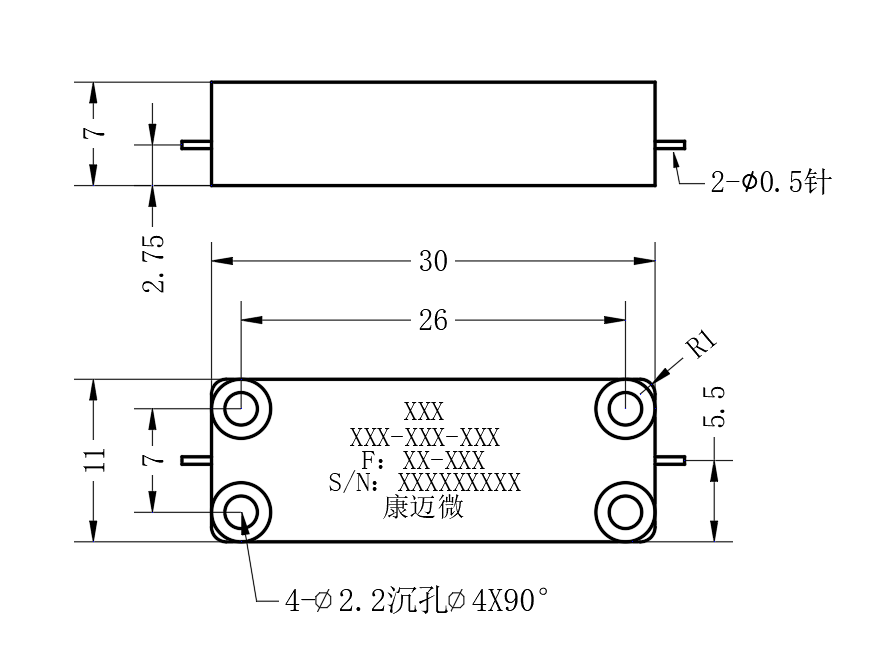

ZBF20-L720-300-084 Filter

Filter ZBF20-L720-300-084

Passband570~870MHz, DC-390MHz≥60dBc, 390-490MHz≥20dBc, Pin
View Details →
ZBF2-L850-40-2701 Filter

Filter ZBF2-L850-40-2701

Passband830~870MHz, 550-780MHz≥30dBc, 920-1150MHz≥30dBc, Pin
View Details →
ZBF2-L850-40-2699 Filter

Filter ZBF2-L850-40-2699

Passband830~870MHz, DC-780MHz≥45dBc, 0.92-3.5GHz≥45dBc, Pin
View Details →
ZBF2-L850-40-2295 Filter

Filter ZBF2-L850-40-2295

Passband830~870MHz, 750MHz≥30dBc, 970-1150MHz≥40dBc, Pin
View Details →
ZBF2-L850-40-1915 Filter

Filter ZBF2-L850-40-1915

Passband830~870MHz, DC-780MHz≥41dBc, 920-3500MHz≥41dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
