Filters
Filters 1
Feature
Bandpass 20 low pass 2
F Low MHz
0 - 5700 7 6300 - 7100 5 7300 - 7820 5 8000 - 8100 3 8140 2
–
Center frequency MHz
6650 - 7300 6 7678 - 7800 7 7950 - 8150 3 8200 - 8240 4
–
F High MHz
8260 1 8300 16 8325 1 8328 2 8340 2
–
IL on center frequency dB
0.5 2 1 8 1.5 3 2 5 2.5 2
–
Maximum loss of side frequency dB
1 - 1.5 6 2 - 2.5 10 3 - 3.5 6
–
Rejection dB
40 - 45 5 50 - 55 4 60 - 65 4 70 - 80 9
–
Connector
SMD 2 SMA 9 Microstrip pad 1 Microstrip needle 10
Power Handling
1 3 2 3 5 4 10 11 50 1
–
Filter type
Cavity&waveguide 17 stripline 3 Thin film 2
F High：8260 - 8340 MHz× Clear all
matches 22 models Default Newest
CA0311 SMD Filter

SMD Filter CA0311

Bandwidth5.7-8.3GHz, Rejection50@DC-4.2GHz, 50@12.0-16.0GHz
In Stock View Details →
STBP7R0-2R6-K669 Thin film filter

Thin film filter STBP7R0-2R6-K669

Bandwidth5.7-8.3GHz, Rejection40@DC-4.5GHz, 40@9.9-15.0GHz
In Stock View Details →

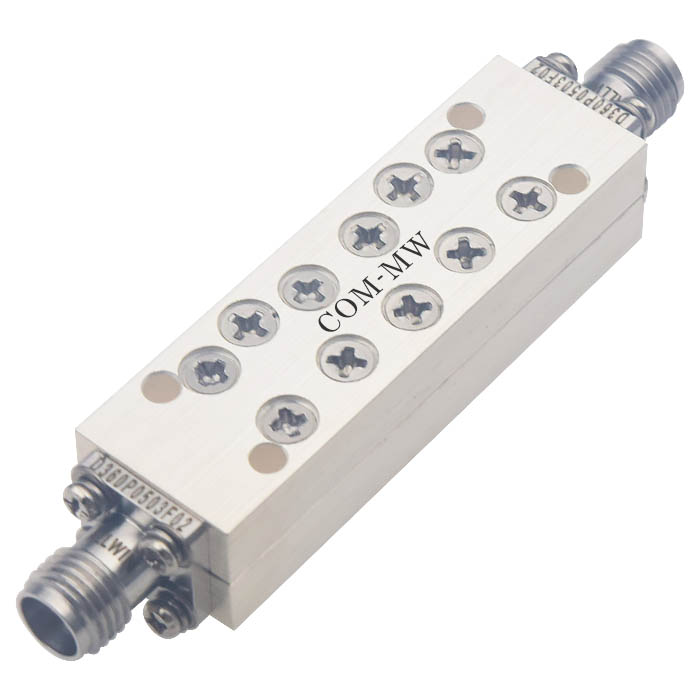

ZLPF5-M1000-8300-154 Filter

Filter ZLPF5-M1000-8300-154

Passband1000~8300MHz, 10-18GHz≥50dBc, SMA-K
View Details →
ZLPF-M1-8G-B4863 Filter

Filter ZLPF-M1-8G-B4863

Passband1000~8300MHz, 10-18GHz≥55dBc, SMA-K
View Details →
ZBF6-C7950-700-2122 Filter

Filter ZBF6-C7950-700-2122

Passband7600~8300MHz, DC-7250MHz≥60dB, 8650-16000MHz≥60dB, SMA
View Details →
ZBF5-C8200-40-1673 Filter

Filter ZBF5-C8200-40-1673

Center Frequency8200MHz, 1dB BW40~400MHz, DC-7.3GHz≥70dBc, 9.1-14GHz≥70dBc, SMA
View Details →
ZBF5-C7300-2000-3244 Filter

Filter ZBF5-C7300-2000-3244

Passband6300~8300MHz, DC-4300MHz≥65dBc, 10300-16000MHz≥65dBc, Pin
View Details →

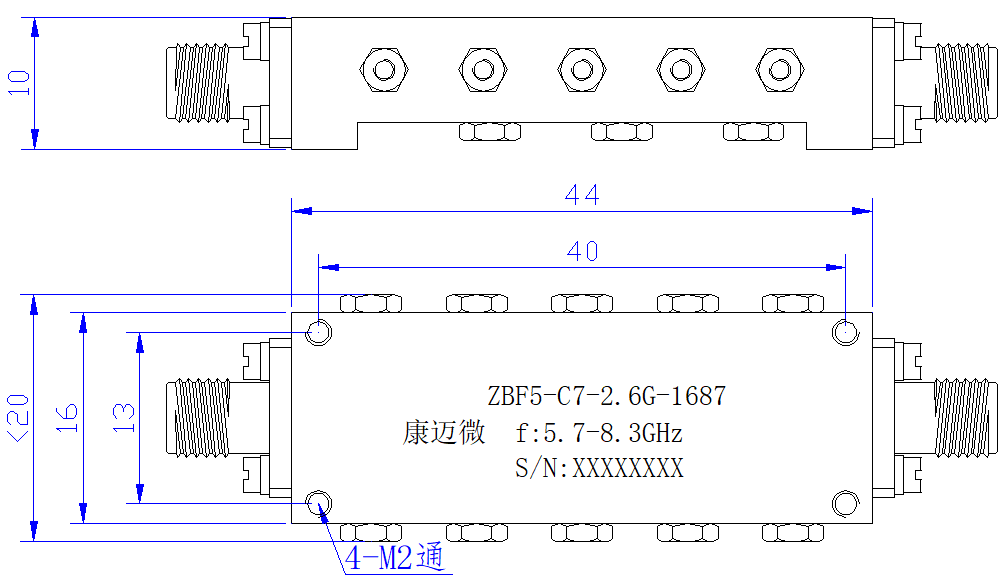

ZBF5-C7-2.6G-1687 Filter

Filter ZBF5-C7-2.6G-1687

Passband5.7~8.3GHz, DC-4.5GHz≥55dBc, 10-16GHz≥65dBc, SMA
View Details →
ZBF3-C7800-1000-603 Filter

Filter ZBF3-C7800-1000-603

Passband7300~8300MHz, DC-2300MHz≥60dBc, 9600-16600MHz≥60dBc, SMA
View Details →
ZBF2-C7.8-1G-2148 Filter

Filter ZBF2-C7.8-1G-2148

Passband7.3~8.3GHz, 1-6.8GHz≥70dBc, 9.5-11.9GHz≥70dBc, Pin
View Details →

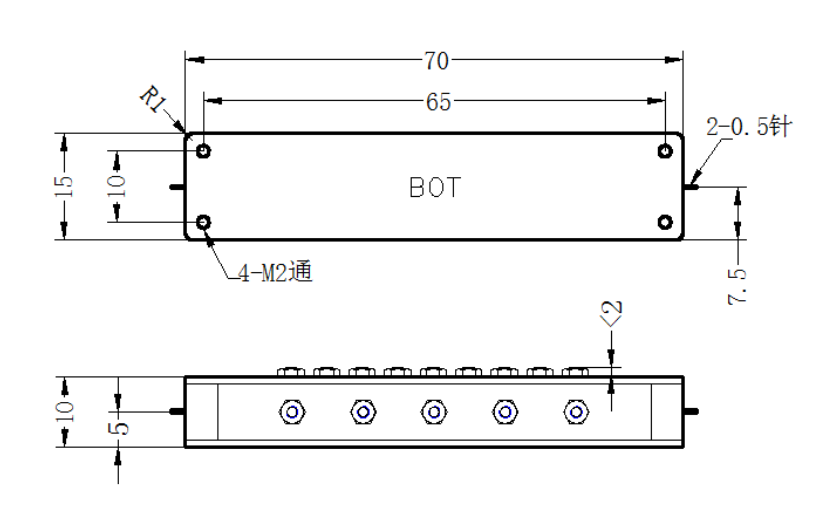

ZBF2-C6.65-3.3G-1666 Filter

Filter ZBF2-C6.65-3.3G-1666

Passband5~8.3GHz, DC-3.3GHz≥55dB, 10-18GHz≥55dB, Pin
View Details →

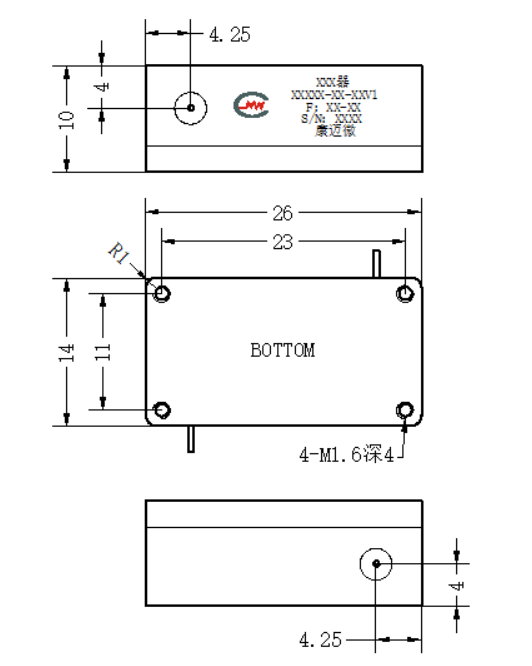

ZBF13-C8240-200-3001 Filter

Filter ZBF13-C8240-200-3001

Passband8140~8340MHz, DC-7.9GHz≥70dBc, 8.58-18GHz≥70dBc, Pin
View Details →
ZBF13-C8240-200-1119 Filter

Filter ZBF13-C8240-200-1119

Frequency8140~8340MHz, F0±300MHz≥40dBc, F0±550MHz≥80dBc,
View Details →
ZBF13-C8200-250-3759 Filter

Filter ZBF13-C8200-250-3759

Passband8075~8325MHz, DC-7.6GHz≥70dBc, 8.8-16GHz≥70dBc, Pin
View Details →
ZBF13-C8040-440-3354 Filter

Filter ZBF13-C8040-440-3354

Frequency7820~8260MHz, DC-6.58GHz≥90dBc, 7.2GHz≥80dBc, 7.64GHz≥40dBc, Pin
View Details →

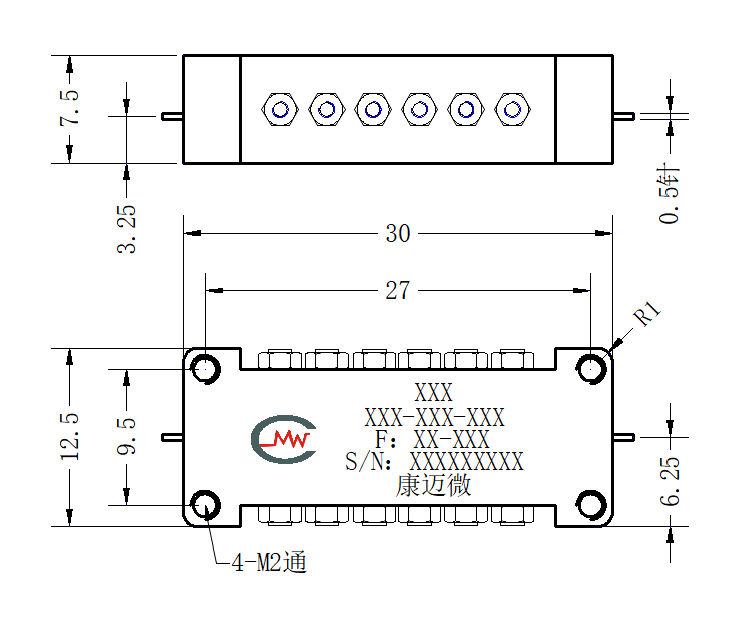

ZBF13-C8.15-0.3G-868 Filter

Filter ZBF13-C8.15-0.3G-868

Passband8~8.3GHz, DC-7.0GHz≥40dB, 8.6GHz≥30dB, Pin
View Details →
ZBF13-C7678-1300-154 Filter

Filter ZBF13-C7678-1300-154

Passband7028~8328MHz, 6478MHz≥45dBc, 6644MHz≥28dBc, SMA
View Details →
ZBF13-C7678-1300-019 Filter

Filter ZBF13-C7678-1300-019

Passband7028~8328MHz, 6478MHz≥45dBc, 8878MHz≥45dBc, SMA
View Details →
ZBF13-C7.8-1G-1019 Filter

Filter ZBF13-C7.8-1G-1019

Passband7.3~8.3GHz, DC-6.8GHz≥30dBc, 9.5-11.9GHz≥80dBc, Pin
View Details →

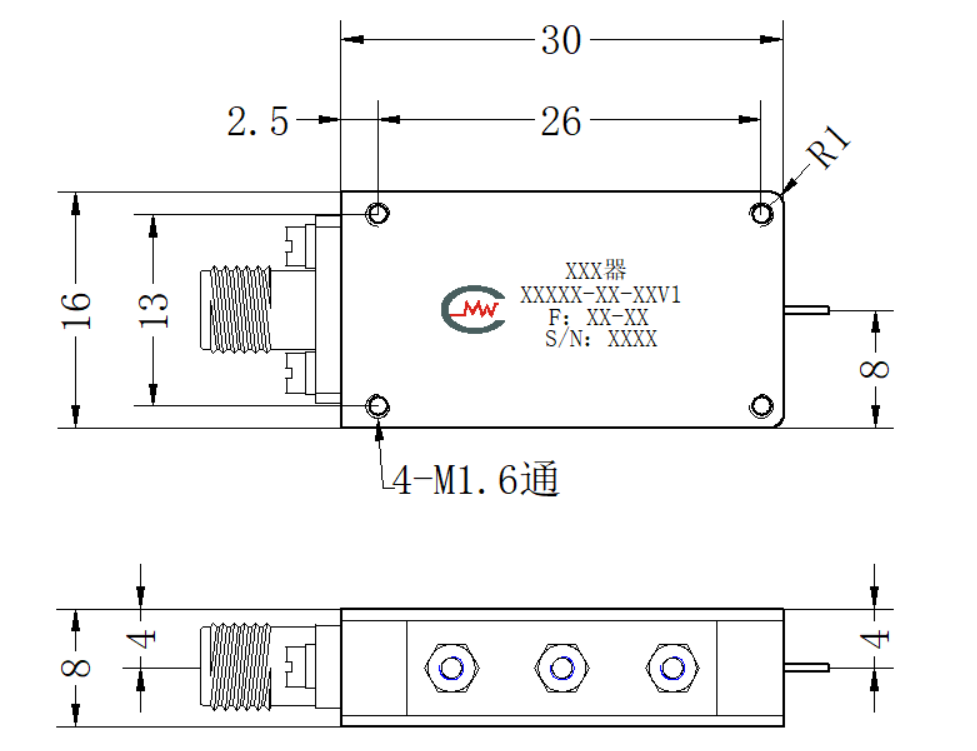

ZBF13-C7.7-1.2G-2153 Filter

Filter ZBF13-C7.7-1.2G-2153

Passband7.1~8.3GHz, DC-4.2GHz≥80dBc, 6.225GHz≥50dBc, 8.875GHz≥40dBc, Pin, SMA
View Details →
ZBF13-C7.7-1.2G-1862 Filter

Filter ZBF13-C7.7-1.2G-1862

Passband7.1~8.3GHz, 4-6.35GHz≥80dBc, 6.8&8.6GHz≥45dBc, Pin
View Details →

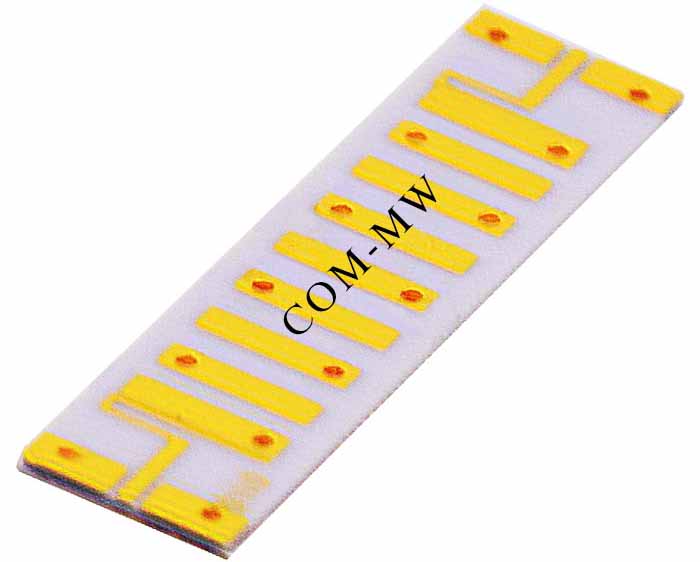

STBP7R0-2R6-G669 陶瓷滤波器

陶瓷滤波器 STBP7R0-2R6-G669

Bandwidth5.7-8.3GHz, Rejection40@DC-4.4GHz, 40@9.8-16.5GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
