Filters
Filters 1
Feature
Bandpass 13 low pass 1 Notch 2
F Low MHz
0 - 520 2 657.5 - 660 9 680 - 717 3 720 - 746.1 2
–
Center frequency MHz
650 1 720 9 730 1 750 1 765 1
–
F High MHz
780 12 782.5 1 783 2 783.9 1
–
IL on center frequency dB
1 8 2 5
–
Maximum loss of side frequency dB
1 1 1.5 1 2 7 2.5 3 3 4
–
Rejection dB
25 - 40 8 45 - 50 6 60 - 65 2
–
Connector
SMD 3 SMA 4 N 1 Microstrip needle 8
Power Handling
1 2 2 8 5 2 10 2 50 2
–
Filter type
LC 14 Cavity&waveguide 2
F High：780 - 783.9 MHz× Clear all
matches 16 models Default Newest
ZBF5-L730-100-3471 Filter

Filter ZBF5-L730-100-3471

Passband680~780MHz, DC-580MHz≥45dB, SMD
In Stock View Details →
LF086 Filter

Filter LF086

PassbandDC~780MHz, 1100-1400MHz≥50dB, 1400-2000MHz≥65dB, SMA
In Stock View Details →

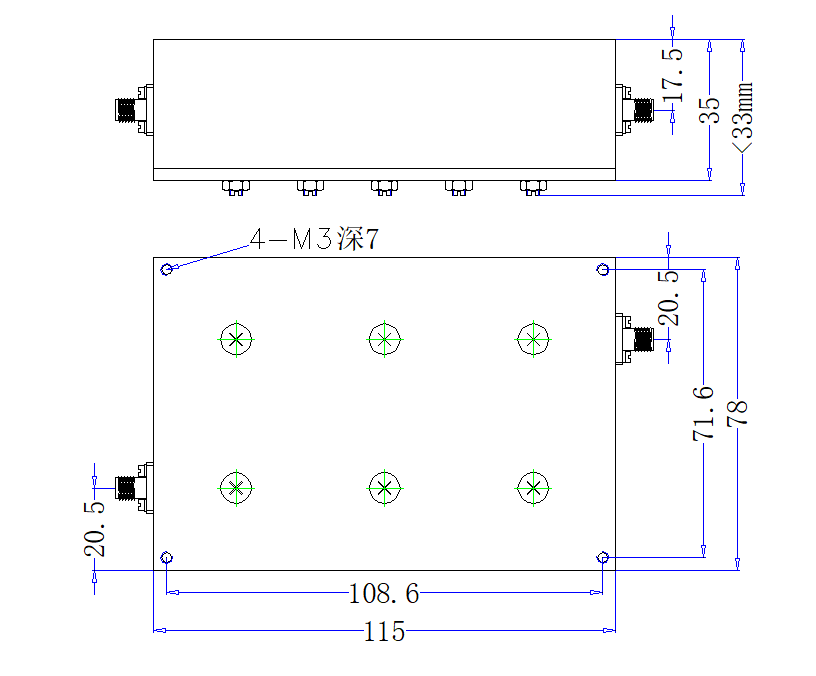

ZBF6-C765-37.8-4429 Filter

Filter ZBF6-C765-37.8-4429

Passband746.1~783.9MHz, DC-690MHz≥50dB, 845-2351.7MHz≥50dB, SMA
View Details →
ZBF5-L720-120-3169 Filter

Filter ZBF5-L720-120-3169

Passband660~780MHz, Pin
View Details →
ZBF5-L720-120-2742 Filter

Filter ZBF5-L720-120-2742

Passband660~780MHz, DC-600MHz≥40dBc, Pin
View Details →
ZBF5-L720-120-2107 Filter

Filter ZBF5-L720-120-2107

Passband660~780MHz, DC-600MHz≥45dB, 840-2000MHz≥45dB, Pin
View Details →
ZBF3-L720-125-3910 Filter

Filter ZBF3-L720-125-3910

Passband657.5~782.5MHz, DC-595MHz≥40dB, 880-3000MHz≥40dB, SMD
View Details →
ZBF15-L720-120-1307 Filter

Filter ZBF15-L720-120-1307

Passband660~780MHz, DC-550MHz≥60dBc, 900-3000MHz≥60dBc, Pin
View Details →
ZBF13-L720-120-2939 Filter

Filter ZBF13-L720-120-2939

Passband660~780MHz, DC-0.6GHz≥40dBc, 0.84-4GHz≥40dBc, Pin
View Details →
ZBF13-L720-120-2840 Filter

Filter ZBF13-L720-120-2840

Passband660~780MHz, DC-500MHz≥50dBc, 1.2-6GHz≥50dBc, Pin
View Details →
ZBF13-L720-120-2441 Filter

Filter ZBF13-L720-120-2441

Passband660~780MHz, F0±400MHz≥40dBc, 5594MHz≥65dBc, Pin
View Details →
ZBF13-L650-260-608 Filter

Filter ZBF13-L650-260-608

Passband520~780MHz, DC-470MHz≥25dBc, 0.84-1.0GHz≥25dBc, Pin
View Details →
ZBF13-C750-60-743 Filter

Filter ZBF13-C750-60-743

Passband720~780MHz, DC-700MHz≥40dB, 0.8-1.5GHz≥40dB, SMA
View Details →
ZBF-L720-100-S2010 Filter

Filter ZBF-L720-100-S2010

Passband660~780MHz, DC-500MHz≥40dB, 1000-4000MHz≥40dB, SMD
View Details →
K6-717-783-30S5050-001 Filter

Filter K6-717-783-30S5050-001

Stopband F717~783MHz, ≥50dB, PassbandDC~687MHz, 813~3000MHz, SMA
View Details →
K6-717-783-30N5050-002 Filter

Filter K6-717-783-30N5050-002

Stopband F717~783MHz, ≥50dB, PassbandDC~687MHz, 813~3000MHz, N
View Details →
