Filters
Filters 1
Feature
Bandpass 12 low pass 1 Notch 9
F Low MHz
0 - 426 3 470 - 698 5 710 - 713 10 714 - 722 4
–
Center frequency MHz
415 - 576 2 600 - 700 3 713 - 720 6 723 - 725 2
–
F High MHz
726 3 727 1 728 6 730 12
–
IL on center frequency dB
0.5 1 1 4 2 2 3 3 4 2
–
Maximum loss of side frequency dB
1 2 2 6 3 9 4 2 5 3
–
Rejection dB
20 - 30 3 35 - 40 5 50 - 53 5 55 - 60 7 65 2
–
Connector
SMD 2 SMA 9 N 5 Microstrip needle 6
Power Handling
1 - 2 10 5 - 10 4 35 - 50 6 100 - 150 2
–
Filter type
LC 12 Cavity&waveguide 10
F High：726 - 730 MHz× Clear all
matches 22 models Default Newest
ZLPF15-L0-726-1802 Filter

Filter ZLPF15-L0-726-1802

Passband0~726MHz, 850-1500MHz≥20dB, dB, SMA
View Details →
ZBSF6-C718-728-3559 Filter

Filter ZBSF6-C718-728-3559

View Details →
ZBSF6-C698-728-515 Filter

Filter ZBSF6-C698-728-515

Stopband F698~728MHz, ≥40dB, PassbandDC~688MHz, 738~4000MHz, SMA
View Details →

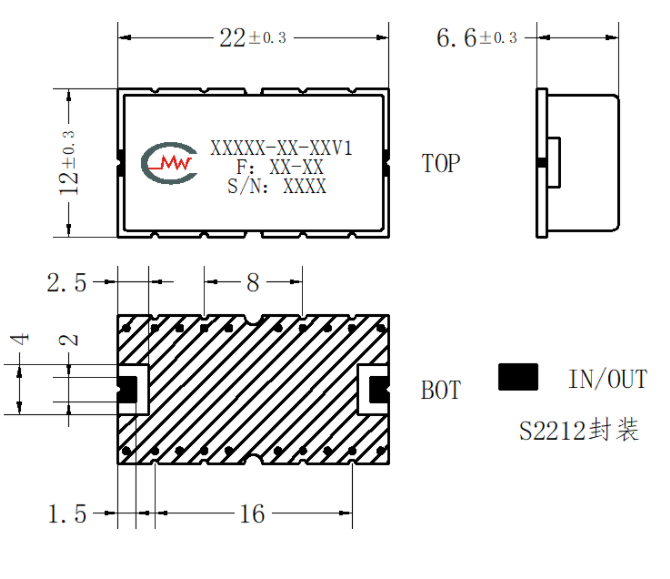

ZBF3-L720-12-2448 Filter

Filter ZBF3-L720-12-2448

Passband714~726MHz, DC-670MHz≥50dB, 770-1500MHz≥50dB, SMD
View Details →
ZBF3-L600-260-3275 Filter

Filter ZBF3-L600-260-3275

Passband470~730MHz, DC-340MHz≥35dB, 860-2000MHz≥35dB, Pin
View Details →
ZBF3-L415-630-200 Filter

Filter ZBF3-L415-630-200

Passband100~730MHz, DC-50MHz≥40dB, 1400-4800MHz≥50dB, Pin
View Details →

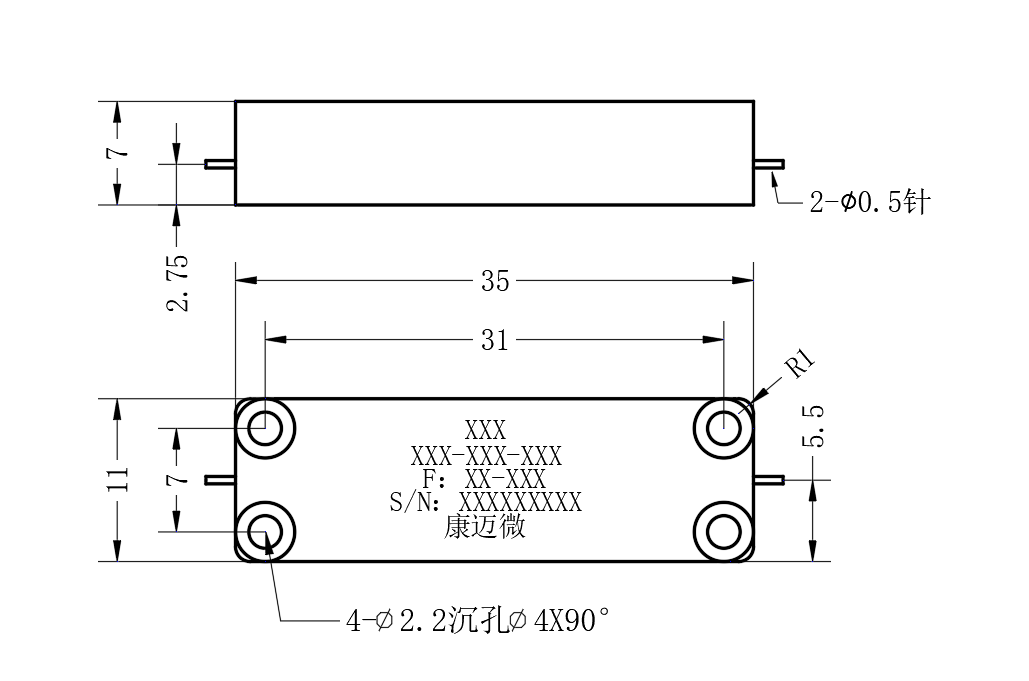

ZBF20-L720-16-080 Filter

Filter ZBF20-L720-16-080

Passband712~728MHz, DC-600MHz≥60dBc, 600-630MHz≥30dBc, Pin
View Details →

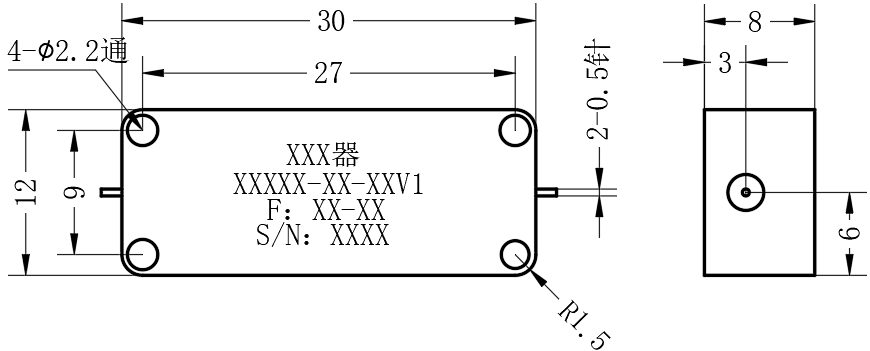

ZBF15-L720-20-724 Filter

Filter ZBF15-L720-20-724

Passband710~730MHz, DC-640MHz≥65dB, 650MHz≥50dB, 790MHz≥45dB, 800MHz≥55dB, Pin
View Details →
ZBF15-L720-14-2739 Filter

Filter ZBF15-L720-14-2739

Passband713~727MHz, DC-550MHz≥50dB, 750-970MHz≥10dB, 970-2000MHz≥50dB, dB, dB, Pin
View Details →
ZBF15-L576-300-1773 Filter

Filter ZBF15-L576-300-1773

Passband426~726MHz, DC-350MHz≥60dBc, 1050-2500MHz≥60dBc, SMD
View Details →
ZBF13-L720-20-2146 Filter

Filter ZBF13-L720-20-2146

Passband710~730MHz, DC-650MHz≥40dBc, 790-3000MHz≥40dBc, Pin
View Details →
ZBF13-L600-260-2100 Filter

Filter ZBF13-L600-260-2100

Passband470~730MHz, DC-330MHz≥53dBc, 870-2000MHz≥53dBc, SMA
View Details →

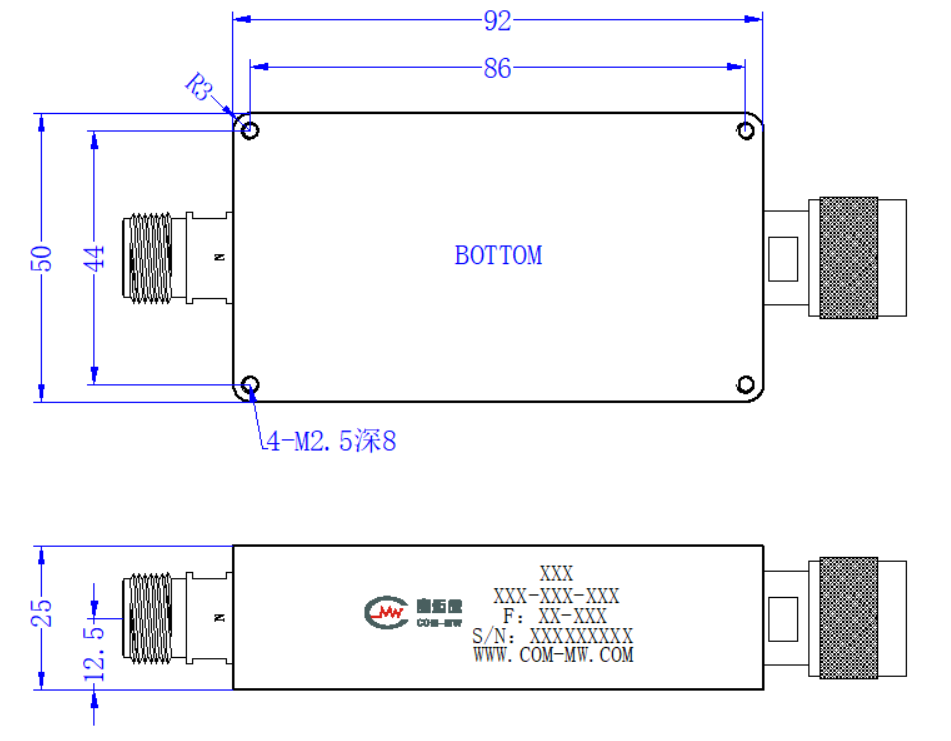

ZBF13-C723-10-1353 Filter

Filter ZBF13-C723-10-1353

Passband718~728, 边频偏10MHz≥30dB, N
View Details →

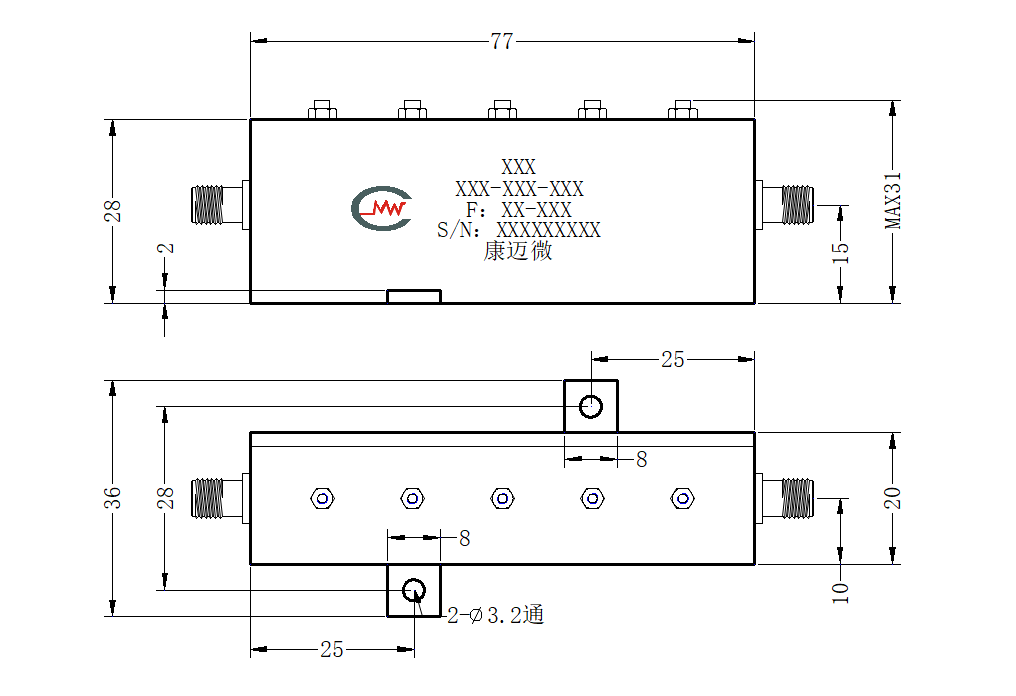

ZBF-H725-6-75C Filter

Filter ZBF-H725-6-75C

Passband722~728MHz, 710MHz≥20dBc, 716MHz≥8dBc, SMA
View Details →
OQ-ZBF6-C700-60-SMA Filter

Filter OQ-ZBF6-C700-60-SMA

Passband670~730MHz, 1340-2200MHz≥60dB, DC-450MHz≥60dB, SMA
View Details →
K6-710-730-30S5050-005 Filter

Filter K6-710-730-30S5050-005

Stopband F710~730MHz, ≥50dB, PassbandDC~680MHz, 770~3000MHz, SMA
View Details →
K6-710-730-30N5050-006 Filter

Filter K6-710-730-30N5050-006

Stopband F710~730MHz, ≥50dB, PassbandDC~680MHz, 770~3000MHz, N
View Details →

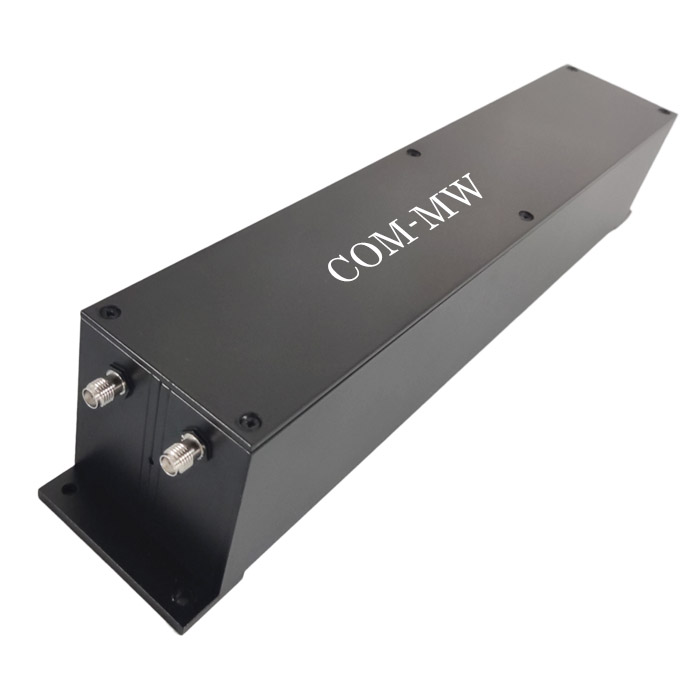

K6-710-730-10S6050-003 Filter

Filter K6-710-730-10S6050-003

Stopband F710~730MHz, ≥60dB, PassbandDC~700MHz, 740~2500MHz, SMA
View Details →

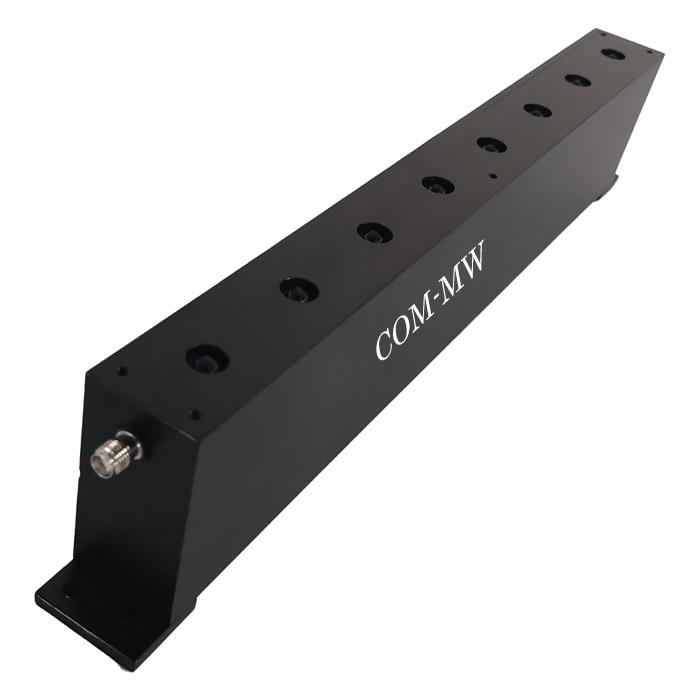

K6-710-730-10S4050-001 Filter

Filter K6-710-730-10S4050-001

Stopband F710~730MHz, ≥40dB, PassbandDC~700MHz, 740~2500MHz, SMA
View Details →

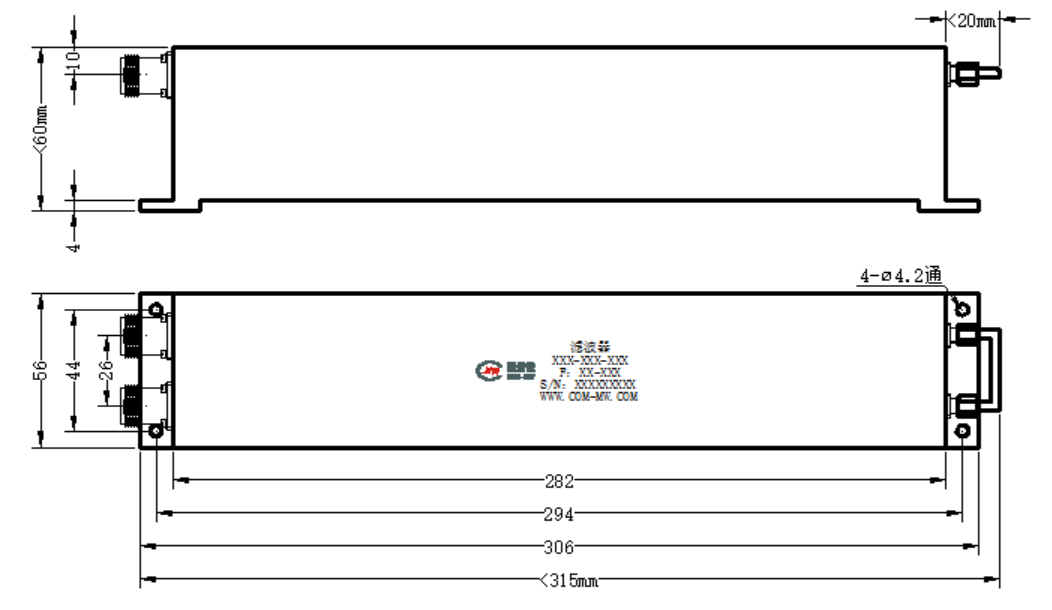

K6-710-730-10N6050-004 Filter

Filter K6-710-730-10N6050-004

Stopband F710~730MHz, ≥60dB, PassbandDC~700MHz, 740~2500MHz, N
View Details →

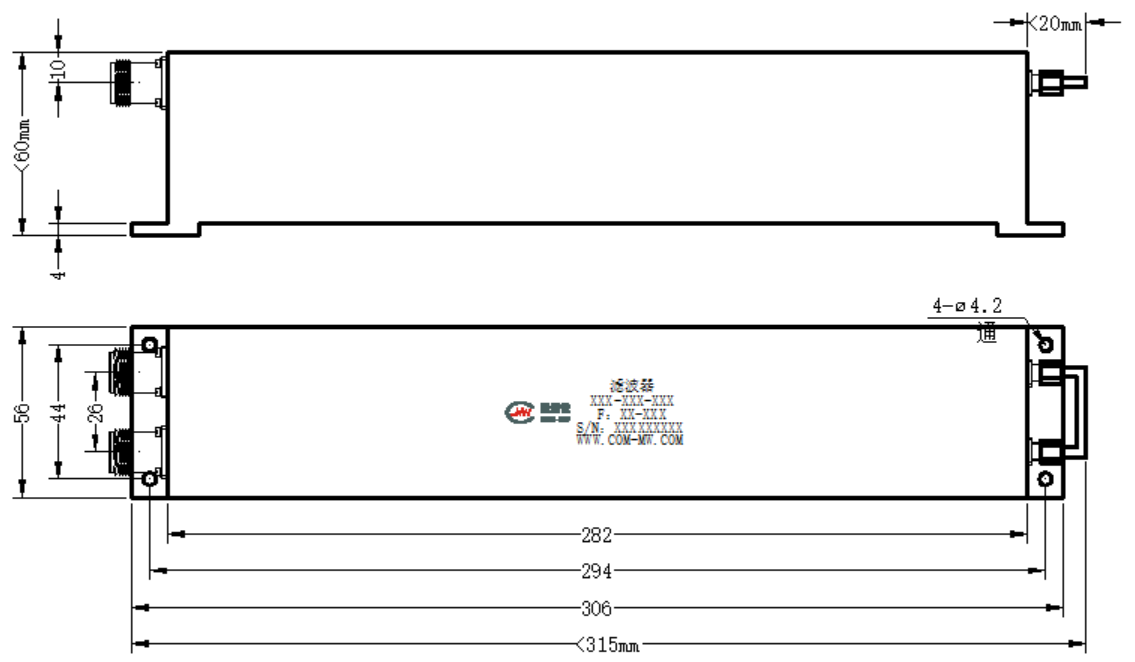

K6-710-730-10N4050-002 Filter

Filter K6-710-730-10N4050-002

Stopband F710~730MHz, ≥60dB, PassbandDC~700MHz, 740~2500MHz, N
View Details →
B68/698-728 Notch filter

Notch filter B68/698-728

View Details →
