LF059 Filter

Filter LF059

PassbandDC~700MHz, 1000-1300MHz≥20dB, 1300-2000MHz≥40dB, SMD, Replace SXLP-700+
In Stock View Details →
ZBF15-L600-200-1088 Filter

Filter ZBF15-L600-200-1088

Passband500~700MHz, DC-400MHz≥40dB, 0.8-3GHz≥40dB, SMD
In Stock View Details →
ZLPF5-L0-700-3069 Filter

Filter ZLPF5-L0-700-3069

PassbandDC~700MHz, Rejection930-2200MHz≥35dB, SMD
In Stock View Details →
ZHPF5-L25-700-3056 Filter

Filter ZHPF5-L25-700-3056

Passband25~700MHz, RejectionDC-10MHz≥40dB, SMD
In Stock View Details →
LF084 Filter

Filter LF084

PassbandDC~700MHz, 1000-1300MHz≥55dB, 1300-2000MHz≥65dB, SMA
In Stock View Details →
ZBF15-L600-200-1089 Filter

Filter ZBF15-L600-200-1089

Passband500~700MHz, DC-400MHz≥40dB, 0.8-3GHz≥40dB, SMA
In Stock View Details →
3F0050 Filter

Filter 3F0050

PassbandDC~700MHz, Passband IL, 950-6000MHz≥40dB, 6000-10000MHz≥30dB, SMD
In Stock View Details →
ZBF15-L550-300-654 Filter

Filter ZBF15-L550-300-654

Passband400~700MHz, DC-320MHz≥40dBc, 800-2100MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L550-300-653 Filter

Filter ZBF15-L550-300-653

Passband400~700MHz, DC-320MHz≥42dBc, 800-2000MHz≥42dBc, SMA-K
In Stock View Details →
ZLPF5-L0-700-3452 Filter

Filter ZLPF5-L0-700-3452

PassbandDC~700MHz, 810-1600MHz≥50dB, SMD
In Stock View Details →
ZBF15-L620-160-1453 Filter

Filter ZBF15-L620-160-1453

Passband540~700MHz, DC-460MHz≥40dB, 780-2000MHz≥40dB, SMD
In Stock View Details →
ZBSF6-C663-698-3375 Filter

Filter ZBSF6-C663-698-3375

Stopband F663~698MHz, ≥50dB, PassbandDC~643MHz, 718~2000MHz, N
In Stock View Details →
ZLPF3-C200-700-3234 Filter

Filter ZLPF3-C200-700-3234

Passband200~700MHz, 850-2500MHz≥40dB, SMA-JK
View Details →
ZLPF2-L0-700-2893 Filter

Filter ZLPF2-L0-700-2893

PassbandDC~700, 1.1-2.1GHz≥65dB, MHz≥dB, TNC
View Details →
ZLPF13-L0-700-3928 Filter

Filter ZLPF13-L0-700-3928

PassbandDC~700MHz, 1.1-3GHz≥75dBc, SMA
View Details →
ZLPF13-L0-700-3113 Filter

Filter ZLPF13-L0-700-3113

PassbandDC~700MHz, 1.1-3GHz≥75dBc, N
View Details →
ZLPF13-L0-700-3109 Filter

Filter ZLPF13-L0-700-3109

PassbandDC~700MHz, 1.1-3GHz≥75dBc, TNC
View Details →
ZLPF13-L0-700-2572 Filter

Filter ZLPF13-L0-700-2572

PassbandDC~700MHz, 1.2-2.1GHz≥65dBc, SMA
View Details →
ZLPF13-L0-700-1773 Filter

Filter ZLPF13-L0-700-1773

PassbandDC~700MHz, 740-2000MHz≥30dB, SMD
View Details →

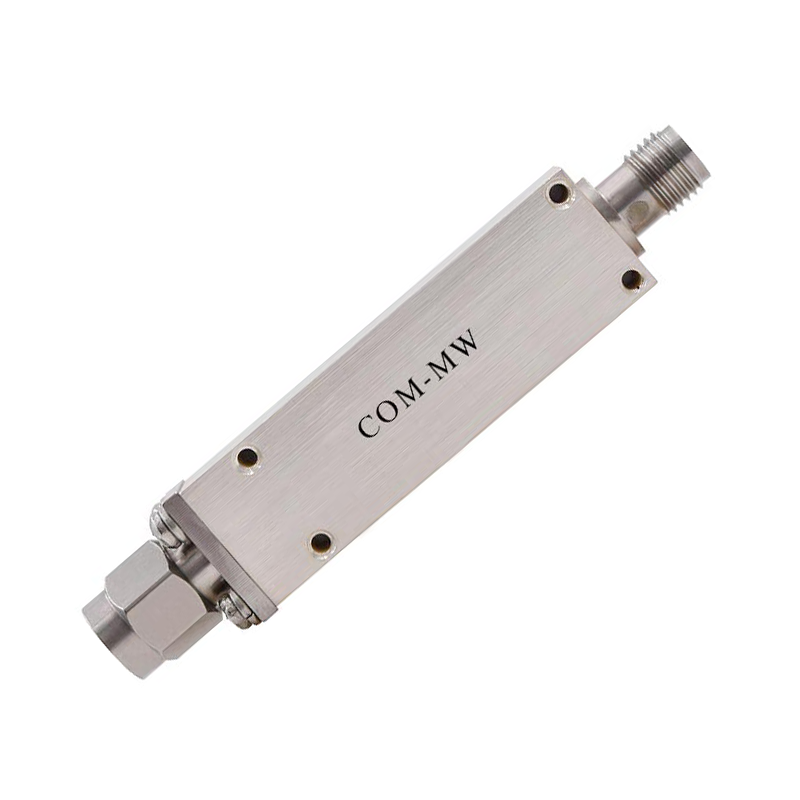

ZHPF13-L650-700-2570 Filter

Filter ZHPF13-L650-700-2570

Passband650~700MHz, DC-520MHz≥70dBc, SMA
View Details →
ZBSF6-L663-698-4763 Filter

Filter ZBSF6-L663-698-4763

Stopband F663~698MHz, ≥70dB, PassbandDC~613MHz, 748~2500MHz, SMA
View Details →
ZBSF6-L476.4-496.4-4644 Filter

Filter ZBSF6-L476.4-496.4-4644

Stopband F476.4~496.4MHz, ≥50dB, PassbandDC~435MHz, 540~1000MHz, SMA
View Details →

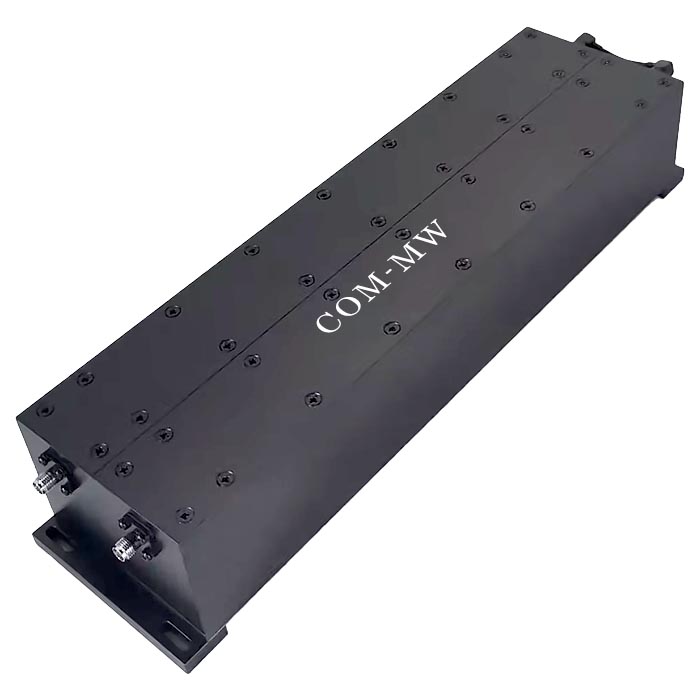

ZBSF6-C663-698-871 Filter

Filter ZBSF6-C663-698-871

Stopband F663~698MHz, ≥60dB, PassbandDC~653MHz, 708~4000MHz, SMA
View Details →

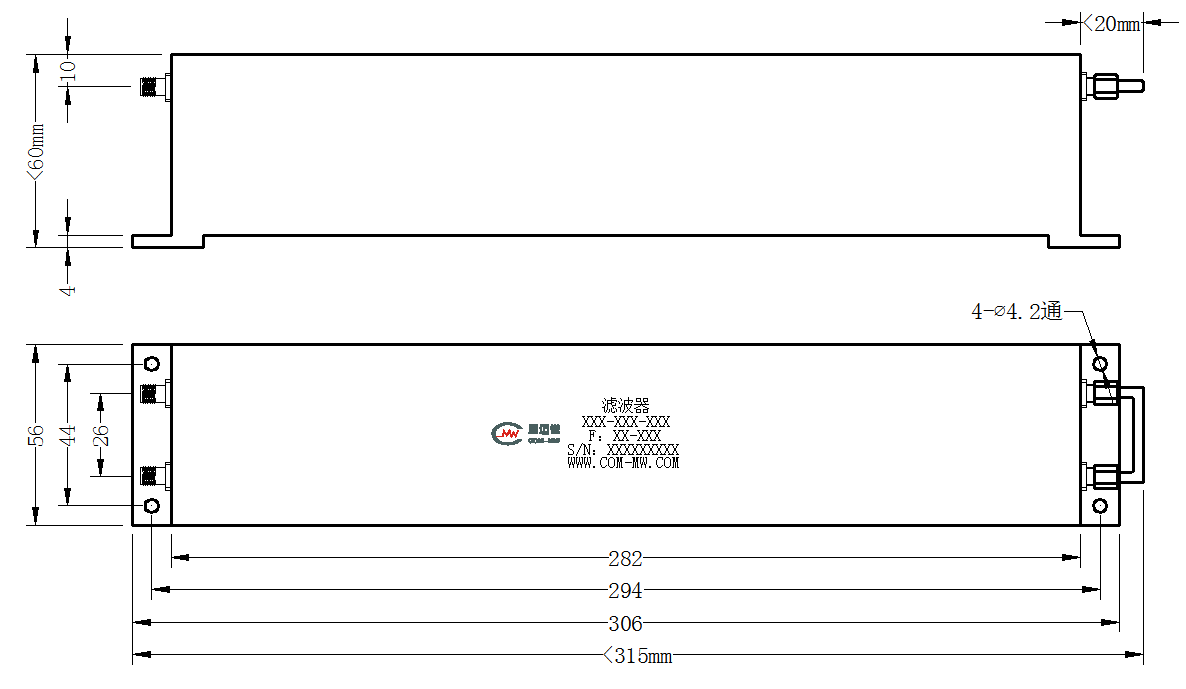

ZBSF6-C663-698-3705 Filter

Filter ZBSF6-C663-698-3705

Stopband F663~698MHz, ≥40dB, PassbandDC~653MHz, 708~2000MHz, SMA
View Details →
