Filters
Filters 1
Feature
Bandpass 28 low pass 5 Notch 11
F Low MHz
0 - 380 10 485 - 552 7 560 - 600 13 606 - 640 5 663 - 668 9
–
Center frequency MHz
393 - 580 7 590 - 615 6 620 - 622 8 628 - 650 5 668.5 - 673 2
–
F High MHz
673 7 674 1 675 1 678 22 680 13
–
IL on center frequency dB
0.3 - 0.4 3 0.5 - 0.8 5 1 - 2 19 4 1
–
Maximum loss of side frequency dB
0.3 - 0.7 5 0.8 - 1.1 8 1.2 - 1.6 8 2 - 3 22 5 1
–
Rejection dB
15 - 25 6 30 - 35 3 40 - 50 25 55 - 60 8 65 - 70 2
–
Connector
Other 1 SMD 17 SMA 13 N 5 Microstrip pad 2 Microstrip needle 5 SMP 1
Power Handling
1 - 2 21 5 - 10 9 20 - 50 10 80 - 100 3 120 1
–
Filter type
LC 32 Cavity&waveguide 11 Dielectric 1
F High：673 - 680 MHz× Clear all
matches 44 models Default Newest
BF059 Filter

Filter BF059

Passband600~680MHz, 500MHz≥20dB, 750MHz≥20dB, SMD, Replace SXBP-640+
In Stock View Details →
ZBF15-L620-120-650 Filter

Filter ZBF15-L620-120-650

Passband560~680MHz, DC-460MHz≥40dB, 800-2000MHz≥40dB, SMA
In Stock View Details →
ZLPF20-L0-678-365 Filter

Filter ZLPF20-L0-678-365

PassbandDC~678MHz, 1156-2034MHz≥70dBc, dB, SMD
In Stock View Details →
SC-BP451.5-453 Filter

Filter SC-BP451.5-453

Passband225~678MHz, DC-88MHz≥50dBc, 830-1800MHz≥30dBc, SMD
In Stock View Details →
ZBF2-L451.5-453-3101 Filter

Filter ZBF2-L451.5-453-3101

Passband225~678MHz, DC-110MHz≥60dBc, 800-1000MHz≥30dBc, SMD
In Stock View Details →
SC-BP621.5-113 Filter

Filter SC-BP621.5-113

Passband565~678MHz, DC-88MHz≥50dBc, 225-508.5MHz≥30dBc, SMD
In Stock View Details →
ZBF20-L451.5-453-051 Filter

Filter ZBF20-L451.5-453-051

Passband225~678MHz, DC-185MHz≥25dB, 750-1500MHz≥25dB, Microstrip pad
In Stock View Details →
ZLPF2-L380-680-2102 Filter

Filter ZLPF2-L380-680-2102

Passband380~680MHz, 0.76-3.4GHz≥40dB, dB, Pin
View Details →
ZLPF15-L425-678-1692 Filter

Filter ZLPF15-L425-678-1692

PassbandDC~678MHz, dBc, 850-2034MHz≥50dBc, SMD
View Details →
ZLPF13-L610-678-946 Filter

Filter ZLPF13-L610-678-946

Passband610~678MHz, MHz≥dBc, 1220-2034MHz≥50dBc, dBc, Microstrip pad
View Details →
ZLPF13-L0-680-2099 Filter

Filter ZLPF13-L0-680-2099

PassbandDC~680MHz, 0.74-2GHz≥40dB, SMD
View Details →
ZBSF20-L0-1000-289 Filter

Filter ZBSF20-L0-1000-289

Stopband F566~678MHz, ≥40dB, PassbandDC~516MHz, 728~1500MHz, SMA
View Details →
ZBSF16-C300-900-729 Filter

Filter ZBSF16-C300-900-729

Stopband F566~678MHz, ≥40dB, Passband300~541MHz, 703~900MHz, N
View Details →
ZBSF15-L500-3000-553 Filter

Filter ZBSF15-L500-3000-553

Stopband F640~680MHz, ≥35dBc, Passband500~580MHz, 740~3000MHz, 500~610MHz, 710~3000MHz,
View Details →
ZBSF15-L500-3000-544 Filter

Filter ZBSF15-L500-3000-544

Stopband F630~680MHz, ≥50dBc, Passband500~540MHz, 790~3000MHz, Pin
View Details →
ZBF9-D628-100-2068 Filter

Filter ZBF9-D628-100-2068

Passband578~678MHz, 498MHz≥15dB, 758MHz≥15dB, SMD
View Details →
ZBF6-L622-112-4135 Filter

Filter ZBF6-L622-112-4135

Passband566~678MHz, DC-436MHz≥40dB, 808-1500MHz≥40dB, SMA
View Details →
ZBF6-L590-180-1346 Filter

Filter ZBF6-L590-180-1346

Passband500~680MHz, DC-400MHz≥40dB, 800-1600MHz≥40dB, SMA
View Details →
ZBF6-H673-10-2511 Spiral filter

Spiral filter ZBF6-H673-10-2511

Passband668~678MHz, DC-637MHz≥40dB, 709-1200MHz≥40dB, SMA
View Details →
ZBF5-L628-100-2431 Filter

Filter ZBF5-L628-100-2431

Passband578~678MHz, 498MHz≥15dB, 758MHz≥15dB, SMD
View Details →
ZBF4-C668.5-11-212 Filter

Filter ZBF4-C668.5-11-212

Passband663~674MHz, DC-643MHz≥60dB, 694-1500MHz≥60dB, SMA
View Details →
ZBF2-L622-112-3278 Filter

Filter ZBF2-L622-112-3278

Passband566~678MHz, DC-340MHz≥60dBc, 340-430MHz≥20dBc, 758-2000MHz≥60dBc, SMP
View Details →
ZBF2-C620-116-1763 Filter

Filter ZBF2-C620-116-1763

Passband552~678MHz, DC-512MHz≥90dBc, 0.785-2GHz≥60dBc, MCX
View Details →

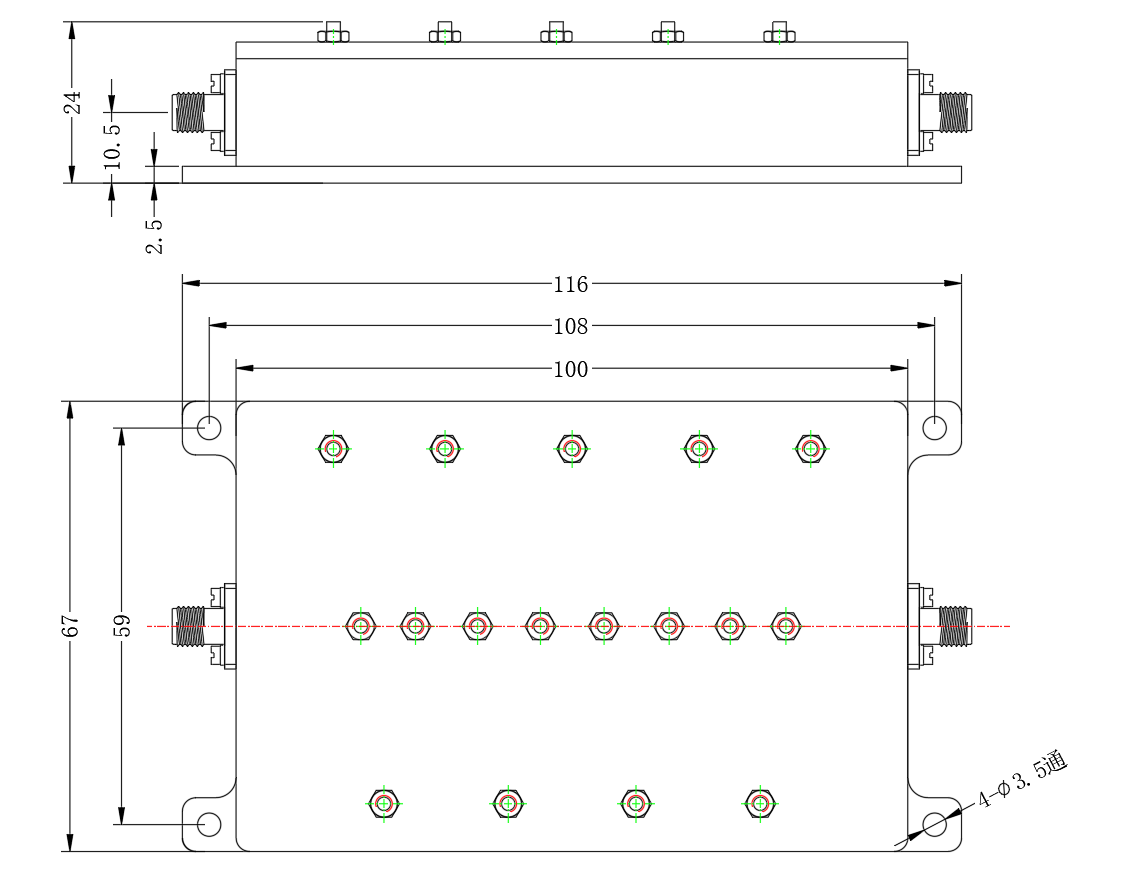

ZBF16-C590-180-715 Filter

Filter ZBF16-C590-180-715

Passband500~680MHz, 450MHz≥20dBc, DC~400MHz≥45dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
