RF Filter

Total 31 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 15 low pass 6 Notch 10
F Low MHz
0 - 450 9 470 - 550 5 580 - 610 4 615 - 630 13
–
Center frequency MHz
530 - 550 3 555 - 575 2 600 - 610 4 614 - 625 3 630 - 640 3
–
F High MHz
640 3 644 2 645 2 650 14 652 10
–
IL on center frequency dB
0.3 - 0.4 2 0.5 - 1 6 2 - 2.5 2 3 - 5 5
–
Maximum loss of side frequency dB
0.6 - 1 4 1.2 - 1.5 4 2 - 3.5 19 4 - 6 4
–
Rejection dB
20 - 35 3 40 - 50 18 59 - 70 8 75 - 85 2
–
Connector
SMD 8 SMA 13 N 5 Microstrip needle 5
Power Handling
1 - 2 16 5 - 20 3 50 - 100 12
–
Filter type
LC 18 Cavity&waveguide 13
F High：640 - 652 MHz× Clear all
matches 31 models Default Newest
ZLPF5-L0-650-3068 Filter

Filter ZLPF5-L0-650-3068

PassbandDC~650MHz, Rejection850-1800MHz≥30dB, SMD
In Stock View Details →
ZBF5-L614-60-2334 Filter

Filter ZBF5-L614-60-2334

Passband584~644MHz, DC-524MHz≥40dB, 704-2000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L610-60-2849 Filter

Filter ZBF15-L610-60-2849

Passband580~640MHz, DC-480MHz≥40dBc, 720-4000MHz≥40dBc, SMA
In Stock View Details →
ZBF15-L630-30-1669 Filter

Filter ZBF15-L630-30-1669

Passband615~645MHz, DC-575MHz≥40dBc, 685-1000MHz≥40dBc, SMD
In Stock View Details →
K6-617-652-10S60100-003 Filter

Filter K6-617-652-10S60100-003

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, SMA
In Stock View Details →

Filter ZTBF-640M-20M-L

Passband630~650MHz, 550MHz≥50dB, 730MHz≥50dB, SMA
View Details →
ZLPF15-L0-650-1675 Filter

Filter ZLPF15-L0-650-1675

PassbandDC~650MHz, 812.5MHz≥40dBc, 975MHz≥50dBc, SMD
View Details →
ZLPF15-L0-600-465 Filter

Filter ZLPF15-L0-600-465

PassbandDC~650MHz, 750MHz≥40dBc, 900MHz≥50dBc, Pin
View Details →
ZLPF13-L440-650-3524 Filter

Filter ZLPF13-L440-650-3524

PassbandDC~650MHz, 880-1300MHz≥85dB, 1320-2500MHz≥85dB, SMA
View Details →

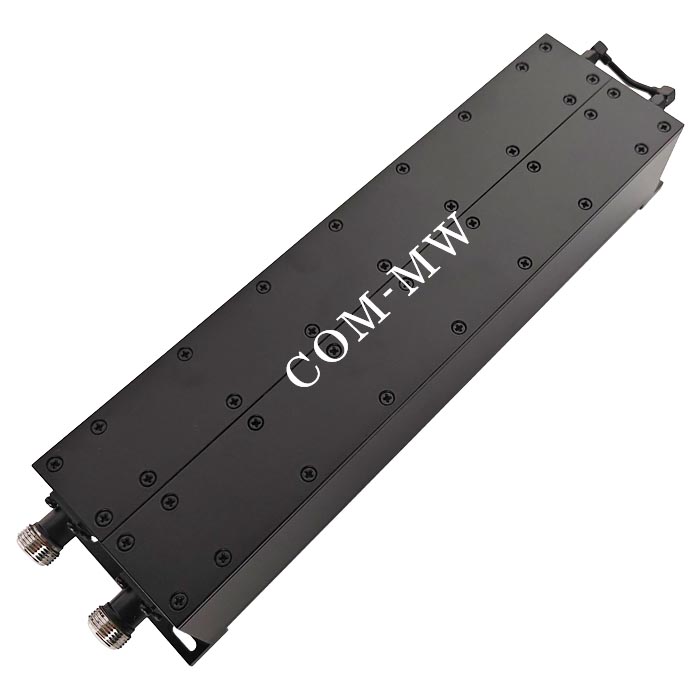

ZBSF6-C617-652-5441 Filter

Filter ZBSF6-C617-652-5441

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~3000MHz, N
View Details →
ZBF5-L600-100-751 Filter

Filter ZBF5-L600-100-751

Passband550~650MHz, DC-500MHz≥45dB, 700-3000MHz≥45dB, SMD
View Details →
ZBF5-L600-100-3883 Filter

Filter ZBF5-L600-100-3883

Passband550~650MHz, Pin
View Details →
ZBF5-L550-200-531 Filter

Filter ZBF5-L550-200-531

Passband450~650MHz, DC-130MHz≥45dBc, 900-1300MHz≥45dBc, SMA
View Details →
ZBF3-L600-100-4126 Filter

Filter ZBF3-L600-100-4126

Passband550~650MHz, DC-400MHz≥40dB, 900-2000MHz≥40dB, SMD
View Details →

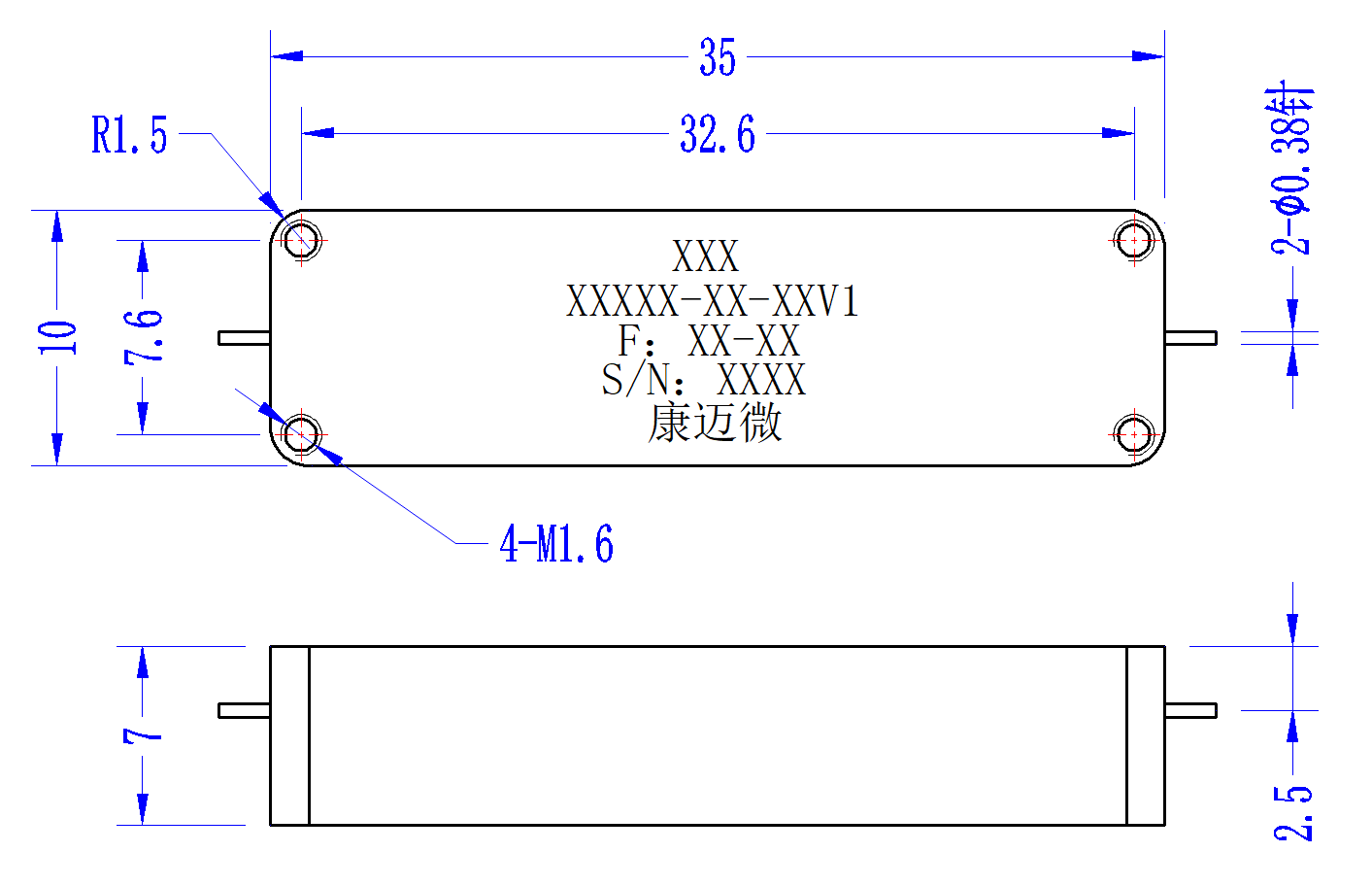

ZBF3-L550-200-3723 Filter

Filter ZBF3-L550-200-3723

Passband450~650MHz, DC-300MHz≥35dB, 900-4000MHz≥35dB, Pin
View Details →

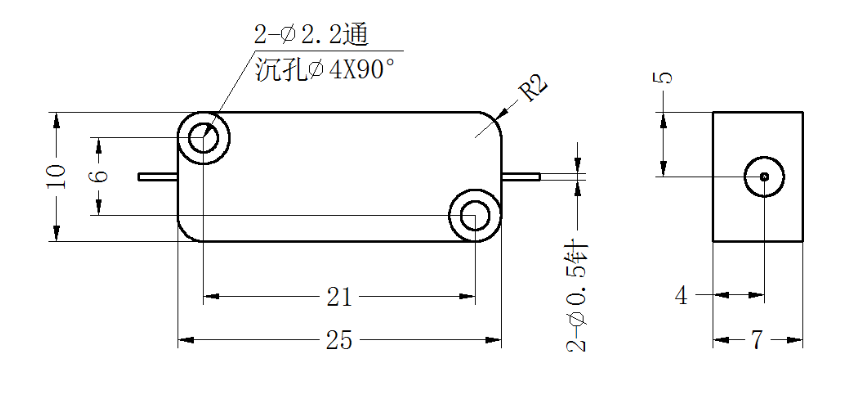

ZBF2-L530-240-2191 Filter

Filter ZBF2-L530-240-2191

Passband410~650MHz, DC-325MHz≥25dBc, 0.82-2GHz≥40dBc, Pin
View Details →

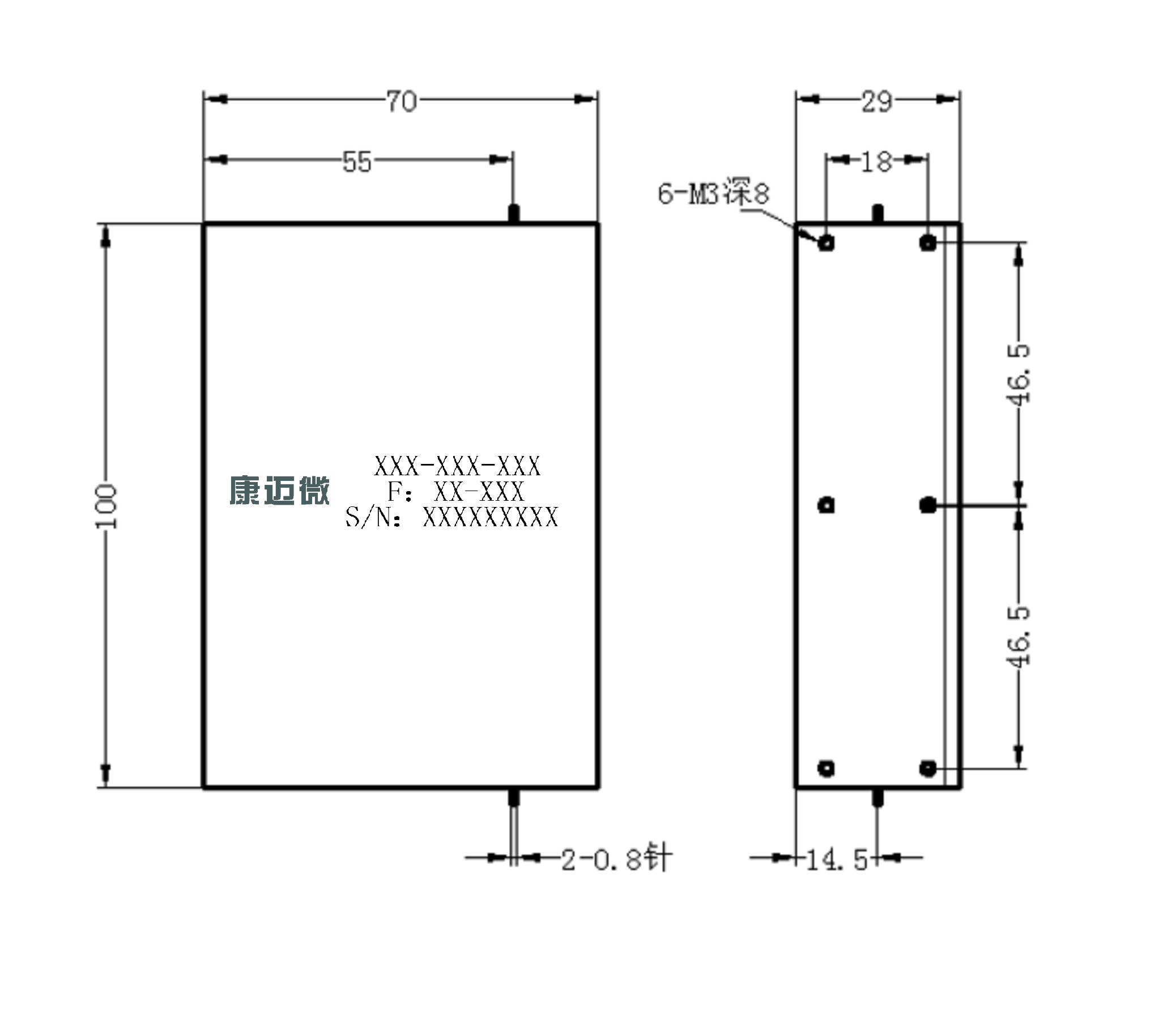

ZBF2-C625-30-1162 Filter

Filter ZBF2-C625-30-1162

Passband610~640MHz, DC-560MHz≥75dBc, 900-1710MHz≥50dBc, Pin
View Details →

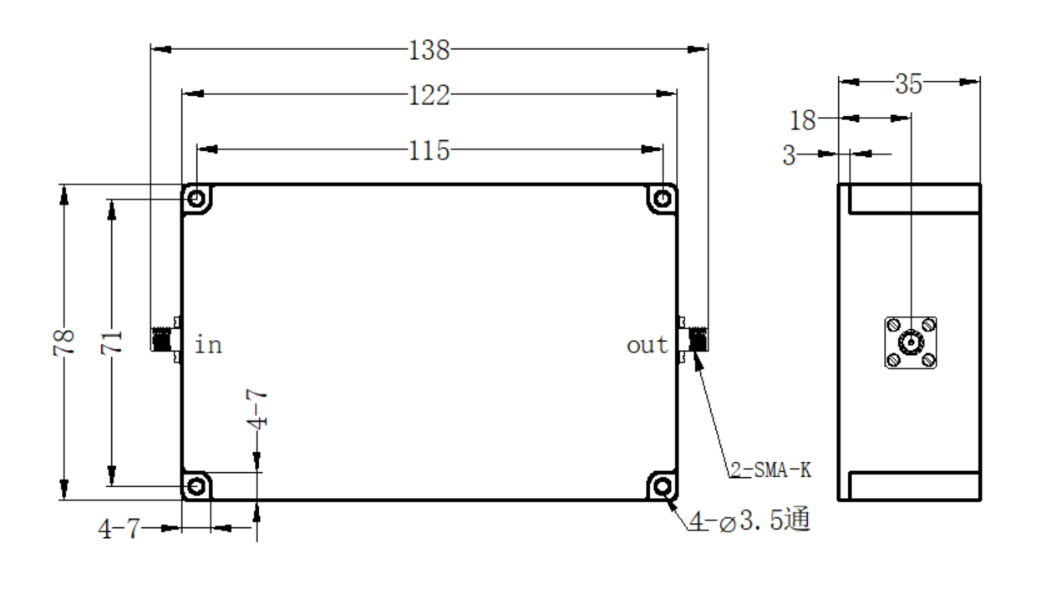

ZBF2-C575-150-1786 Filter

Filter ZBF2-C575-150-1786

Passband500~650MHz, 430-450MHz≥40dBc, 700-720MHz≥40dBc, SMA
View Details →

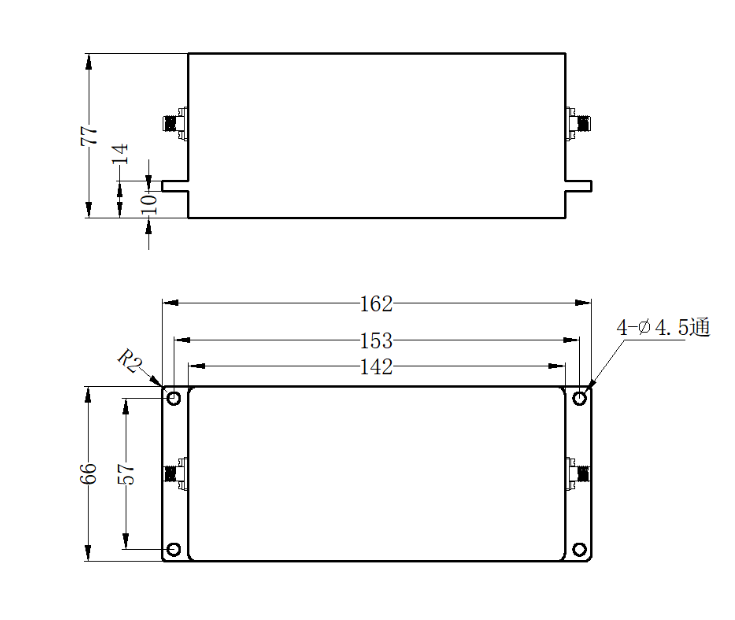

ZBF2-C555-170-2331 Filter

Filter ZBF2-C555-170-2331

Passband470~640MHz, 420&690MHz≥40dBc, DC-380MHz≥60dBc, SMA
View Details →
ZBF15-L630-30-1643 Filter

Filter ZBF15-L630-30-1643

Passband615~645MHz, DC-547.5MHz≥40dB, 712.5-1000MHz≥40dB, SMD
View Details →
ZBF13-L614-60-511 Filter

Filter ZBF13-L614-60-511

Center Frequency614MHz, Passband584~644MHz, BW-40dB/BW-3dB, dB, SMD
View Details →

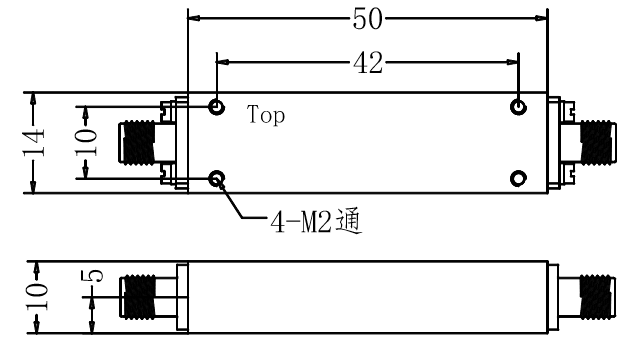

TLF-650M100G4-50S Filter

Filter TLF-650M100G4-50S

Passband0~650MHz, 750-4000MHz≥50dB, dB, SMA
View Details →
SLLP0-650-B10 LC filter

LC filter SLLP0-650-B10

PassbandDC~650MHz, 730-3000MHz≥20dB, SMA
View Details →

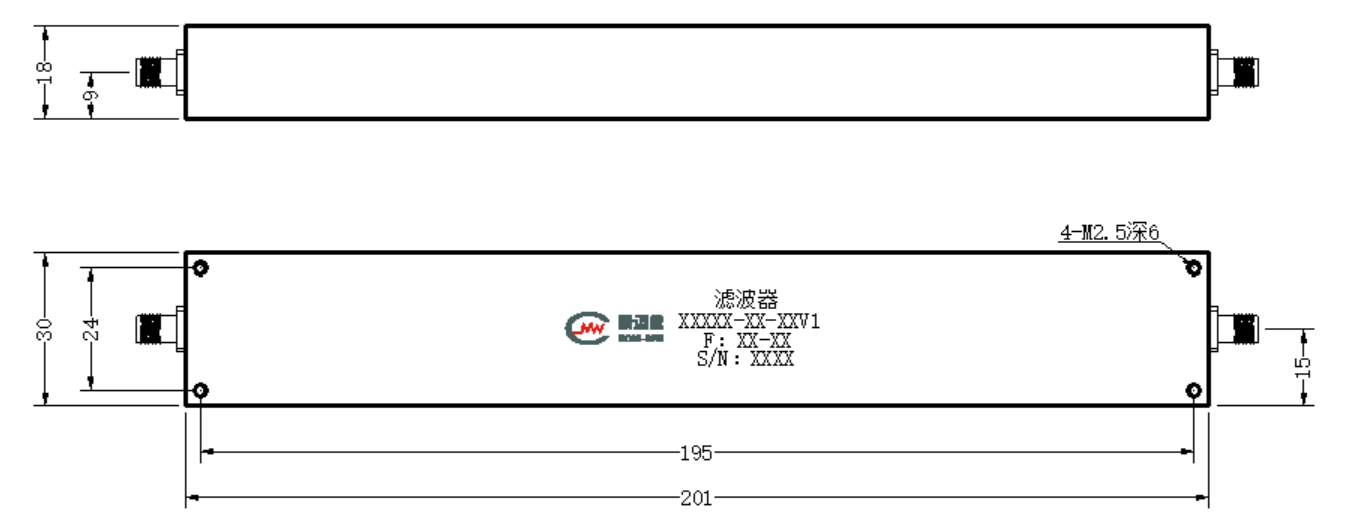

K6-617-652-30S5050-005 Filter

Filter K6-617-652-30S5050-005

Stopband F617~652MHz, ≥50dB, PassbandDC~587MHz, 682~3000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
