RF Filter

Total 16 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 15 Notch 1
F Low MHz
88 - 345 4 400 - 470 3 560 - 587 3 590 - 605 4 608 - 610 2
–
Center frequency MHz
405 - 505 4 510 - 585 3 595 - 602 4 608 - 612 3 613 1
–
F High MHz
610 9 613 1 614 2 615 2 618 2
–
IL on center frequency dB
0.2 - 0.5 3 1 - 1.5 5 2 - 3 5 4 2
–
Maximum loss of side frequency dB
0.3 - 1 3 1.5 - 2 5 2.5 - 4 6 5 - 7 2
–
Rejection dB
30 - 40 10 50 - 60 4 65 - 80 2
–
Connector
SMD 2 SMA 8 Microstrip needle 5
Power Handling
1 - 2 9 5 - 10 4 50 - 400 2 800 1
–
Filter type
LC 12 Cavity&waveguide 4
F High：610 - 618 MHz× Clear all
matches 16 models Default Newest
ZBF15-L602-24-1460 Filter

Filter ZBF15-L602-24-1460

Passband590~614MHz, DC-564MHz≥30dBc, 640-2000MHz≥30dBc, SMD
In Stock View Details →
ZBSF13-L30-1350-1637 Filter

Filter ZBSF13-L30-1350-1637

Stopband F88~110MHz, Stopband F598~610MHz, ≥40dB, PassbandDC~68MHz, 125~518MHz, 700~1350MHz, SMA
View Details →
ZBF6-L585-50-5848 Filter

Filter ZBF6-L585-50-5848

Passband560~610MHz, DC-520MHz≥40dB, 650-1000MHz≥40dB, SMA
View Details →

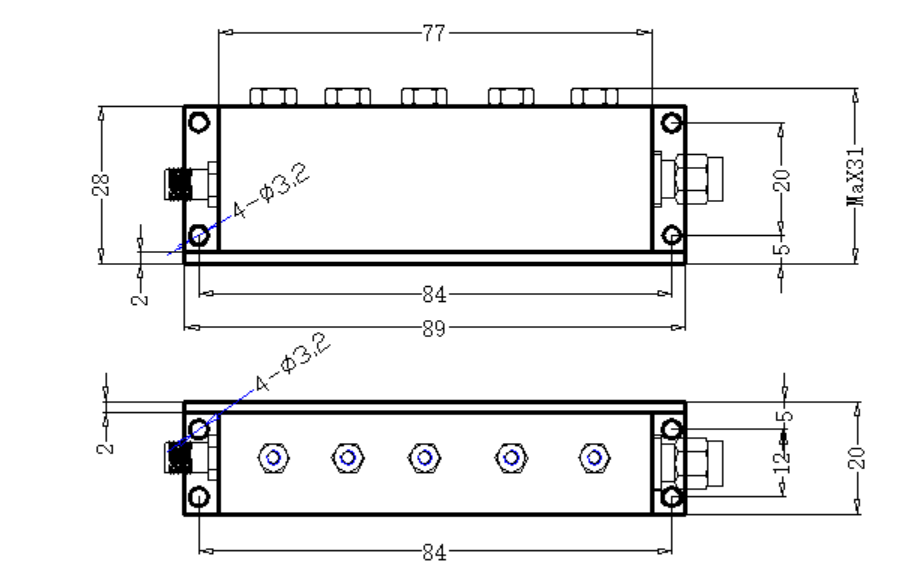

ZBF6-H613-10-2511 Spiral filter

Spiral filter ZBF6-H613-10-2511

Passband608~618MHz, DC-577MHz≥40dB, 649-1200MHz≥40dB, SMA
View Details →

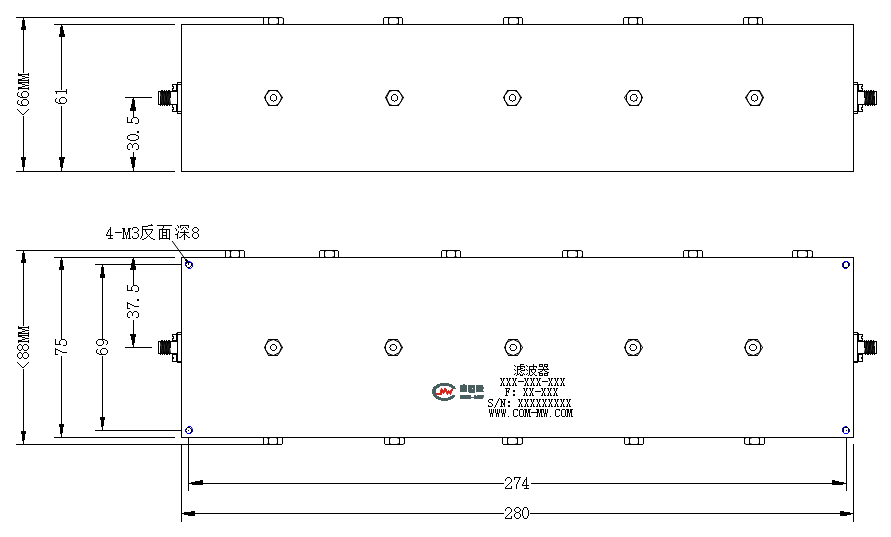

ZBF6-C505-210-3245 Band pass filter

Band pass filter ZBF6-C505-210-3245

Passband400~610MHz, DC-220MHz≥80dB, 800-1200MHz≥80dB, SMA
View Details →
ZBF5-L405-410-1506 Filter

Filter ZBF5-L405-410-1506

Passband200~610MHz, DC-100MHz≥50dBc, 700-2000MHz≥50dBc, Pin
View Details →
ZBF5-L405-410-1424 Filter

Filter ZBF5-L405-410-1424

Passband200~610MHz, DC-100MHz≥40dBc, 800-1500MHz≥40dBc, Pin
View Details →
ZBF3-L600-33.6-839 Filter

Filter ZBF3-L600-33.6-839

Passband587~613MHz, DC-552MHz≥40dB, 648-1500MHz≥40dB, SMA
View Details →

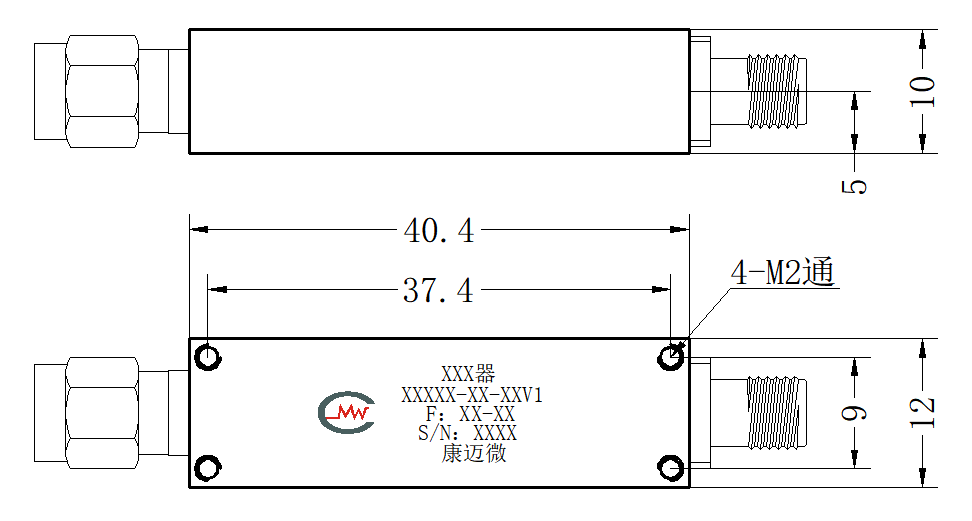

ZBF3-L600-20-3616 Filter

Filter ZBF3-L600-20-3616

Passband590~610MHz, DC-550MHz≥40dB, 650-2000MHz≥40dB, SMA
View Details →
ZBF3-L510-200-2326 Filter

Filter ZBF3-L510-200-2326

Passband410~610MHz, DC-330MHz≥20dB, 690MHz≥20dB, Pin
View Details →
ZBF15-L608-20-811 Filter

Filter ZBF15-L608-20-811

Passband598~618MHz, F0±70MHz≥40dB, dB, SMA
View Details →
ZBF15-L595-30-1806 Filter

Filter ZBF15-L595-30-1806

Passband580~610MHz, DC-405MHz≥65dBc, 435-525MHz≥45dBc, 665MHz≥45dBc, Pin
View Details →

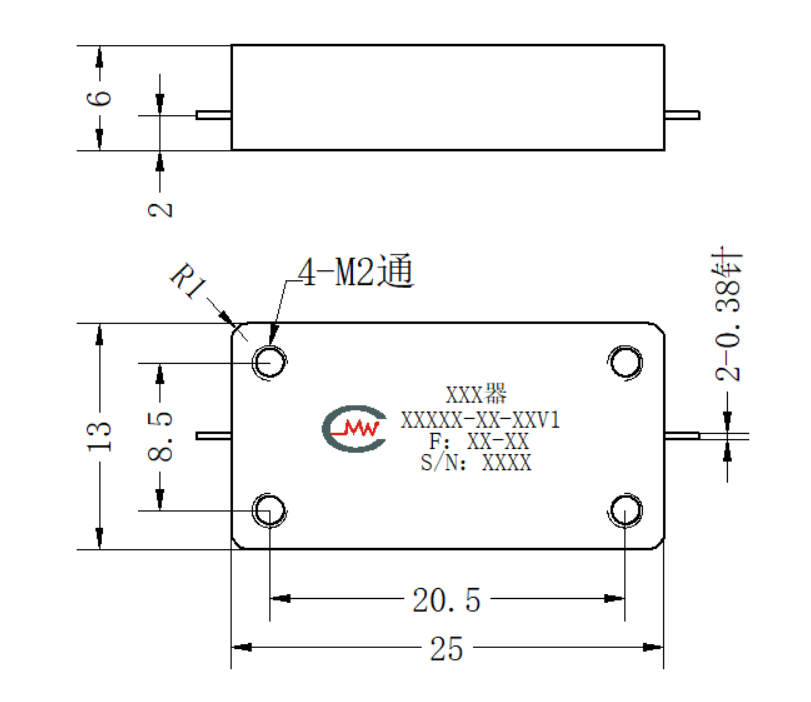

ZBF13-L612-3-2018 Filter

Filter ZBF13-L612-3-2018

Center Frequency612MHz, MHz, F0±35MHz≥35dB, DC-524MHz≥60dB, Pin
View Details →
ZBF13-L480-270-2901 Filter

Filter ZBF13-L480-270-2901

Passband345~615MHz, DC-270MHz≥40dBc, 700-2100MHz≥40dBc, SMD
View Details →
ZBF13-C540-140-997 Filter

Filter ZBF13-C540-140-997

Passband470~610MHz, DC-0.1GHz≥60dBc, 0.9-2.1GHz≥60dBc, N
View Details →
ZBF-L610-10-B11 Filter

Filter ZBF-L610-10-B11

Passband605~615MHz, DC-565MHz≥40dB, 655-1000MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
