Filters
Filters 1
Feature
Bandpass 4 Notch 10
F Low MHz
5150 - 5425 6 5725 - 5866.5 6 5872.5 - 5875 2
–
Center frequency MHz
5800 1 5880 3
–
F High MHz
5875 9 5880 2 5885 1 5887.5 1 5893.5 1
–
IL on center frequency dB
1 1 2 2 5 1
–
Maximum loss of side frequency dB
1.5 1 2 4 2.5 1 3 7 6 1
–
Rejection dB
15 - 25 2 40 - 45 6 50 - 60 5 85 1
–
Connector
SMA 13 N 1
Power Handling
2 - 5 5 10 - 15 5 20 - 50 3 150 1
–
Filter type
Cavity&waveguide 11 stripline 3
F High：5875 - 5893.5 MHz× Clear all
matches 14 models Default Newest
ZBSF6-M5425-5875-6060 Filter

Filter ZBSF6-M5425-5875-6060

Stopband F5425~5875MHz, ≥40dB, PassbandDC~5275MHz, 6025~18000MHz, SMA
In Stock View Details →
ZBSF6-M5150-5880-3048 Filter

Filter ZBSF6-M5150-5880-3048

Stopband F5150~5880MHz, ≥40dB, PassbandDC~4900MHz, 6130~18000MHz, SMA
View Details →
ZBSF6-C5725-5875-4860 Filter

Filter ZBSF6-C5725-5875-4860

Stopband F5725~5875MHz, ≥40dB, PassbandDC~5605MHz, 5995~18000MHz, SMA
View Details →
ZBSF6-C5725-5875-4069 Filter

Filter ZBSF6-C5725-5875-4069

Stopband F5725~5875MHz, ≥50dB, PassbandDC~5625MHz, 5975~9000MHz, SMA
View Details →
ZBSF6-C5725-5875-3984 Filter

Filter ZBSF6-C5725-5875-3984

Stopband F5725~5875MHz, ≥40dB, PassbandDC~5705MHz, 5895~7000MHz, N
View Details →

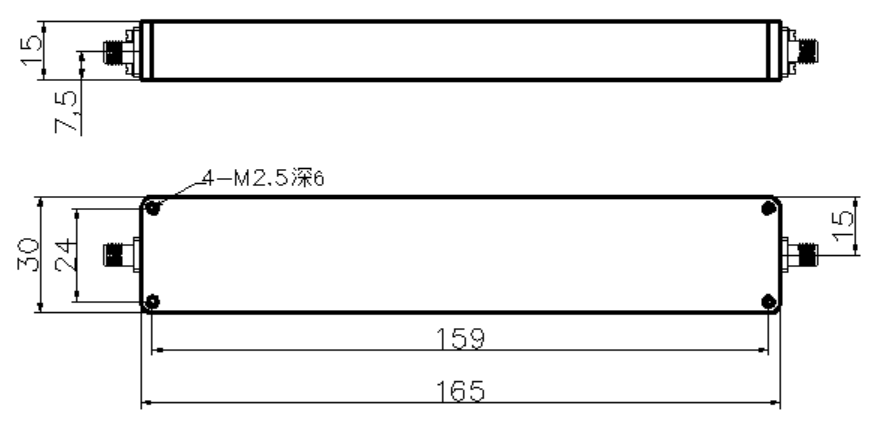

ZBSF6-C5150-5880-3100 Filter

Filter ZBSF6-C5150-5880-3100

Stopband F5150~5880MHz, ≥40dB, PassbandDC~4550MHz, 6400~18000MHz, SMA
View Details →

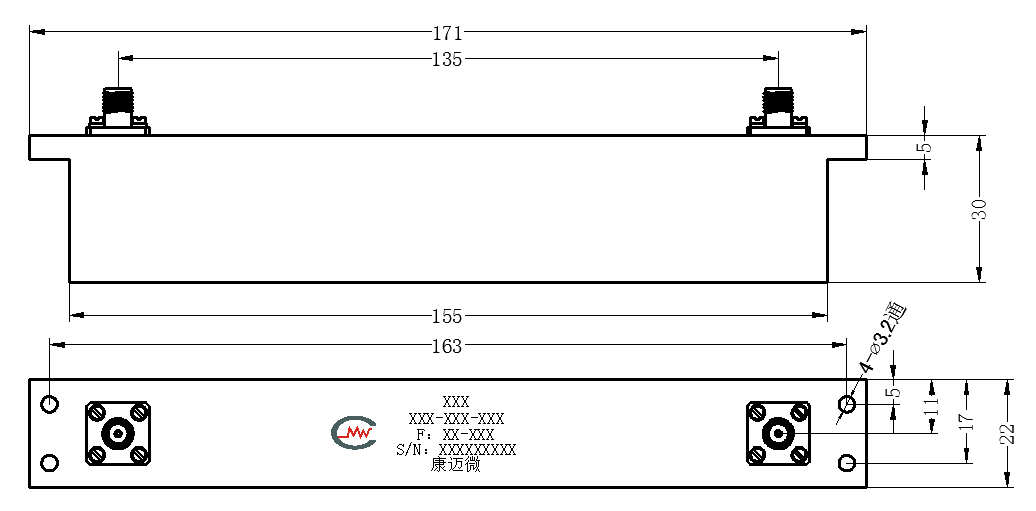

ZBSF3-C5725-5875-3014 Filter

Filter ZBSF3-C5725-5875-3014

Stopband F5725~5875MHz, ≥45dB, PassbandDC~5550MHz, 6050~7000MHz, SMA
View Details →
ZBSF3-C5150-5875-3015 Filter

Filter ZBSF3-C5150-5875-3015

Stopband F5150~5875MHz, ≥30dB, PassbandDC~4850MHz, ~MHz, SMA
View Details →
ZBF6-C5880-27-5989 Filter

Filter ZBF6-C5880-27-5989

Passband5866.5~5893.5MHz, DC~5856.5MHz≥15dB, 5903.5~10000MHz≥15dB, SMA
View Details →
ZBF6-C5880-15-6162 Filter

Filter ZBF6-C5880-15-6162

Passband5872.5~5887.5MHz, DC-5850.5MHz≥25dB, 5909.5-10000MHz≥25dB, SMA
View Details →
ZBF4-C5.88-0.01G-552 Filter

Filter ZBF4-C5.88-0.01G-552

Passband5.875~5.885GHz, DC-5.76GHz≥85dB, 6-10GHz≥85dB, SMA
View Details →

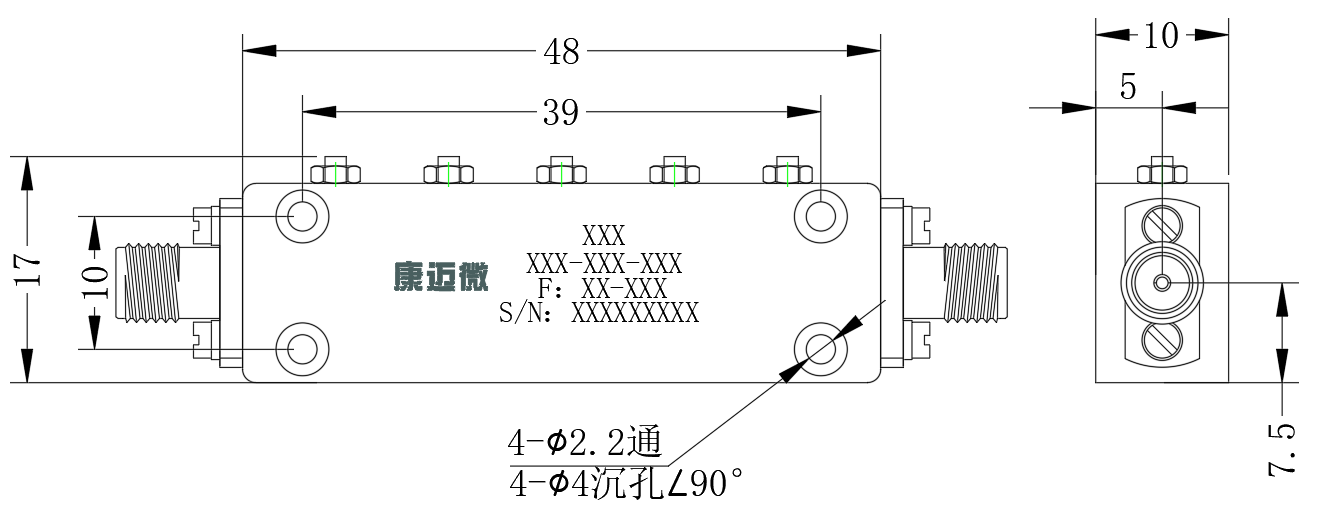

ZBF16-C5.8-0.15G-015 Filter

Filter ZBF16-C5.8-0.15G-015

Passband5725~5875MHz, DC~5275MHz≥60dB, 6375~17000MHz≥60dB, SMA
View Details →
K6-5150-5875-50S5050-001 Filter

Filter K6-5150-5875-50S5050-001

Stopband F5150~5875MHz, ≥50dB, PassbandDC~5100MHz, 5925~7000MHz, SMA
View Details →
K6-5150-5875-50N50150-002 Filter

Filter K6-5150-5875-50N50150-002

Stopband F5150~5875MHz, ≥50dB, PassbandDC~5100MHz, 5925~6500MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
