RF Filter

Total 63 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 50 low pass 12 Notch 1
F Low MHz
0 - 370.8 18 390 - 460 15 475 - 527 15 529 - 553 8 555 - 572 7
–
Center frequency MHz
375 - 480 9 485 - 507.5 11 510 - 550 20 551 - 570 7 571 - 575 3
–
F High MHz
542.5 - 549 9 550 - 553 28 554 - 561 9 562.5 - 570 9 572 - 578 8
–
IL on center frequency dB
0.5 - 1 24 1.5 - 2 15 3 - 4 11
–
Maximum loss of side frequency dB
1 - 1.5 14 1.6 - 1.8 4 2 - 3 33 3.5 - 4 11 4.5 1
–
Rejection dB
20 - 30 9 35 - 40 27 45 - 50 19 55 - 65 6 70 - 80 2
–
Connector
SMD 19 SMA 20 N 1 Microstrip pad 1 Microstrip needle 20
Power Handling
0.32 - 1 21 2 - 5 33 7 - 30 5 50 - 200 4
–
Filter type
LC 49 Cavity&waveguide 12 stripline 1 MMIC 1
F High：542.5 - 578 MHz× Clear all
matches 63 models Default Newest
LF058 Filter

Filter LF058

PassbandDC~550MHz, 600-630MHz≥20dB, 630-2030MHz≥35dB, SMD, Replace SXLP-550A+
In Stock View Details →
ZLPF5-L0-550-3066 Filter

Filter ZLPF5-L0-550-3066

PassbandDC~550MHz, Rejection700-2000MHz≥35dB, SMD
In Stock View Details →
WLD003006K Filter

Filter WLD003006K

Passband350~550MHz, 270MHz≥20dBc, 650MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
LF057 Filter

Filter LF057

PassbandDC~550MHz, 800-1050MHz≥20dB, 1050-2000MHz≥35dB, SMD, Replace SXLP-550+
In Stock View Details →
BF057 Filter

Filter BF057

Passband460~560MHz, 300MHz≥20dB, 615MHz≥20dB, SMD, Replace SXBP-507+
In Stock View Details →
ZBF5-L560-10-3722 Filter

Filter ZBF5-L560-10-3722

Passband555~565MHz, DC-500MHz≥40dB, SMD
In Stock View Details →
ZBF13-L490-105-4014 Filter

Filter ZBF13-L490-105-4014

Passband437.5~542.5MHz, DC-355MHz≥40dB, 595MHz≥25dB, SMA
In Stock View Details →
ZLPF15-L30-560-1061 Filter

Filter ZLPF15-L30-560-1061

Passband30~560MHz, 800-3000MHz≥35dBc, dB, SMD
In Stock View Details →
ZBF13-L525-50-1522 Filter

Filter ZBF13-L525-50-1522

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMD
In Stock View Details →
ZBF13-L525-50-1523 Filter

Filter ZBF13-L525-50-1523

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMA
In Stock View Details →
ZLPF15-L1-575-156 Filter

Filter ZLPF15-L1-575-156

PassbandDC~575MHz, 1000-2500MHz≥40dBc, 2500-4400MHz≥20dBc, dBc, dBc, SMA
In Stock View Details →
SC-BP507.5-115 Filter

Filter SC-BP507.5-115

Passband450~565MHz, DC-88MHz≥50dBc, 225-392.5MHz≥30dBc, SMD
In Stock View Details →
ZLPF2-L0-550-1657 Filter

Filter ZLPF2-L0-550-1657

PassbandDC~550MHz, 625-750MHz≥40dBc, 750-1000MHz≥50dBc, Pin
In Stock View Details →
ZBF15-L554-24-1458 Filter

Filter ZBF15-L554-24-1458

Passband542~566MHz, DC-516MHz≥30dBc, 592-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L475-170-1452 Filter

Filter ZBF15-L475-170-1452

Passband390~560MHz, DC-310MHz≥40dB, 640-2000MHz≥40dB, SMD
In Stock View Details →
ZBF3-L525-50-2791 Filter

Filter ZBF3-L525-50-2791

Passband500~550MHz, DC-450MHz≥40dB, 580-1500MHz≥30dB, Pin
In Stock View Details →
ZLPF5-L0-550-596 Filter

Filter ZLPF5-L0-550-596

PassbandDC~550MHz, 650-1500MHz≥50dBc, Pin
View Details →
ZLPF5-L0-550-3835 Filter

Filter ZLPF5-L0-550-3835

PassbandDC~550MHz, 600-1500MHz≥50dBc, SMA
View Details →
ZLPF5-L0-550-1382 Filter

Filter ZLPF5-L0-550-1382

PassbandDC~550MHz, 650-1500MHz≥45dBc, SMA-K
View Details →
ZLPF3-L0-561-3021 Filter

Filter ZLPF3-L0-561-3021

PassbandDC~561MHz, 600-630MHz≥15dB, 630-1122MHz≥35dB
View Details →
ZLPF20-L0-566-136 Filter

Filter ZLPF20-L0-566-136

PassbandDC~566MHz, 758-803MHz≥55dB, 2nd and 3rd harmonicMHz≥55dB, SMD
View Details →
ZLPF13-L480-545-962 Filter

Filter ZLPF13-L480-545-962

Passband480~545MHz, 0.63-1.5GHz≥65dBc, 1.5-2.1GHz≥40dBc, Pin
View Details →
ZBSF5-L450-550-1957 Filter

Filter ZBSF5-L450-550-1957

Stopband F450~550MHz, ≥20dB, Passband410~428MHz, 620~626MHz, Pin
View Details →

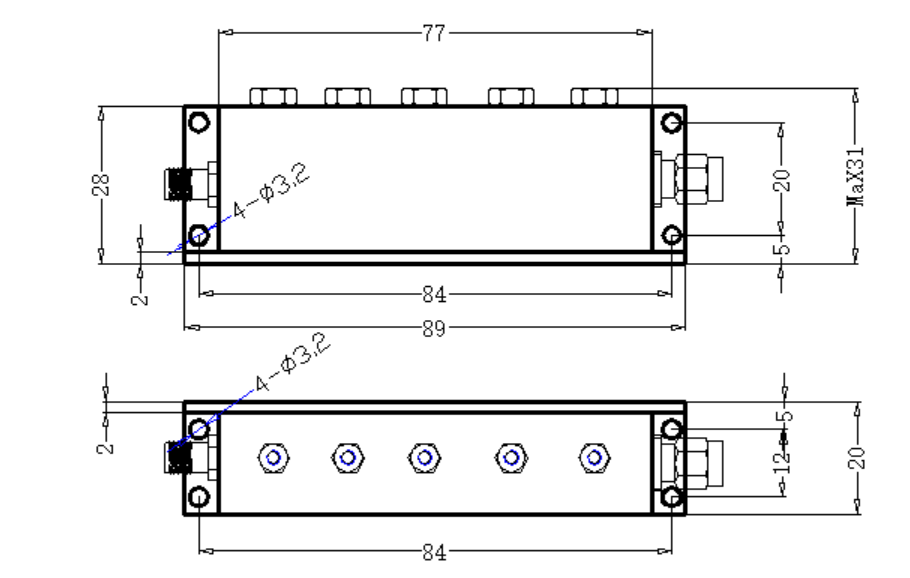

ZBF6-H573-10-2511 Spiral filter

Spiral filter ZBF6-H573-10-2511

Passband568~578MHz, DC-537MHz≥40dB, 609-1200MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
