Filters
Filters 1
Feature
Bandpass 37 Notch 23
F Low MHz
2700 - 4730 9 4805 - 5390 12 5450 - 5550 24 5570 - 5660 10 5687.5 - 5700 5
–
Center frequency MHz
4200 - 5016 7 5180 - 5400 7 5500 - 5610 13 5621 - 5660 7 5695 - 5700 4
–
F High MHz
5615 - 5625 5 5628.5 - 5640 4 5650 - 5680 11 5685 - 5700 19 5702.5 - 5715 21
–
IL on center frequency dB
0.3 - 1 19 1.4 - 1.8 6 2 - 4 10 4.5 - 5.2 2
–
Maximum loss of side frequency dB
0.5 - 1.5 8 1.6 - 2.2 14 2.4 - 3 21 3.5 - 4.5 12 5 - 5.5 5
–
Rejection dB
25 - 40 19 50 - 60 23 65 - 75 13 80 - 95 5
–
Connector
SMD 3 SMA 38 N 6 Microstrip pad 2 Microstrip needle 10
Power Handling
2 - 3.16 2 5 - 10 38 15 - 20 4 50 - 150 16
–
Filter type
Cavity&waveguide 52 stripline 5 Coaxial 1 Thin film 1 MEMS 1
F High：5615 - 5715 MHz× Clear all
matches 60 models Default Newest
CA0265 SMD Filter

SMD Filter CA0265

Bandwidth4.85-5.7GHz, Rejection35@DC-4.2GHz, 35@6.3-14.0GHz
In Stock View Details →
CA0110 SMD Filter

SMD Filter CA0110

Bandwidth3.5-5.7GHz, Rejection40@DC-2.4GHz, 40@7.0-10.5GHz
In Stock View Details →
STBP4R2-3R0-M483 Thin film filter

Thin film filter STBP4R2-3R0-M483

Bandwidth2.7-5.7GHz, Rejection35@DC-1.7GHz, 40@8.0-13.0GHz
In Stock View Details →
WLMD055057K Filter

Filter WLMD055057K

Passband5500~5700MHz, 5.2&5.95GHz≥30dB, 5.15&6.05GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
ZBF8-C5200-940-3145 Filter

Filter ZBF8-C5200-940-3145

Passband4730~5670MHz, DC-4430MHz≥60dBc, 5970-16000MHz≥60dBc, SMA
In Stock View Details →
ZBF25-C5.625-0G-601 Filter

Filter ZBF25-C5.625-0G-601

Center Frequency5.625GHz, DC-5.565GHz≥91dBc, 5.665-9GHz≥59dBc, SMA
In Stock View Details →
ZBF13-C5015-1200-2128 Filter

Filter ZBF13-C5015-1200-2128

Passband4415~5615MHz, DC-4GHz≥72dBc, 6-9GHz≥70, SMA
In Stock View Details →
CC0054 Filter

Filter CC0054

Center Frequency5.7GHz, Rejection32@DC-5.3GHz, Rejection35@6.2-15.0GHz
In Stock View Details →
ZBF13-C5600-100-198 Filter

Filter ZBF13-C5600-100-198

Passband5550~5650MHz, DC-5.48GHz≥55dBc, 5.72-7GHz≥55dBc, SMA
In Stock View Details →
ZBSF6-C5690-5710-4062 Filter

Filter ZBSF6-C5690-5710-4062

Stopband F5690~5710MHz, ≥50dB, PassbandDC~5650MHz, 5750~9000MHz, SMA
View Details →
ZBSF6-C5660-5680-4064 Filter

Filter ZBSF6-C5660-5680-4064

Stopband F5660~5680MHz, ≥55dB, PassbandDC~5610MHz, 5730~9000MHz, SMA
View Details →

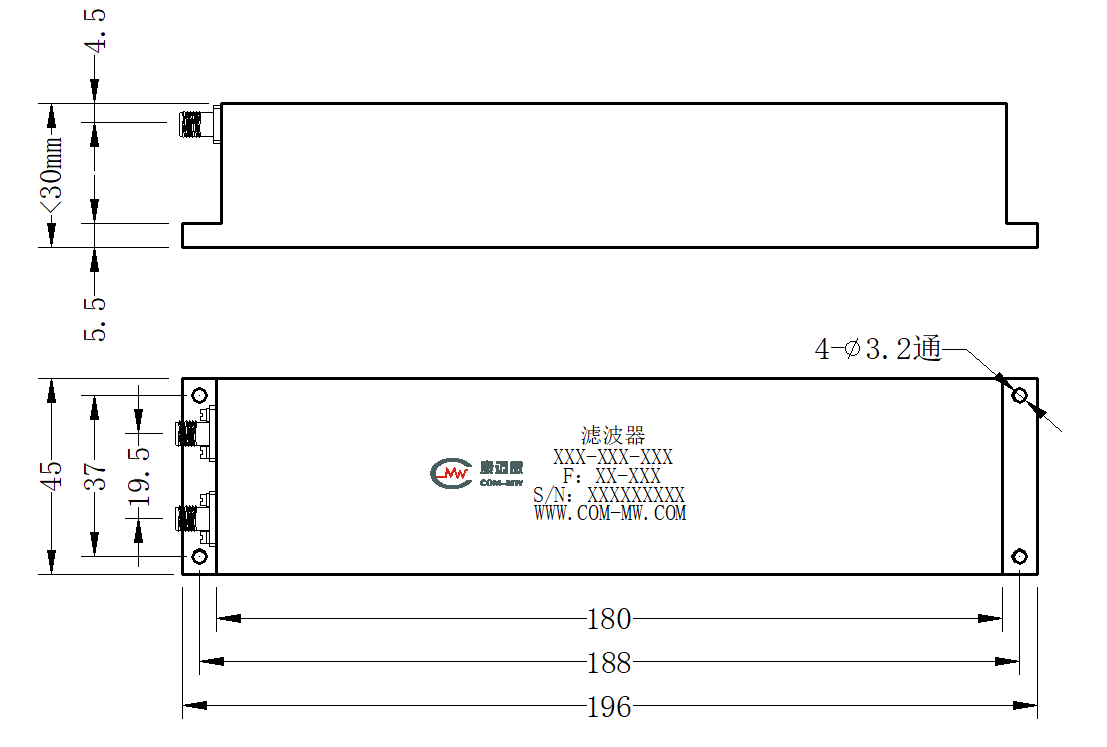

ZBSF6-C5600-5620-4066 Filter

Filter ZBSF6-C5600-5620-4066

Stopband F5600~5620MHz, ≥50dB, PassbandDC~5550MHz, 5670~9000MHz, SMA
View Details →
ZBSF6-C5495-5705-1309 Filter

Filter ZBSF6-C5495-5705-1309

Stopband F5495~5705MHz, ≥40dB, PassbandDC~5475MHz, 5725~7000MHz, SMA
View Details →
ZBSF6-C5490-5710-2296 Filter

Filter ZBSF6-C5490-5710-2296

Stopband F5490~5710MHz, ≥50dB, PassbandDC~5460MHz, 5740~8000MHz, SMA
View Details →
ZBSF6-C5200-5700-2700 Filter

Filter ZBSF6-C5200-5700-2700

Stopband F5200~5700MHz, ≥40dB, PassbandDC~5100MHz, 5800~10600MHz, SMA
View Details →
ZBF6-C5695-15-6157 Filter

Filter ZBF6-C5695-15-6157

Passband5687.5~5702.5MHz, DC-5665.5MHz≥25dB, 5724.5-10000MHz≥25dB, SMA
View Details →
ZBF6-C5658-15-6156 Filter

Filter ZBF6-C5658-15-6156

Passband5650.5~5665.5MHz, DC-5628.5MHz≥25dB, 5687.5-10000MHz≥25dB, SMA
View Details →
ZBF6-C5621-15-6171 Filter

Filter ZBF6-C5621-15-6171

Passband5613.5~5628.5MHz, DC-5591.5MHz≥25dB, 5650.5-10000MHz≥25dB, SMA
View Details →
ZBF5-C5650-80-2241 Filter

Filter ZBF5-C5650-80-2241

Passband5610~5690MHz, DC-5.55GHz≥70dBc, 5.72-5.75GHz≥40dBc, Pin
View Details →
ZBF5-C5600-100-2419 Filter

Filter ZBF5-C5600-100-2419

Passband5550~5650MHz, DC-4GHz≥70dB, 6.1-10GHz≥70dB, Pin
View Details →

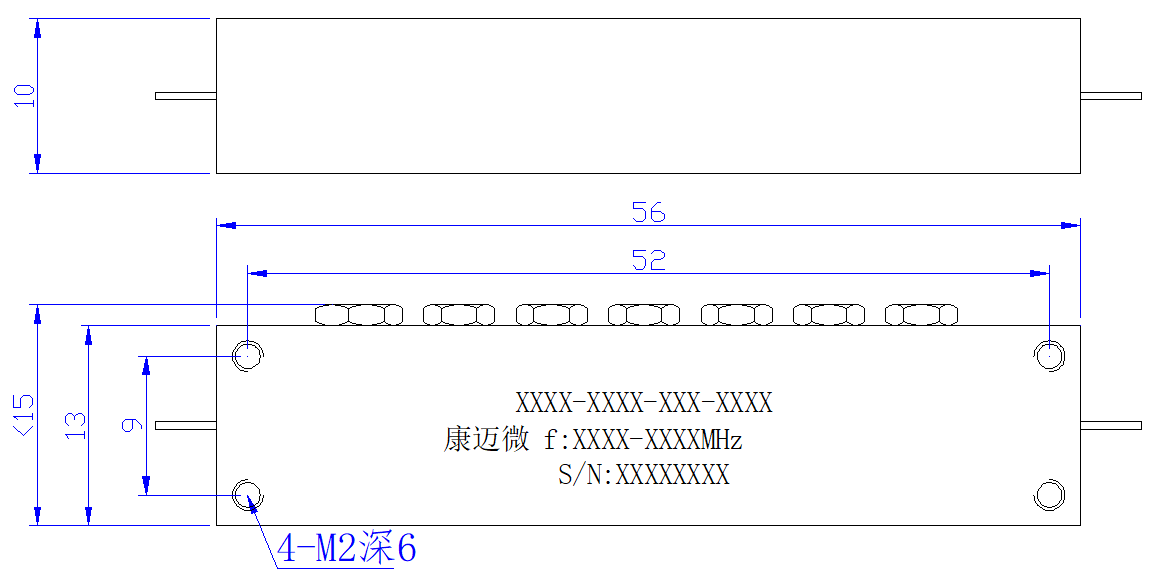

ZBF5-C5217.5-825-310 Filter

Filter ZBF5-C5217.5-825-310

Passband4805~5630MHz, DC-4020MHz≥65dBc, 4020-4600MHz≥20dBc, Pin
View Details →
ZBF5-C5180-1000-1588 Filter

Filter ZBF5-C5180-1000-1588

Passband4680~5680MHz, DC-3700MHz≥70dBc, 3700-4200MHz≥40dBc, Pin
View Details →
ZBF5-C5.5-0.4G-3894 Filter

Filter ZBF5-C5.5-0.4G-3894

Passband5.3~5.7GHz, 9-16GHz≥70dBc, SMA
View Details →

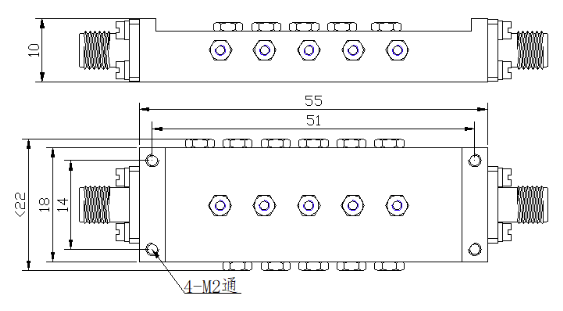

ZBF5-C4700-2000-1449 Filter

Filter ZBF5-C4700-2000-1449

Passband3700~5700MHz, DC-3200MHz≥50dB, 6200-8000MHz≥50dB, SMA
View Details →
