RF Filter

Total 31 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 7 low pass 1 Notch 23
F Low MHz
0 - 3500 2 3950 - 4250 2 4450 - 4472 2 4530 - 4650 25
–
Center frequency MHz
4125 - 4350 2 4500 - 4600 3 4630 - 4700 2 4710 1
–
F High MHz
4728 1 4730 1 4750 18 4770 11
–
IL on center frequency dB
0.5 1 1 6
–
Maximum loss of side frequency dB
1 1 1.5 3 2 6 2.5 7 3 14
–
Rejection dB
35 - 40 2 45 - 50 15 60 - 70 13 80 1
–
Connector
SMA 18 N 7 Microstrip needle 6
Power Handling
2 1 5 2 10 8 50 12 150 8
–
Filter type
LC 1 Cavity&waveguide 28 stripline 2
F High：4728 - 4770 MHz× Clear all
matches 31 models Default Newest
ZBSF6-C4650-4770-333 Filter

Filter ZBSF6-C4650-4770-333

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4630MHz, 4790~6000MHz, SMA
In Stock View Details →
ZLPF15-L0-4.75G-1551 Filter

Filter ZLPF15-L0-4.75G-1551

PassbandDC~4.75GHz, 5.2-10GHz≥35dBc, dB, SMA
View Details →
ZBSF6-C4650-4750-697 Notch filter

Notch filter ZBSF6-C4650-4750-697

Stopband F4650~4750MHz, ≥40dB, PassbandDC~4545.01MHz, 4855.01~7000MHz, SMA
View Details →
ZBF5-C4350-800-2238 Filter

Filter ZBF5-C4350-800-2238

Passband3950~4750MHz, DC-3.4GHz≥70dBc, 5.07-5.55GHz≥50dBc, Pin
View Details →

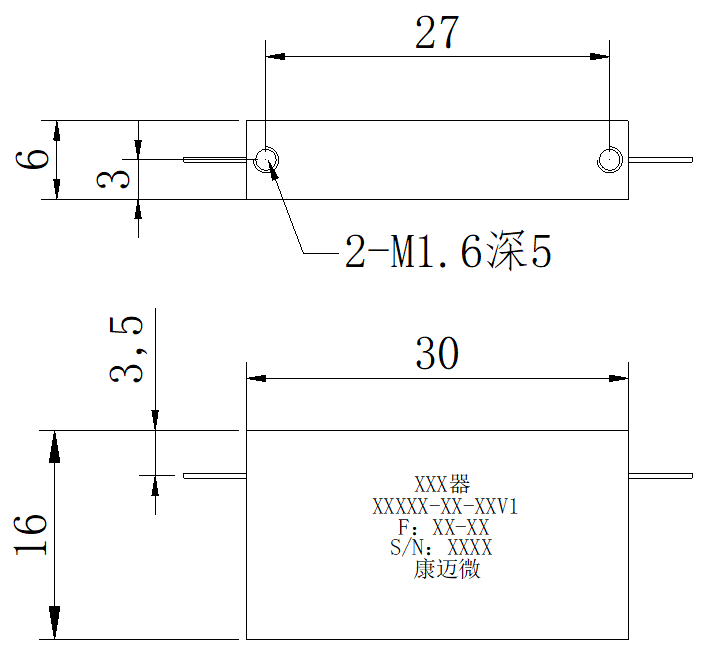

ZBF4-M4125-1250-078 Filter

Filter ZBF4-M4125-1250-078

Passband3500~4750MHz, DC-2900MHz≥60dBc, 5300-9000MHz≥60dBc, Pin
View Details →
ZBF4-C4.7-0.1G-883 Filter

Filter ZBF4-C4.7-0.1G-883

Passband4650~4750MHz, DC-4438MHz≥50dB, 4971-10000MHz≥50dB, SMA
View Details →
ZBF3-L4600-300-2972 Filter

Filter ZBF3-L4600-300-2972

Passband4450~4750MHz, 1500-4000MHz≥60dBc, 5200-6300MHz≥60dBc, Pin
View Details →
ZBF13-C4630-200-3763 Filter

Filter ZBF13-C4630-200-3763

Passband4530~4730MHz, DC-4GHz≥45dBc, 5.33-12GHz≥45dBc, Pin
View Details →
ZBF13-C4600-256-2274 Filter

Filter ZBF13-C4600-256-2274

Center Frequency4600MHz, Passband4472~4728MHz, F0±300MHz≥40dB, 14.5-16.5GHz≥80dB, Pin
View Details →
ZBF13-C4500-500-3309 Filter

Filter ZBF13-C4500-500-3309

Passband4250~4750MHz, 4.0GHz≥30dBc, 5.0GHz≥30dBc, Pin
View Details →
K6-4650-4770-50S5010-010 Filter

Filter K6-4650-4770-50S5010-010

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4600MHz, 4820~8000MHz, SMA
View Details →
K6-4650-4770-30S7050-003 Filter

Filter K6-4650-4770-30S7050-003

Stopband F4650~4770MHz, ≥70dB, PassbandDC~4620MHz, 4800~7000MHz, SMA
View Details →
K6-4650-4770-20S7050-008 Filter

Filter K6-4650-4770-20S7050-008

Stopband F4650~4770MHz, ≥70dB, PassbandDC~4630MHz, 4790~6500MHz, SMA
View Details →
K6-4650-4770-20S6050-006 Filter

Filter K6-4650-4770-20S6050-006

Stopband F4650~4770MHz, ≥60dB, PassbandDC~4630MHz, 4790~7000MHz, SMA
View Details →
K6-4650-4770-20N70150-009 Filter

Filter K6-4650-4770-20N70150-009

Stopband F4650~4770MHz, ≥70dB, PassbandDC~4630MHz, 4790~6500MHz, N
View Details →
K6-4650-4770-20N60150-007 Filter

Filter K6-4650-4770-20N60150-007

Stopband F4650~4770MHz, ≥60dB, PassbandDC~4630MHz, 4790~7000MHz, N
View Details →
K6-4650-4770-15S5050-001 Filter

Filter K6-4650-4770-15S5050-001

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4635MHz, 4785~7000MHz, SMA
View Details →
K6-4650-4770-15N50150-002 Filter

Filter K6-4650-4770-15N50150-002

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4635MHz, 4785~7000MHz, N
View Details →
K6-4650-4770-10S5050-004 Filter

Filter K6-4650-4770-10S5050-004

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4640MHz, 4780~7000MHz, SMA
View Details →
K6-4650-4770-10N50150-005 Filter

Filter K6-4650-4770-10N50150-005

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4640MHz, 4780~7000MHz, N
View Details →

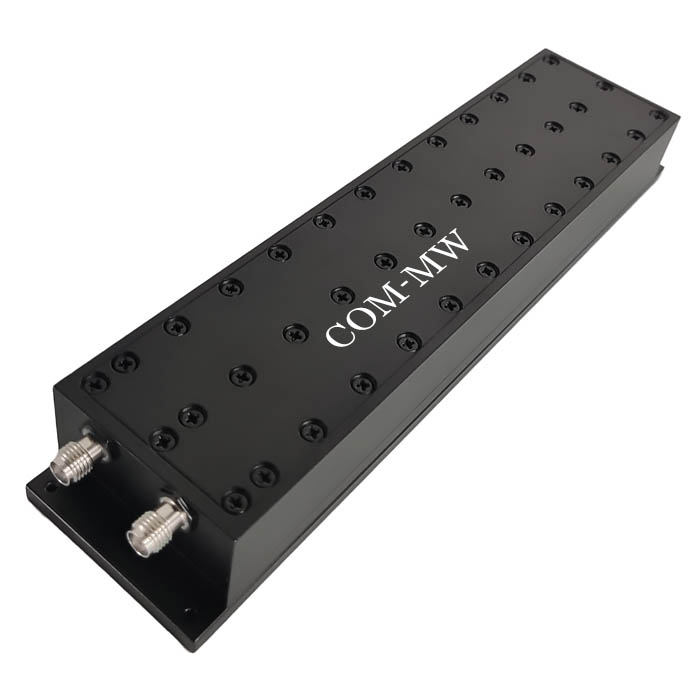

K6-4650-4750-50S5010-010 Filter

Filter K6-4650-4750-50S5010-010

Stopband F4650~4750MHz, ≥50dB, PassbandDC~4600MHz, 4800~8000MHz, SMA
View Details →
K6-4650-4750-30S7050-003 Filter

Filter K6-4650-4750-30S7050-003

Stopband F4650~4750MHz, ≥70dB, PassbandDC~4620MHz, 4780~7000MHz, SMA
View Details →
K6-4650-4750-20S7050-008 Filter

Filter K6-4650-4750-20S7050-008

Stopband F4650~4750MHz, ≥70dB, PassbandDC~4630MHz, 4770~6500MHz, SMA
View Details →
K6-4650-4750-20S6050-006 Filter

Filter K6-4650-4750-20S6050-006

Stopband F4650~4750MHz, ≥60dB, PassbandDC~4630MHz, 4770~7000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
