LF039 Filter

Filter LF039

PassbandDC~22MHz, 32-41MHz≥20dB, 41-2000MHz≥40dB, SMD, Replace SXLP-21.4+
In Stock View Details →
LF038 Filter

Filter LF038

PassbandDC~16MHz, 22MHz≥20dB, 50-1000MHz≥40dB, SMD, Replace SXLP-16+
In Stock View Details →
LF004 Filter

Filter LF004

PassbandDC~0.6MHz, 1.08-1.23MHz≥20dB, 1.23-1000MHz≥40dB, Replace LPF-B0R6+
In Stock View Details →
LF046 Filter

Filter LF046

PassbandDC~40MHz, 54-80MHz≥20dB, 80-2750MHz≥40dB, SMD, Replace SXLP-40+
In Stock View Details →
LF032 Filter

Filter LF032

PassbandDC~5MHz, 8-11MHz≥20dB, 11-600MHz≥40dB, SMD, Industrial grade, Replace SXLP-5+
In Stock View Details →
LF041 Filter

Filter LF041

PassbandDC~25MHz, 36-47MHz≥20dB, 47-1000MHz≥40dB, SMD, Industrial grade, Replace SXLP-25+
In Stock View Details →
LF035 Filter

Filter LF035

PassbandDC~10MHz, 14-16MHz≥20dB, 16-230MHz≥40dB, SMD, Replace SXLP-10+
In Stock View Details →
LF011 Filter

Filter LF011

PassbandDC~40MHz, 70-80MHz≥20dB, 80-800MHz≥40dB, SMD, Substitutes RLP-40+
In Stock View Details →
ZBF15-L11.5-5-787 Filter

Filter ZBF15-L11.5-5-787

Passband9~14MHz, ≥40dBcrectangle coefficient 2, dB, SMD
In Stock View Details →
LF006 Filter

Filter LF006

PassbandDC~0.8MHz, 1.55-1.75MHz≥20dB, 1.75-1000MHz≥30dB, /
In Stock View Details →
LF005 Filter

Filter LF005

PassbandDC~0.7MHz, 1.46-150MHz≥35dB, /
In Stock View Details →
LF044 Filter

Filter LF044

PassbandDC~30MHz, 47-61MHz≥20dB, 61-1500MHz≥40dB, SMD, Industrial grade, Replace SXLP-30+
In Stock View Details →
LF007 Filter

Filter LF007

PassbandDC~35MHz, 45-2500MHz≥30dB, Replace LPF-B35+
In Stock View Details →
BF032 Filter

Filter BF032

Passband24~35MHz, DC-17MHz≥20dB, 48-1600MHz≥20dB, SMD, Replace SXBP-29+
In Stock View Details →
CSXLP-10 Low Pass Filter

Low Pass Filter CSXLP-10

PassbandDC~10MHz, 14-16MHz≥20dB, 16-230MHz≥40dB, SMD, Industrial grade, Replace SXLP-10+
In Stock View Details →
BF030 Filter

Filter BF030

Passband20~21MHz, DC-17MHz≥20dB, 27-400MHz≥20dB, SMD, Replace SXBP-20R5+
In Stock View Details →
ZLPF5-L0-33-3040 Filter

Filter ZLPF5-L0-33-3040

PassbandDC~33MHz, Rejection50-600MHz≥35dB, SMD
In Stock View Details →
ZLPF5-L0-30-3039 Filter

Filter ZLPF5-L0-30-3039

PassbandDC~30MHz, Rejection47-600MHz≥35dB, SMD
In Stock View Details →
ZLPF5-L0-25-3038 Filter

Filter ZLPF5-L0-25-3038

PassbandDC~25MHz, Rejection42-600MHz≥35dB, SMD
In Stock View Details →
ZLPF5-L0-20-3037 Filter

Filter ZLPF5-L0-20-3037

PassbandDC~20MHz, Rejection32-500MHz≥40dB, SMD
In Stock View Details →
ZLPF5-L0-10-3035 Filter

Filter ZLPF5-L0-10-3035

PassbandDC~10MHz, Rejection16-400MHz≥30dB, SMD
In Stock View Details →

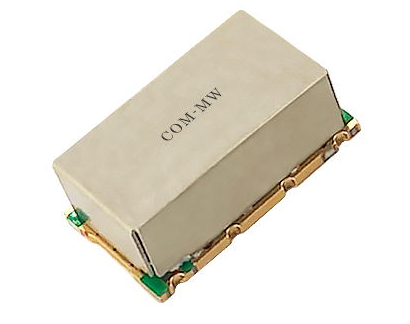

LF042 Filter

Filter LF042

PassbandDC~27MHz, 36-41MHz≥20dB, 41-810MHz≥40dB, SMD, Industrial grade, 替代SXLP-27+
In Stock View Details →
LF040 Filter

Filter LF040

PassbandDC~23MHz, 31MHz≥20dB, 34-500MHz≥40dB, SMD, Replace SXLP-23+
In Stock View Details →
LF034 Filter

Filter LF034

PassbandDC~8.4MHz, 11.6MHz≥20dB, 13-1500MHz≥40dB, SMD, Replace SXLP-8.4+
In Stock View Details →
