Filters
Filters 1
Feature
Bandpass 12 Notch 2
F Low MHz
1400 - 1950 3 2250 - 2800 3 2900 - 2950 6 2975 - 3025 2
–
Center frequency MHz
2225 - 2375 2 2500 - 2650 2 2925 - 2930 2 2975 - 2985 2 3000 - 3025 4
–
F High MHz
3050 9 3070 2 3075 2 3080 1
–
IL on center frequency dB
0.5 1 1 5 1.5 2 2 3 3.4 1
–
Maximum loss of side frequency dB
1 - 1.8 2 2 - 2.5 7 3 - 3.5 4 4.4 1
–
Rejection dB
30 - 34.999 2 40 - 45 4 55 - 60 4 65 - 70 3 75 1
–
Connector
SMD 4 SMA 5 Microstrip pad 1 Microstrip needle 4
Power Handling
0.32 - 1 4 2 - 5 6 10 - 50 4
–
Filter type
LC 5 Cavity&waveguide 5 stripline 1 MMIC 1 Dielectric 2
F High：3050 - 3080 MHz× Clear all
matches 14 models Default Newest
WLD014031K Filter

Filter WLD014031K

Passband1400~3050MHz, 950MHz≥35dBc, 3750MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
ZBF15-L2375-1350-1339 Filter

Filter ZBF15-L2375-1350-1339

Passband1700~3050MHz, DC-1520MHz≥40dBc, 1600MHz≥10dBc, 3.4-6GHz≥40dBc, SMD
In Stock View Details →
ZBF3-D2985-170-2931 Filter

Filter ZBF3-D2985-170-2931

In Stock View Details →
ZBSF6-C3025-3075-3295 Filter

Filter ZBSF6-C3025-3075-3295

Stopband F3025~3075MHz, ≥30dBc, Passband2000~2850MHz, 3250~4000MHz, Pin
View Details →

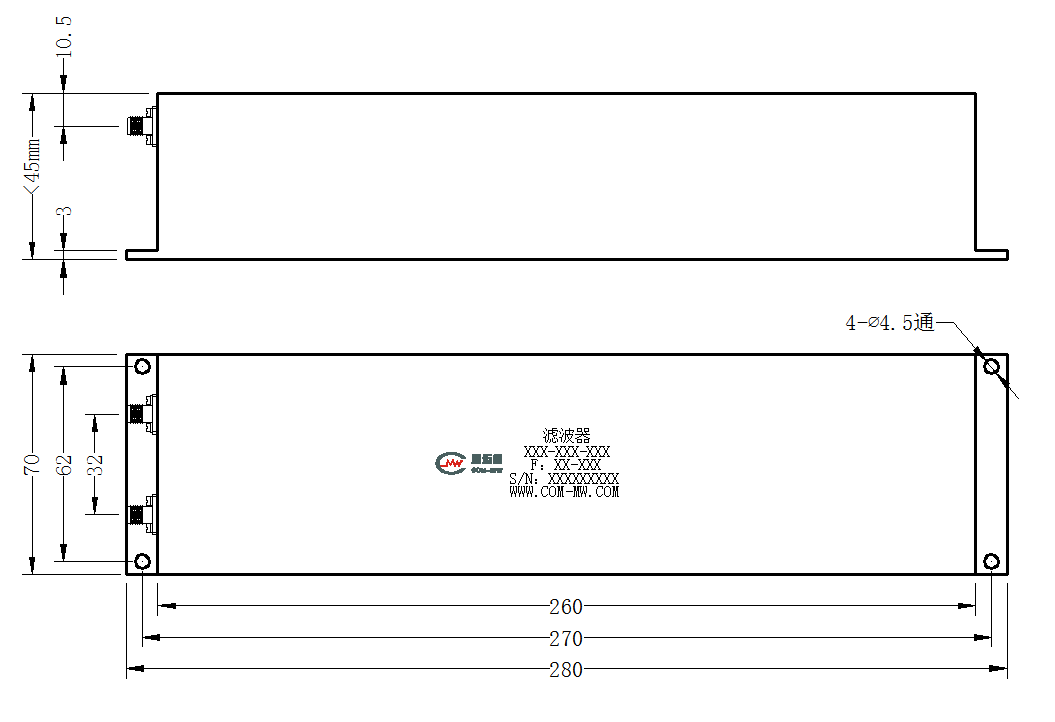

ZBSF6-C2930-3070-3582 Filter

Filter ZBSF6-C2930-3070-3582

Stopband F2930~3070MHz, ≥60dB, PassbandDC~2910MHz, 3090~6000MHz, SMA
View Details →

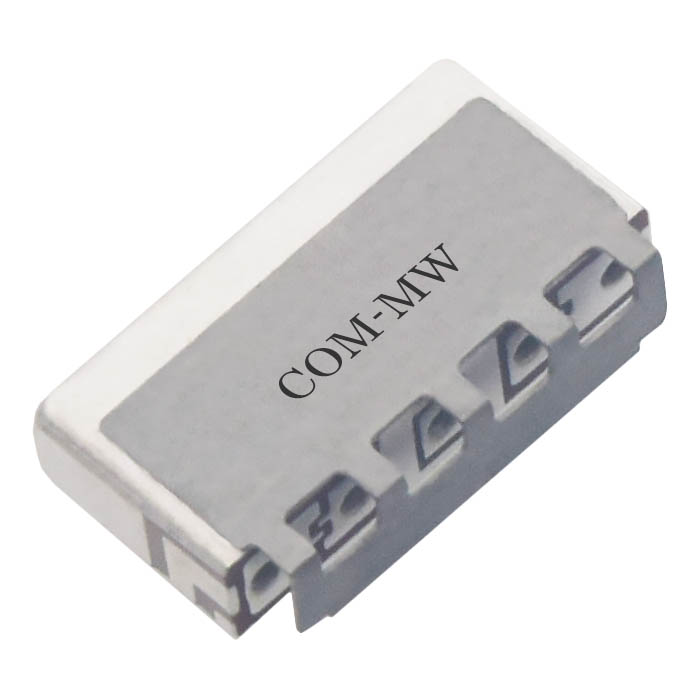

ZBF9-D3025-100-3407 Filter

Filter ZBF9-D3025-100-3407

Passband2975~3075MHz, DC-2700MHz≥65dB, 335065dB, SMD
View Details →
ZBF5-L2500-1100-2048 Filter

Filter ZBF5-L2500-1100-2048

Passband1950~3050MHz, DC-1700MHz≥45dB, 3600-5000MHz≥65dB, SMA
View Details →
ZBF3-L3000-100-2212 Filter

Filter ZBF3-L3000-100-2212

Passband2950~3050MHz, DC-2400MHz≥40dB, 3600-6000MHz≥40dB, Pin
View Details →
ZBF3-L2650-800-4297 Filter

Filter ZBF3-L2650-800-4297

Passband2250~3050MHz, DC-1950MHz≥55dBc, 3500-4000MHz≥35dBc, Pin
View Details →

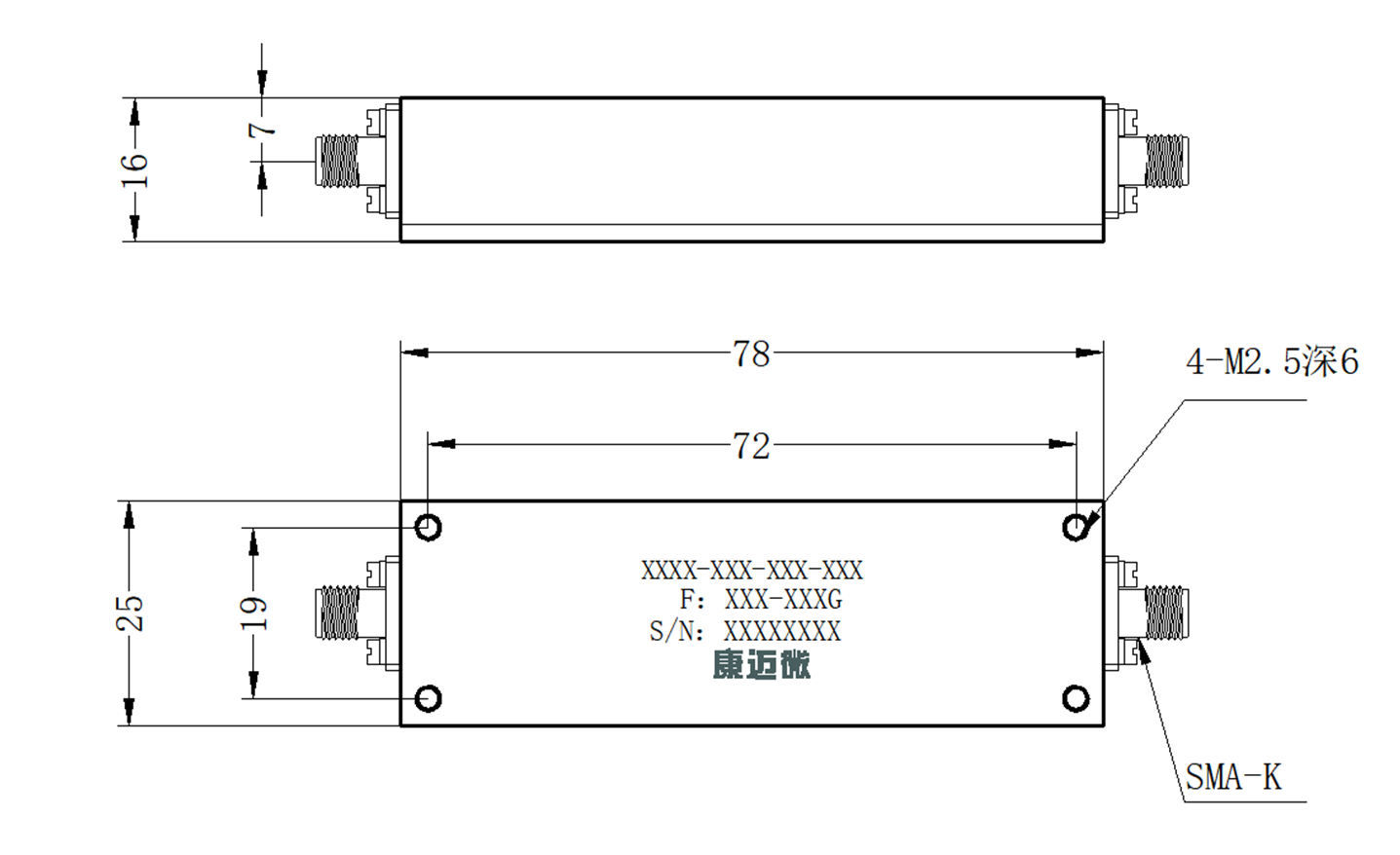

ZBF2-C3000-100-2974 Filter

Filter ZBF2-C3000-100-2974

Passband2950~3050MHz, DC-2800MHz≥45dBc, 3200-6000MHz≥45dBc, SMA
View Details →

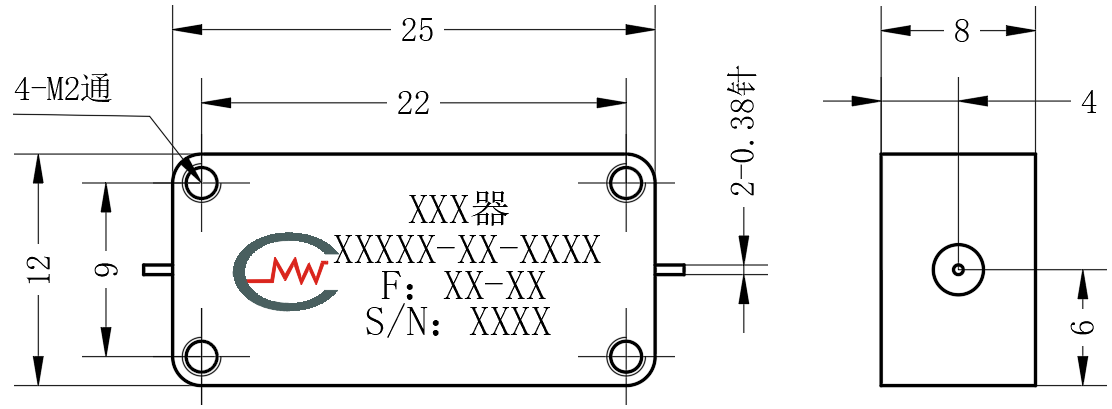

ZBF15-L2925-250-695 Filter

Filter ZBF15-L2925-250-695

Passband2800~3050MHz, 2.28-2.5GHz≥70dBc, 3.4GHz≥70dBc, Pin
View Details →
ZBF13-C3000-100-2513 Filter

Filter ZBF13-C3000-100-2513

Passband2950~3050MHz, 2.8&3.2GHz≥35dBc, 2.7&3.3GHz≥60dBc, SMA
View Details →

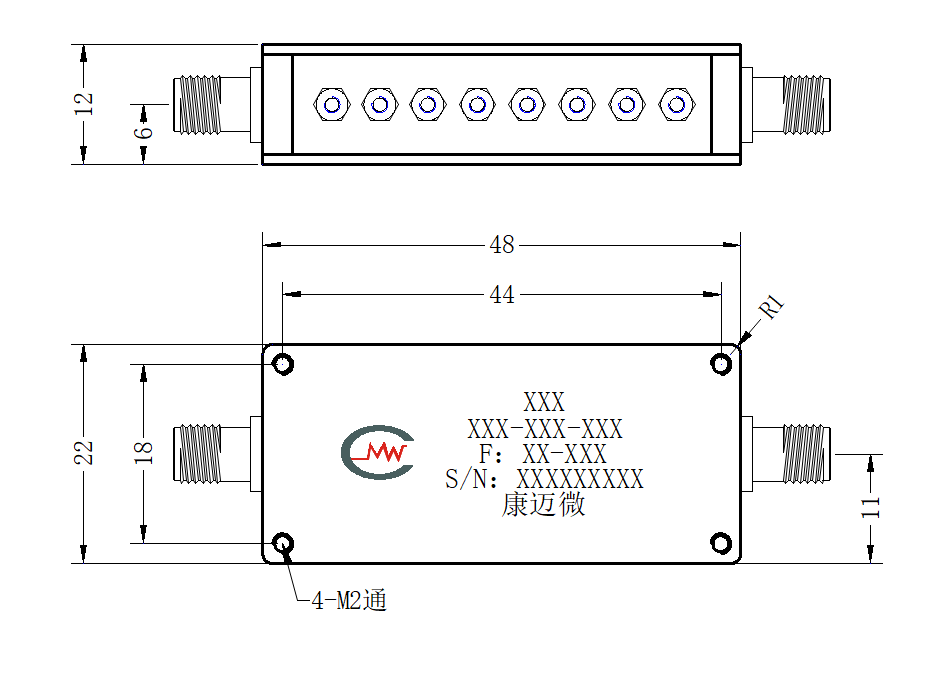

ZBF13-C2.93-0.3G-01 Filter

Filter ZBF13-C2.93-0.3G-01

Passband2.78~3.08GHz, DC-2.33GHz≥60dB, 3.53-6.0GHz≥60dB, SMA
View Details →
CA0471 SMD Filter

SMD Filter CA0471

Bandwidth2.9-3.05GHz, Rejection35@DC-2.6GHz, 40@3.35-8.5GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
