Filters
Filters 1
Feature
Bandpass 29 low pass 7 Notch 1
F Low MHz
0 - 108 8 160 - 220 7 225 - 240 14 243 - 260 4 265 - 270 4
–
Center frequency MHz
190 - 235 3 240 - 250 10 255 - 260 10 270 - 275 6
–
F High MHz
268 1 270 18 275 7 280 10 284 1
–
IL on center frequency dB
0.3 - 0.4 2 0.5 - 1 14 2 - 2.5 6 3 - 4 5 4.5 - 6.5 2
–
Maximum loss of side frequency dB
0.5 - 1 8 1.5 - 2.5 15 3 - 4 10 5 - 7.5 4
–
Rejection dB
12 - 35 4 40 - 55 22 60 - 70 8 80 - 100 3
–
Connector
SMD 15 SMA 11 N 3 Microstrip needle 8
Power Handling
1 - 2 31 5 - 10 2 20 - 30 2 50 - 100 2
–
Filter type
LC 32 Cavity&waveguide 4
F High：268 - 284 MHz× Clear all
matches 37 models Default Newest
ZBF14-L255-30-746 Filter

Filter ZBF14-L255-30-746

Passband240~270MHz, DC-210MHz≥40dB, 310-1000MHz≥40dB, SMD
In Stock View Details →
LF080 Filter

Filter LF080

PassbandDC~270MHz, 410-550MHz≥65dB, 550-1200MHz≥70dB, SMA
In Stock View Details →
ZBF2-L255-30-1789 Filter

Filter ZBF2-L255-30-1789

Passband240~270MHz, DC-220MHz≥50dB, 290-500MHz≥50dB, SMD
In Stock View Details →
ZBF2-L255-30-1790 Filter

Filter ZBF2-L255-30-1790

Passband240~270MHz, DC-220MHz≥12dB, 290-500MHz≥12dB, SMD
In Stock View Details →
ZBF14-L255-30-747 Filter

Filter ZBF14-L255-30-747

Passband240~270MHz, DC-210MHz≥40dB, 310-1000MHz≥40dB, SMA
In Stock View Details →
ZBF-L190-180-3750 Filter

Filter ZBF-L190-180-3750

Passband100~280MHz, DC-55MHz≥40dBc, 380-900MHz≥40dBc, Pin
In Stock View Details →

Filter ZTZBF13-C255-30-736

Passband240~270MHz, DC-200MHz≥50dB, 290-320MHz≥70dB, N
View Details →
ZLPF6-L0-270-2097 Filter

Filter ZLPF6-L0-270-2097

PassbandDC~270MHz, 450-6000MHz≥50dB, dB, SMA
View Details →

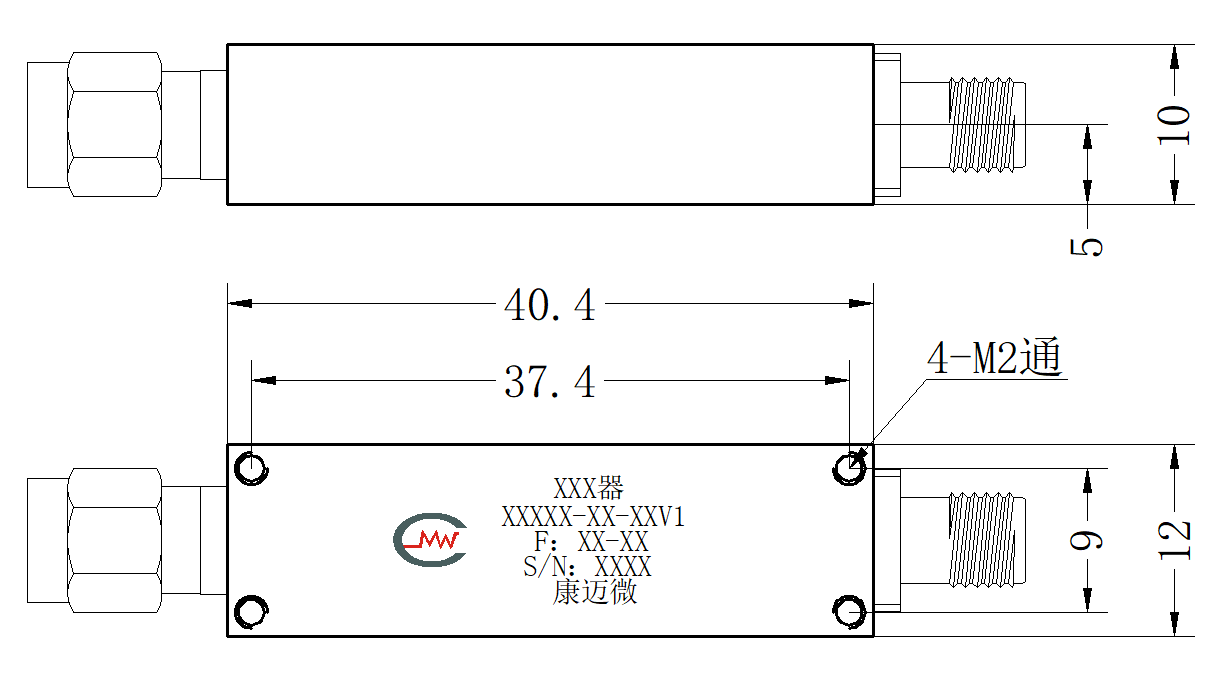

ZLPF3-L0-280-3694 Filter

Filter ZLPF3-L0-280-3694

PassbandDC~280MHz, 350MHz≥40dB, 500-1000MHz≥60dB, SMA
View Details →
ZLPF2-L160-280-2100 Filter

Filter ZLPF2-L160-280-2100

Passband160~280MHz, 320-1200MHz≥40dB, 1.2-1.4GHz≥30dB, Pin
View Details →

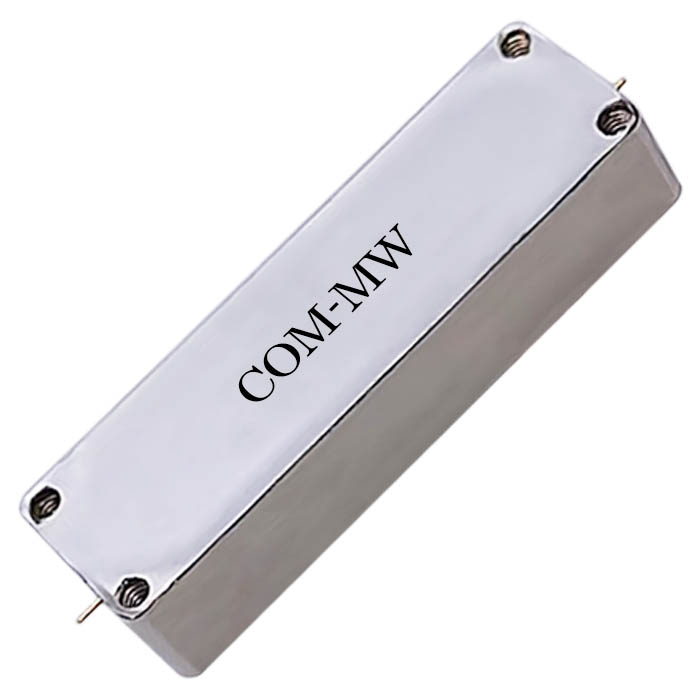

ZLPF2-L0-275-1656 Filter

Filter ZLPF2-L0-275-1656

PassbandDC~275MHz, 312.5MHz≥40dBc, 375MHz≥50dBc, Pin
View Details →
ZLPF13-L163-270-3522 Filter

Filter ZLPF13-L163-270-3522

PassbandDC~270MHz, 326-540MHz≥85dB, 489-900MHz≥85dB, SMA
View Details →
ZLPF13-L0-270-1771 Filter

Filter ZLPF13-L0-270-1771

PassbandDC~270MHz, 290-1000MHz≥35dB, SMD
View Details →
ZBSF4-L108-268-1817 Filter

Filter ZBSF4-L108-268-1817

Stopband F108~268MHz, ≥40dB, PassbandDC~68MHz, 318~2400MHz, SMA
View Details →
ZBF5-L270-20-2440 Filter

Filter ZBF5-L270-20-2440

Center Frequency270MHz, -3dB BW20MHz, DC-230MHz≥50dBc, 310-500MHz≥50dBc, SMD
View Details →
ZBF5-L250-60-676 Filter

Filter ZBF5-L250-60-676

Passband220~280MHz, DC-150MHz≥40dBc, 350-500MHz≥40dBc, Pin
View Details →
ZBF5-L220-120-1848 Filter

Filter ZBF5-L220-120-1848

Passband160~280MHz, DC-120MHz≥50dB, 330-600MHz≥50dB, SMA-K
View Details →
ZBF4-C255-30-559 Filter

Filter ZBF4-C255-30-559

Passband240~270MHz, DC-220MHz≥50dB, 290-400MHz≥80dB, SMA
View Details →
ZBF3-L275-10-2663 Filter

Filter ZBF3-L275-10-2663

Passband270~280MHz, DC-250MHz≥65dB, 300-1090MHz≥60dB, SMD
View Details →
ZBF3-L270-10-3084 Filter

Filter ZBF3-L270-10-3084

Passband265~275MHz, DC-240MHz≥65dB, 300-900MHz≥65dB, N
View Details →
ZBF3-L270-0-3529 Filter

Filter ZBF3-L270-0-3529

Passband270MHz, 225MHz≥90dB, 337MHz≥90dB, SMA
View Details →
ZBF3-L256.5-27-417 Filter

Filter ZBF3-L256.5-27-417

Passband243~270MHz, DC-216MHz≥30dB, 296-1000MHz≥30dB, SMD
View Details →
ZBF3-L250-50-4495 Filter

Filter ZBF3-L250-50-4495

Passband225~275MHz, DC-205MHz≥40dBc, 295-1000MHz≥40dBc, SMD
View Details →
ZBF3-L250-50-3965 Filter

Filter ZBF3-L250-50-3965

Passband225~275MHz, DC-100MHz≥30dB, 400-1000MHz≥50dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
