F High：27900 - 28300 MHz× Clear all
matches 21 models Default Newest
STBP278-0R6-M315 Thin film filter

Thin film filter STBP278-0R6-M315

Bandwidth27.5-28.1GHz, Rejection40@DC-26.4GHz, 40@29.4-44.0GHz
In Stock View Details →
STBP245-7R0-K825 Thin film filter

Thin film filter STBP245-7R0-K825

Bandwidth21.0-28.0GHz, Rejection40@DC-17.5GHz, 40@31.2-47.0GHz
In Stock View Details →
WLMX270280-2K Filter

Filter WLMX270280-2K

Passband27000~28000MHz, 25.95&28.8GHz≥30dB, 25.85&28.95GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP260-4R2-M280 Thin film filter

Thin film filter STBP260-4R2-M280

Bandwidth23.9-28.1GHz, Rejection40@DC-21.0GHz, 40@31.5-40.0GHz
In Stock View Details →
STBP250-6R4-M534 Thin film filter

Thin film filter STBP250-6R4-M534

Bandwidth21.8-28.2GHz, Rejection40@DC-18.8GHz, 40@32.2-42.0GHz
In Stock View Details →
STLP280-K186 Thin film filter

Thin film filter STLP280-K186

BandwidthDC-28.0GHz, Rejection35@32.5-43.0GHz
In Stock View Details →
STHP118-M064 Thin film filter

Thin film filter STHP118-M064

Bandwidth11.8-28.0GHz, Rejection28@DC-9.3GHz
In Stock View Details →
STBP245-7R4-N217 Thin film filter

Thin film filter STBP245-7R4-N217

Bandwidth20.8-28.2GHz, Rejection40@DC-18.0GHz, 40@31.5-55.0GHz
In Stock View Details →
ZBF5-C26-4G-2296 Filter

Filter ZBF5-C26-4G-2296

Passband24~28GHz, DC-22GHz≥65dB, 30-46GHz≥65dB, 2.92-KDetachable
In Stock View Details →
ZBF5-C26-4G-3030 Filter

Filter ZBF5-C26-4G-3030

Passband24~28GHz, DC-23.4GHz≥55dB, 30-32GHz≥40dB, Pin
In Stock View Details →
ZBF6-C23.9-8.8G-4822 Filter

Filter ZBF6-C23.9-8.8G-4822

Passband19.5~28.3MHz, DC-18GHz≥50dB, 18.5GHz≥30dB, 2.92
View Details →
ZBF5-C26-4G-764 Filter

Filter ZBF5-C26-4G-764

Passband24~28GHz, DC-22GHz≥65dBc, 30-35GHz≥65dBc, 2.92
View Details →
ZBF5-C26-4G-3330 Filter

Filter ZBF5-C26-4G-3330

Passband24~28GHz, DC-22GHz≥65dB, 30-48GHz≥65dB, 2.92
View Details →
ZBF4-C27.4-1G-625 Filter

Filter ZBF4-C27.4-1G-625

Passband26.9~27.9GHz, DC-25.6GHz≥40dB, 29-40GHz≥40dB, Pin
View Details →

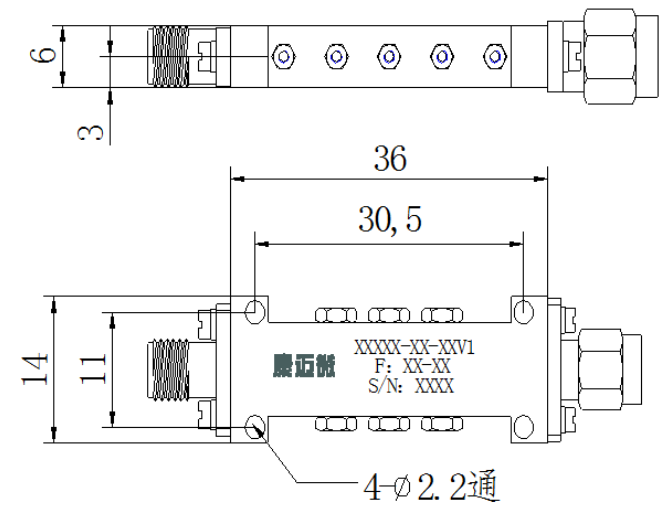

ZBF4-C26.25-3.5G-802 Filter

Filter ZBF4-C26.25-3.5G-802

Passband24.5~28GHz, DC-13GHz≥80dB, 13-20.5GHz≥60dB, SMA
View Details →

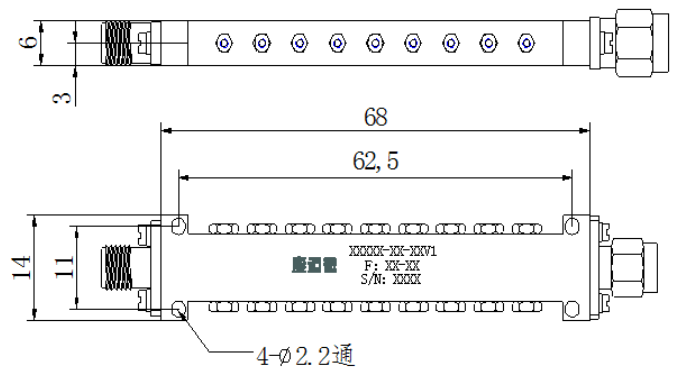

ZBF4-C26.15-3.9G-800 Filter

Filter ZBF4-C26.15-3.9G-800

Passband24.2~28.1GHz, DC-13GHz≥80dB, 20.8-23.5GHz≥60dB, SMA
View Details →
ZBF3-C27.85-0.3G-2461 Filter

Filter ZBF3-C27.85-0.3G-2461

Passband27.7~28GHz, DC-27GHz≥35dB, 29-50GHz≥50dB, Pin
View Details →
ZBF25-W28.05-0.3G-261 Filter

Filter ZBF25-W28.05-0.3G-261

Passband27.9~28.2GHz, DC-26.6GHz≥40dB, 31-40GHz≥85dB, Waveguide
View Details →
ZBF25-C28.05-0.3G-278 Filter

Filter ZBF25-C28.05-0.3G-278

Passband27.9~28.2GHz, DC-27GHz≥80dBc, 29.1-40GHz≥80dBc, 2.92
View Details →
ZBF20-C26.63-2.75G-260 Filter

Filter ZBF20-C26.63-2.75G-260

Passband25.25~28GHz, DC-24.05GHz≥75dBc, 28.55-33GHz≥60dBc, Pin
View Details →
CA0434 SMD Filter

SMD Filter CA0434

Bandwidth26.5-28.1GHz, Rejection40@DC-24.5GHz, 40@30.3-40.5GHz
View Details →
