Filters
Filters 1
Feature
Bandpass 16 low pass 1 Highpass 1
F Low MHz
0 - 950 3 1750 - 2060 4 2150 - 2250 5 2465 - 2670 3 2672.5 - 2725 3
–
Center frequency MHz
1850 - 2250 4 2400 - 2450 2 2475 - 2500 4 2595 - 2650 2 2710 - 2725 4
–
F High MHz
2725 3 2735 1 2740 1 2747.5 1 2750 12
–
IL on center frequency dB
0.2 - 0.4 2 0.5 - 1 9 1.5 - 2 4 3 1
–
Maximum loss of side frequency dB
0.4 - 0.7 2 1 - 1.5 4 2 - 2.5 8 3 - 4 4
–
Rejection dB
22 - 40 8 50 - 60 6 70 - 75 3 85 1
–
Connector
SMD 5 SMA 5 N 2 Microstrip needle 6
Power Handling
0.5 - 1 5 2 - 5 7 10 - 20 4 100 - 150 2
–
Filter type
LC 8 Cavity&waveguide 8 stripline 2
F High：2725 - 2750 MHz× Clear all
matches 18 models Default Newest
CA0298-2430 SMD Filter

SMD Filter CA0298-2430

Bandwidth2.2-2.75GHz, Rejection40@DC-1.8GHz, 40@3.2-5.7GHz
In Stock View Details →
HF015 Filter

Filter HF015

Highpass F650~2750MHz, DC-210MHz≥40dB, 290MHz≥20dB, SMD, Replace RHP-305+
In Stock View Details →
ZLPF5-L0-2750-830 Filter

Filter ZLPF5-L0-2750-830

PassbandDC~2750MHz, 3250-5000MHz≥40dBc, SMA-K
View Details →
ZBF6-C2450-600-075 Filter

Filter ZBF6-C2450-600-075

Passband2150~2750MHz, DC-1900MHz≥22dB, 3000-6000MHz≥22dB, N
View Details →
ZBF5-L2500-500-407 Filter

Filter ZBF5-L2500-500-407

Passband2250~2750MHz, 1dB BW520~540MHz, DC-2000MHz≥40dBc, 3000-4000MHz≥40dBc, SMA
View Details →
ZBF5-L2250-950-3504 Filter

Filter ZBF5-L2250-950-3504

Passband1775~2725MHz, DC-1300MHz≥40dBc, 3200-6000MHz≥40dBc, Pin
View Details →

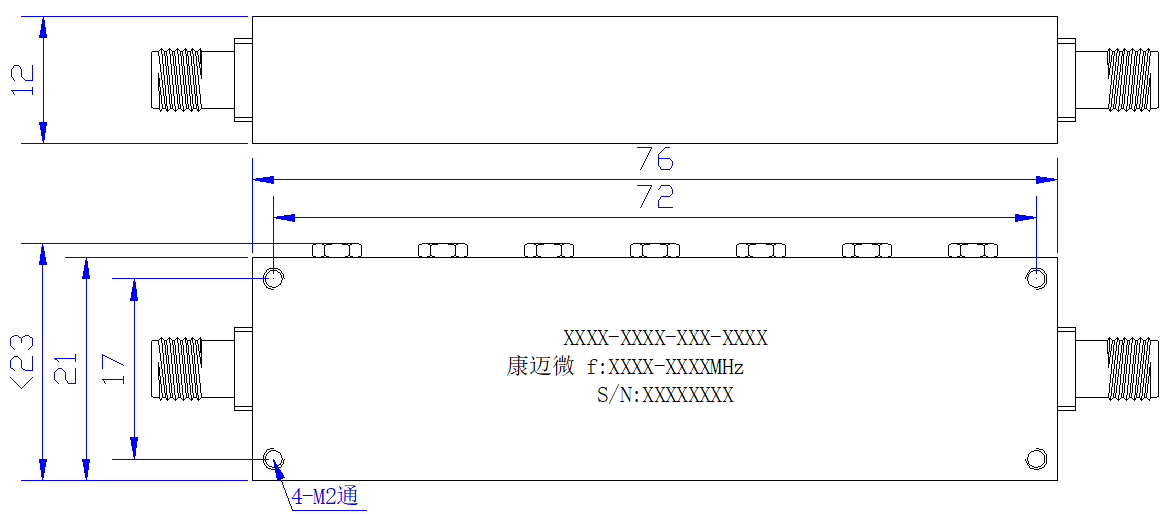

ZBF5-C2500-500-2686 Filter

Filter ZBF5-C2500-500-2686

Passband2250~2750MHz, 2800-2850MHz≥30dBc, 2850-5000MHz≥50dBc, SMA
View Details →

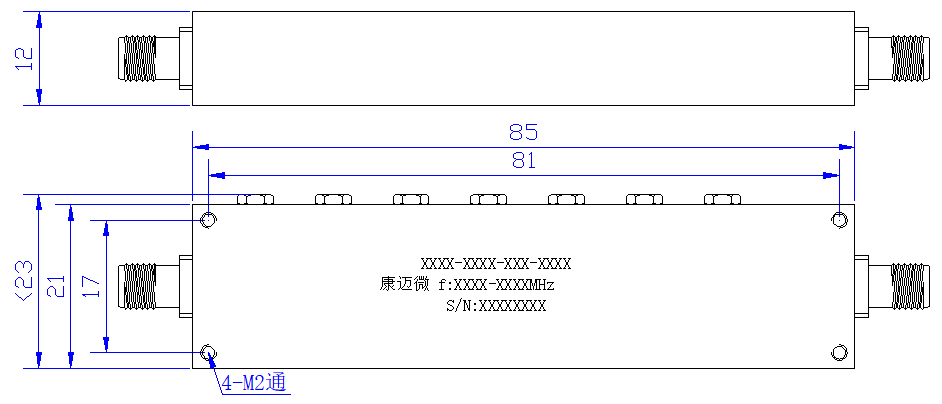

ZBF5-C2500-500-238 Filter

Filter ZBF5-C2500-500-238

Passband2250~2750MHz, 2800-2850MHz≥40dBc, 2850-5000MHz≥60dBc, SMA
View Details →
ZBF3-L2400-680-3905 Filter

Filter ZBF3-L2400-680-3905

Passband2060~2740MHz, 1890MHz≥20dBc, 2890MHz≥20dBc, SMD
View Details →
ZBF3-L1850-1800-2770 Filter

Filter ZBF3-L1850-1800-2770

Passband950~2750MHz, DC-750MHz≥60dB, 3500-5000MHz≥60dB, Pin
View Details →

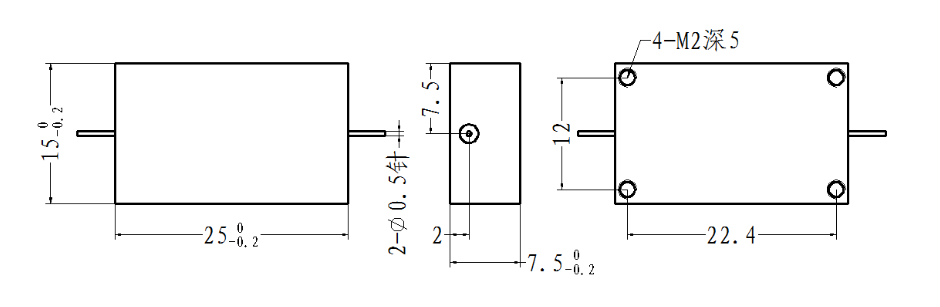

ZBF2-L2725-250-2021 Filter

Filter ZBF2-L2725-250-2021

Passband2725MHz, 1550-2000MHz≥60dBc, 5.2-15GHz≥20dBc, Pin
View Details →
ZBF15-L2250-1000-1023 Filter

Filter ZBF15-L2250-1000-1023

Passband1750~2750MHz, DC-1450MHz≥50dBc, 3150-5000MHz≥50dBc, SMD
View Details →
ZBF13-C2710-80-501 Filter

Filter ZBF13-C2710-80-501

Passband2670~2750MHz, DC-2.0GHz≥75dBc, 2570MHz≥75dBc, Pin
View Details →
ZBF13-C2710-75-1108 Filter

Filter ZBF13-C2710-75-1108

Passband2672.5~2747.5MHz, DC-2.0GHz≥75dBc, 2570MHz≥75dBc, SMA
View Details →
ZBF13-C2710-50-548 Filter

Filter ZBF13-C2710-50-548

Passband2685~2735MHz, DC-2.0GHz≥85dBc, 2570MHz≥85dBc, Pin
View Details →

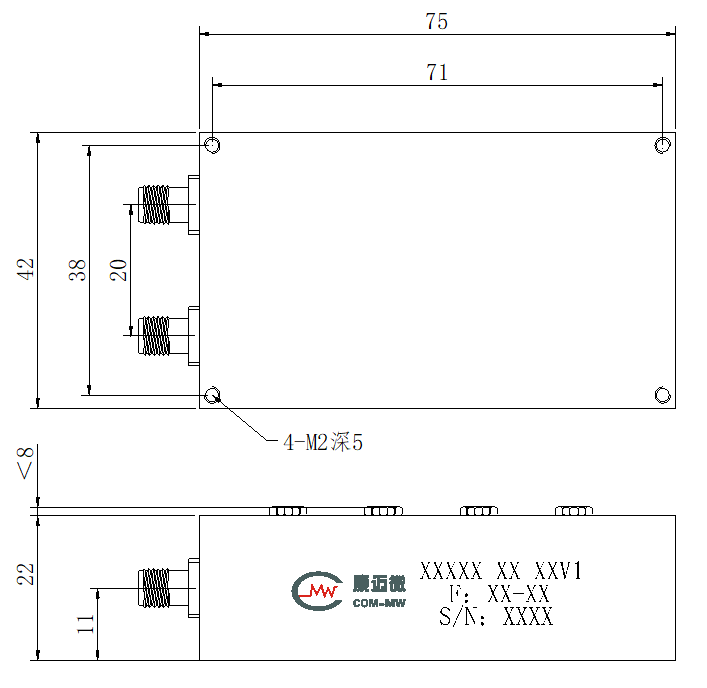

ZBF-C2595-260-A538 Filter

Filter ZBF-C2595-260-A538

Passband2465~2725MHz, DC-2315MHz≥70dB, 2875-8175MHz≥70dB, SMA
View Details →

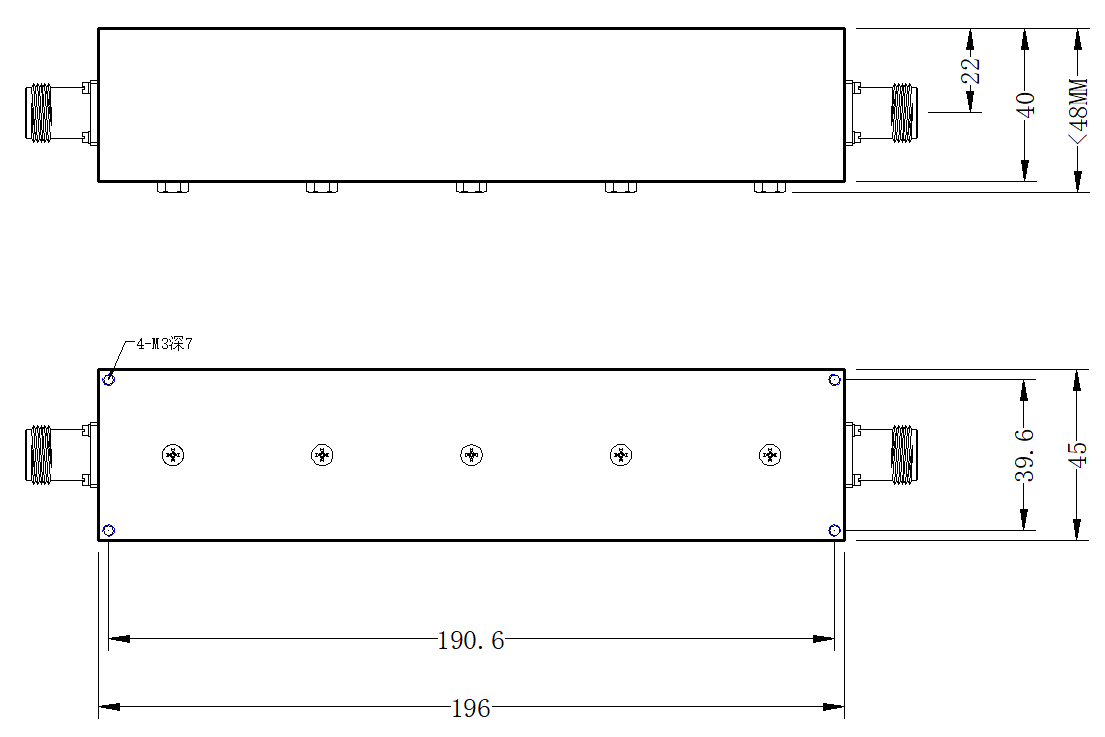

OQZBF6-C2250-1000-2449 Filter

Filter OQZBF6-C2250-1000-2449

Passband1750~2750MHz, DC-1100MHz≥60dB, 3400-5000MHz≥60dB, N
View Details →
CA0468 SMD Filter

SMD Filter CA0468

Bandwidth2.55-2.75, Rejection40@DC-2.3GHz, 40@3.05-8.0GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
