RF Filter

Total 15 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 6 Notch 9
F Low MHz
1975 - 2564 3 2568 - 2570 2 2575 - 2610 9 2620 1
–
Center frequency MHz
2300 2 2600 2 2605 1 2620 1 2625 1
–
F High MHz
2625 3 2630 2 2632 1 2635 8 2636 1
–
IL on center frequency dB
0.5 1 0.6 1 1 1 2 4 3 1
–
Maximum loss of side frequency dB
1 1 1.2 1 1.6 1 3 11 5 1
–
Rejection dB
40 - 45 5 50 - 53 5 55 - 60 3 70 - 80 2
–
Connector
Other 2 SMD 1 SMA 5 N 4 Microstrip needle 3
Power Handling
2 - 5 3 10 - 50 7 100 - 150 5
–
Filter type
LC 2 Cavity&waveguide 12 Dielectric 1
F High：2625 - 2636 MHz× Clear all
matches 15 models Default Newest
K6-2575-2635-10S60100-003 Filter

Filter K6-2575-2635-10S60100-003

Stopband F2575~2635MHz, ≥60dB, PassbandDC~2565MHz, 2645~6000MHz, SMA
In Stock View Details →

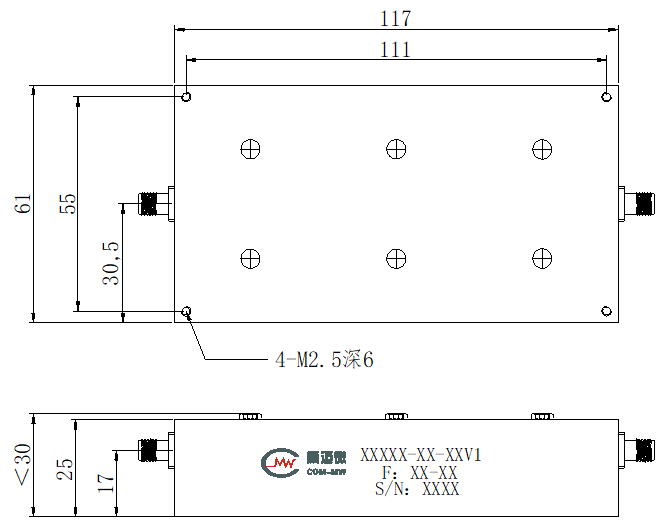

ZBSF4-C2570-2625-1058 Filter

Filter ZBSF4-C2570-2625-1058

Stopband F2570~2625MHz, ≥40dB, Passband2483~2535MHz, 2660~2690MHz, SMA
View Details →
ZBF9-D2600-64-2234 Filter

Filter ZBF9-D2600-64-2234

Passband2568~2632MHz, 2535MHz≥45dB, 2665MHz≥45dB, SMD
View Details →
ZBF6-C2625-10-2344 Filter

Filter ZBF6-C2625-10-2344

Passband2620~2630MHz, DC-2610MHz≥53dB, 2640-3000MHz≥53dB, L29, -150dBc@2*43dBmdesign assurance
View Details →
ZBF6-C2620-20-5419 Filter

Filter ZBF6-C2620-20-5419

Passband2610~2630MHz, DC-2600MHz≥55dB, 2640-3500MHz≥55dB, L29
View Details →

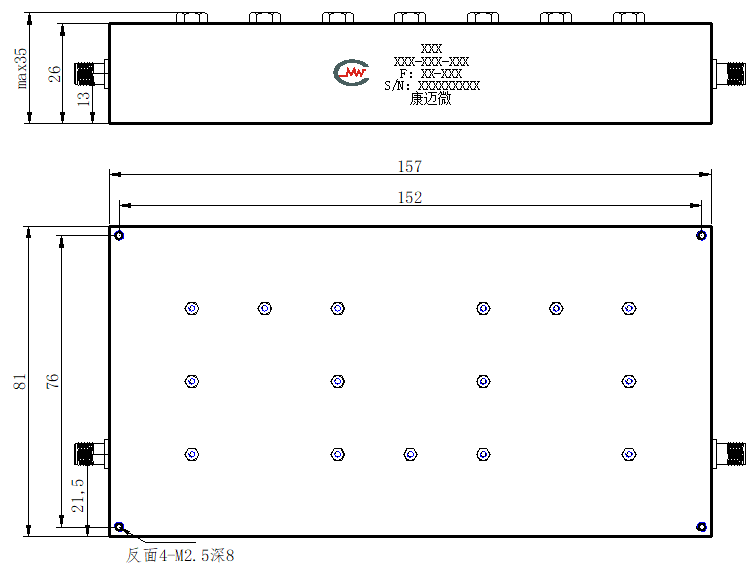

ZBF4-C2605-60-1189 Filter

Filter ZBF4-C2605-60-1189

Passband2575~2635MHz, 2535MHz≥40dB, 2675MHz≥40dB, SMA
View Details →
ZBF2-L2300-650-1663 Filter

Filter ZBF2-L2300-650-1663

Passband1975~2625MHz, DC-1.3GHz≥50dBc, 3-6GHz≥50dBc, Pin
View Details →
ZBF16-C2600-72-2079 Filter

Filter ZBF16-C2600-72-2079

Passband2564~2636MHz, 100~2360MHz≥80dB, 2360~2542.68MHz≥40dB, Pin
View Details →
ZBF15-L2300-650-510 Filter

Filter ZBF15-L2300-650-510

Passband1975~2625MHz, DC-1300MHz≥50dBc, 3-6GHz≥50dBc, Pin
View Details →
K6-2575-2635-5S5050-001 Filter

Filter K6-2575-2635-5S5050-001

Stopband F2575~2635MHz, ≥50dB, PassbandDC~2570MHz, 2640~4000MHz, SMA
View Details →
K6-2575-2635-5N5050-002 Filter

Filter K6-2575-2635-5N5050-002

Stopband F2575~2635MHz, ≥50dB, PassbandDC~2570MHz, 2640~4000MHz, N
View Details →
K6-2575-2635-10S4050-007 Filter

Filter K6-2575-2635-10S4050-007

Stopband F2575~2635MHz, ≥40dB, PassbandDC~2565MHz, 2645~4000MHz, SMA
View Details →
K6-2575-2635-10N70150M-005 Filter

Filter K6-2575-2635-10N70150M-005

Stopband F2575~2635MHz, ≥70dB, PassbandDC~2565MHz, 2645~4000MHz, N
View Details →
K6-2575-2635-10N60150-004 Filter

Filter K6-2575-2635-10N60150-004

Stopband F2575~2635MHz, ≥60dB, PassbandDC~2565MHz, 2645~6000MHz, N
View Details →
K6-2575-2635-10N4050-008 Filter

Filter K6-2575-2635-10N4050-008

Stopband F2575~2635MHz, ≥40dB, PassbandDC~2565MHz, 2645~4000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
