RF Filter

Total 36 models
Categories
Categories RF Filter
RF Filter16044
RF Filter15372 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 36
F Low MHz
875 - 1800 3 1875 - 2018 8 2020 - 2078 21 2080 - 2100 4
–
Center frequency MHz
1500 - 1962.5 3 2000 - 2070 11 2072 - 2075 17 2100 - 2112.5 5
–
F High MHz
2120 27 2121 1 2122 1 2125 7
–
IL on center frequency dB
0.2 - 0.3 4 0.4 - 0.5 10 0.6 - 1 16 1.5 - 2 4 3 2
–
Maximum loss of side frequency dB
0.3 - 0.7 8 1 - 1.5 9 2 - 2.5 14 3 - 4 5
–
Rejection dB
35 - 45 9 49.999 - 60 14 65 - 75 7 80 - 90 6
–
Connector
Other 1 SMD 3 SMA 16 N 4 Microstrip needle 12
Power Handling
1 - 5 15 10 - 20 11 30 - 60 4 200 - 300 5 500 1
–
Filter type
LC 11 Cavity&waveguide 25
F High：2120 - 2125 MHz× Clear all
matches 36 models Default Newest
ZBF3-C2100-40-3919 Filter

Filter ZBF3-C2100-40-3919

Passband2080~2120MHz, DC-2040MHz≥20dBc, 2300-3500MHz≥35dB, Pin
In Stock View Details →
ZBF13-C2072.5-105-1797 Filter

Filter ZBF13-C2072.5-105-1797

Passband2020~2125MHz, DC-1.9GHz≥55dBc, 2.2-2.3GHz≥55dBc, SMA
In Stock View Details →

Component ZS13-C2020-2125-2713

Passband2020~2125MHz, DC-1.7GHz≥70dBc, 1.7-1.9GHz≥40dBc, SMA, Flat pin
View Details →
ZBF6-C2100-42-4433 Filter

Filter ZBF6-C2100-42-4433

Passband2079~2121MHz, DC-2010MHz≥50dB, 2190-6363MHz≥50dB, SMA
View Details →
ZBF5-L2075-100-2534 Filter

Filter ZBF5-L2075-100-2534

Passband2025~2125MHz, DC-1900MHz≥40dBc, 2300-3400MHz≥40dBc, Pin
View Details →
ZBF5-C2069-106-3116 Filter

Filter ZBF5-C2069-106-3116

Passband2016~2122MHz, 2006MHz≥5dBc, 2132MHz≥5dBc, SMA
View Details →

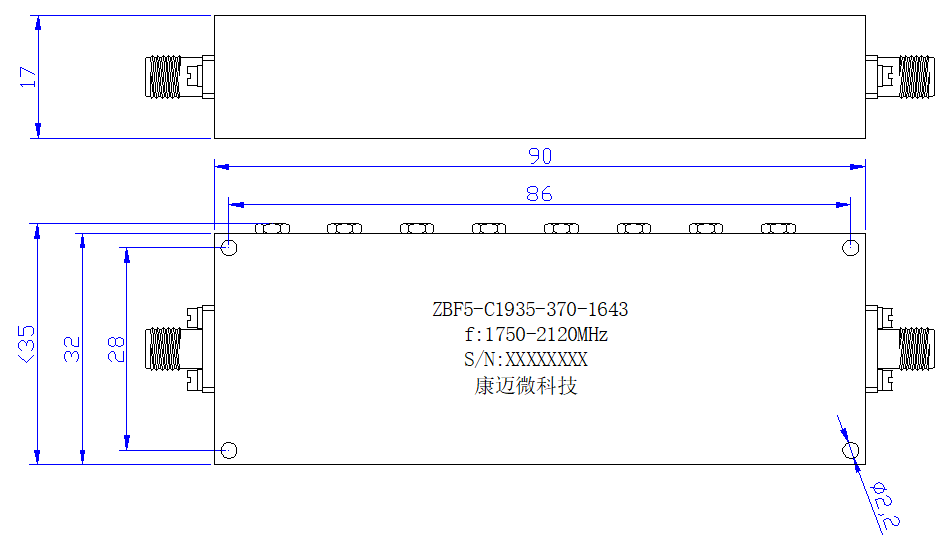

ZBF5-C1935-370-1643 Filter

Filter ZBF5-C1935-370-1643

Passband1750~2120MHz, 2200-2500MHz≥65dB, DC-1500MHz≥75dB, SMA
View Details →
ZBF4-C2072.5-95-1260 Filter

Filter ZBF4-C2072.5-95-1260

Passband2025~2120MHz, 2200MHz≥80dB, dB, SMA
View Details →
ZBF4-C2072.5-95-1105 Filter

Filter ZBF4-C2072.5-95-1105

Passband2025~2120MHz, DC-1825MHz≥60dB, 2312-9000MHz≥60dB, SMA
View Details →
ZBF3-C2100-40-3835 Filter

Filter ZBF3-C2100-40-3835

Passband2080~2120MHz, DC-2040MHz≥35dBc, 2300-3500MHz≥35dB, Pin
View Details →
ZBF3-C2100-40-3163 Filter

Filter ZBF3-C2100-40-3163

Passband2080~2120MHz, DC-2040MHz≥35dBc, dB, SMA
View Details →
ZBF3-C2072.5-95-3956 Filter

Filter ZBF3-C2072.5-95-3956

Passband2025~2120MHz, DC-1850MHz≥65dB, 2200-6000MHz≥65dB, SMA
View Details →
ZBF3-C2069-102-3365 Filter

Filter ZBF3-C2069-102-3365

Passband2018~2120MHz, DC-2000MHz≥20dB, 2199-4000MHz≥40dB, SMA
View Details →
ZBF3-C2069-102-2126 Filter

Filter ZBF3-C2069-102-2126

Passband2018~2120MHz, DC-1769MHz≥75dB, 2369-6000MHz≥75dB, SMA
View Details →
ZBF20-D2070-100-314 Filter

Filter ZBF20-D2070-100-314

Passband2020~2120MHz, DC-1960MHz≥40dB, 2180-2500MHz≥40dB, MCX
View Details →
ZBF16-M2072.5-95-206 Filter

Filter ZBF16-M2072.5-95-206

Passband2025~2120MHz, DC~1950MHz≥60dB, 2200~4000MHz≥60dB, SMA
View Details →
ZBF15-L2072.5-95-682 Filter

Filter ZBF15-L2072.5-95-682

Passband2025~2120MHz, F0±500MHz≥75dBc, Pin
View Details →
ZBF15-L2072.5-95-1725 Filter

Filter ZBF15-L2072.5-95-1725

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.25GHz≥30dBc, 2.5-3.2GHz≥60dB, Pin
View Details →
ZBF15-L2072.5-95-1710 Filter

Filter ZBF15-L2072.5-95-1710

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.5-3.2GHz≥60dBc, dB, Pin
View Details →
ZBF15-L2069-102-295 Filter

Filter ZBF15-L2069-102-295

Passband2018~2120MHz, DC-1200MHz≥60dBc, 2860-3000MHz≥45dBc, Pin
View Details →
ZBF15-L2069-102-2856 Filter

Filter ZBF15-L2069-102-2856

Passband2018~2120MHz, DC-1520MHz≥60dBc, 1520-1820MHz≥25dBc, Pin
View Details →
ZBF15-L2069-102-1377 Filter

Filter ZBF15-L2069-102-1377

Passband2018~2120MHz, DC-1630MHz≥60dBc, dBc, Pin
View Details →
ZBF15-L1500-1250-257 Filter

Filter ZBF15-L1500-1250-257

Passband875~2125MHz, DC-500MHz≥50dB, 4-6GHz≥50dBc, dBc, SMD
View Details →
ZBF13-L2072.5-95-3973 Filter

Filter ZBF13-L2072.5-95-3973

Passband2025~2120MHz, DC-1822.5MHz≥40dB, 2322.5-4000MHz≥40dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
