F High：1950.2 - 1960 MHz× Clear all
matches 24 models Default Newest
ZBSF6-C1947.5-1952.5-4025 Filter

Filter ZBSF6-C1947.5-1952.5-4025

Stopband F1947.5~1952.5MHz, ≥55dB, PassbandDC~1937.5MHz, 1962.5~3500MHz, SMA
View Details →
ZBSF6-C1947-1953-541 Filter

Filter ZBSF6-C1947-1953-541

Stopband F1947~1953MHz, ≥40dB, PassbandDC~1940MHz, 1960~3000MHz, SMA
View Details →
ZBSF6-C1947-1953-5234 Filter

Filter ZBSF6-C1947-1953-5234

Stopband F1947~1953MHz, ≥40dB, PassbandDC~1939MHz, 1961~3000MHz, SMA
View Details →
ZBSF6-C1945-1955-4028 Filter

Filter ZBSF6-C1945-1955-4028

Stopband F1945~1955MHz, ≥55dB, PassbandDC~1935MHz, 1965~3500MHz, SMA
View Details →
ZBSF6-C1940-1960-4029 Filter

Filter ZBSF6-C1940-1960-4029

Stopband F1940~1960MHz, ≥55dB, PassbandDC~1920MHz, 1980~4200MHz, SMA
View Details →

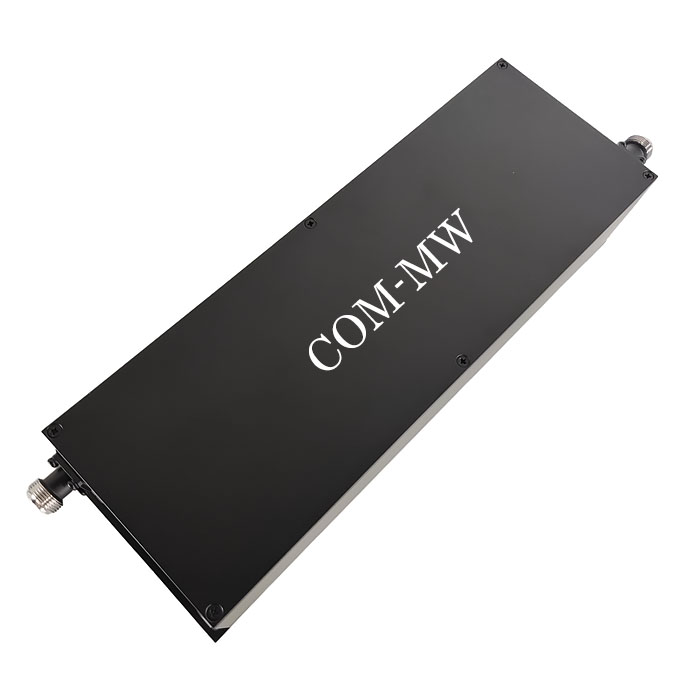

ZBSF6-C1820-1955-5252 Filter

Filter ZBSF6-C1820-1955-5252

Stopband F1820~1955MHz, ≥53dB, PassbandDC~1791MHz, 1973~3000MHz, N
View Details →

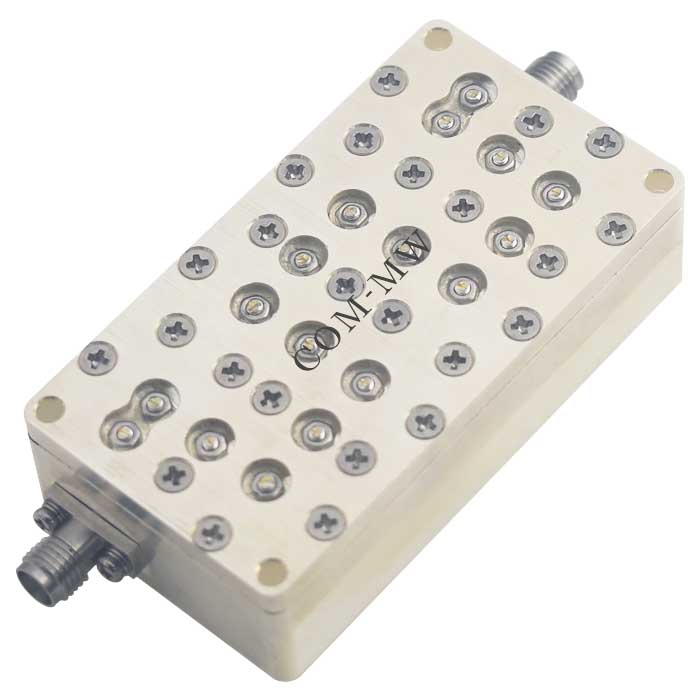

ZBF3-C1950-20-1818 Filter

Filter ZBF3-C1950-20-1818

Passband1940~1960MHz, 1920MHz≥35dB, 1980MHz≥35dB, SMA
View Details →

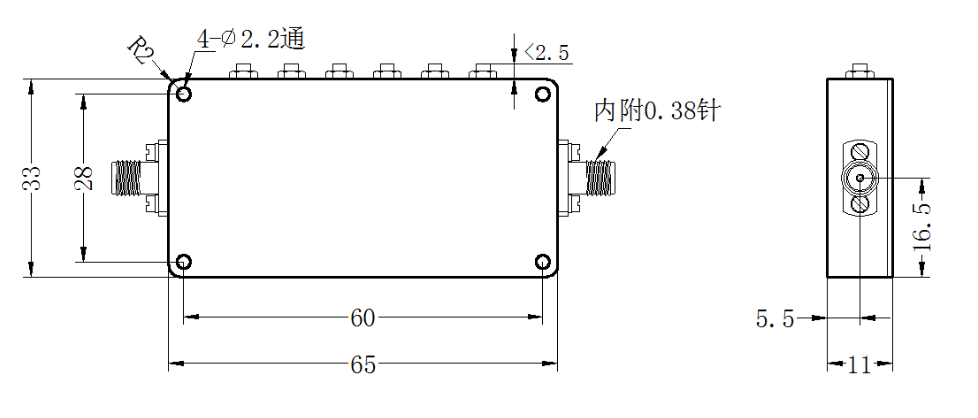

ZBF2-C1835-250-1756 Filter

Filter ZBF2-C1835-250-1756

Passband1710~1960MHz, 1500-1610MHz≥70dB, 2580-2950MHz≥70dB, SMA
View Details →

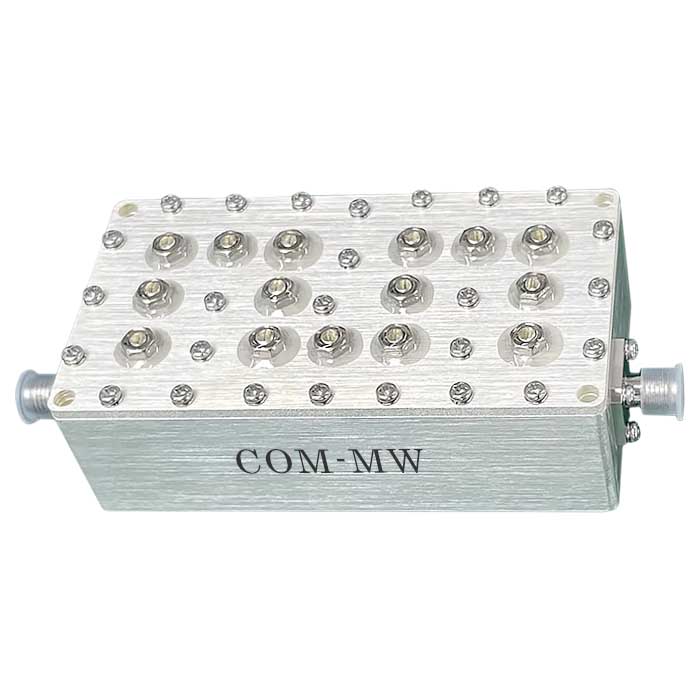

ZBF13-C1950-20-3179 Filter

Filter ZBF13-C1950-20-3179

Passband1940~1960MHz, DC-1.9GHz≥60dB, 2-6GHz≥60dB, SMA
View Details →

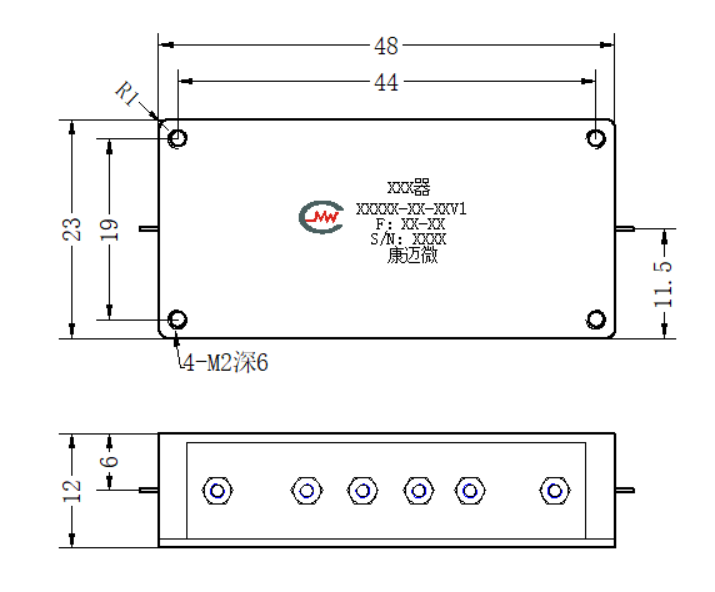

ZBF13-C1950-20-1861 Filter

Filter ZBF13-C1950-20-1861

Passband1940~1960MHz, F0±50MHz≥35dBc, DC-1.81GHz≥75dBc, Pin
View Details →

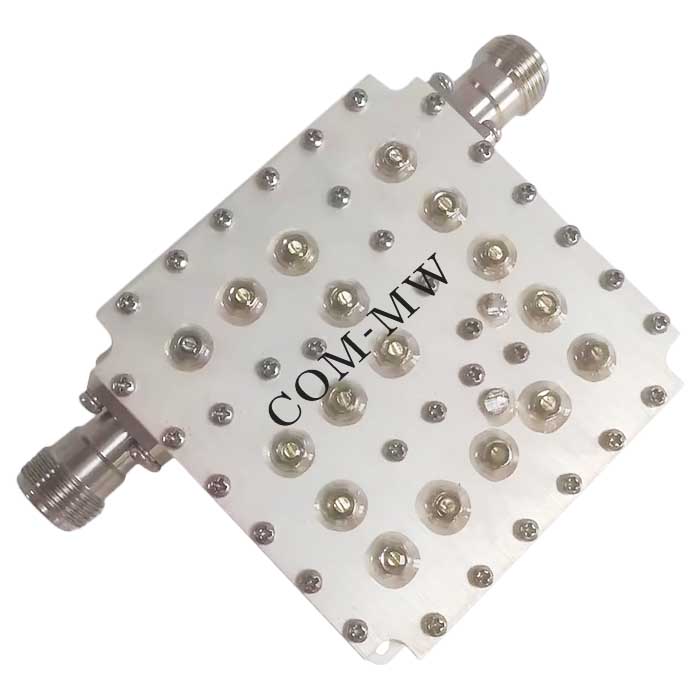

ZBF13-C1835-250-3121 Filter

Filter ZBF13-C1835-250-3121

Passband1710~1960MHz, DC-1.6GHz≥70dB, 2.05-2.1GHz≥70dB, N
View Details →

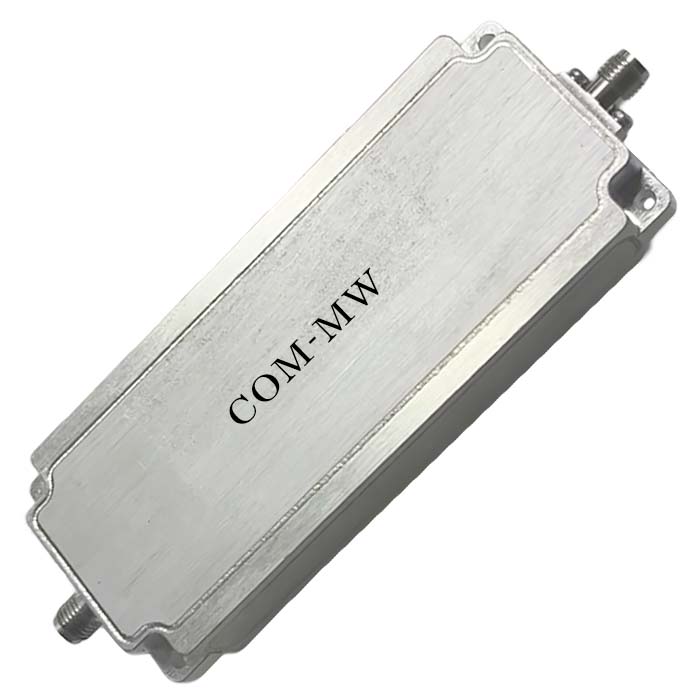

ZBF13-C1835-250-2449 Filter

Filter ZBF13-C1835-250-2449

Passband1710~1960MHz, DC-1610MHz≥60dBc, 2060-6000MHz≥60dBc, SMA
View Details →
K6-1949.8-1950.2-3S5050-001 Filter

Filter K6-1949.8-1950.2-3S5050-001

Stopband F1949.8~1950.2MHz, ≥50dB, PassbandDC~1946.8MHz, 1953.2~4500MHz, SMA
View Details →
K6-1949.8-1950.2-3N5050-002 Filter

Filter K6-1949.8-1950.2-3N5050-002

Stopband F1949.8~1950.2MHz, ≥50dB, PassbandDC~1946.8MHz, 1953.2~4500MHz, N
View Details →
K6-1949.8-1950.2-10S6050-003 Filter

Filter K6-1949.8-1950.2-10S6050-003

Stopband F1949.8~1950.2MHz, ≥60dB, PassbandDC~1939.8MHz, 1960.2~6000MHz, SMA
View Details →
K6-1949.8-1950.2-10N6050-004 Filter

Filter K6-1949.8-1950.2-10N6050-004

Stopband F1949.8~1950.2MHz, ≥60dB, PassbandDC~1939.8MHz, 1960.2~6000MHz, N
View Details →
K6-1947.5-1952.5-5S5050-001 Filter

Filter K6-1947.5-1952.5-5S5050-001

Stopband F1947.5~1952.5MHz, ≥50dB, PassbandDC~1942.5MHz, 1957.5~4500MHz, SMA
View Details →
K6-1947.5-1952.5-5N5050-002 Filter

Filter K6-1947.5-1952.5-5N5050-002

Stopband F1947.5~1952.5MHz, ≥50dB, PassbandDC~1942.5MHz, 1957.5~4500MHz, N
View Details →
K6-1947.5-1952.5-10S6050-003 Filter

Filter K6-1947.5-1952.5-10S6050-003

Stopband F1947.5~1952.5MHz, ≥60dB, PassbandDC~1937.5MHz, 1962.5~6000MHz, SMA
View Details →
K6-1947.5-1952.5-10N6050-004 Filter

Filter K6-1947.5-1952.5-10N6050-004

Stopband F1947.5~1952.5MHz, ≥60dB, PassbandDC~1937.5MHz, 1962.5~6000MHz, N
View Details →
K6-1940-1960-8S5050-001 Filter

Filter K6-1940-1960-8S5050-001

Stopband F1940~1960MHz, ≥50dB, PassbandDC~1932MHz, 1968~4500MHz, SMA
View Details →
K6-1940-1960-8N5050-002 Filter

Filter K6-1940-1960-8N5050-002

Stopband F1940~1960MHz, ≥50dB, PassbandDC~1932MHz, 1968~4500MHz, N
View Details →
K6-1940-1960-10S6050-003 Filter

Filter K6-1940-1960-10S6050-003

Stopband F1940~1960MHz, ≥60dB, PassbandDC~1930MHz, 1970~6000MHz, SMA
View Details →
K6-1940-1960-10N6050-004 Filter

Filter K6-1940-1960-10N6050-004

Stopband F1940~1960MHz, ≥60dB, PassbandDC~1930MHz, 1970~6000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
