F High：153 - 156 MHz× Clear all
matches 20 models Default Newest
BF086 Filter

Filter BF086

Passband124~156MHz, DC-103MHz≥40dB, 177-500MHz≥40dB, SMD
In Stock View Details →
ZBF9-S140-32.5-1113 Filter

Filter ZBF9-S140-32.5-1113

Passband124~156MHz, -40dB BW38.8MHz, Pin
In Stock View Details →
ZBF9-S140-28.6-1112 Filter

Filter ZBF9-S140-28.6-1112

Passband126~154MHz, -40dB BW30MHz, Pin
In Stock View Details →
ZBF9-S140-31-2153 Filter

Filter ZBF9-S140-31-2153

Center Frequency140MHz, -3dB BW32.4MHz, -40dB BW44MHz, SMD
In Stock View Details →
ZBF9-S140-65-2230 Filter

Filter ZBF9-S140-65-2230

Center Frequency140MHz, -3dB BW63.5MHz, -40dB BW80MHz, SMD
In Stock View Details →
ZBF14-L140-32-715 Filter

Filter ZBF14-L140-32-715

Passband124~156MHz, DC-110MHz≥40dB, 176-1000MHz≥40dB, SMA-K
In Stock View Details →
ZLPF3-L108-156-2107 Filter

Filter ZLPF3-L108-156-2107

PassbandDC~156MHz, 200-2000MHz≥60dB, 2000-6000MHz≥50dB, SMA
View Details →
ZBF9-S140-68-2231 Filter

Filter ZBF9-S140-68-2231

Center Frequency140MHz, -3dB BW65.5MHz, -30dB BW78MHz, SMD
View Details →
ZBF6-L145-20-4294 Filter

Filter ZBF6-L145-20-4294

Passband135~155MHz, 105MHz≥40dB, 185MHz≥40dB, SMA
View Details →
ZBF5-L155-0-2718 Filter

Filter ZBF5-L155-0-2718

Center Frequency155MHz, 1dB BW2MHz, DC-150MHz≥25dBc, 160-300MHz≥23dBc, SMA-K
View Details →
ZBF5-L150-10-3008 Filter

Filter ZBF5-L150-10-3008

Passband145~155MHz, DC-130MHz≥45dB, 170-500MHz≥45dB, SMA-K
View Details →
ZBF5-L140-28-524 Filter

Filter ZBF5-L140-28-524

Center Frequency140MHz, -3dB BW26~30MHz, DC-100MHz≥50dBc, 180-300MHz≥50dBc, Pin
View Details →
ZBF3-L150-10-3470 Filter

Filter ZBF3-L150-10-3470

Passband145~155MHz, DC-120MHz≥45dB, 180-310MHz≥45dB, SMD
View Details →

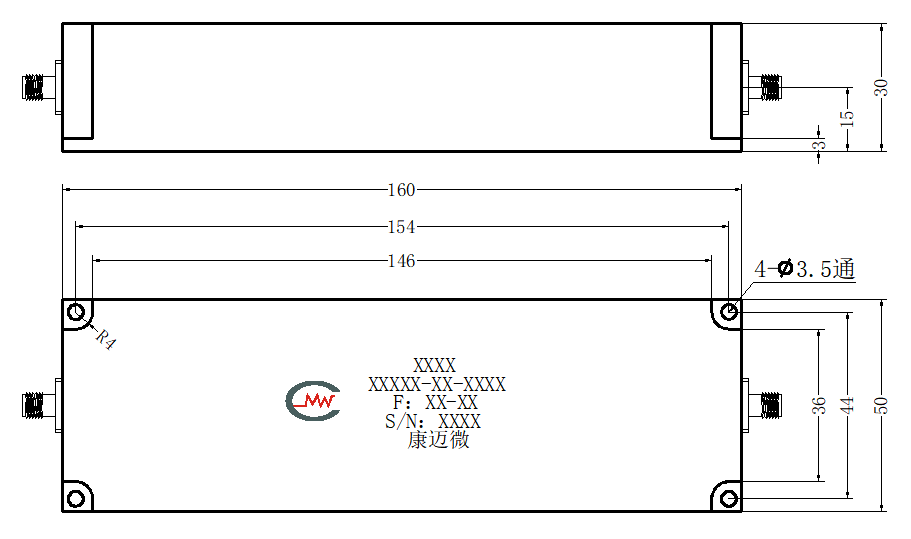

ZBF3-L130.5-45-2749 Filter

Filter ZBF3-L130.5-45-2749

Passband108~153, DC-98MHz≥50dBc, 163-500MHz≥50dBc, SMA
View Details →

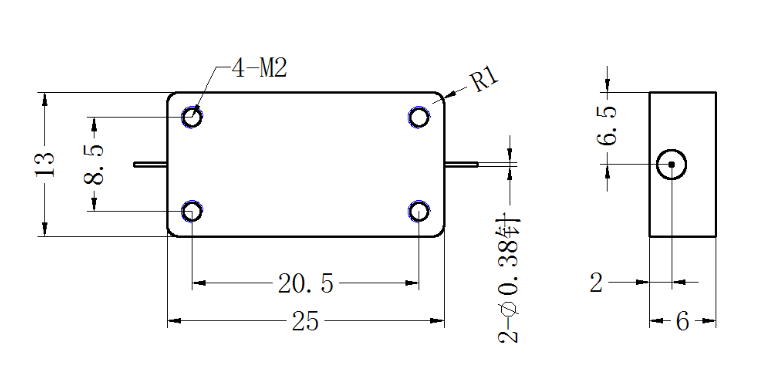

ZBF2-L140-30-2204 Filter

Filter ZBF2-L140-30-2204

Passband125~155MHz, 280MHz≥50dBc, 102.5&177.5MHz≥50dBc, Pin
View Details →
ZBF2-L140-30-2149 Filter

Filter ZBF2-L140-30-2149

Passband125~155MHz, DC-90MHz≥40dBc, 190-300MHz≥40dBc, Pin
View Details →
ZBF15-L150-10-566 Filter

Filter ZBF15-L150-10-566

Passband145~155MHz, 115MHz≥40dB, 185MHz≥40dB, SMA
View Details →
ZBF15-L140-30-271 Filter

Filter ZBF15-L140-30-271

Passband125~155MHz, DC-280MHz≥50dB, 102.5MHz≥50dB, 177.5GHz≥50dB, Pin
View Details →

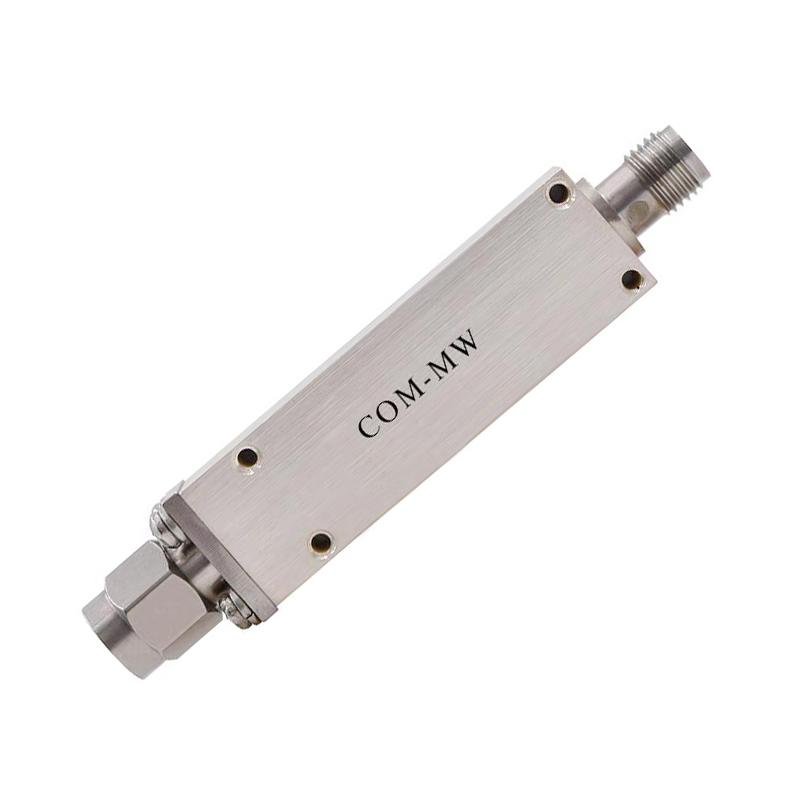

ZBF-3L145-20-B11 Filter

Filter ZBF-3L145-20-B11

Passband135~155MHz, DC-105MHz≥40dBc, 185-500MHz≥40dBc, SMA
View Details →
XPF-L140M30M-T Filter

Filter XPF-L140M30M-T

Passband125~155MHz, DC-110MHz≥25dBc, 170-400MHz≥25dBc, SMD
View Details →
