Filters
Filters 1
Feature
Bandpass 34 low pass 1 Notch 4
F Low MHz
0 - 1105 8 1116 - 1140 7 1150 - 1222 9 1225 - 1254.8 7 1255 - 1270 8
–
Center frequency MHz
750 - 1112.5 6 1200 - 1225 12 1232.5 - 1250 6 1265 - 1273 10 1280 1
–
F High MHz
1258 - 1268 6 1270 - 1278 11 1278.23 - 1280 8 1281.2 - 1284 4 1285 - 1295 10
–
IL on center frequency dB
0.4 - 0.5 5 1 - 1.5 12 2 - 3 17
–
Maximum loss of side frequency dB
0.7 - 1 7 1.4 - 1.6 4 2 - 3 24 3.5 - 4 4
–
Rejection dB
25 - 35 8 38 - 45 12 50 - 65 16 70 - 89.999 3
–
Connector
SMD 8 SMA 15 Microstrip pad 1 Microstrip needle 12 SSMA 1
Power Handling
0.1 - 0.5 2 1 - 2 20 5 - 10 12 15 - 40 2 50 - 800 3
–
Filter type
LC 24 Cavity&waveguide 12 Dielectric 2 FBAR 1
F High：1258 - 1295 MHz× Clear all
matches 39 models Default Newest
WLMF1265B030AK Filter

Filter WLMF1265B030AK

Passband1265MHz, 1.165GHz≥35dB, 1.365GHz≥35dB, 1.5GHz≥50dB, Microstrip pad, FBAR
In Stock View Details →
ZBF5-L1200-160-2613 Filter

Filter ZBF5-L1200-160-2613

Passband1120~1280MHz, DC-920MHz≥45dB, 1480-2500MHz≥45dB, SMD
In Stock View Details →
ZBF13-D1270-30-3537 Filter

Filter ZBF13-D1270-30-3537

Passband1255~1285MHz, 1130MHz≥65dB, 1410MHz≥65dB, SMD
View Details →
ZLPF13-L0-1280-3930 Filter

Filter ZLPF13-L0-1280-3930

PassbandDC~1280MHz, 2300-3000MHz≥70dBc, SMA
View Details →
ZBSF6-L1250-1250-3664 Filter

Filter ZBSF6-L1250-1250-3664

Stopband F1250MHz, ≥50dB, PassbandDC~1200MHz, 1300-~3000MHz, SMA
View Details →
ZBSF6-C1150-1291-5435 Filter

Filter ZBSF6-C1150-1291-5435

Stopband F1150~1290MHz, ≥40dB, PassbandDC~1120MHz, 1321~3000MHz, L29
View Details →
ZBSF3-C1258-1278-4170 Filter

Filter ZBSF3-C1258-1278-4170

Stopband F1258~1278MHz, ≥25dB, PassbandDC~1246MHz, 1298~1600MHz, SSMA
View Details →
ZBSF15-L1258.3-1278.3-1708 Filter

Filter ZBSF15-L1258.3-1278.3-1708

Stopband F1257.7~1278.3MHz, ≥38dBc, Passband350~1188MHz, 1348~2000MHz, SMD
View Details →
ZBF9-D1268.52-20.46-2913 Filter

Filter ZBF9-D1268.52-20.46-2913

Passband1258.29~1278.75MHz, fo±60.2MHz≥35dBc, SMD
View Details →
ZBF7-C1237-80-873 Filter

Filter ZBF7-C1237-80-873

Passband1197~1277MHz, DC-1037MHz≥30dB, 1437-2000MHz≥30dB, N
View Details →
ZBF6-L1100-340-1348 Filter

Filter ZBF6-L1100-340-1348

Passband930~1270MHz, DC-740MHz≥40dB, 1480-2960MHz≥40dB, SMA
View Details →
ZBF5-L850-700-959 Filter

Filter ZBF5-L850-700-959

Passband230~1270MHz, DC-150MHz≥30dBc, 1500-3000MHz≥30dBc, Pin
View Details →
ZBF5-L750-1040-969 Filter

Filter ZBF5-L750-1040-969

Passband230~1270MHz, DC-150MHz≥30dBc, 1500-3000MHz≥30dBc, Pin
View Details →
ZBF5-L1240-36-2094 Filter

Filter ZBF5-L1240-36-2094

Passband1222~1258MHz, 420-820MHz≥50dB, Pin
View Details →
ZBF5-L1200-168-2370 Filter

Filter ZBF5-L1200-168-2370

Passband1116~1284MHz, DC-0.7GHz≥50dBc, 1.7-3GHz≥50dBc, Pin
View Details →
ZBF5-L1200-125-473 Filter

Filter ZBF5-L1200-125-473

Passband1137.5~1262.5MHz, DC-1000MHz≥40dBc, 1400-2000MHz≥40dBc, Pin
View Details →
ZBF5-L1100-340-1132 Filter

Filter ZBF5-L1100-340-1132

Passband930~1270MHz, DC-740MHz≥40dBc, 1480-3000MHz≥40dBc, SMA
View Details →
ZBF5-C1.25-0.04G-3686 Filter

Filter ZBF5-C1.25-0.04G-3686

Passband1.23~1.27GHz, DC-1.13GHz≥90dB, 1.37-3GHz≥90dB, SMA
View Details →
ZBF4-C1268.5-21-1196 Filter

Filter ZBF4-C1268.5-21-1196

Passband1258~1279MHz, 1198.5MHz≥40dB, 1338.5MHz≥40dB, SMA
View Details →
ZBF4-C1268-20.46-324 Filter

Filter ZBF4-C1268-20.46-324

Passband1257.77~1278.23MHz, DC-1218MHz≥50dB, 1318-2600MHz≥50dB, SMA
View Details →

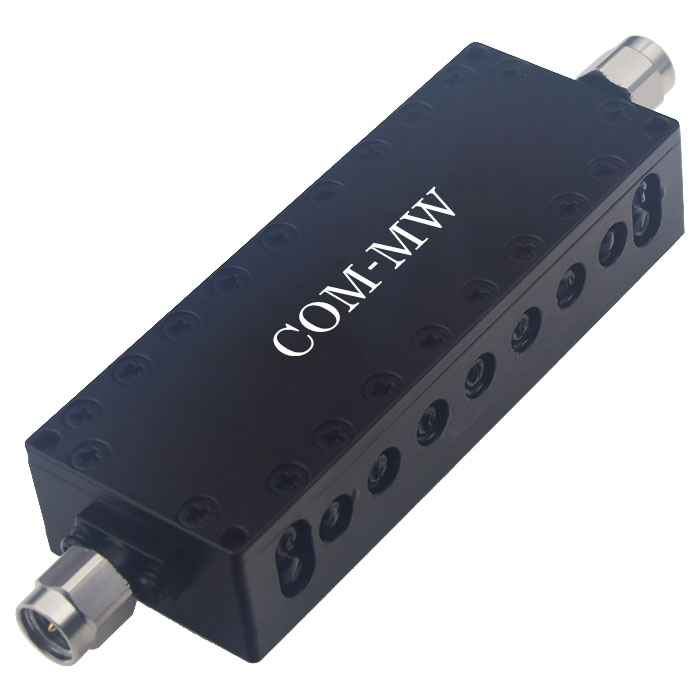

ZBF4-C1238-82-524 Filter

Filter ZBF4-C1238-82-524

Passband1197~1279MHz, DC-1146MHz≥30dBc, 1392-2500MHz≥30dBc, SMA
View Details →
ZBF4-C1.22-0.09G-876 Filter

Filter ZBF4-C1.22-0.09G-876

Passband1176~1268MHz, DC-1080MHz≥50dB, 1400-3000MHz≥50dB, SMA
View Details →
ZBF3-L960-600-1932 Filter

Filter ZBF3-L960-600-1932

Passband660~1260MHz, DC-500MHz≥60dB, 1500-3000MHz≥60dB, SMA
View Details →
ZBF3-L1268.5-30-2398 Filter

Filter ZBF3-L1268.5-30-2398

Passband1253.5~1283.5MHz, 1220MHz≥20dBc, 1320MHz≥20dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
