RF Filter

Total 18 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 15 low pass 1 Notch 2
F Low MHz
960 - 1164 7 1165 - 1170 6 1174 - 1200 2 1210 - 1225 2 1226 1
–
Center frequency MHz
1095 - 1200 11 1215 - 1220 2 1227.5 - 1230 2
–
F High MHz
1226 1 1229 1 1230 13 1235 2 1236 1
–
IL on center frequency dB
0.3 - 0.5 3 1 - 2 5 3 - 3.5 3 4 - 7 4
–
Maximum loss of side frequency dB
0.6 - 1 4 2 - 3.2 6 3.5 - 4.5 4 5 - 8.5 4
–
Rejection dB
11 - 30 2 35 - 40 11 45 - 50 4 60 1
–
Connector
SMD 3 SMA 9 N 1 Microstrip pad 3 Microstrip needle 2
Power Handling
0.1 - 1 7 2 - 5 5 10 - 20 3 40 - 50 2 200 1
–
Filter type
LC 12 Cavity&waveguide 3 stripline 1 Dielectric 1 FBAR 1
F High：1226 - 1236 MHz× Clear all
matches 18 models Default Newest
WLMF1215B030AK Filter

Filter WLMF1215B030AK

Passband1215MHz, 1.115GHz≥40dB, 1.315GHz≥40dB, 1.5GHz≥40dB, Microstrip pad, FBAR
In Stock View Details →
ZBF5-L1200-60-2318 Filter

Filter ZBF5-L1200-60-2318

Passband1170~1230MHz, DC-1110MHz≥40dB, 1290-6000MHz≥40dB, SMA
In Stock View Details →
ZBF5-L1200-60-2342 Filter

Filter ZBF5-L1200-60-2342

Passband1170~1230MHz, DC-1110MHz≥45dB, 1290-3000MHz≥40dB, SMD
In Stock View Details →
ZBF9-D1230-10-3118 Filter

Filter ZBF9-D1230-10-3118

Passband1225~1235MHz, DC-1195MHz≥30dB, 1265-2200MHz≥30dB, SMD
In Stock View Details →
ZLPF13-L960-1230-254 Filter

Filter ZLPF13-L960-1230-254

Passband960~1230MHz, 1.92-4.0GHz≥60dB, 4.0-5.0GHz≥50dB, N
View Details →
ZBSF6-C960-1224-4233 Filter

Filter ZBSF6-C960-1224-4233

Stopband F960~1230MHz, ≥45dB, PassbandDC~850MHz, 1350~3700MHz, SMA
View Details →
ZBSF5-L960-1230-3222 Filter

Filter ZBSF5-L960-1230-3222

Stopband F960~1230MHz, ≥45dB, PassbandDC~780MHz, 1410~5000MHz, SMA
View Details →

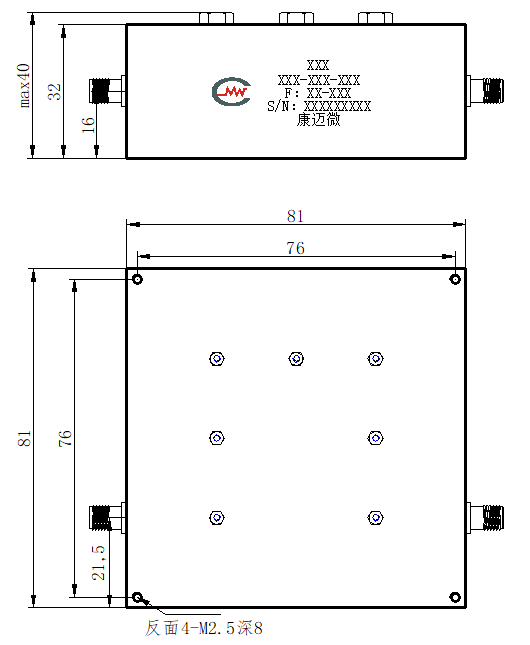

ZBF4-C1227.5-3-1198 Filter

Filter ZBF4-C1227.5-3-1198

Passband1226~1229MHz, 1167.5MHz≥40dB, 1287.5MHz≥40dB, SMA
View Details →
ZBF4-C1095-270-039 Filter

Filter ZBF4-C1095-270-039

Passband960~1230MHz, 800-955MHz≥35dB, 1260MHz≥25dB,
View Details →
ZBF3-L1200-67.2-844 Filter

Filter ZBF3-L1200-67.2-844

Passband1170~1230MHz, DC-1010MHz≥40dB, 1430-3500MHz≥40dB, SMA
View Details →
ZBF3-C1220-20-3359 Filter

Filter ZBF3-C1220-20-3359

Passband1210~1230MHz, DC-1060MHz≥40dB, 1280-4000MHz≥40dB, SMA
View Details →
ZBF15-L1200-60-417 Filter

Filter ZBF15-L1200-60-417

Passband1170~1230MHz, fc±245MHz≥40dB, dB, SMA
View Details →
ZBF13-L1200-72-2068 Filter

Filter ZBF13-L1200-72-2068

Passband1164~1236MHz, DC-1.05GHz≥40dBc, 1.38-3GHz≥40dBc, SMA
View Details →
ZBF13-L1200-70-3617 Filter

Filter ZBF13-L1200-70-3617

Passband1165~1235MHz, DC-1.1GHz≥40dB, 1.3-4GHz≥40dB, SMD
View Details →
ZBF13-L1095-270-157 Filter

Filter ZBF13-L1095-270-157

Passband960~1230MHz, DC-0.8GHz≥40dB, 1.35-3.0GHz≥40dB, Microstrip pad
View Details →
ZBF13-L1095-270-156 Filter

Filter ZBF13-L1095-270-156

Passband960~1230MHz, DC-0.8GHz≥11dB, 1.37-3.0GHz≥11dB, Microstrip pad
View Details →
GSB1200U60-3571 Filter

Filter GSB1200U60-3571

Passband1170~1230MHz, DC-990MHz≥35dB, 1290MHz≥35dB, Pin
View Details →

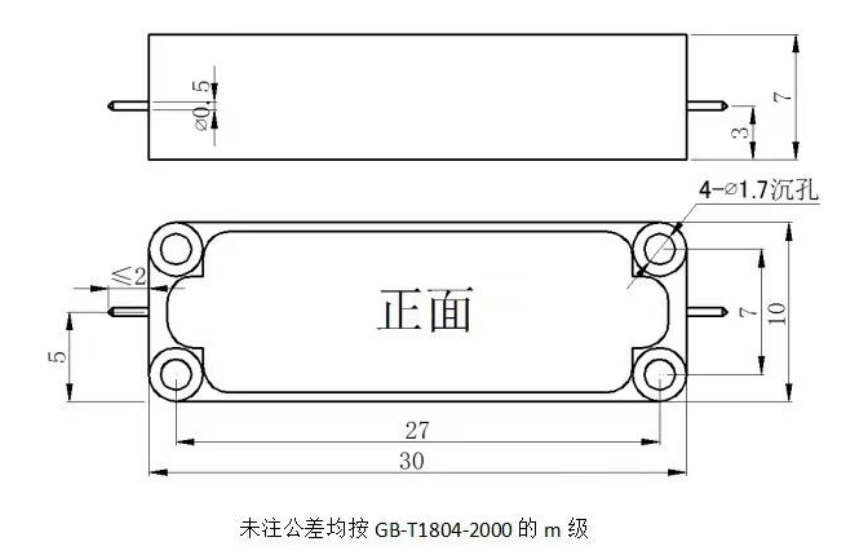

GSB1200U52-3410 Filter

Filter GSB1200U52-3410

Passband1174~1226MHz, DC-1115MHz≥45dB, 1290MHz≥45dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
