Filters
Filters 1
Feature
Bandpass 72 Notch 1
F Low MHz
500 - 687.5 11 700 - 810 20 812 - 890 11 900 - 930 23 935 - 963 8
–
Center frequency MHz
921.6 - 930 8 932 - 937.5 14 940 - 950 21 960 - 963.5 22 970 - 977.5 8
–
F High MHz
925 - 965 17 970 - 1040 17 1050 - 1135 13 1137.5 - 1200 11 1210 - 1375 15
–
IL on center frequency dB
0.4 - 0.5 8 1 - 1.5 32 2 - 3 27 4 - 5 5
–
Maximum loss of side frequency dB
0.8 - 1.3 9 1.5 - 2.5 34 3 - 3.7 22 4 - 5 5 5.5 - 6 3
–
Rejection dB
35 - 40 19 45 - 50 25 55 - 60 20 65 - 70 6 90 - 105 3
–
Connector
Other 3 SMD 14 SMA 23 N 1 Microstrip needle 32
Power Handling
1 - 2 57 5 - 10 8 50 - 60 3 100 - 150 5
–
Filter type
LC 62 Cavity&waveguide 11
Center frequency：921.6 - 977.5 MHz× Clear all
matches 73 models Default Newest
ZBF15-L962-524-524 Filter

Filter ZBF15-L962-524-524

Passband960~1224MHz, DC-500MHz≥47dBc, 1400-2448MHz≥47dBc, Pin
In Stock View Details →
ZBF13-L960-500-1526 Filter

Filter ZBF13-L960-500-1526

Passband710~1210MHz, DC-600MHz≥40dB, 1.41-3GHz≥40dB, SMA
In Stock View Details →
ZBSF6-C925-960-1392 Filter

Filter ZBSF6-C925-960-1392

Stopband F925~960MHz, ≥50dBc, PassbandDC~915MHz, 970~3000MHz, SMA
View Details →

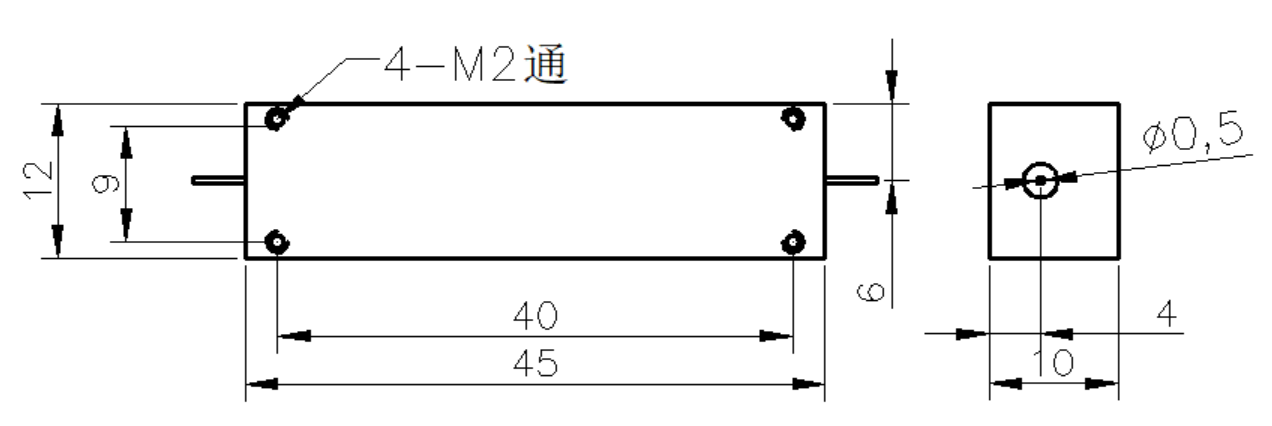

ZBF6-L962.5-175-2311 Filter

Filter ZBF6-L962.5-175-2311

Passband875~1050MHz, DC-525MHz≥70dB, 1315-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →
ZBF6-C960-20-2758 Filter

Filter ZBF6-C960-20-2758

Passband950~970MHz, DC-940MHz≥55dBc, 980-2500MHz≥55dBc, L29,
View Details →
ZBF6-C960-10-2340 Filter

Filter ZBF6-C960-10-2340

Passband955~965MHz, DC-945MHz≥55dB, 975-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

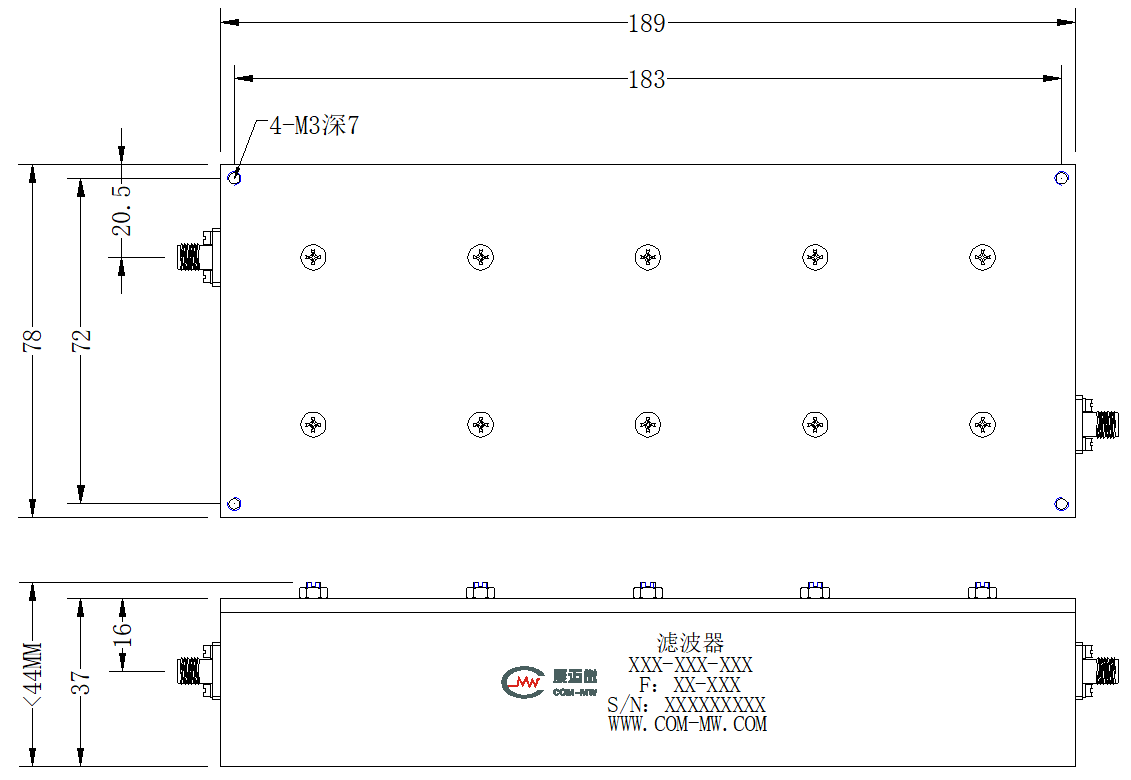

ZBF6-C945-30-5154 Filter

Filter ZBF6-C945-30-5154

Passband930~960MHz, DC-915MHz≥70dB, 975-2500MHz≥70dB, SMA
View Details →
ZBF6-C942.5-35-1653 Filter

Filter ZBF6-C942.5-35-1653

Passband925~960MHz, DC-900MHz≥90dB, 985-1500MHz≥90dB, N
View Details →
ZBF6-C935-10-2352 Filter

Filter ZBF6-C935-10-2352

Passband930~940MHz, DC-920MHz≥55dB, 950-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

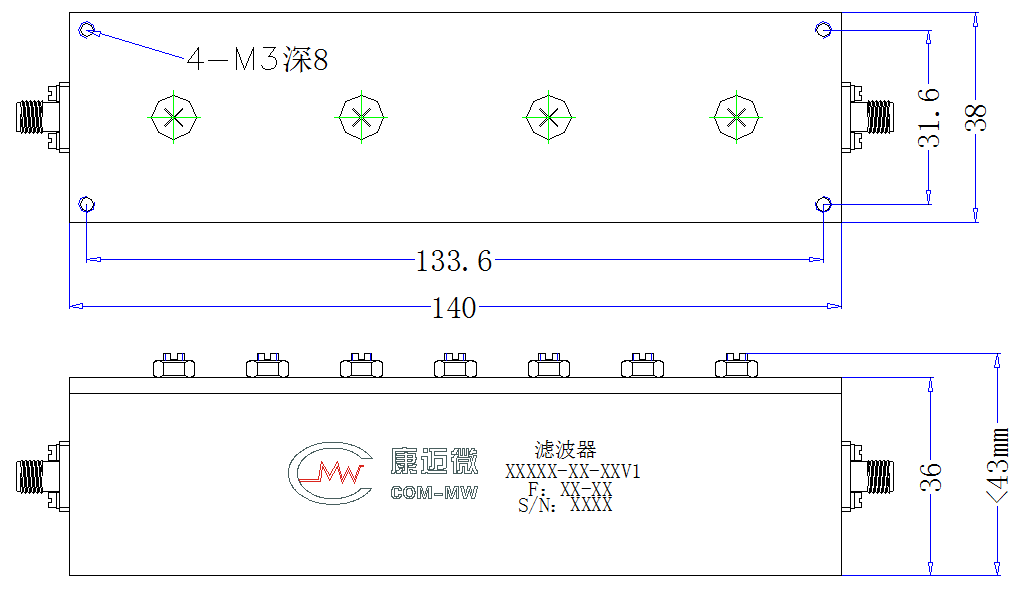

ZBF6-C922.5-5-5556 Filter

Filter ZBF6-C922.5-5-5556

Passband920~925MHz, 1840~2775MHz≥90dB, dB, SMA
View Details →
ZBF5-L975-650-1817 Filter

Filter ZBF5-L975-650-1817

Passband650~1300MHz, DC-500MHz≥45dB, 1400-3000MHz≥45dB, SMA
View Details →
ZBF5-L975-24-1123 Filter

Filter ZBF5-L975-24-1123

Passband963~987MHz, DC-800MHz≥45dBc, 1050-1200MHz≥45dBc, Pin
View Details →
ZBF5-L962-564-3262 Filter

Filter ZBF5-L962-564-3262

Passband680~1244MHz, DC-450MHz≥40dBc, 1550MHz≥40dBc, SMA-K
View Details →
ZBF5-L960-500-2117 Filter

Filter ZBF5-L960-500-2117

Passband710~1210MHz, DC-450MHz≥50dBc, 1460-2000MHz≥50dBc, SMA
View Details →
ZBF5-L960-500-202 Filter

Filter ZBF5-L960-500-202

Passband710~1210MHz, DC-500MHz≥40dBc, 1700-3040MHz≥50dBc, Pin
View Details →
ZBF5-L960-0-877 Filter

Filter ZBF5-L960-0-877

Passband960MHz, 1920-3800MHz≥60dBc, SMA
View Details →
ZBF5-L942.5-45-1353 Filter

Filter ZBF5-L942.5-45-1353

Passband920~965MHz, DC-770MHz≥70dBc, 1115-1500MHz≥70dBc, SMA
View Details →
ZBF5-L940-60-1721 Filter

Filter ZBF5-L940-60-1721

Passband910~970MHz, DC-700MHz≥40dB, 1200-3000MHz≥40dB, SMA
View Details →
ZBF5-L937.5-500-001 Filter

Filter ZBF5-L937.5-500-001

Passband687.5~1187.5MHz, DC-563MHz≥60dB, 1312-250060dB, SMA
View Details →
ZBF5-C950-80-872 Filter

Filter ZBF5-C950-80-872

Center Frequency950MHz, -0.5dB BW80MHz, DC-850MHz≥50dBc, 1050-4000MHz≥50dBc, SMA-K
View Details →
ZBF4-C932-4-1164 Filter

Filter ZBF4-C932-4-1164

Passband930~934MHz, 892MHz≥40dB, 972MHz≥40dB, SMA
View Details →
ZBF3-L975-150-568 Filter

Filter ZBF3-L975-150-568

Passband900~1050MHz, DC-525MHz≥50dB, 1800-2500MHz≥60dB, Pin
View Details →
ZBF3-L975-114-3731 Filter

Filter ZBF3-L975-114-3731

Passband918~1032MHz, DC-855MHz≥40dBc, 1095-2500MHz≥40dBc, Pin
View Details →
ZBF3-L963.5-273-726 Filter

Filter ZBF3-L963.5-273-726

Passband827~1100MHz, DC-737MHz≥40dB, 1220-2180MHz≥40dB, Pin
View Details →
