Filters
Filters 1
Feature
Bandpass 22
F Low MHz
660 - 700 3 710 - 785 10 810 - 875 4 935 - 955 3 960 2
–
Center frequency MHz
960 17 962 3 962.5 1 963.5 1
–
F High MHz
960 - 970 3 985 - 1100 3 1110 - 1160 5 1210 - 1244 10 1260 1
–
IL on center frequency dB
0.5 3 1 12 2 7
–
Maximum loss of side frequency dB
1 3 1.3 1 2 9 2.5 3 3 6
–
Rejection dB
35 - 40 6 45 - 50 7 55 - 60 8 70 1
–
Connector
Other 2 SMD 3 SMA 9 Microstrip needle 8
Power Handling
1 - 2 16 5 - 10 4 100 - 150 2
–
Filter type
LC 19 Cavity&waveguide 3
Center frequency：960 - 963.5 MHz× Clear all
matches 22 models Default Newest
ZBF15-L962-524-524 Filter

Filter ZBF15-L962-524-524

Passband960~1224MHz, DC-500MHz≥47dBc, 1400-2448MHz≥47dBc, Pin
In Stock View Details →
ZBF13-L960-500-1526 Filter

Filter ZBF13-L960-500-1526

Passband710~1210MHz, DC-600MHz≥40dB, 1.41-3GHz≥40dB, SMA
In Stock View Details →
ZBF6-L962.5-175-2311 Filter

Filter ZBF6-L962.5-175-2311

Passband875~1050MHz, DC-525MHz≥70dB, 1315-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →
ZBF6-C960-20-2758 Filter

Filter ZBF6-C960-20-2758

Passband950~970MHz, DC-940MHz≥55dBc, 980-2500MHz≥55dBc, L29,
View Details →
ZBF6-C960-10-2340 Filter

Filter ZBF6-C960-10-2340

Passband955~965MHz, DC-945MHz≥55dB, 975-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →
ZBF5-L962-564-3262 Filter

Filter ZBF5-L962-564-3262

Passband680~1244MHz, DC-450MHz≥40dBc, 1550MHz≥40dBc, SMA-K
View Details →
ZBF5-L960-500-2117 Filter

Filter ZBF5-L960-500-2117

Passband710~1210MHz, DC-450MHz≥50dBc, 1460-2000MHz≥50dBc, SMA
View Details →
ZBF5-L960-500-202 Filter

Filter ZBF5-L960-500-202

Passband710~1210MHz, DC-500MHz≥40dBc, 1700-3040MHz≥50dBc, Pin
View Details →
ZBF5-L960-0-877 Filter

Filter ZBF5-L960-0-877

Passband960MHz, 1920-3800MHz≥60dBc, SMA
View Details →
ZBF3-L963.5-273-726 Filter

Filter ZBF3-L963.5-273-726

Passband827~1100MHz, DC-737MHz≥40dB, 1220-2180MHz≥40dB, Pin
View Details →
ZBF3-L960-600-1932 Filter

Filter ZBF3-L960-600-1932

Passband660~1260MHz, DC-500MHz≥60dB, 1500-3000MHz≥60dB, SMA
View Details →
ZBF3-L960-500-1354 Filter

Filter ZBF3-L960-500-1354

Passband710~1210MHz, DC-610MHz≥50dBc, 1310-3000MHz≥40dBc, SMA
View Details →
ZBF3-L960-350-3128 Filter

Filter ZBF3-L960-350-3128

Passband785~1135MHz, DC-650MHz≥40dB, 1250-3000MHz≥40dB, SMA
View Details →

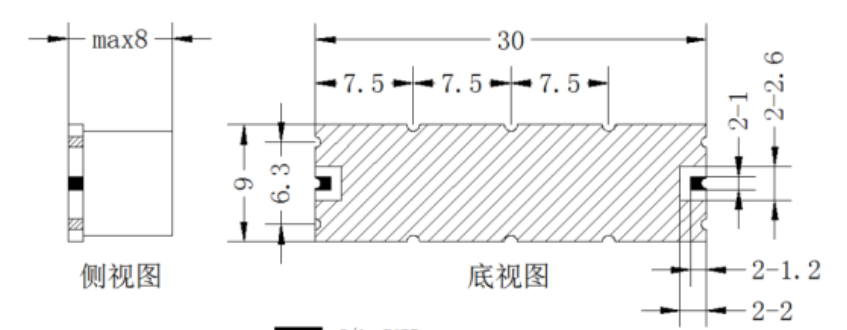

ZBF2-L960-500-2566 Filter

Filter ZBF2-L960-500-2566

Passband710~1210MHz, DC-400MHz≥60dB, 1.4-3GHz≥60dB, SMD
View Details →
ZBF15-L960-500-589 Filter

Filter ZBF15-L960-500-589

Passband710~1210MHz, 500MHz≥50dB, 1500MHz≥dB, SMA
View Details →
ZBF13-L962-524-1660 Filter

Filter ZBF13-L962-524-1660

Passband700~1224MHz, DC-600MHz≥40dBc, 1.4-3GHz≥40dBc, SMD
View Details →
ZBF13-L960-500-389 Filter

Filter ZBF13-L960-500-389

Passband710~1210MHz, DC-520MHz≥50dBc, 520-640MHz≥30dBc, Pin
View Details →
ZBF13-L960-400-2863 Filter

Filter ZBF13-L960-400-2863

Passband760~1160MHz, DC-640MHz≥35dBc, 710MHz≥15dBc, Pin
View Details →
ZBF13-L960-400-2843 Filter

Filter ZBF13-L960-400-2843

Passband760~1160MHz, DC-500MHz≥50dBc, 1.52-1.7GHz≥25dBc, Pin
View Details →
ZBF13-L960-300-180 Filter

Filter ZBF13-L960-300-180

Passband810~1110MHz, DC-570MHz≥50dB, 570-690MHz≥30dB, Pin
View Details →
ZBF13-L960-300-1785 Filter

Filter ZBF13-L960-300-1785

Passband810~1110MHz, DC-0.65GHz≥60dBc, 0.65-0.7GHz≥30dBc, SMD
View Details →

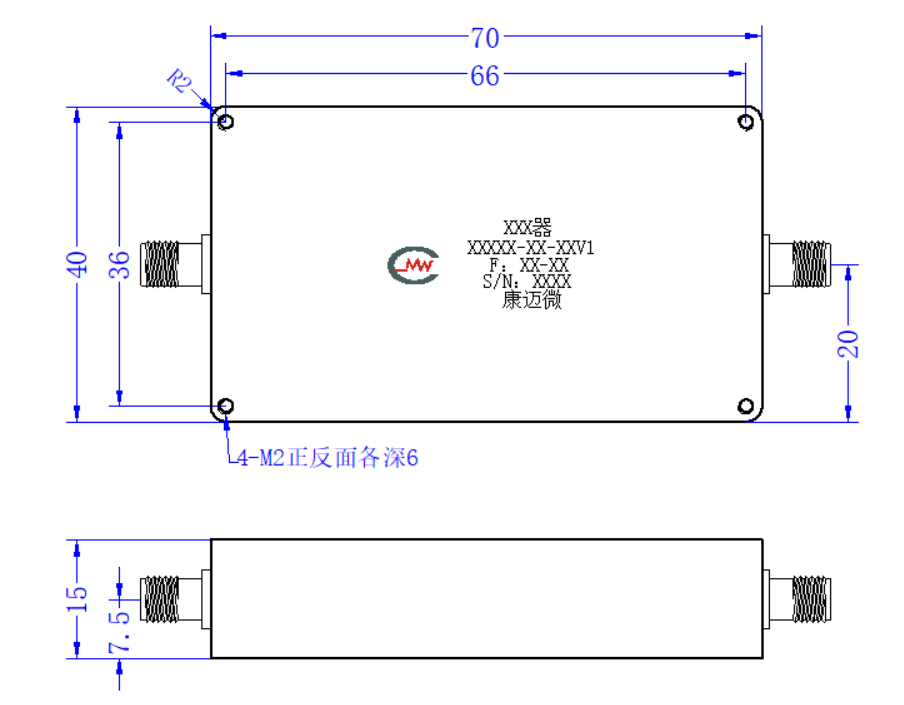

ZBF13-C960-50-1633 Filter

Filter ZBF13-C960-50-1633

Passband935~985MHz, DC-0.86GHz≥60dBc, 0.86-0.91GHz≥25dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
