Filters
Filters 1
Feature
Bandpass 21
F Low MHz
525 - 800 4 850 - 910 8 920 - 930 7 939.77 - 940 2
–
Center frequency MHz
940 3 942.5 3 945 3 950 12
–
F High MHz
960 - 960.23 7 965 - 970 3 990 - 1050 7 1100 - 1200 3 1375 1
–
IL on center frequency dB
1 - 1.5 9 2 - 3 9 4 - 5 3
–
Maximum loss of side frequency dB
1.5 - 2 8 2.5 - 3 6 3.5 - 3.7 2 4 - 4.5 2 5 - 6 3
–
Rejection dB
35 - 40 4 45 - 50 8 60 - 70 8 90 1
–
Connector
SMD 3 SMA 8 N 1 Microstrip needle 9
Power Handling
1 9 2 7 5 3 100 2
–
Filter type
LC 18 Cavity&waveguide 3
Center frequency：940 - 950 MHz× Clear all
matches 21 models Default Newest
ZBF6-C945-30-5154 Filter

Filter ZBF6-C945-30-5154

Passband930~960MHz, DC-915MHz≥70dB, 975-2500MHz≥70dB, SMA
View Details →
ZBF6-C942.5-35-1653 Filter

Filter ZBF6-C942.5-35-1653

Passband925~960MHz, DC-900MHz≥90dB, 985-1500MHz≥90dB, N
View Details →
ZBF5-L942.5-45-1353 Filter

Filter ZBF5-L942.5-45-1353

Passband920~965MHz, DC-770MHz≥70dBc, 1115-1500MHz≥70dBc, SMA
View Details →
ZBF5-L940-60-1721 Filter

Filter ZBF5-L940-60-1721

Passband910~970MHz, DC-700MHz≥40dB, 1200-3000MHz≥40dB, SMA
View Details →
ZBF5-C950-80-872 Filter

Filter ZBF5-C950-80-872

Center Frequency950MHz, -0.5dB BW80MHz, DC-850MHz≥50dBc, 1050-4000MHz≥50dBc, SMA-K
View Details →
ZBF3-L950-80-1919 Filter

Filter ZBF3-L950-80-1919

Passband910~990MHz, DC-800MHz≥45dB, 1100-3000MHz≥45dB, SMD
View Details →
ZBF3-L950-500-3231 Filter

Filter ZBF3-L950-500-3231

Passband700~1200MHz, DC-450MHz≥40dB, 1450-3000MHz≥40dB, SMA-JK
View Details →
ZBF3-L950-300-319 Filter

Filter ZBF3-L950-300-319

Passband800~1100MHz, DC-550MHz≥40dB, 1200-2500MHz≥45dB, SMD
View Details →

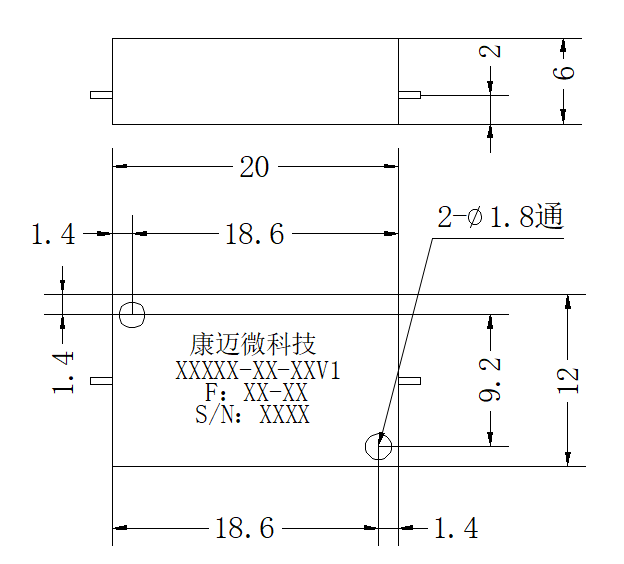

ZBF3-L940-60-595 Filter

Filter ZBF3-L940-60-595

Passband890~990MHz, DC-820MHz≥32dB, 1080MHz≥35dB, Pin
View Details →
ZBF3-L940-100-1512 Filter

Filter ZBF3-L940-100-1512

Passband890~990MHz, DC-820MHz≥32dBc, 1080-4500MHz≥35dBc, Pin
View Details →

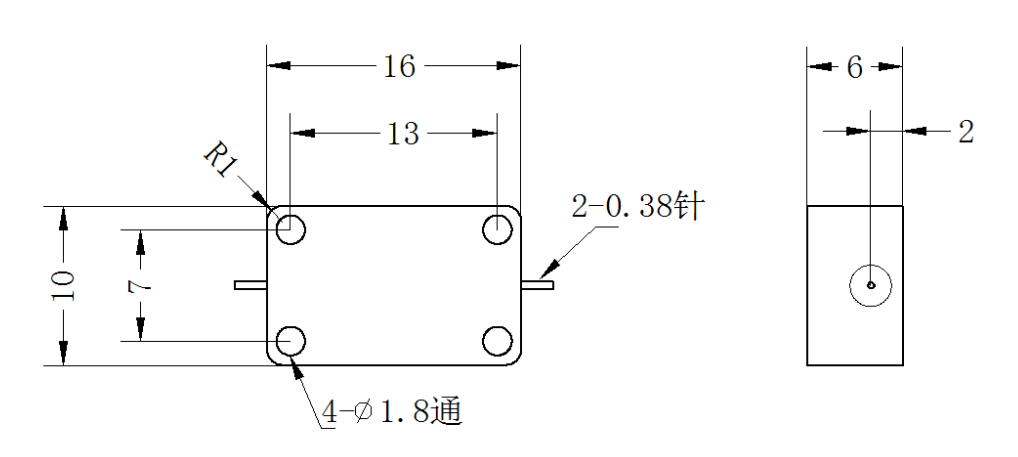

ZBF2-L945-30-2059 Filter

Filter ZBF2-L945-30-2059

Passband930~960MHz, DC-530MHz≥50dBc, 840-880MHz≥20dBc, Pin
View Details →
ZBF16-C942.5-35-038 Filter

Filter ZBF16-C942.5-35-038

Passband925~960MHz, DC-915MHz≥50dBc, 970-1000MHz≥50dBc, SMA
View Details →
ZBF15-L950-850-2771 Filter

Filter ZBF15-L950-850-2771

Passband525~1375MHz, DC-440MHz≥50dBc, 1.65-4GHz≥50dBc, Pin
View Details →
ZBF15-L950-80-2836 Filter

Filter ZBF15-L950-80-2836

Passband910~990MHz, DC-720MHz≥55dBc, 810MHz≥40dBc, Pin
View Details →
ZBF15-L950-200-1352 Filter

Filter ZBF15-L950-200-1352

Passband850~1050MHz, DC-730MHz≥60dBc, 770MHz≥38dB, SMD
View Details →
ZBF13-L950-80-1825 Filter

Filter ZBF13-L950-80-1825

Passband910~990MHz, DC-0.79GHz≥60dBc, 810MHz≥65, Pin
View Details →

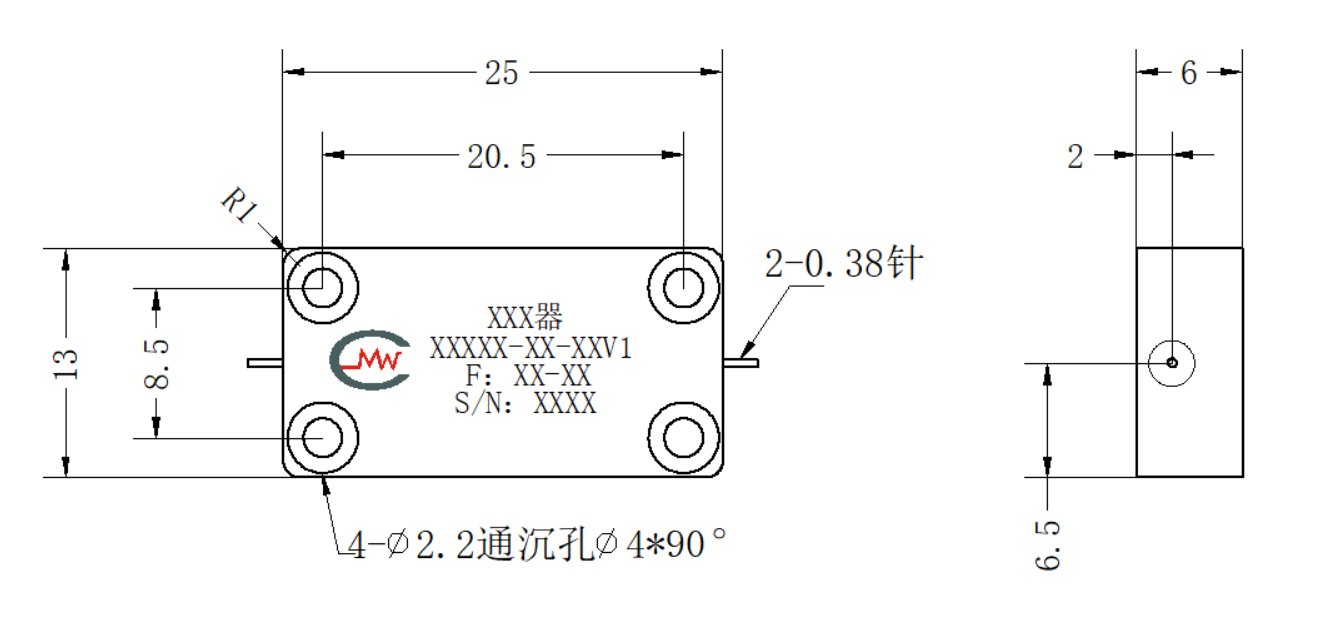

ZBF13-L950-500-1624 Filter

Filter ZBF13-L950-500-1624

Passband700~1200MHz, DC-0.6GHz≥50dBc, 1.4-5GHz≥50dBc, Pin
View Details →
ZBF13-L950-40-2241 Filter

Filter ZBF13-L950-40-2241

Passband930~970MHz, DC-820MHz≥60dBc, 880MHz≥35dBc, SMA
View Details →
ZBF13-L950-20.46-973 Filter

Filter ZBF13-L950-20.46-973

Passband939.77~960.23MHz, DC-880MHz≥60dBc, 880-900MHz≥30dBc, Pin
View Details →
ZBF13-L950-20.46-1919 Filter

Filter ZBF13-L950-20.46-1919

Passband939.77~960.23MHz, DC-880MHz≥60dBc, 880-900MHz≥30dBc, SMA
View Details →
ZBF13-L945-30-030 Filter

Filter ZBF13-L945-30-030

Passband930~960MHz, DC-530MHz≥60dB, 840-880MHz≥20dB, Pin
View Details →
