Filters
Filters 1
Feature
Bandpass 53 Notch 1
F Low MHz
200 - 625 10 650 - 719 12 725 - 770 14 775 - 790 9 791 - 814 9
–
Center frequency MHz
780 - 783 8 787 - 790 10 795 - 800 23 805 - 812.5 9 813 - 816 4
–
F High MHz
787 - 806 10 815 - 842 15 844 - 898 10 900 - 975 10 1000 - 1400 9
–
IL on center frequency dB
0.4 - 0.5 11 1 - 1.5 29 2 - 3 12 5 1
–
Maximum loss of side frequency dB
0.5 - 1 11 1.3 - 2 26 2.2 - 3 11 3.4 - 4 4 5 - 8 2
–
Rejection dB
20 - 40 15 45 - 50 18 55 - 65 15 70 - 100 6
–
Connector
Other 4 SMD 4 SMA 16 N 2 Microstrip needle 28
Power Handling
1 - 2 30 5 - 10 10 15 - 20 5 50 - 100 7 150 2
–
Filter type
LC 38 Cavity&waveguide 16
Center frequency：780 - 816 MHz× Clear all
matches 54 models Default Newest
ZBF15-L805-210-525 Filter

Filter ZBF15-L805-210-525

Passband700~910MHz, DC-500MHz≥47dBc, 1400-2448MHz≥47dBc, Pin
In Stock View Details →
ZBF14-L789-106-756 Filter

Filter ZBF14-L789-106-756

Passband736~842MHz, DC-600MHz≥40dB, 1000-2400MHz≥40dB, SMA
In Stock View Details →
ZBF14-L789-106-755 Filter

Filter ZBF14-L789-106-755

Passband736~842MHz, DC-600MHz≥40dB, 980-3000MHz≥40dB, SMD
In Stock View Details →
ZBF-L810-420-3753 Filter

Filter ZBF-L810-420-3753

Passband600~1020MHz, DC-400MHz≥40dBc, 1300-3000MHz≥40dBc, Pin
In Stock View Details →
ZBF6-L812.5-125-2310 Filter

Filter ZBF6-L812.5-125-2310

Passband750~875MHz, DC-440MHz≥70dB, 1050-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →
ZBF6-L805-250-1347 Filter

Filter ZBF6-L805-250-1347

Passband680~930MHz, DC-550MHz≥40dB, 1100-2200MHz≥40dB, SMA
View Details →

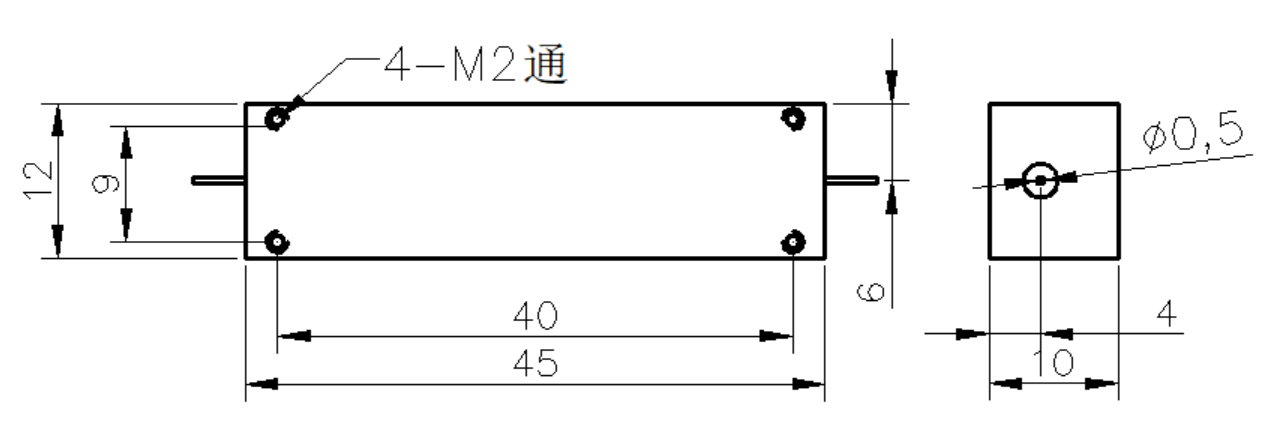

ZBF6-L787.5-175-2325 Filter

Filter ZBF6-L787.5-175-2325

Passband700~875MHz, DC-440MHz≥70dB, 1050-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →

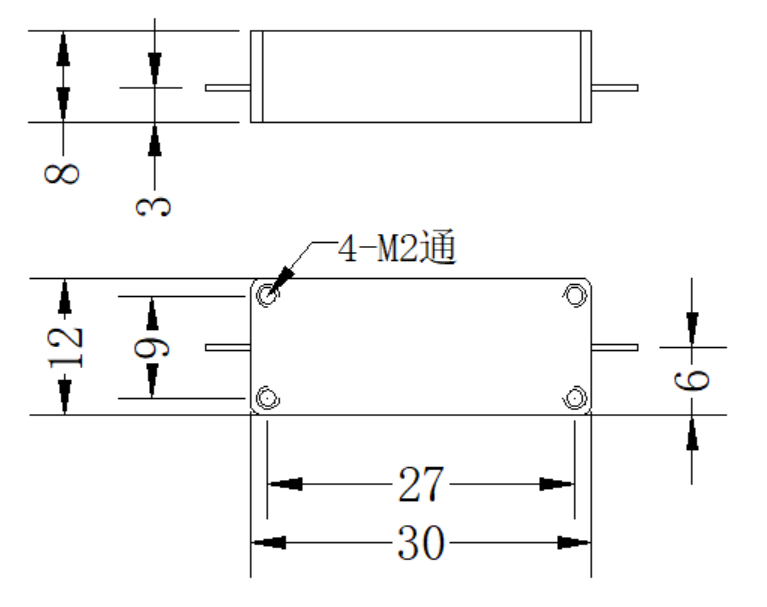

ZBF6-L780-50-3541 Filter

Filter ZBF6-L780-50-3541

Passband755~805MHz, 650MHz≥50dB, 950MHz≥50dB,
View Details →
ZBF6-H816-20-4476 Filter

Filter ZBF6-H816-20-4476

Passband806~826MHz, 746MHz≥dB, 886MHz≥dB, MCX
View Details →

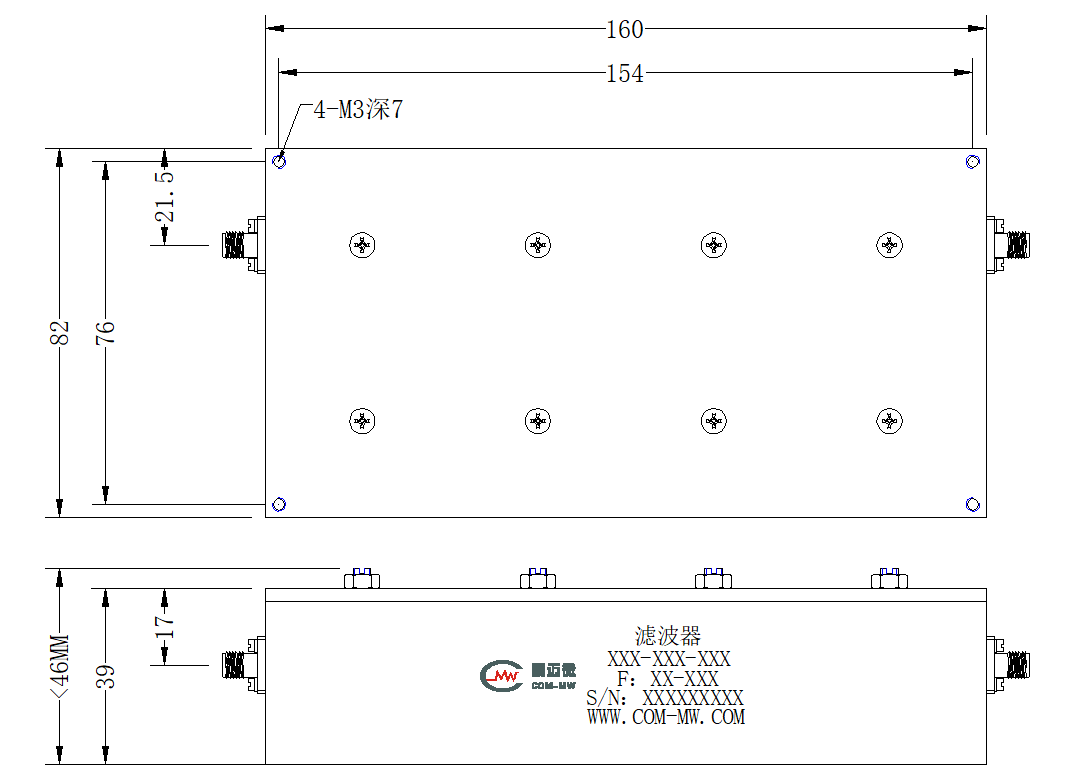

ZBF6-C813.5-15-5150 Filter

Filter ZBF6-C813.5-15-5150

Passband806~821MHz, DC-794MHz≥70dB, 833-2000MHz≥70dB, SMA
View Details →

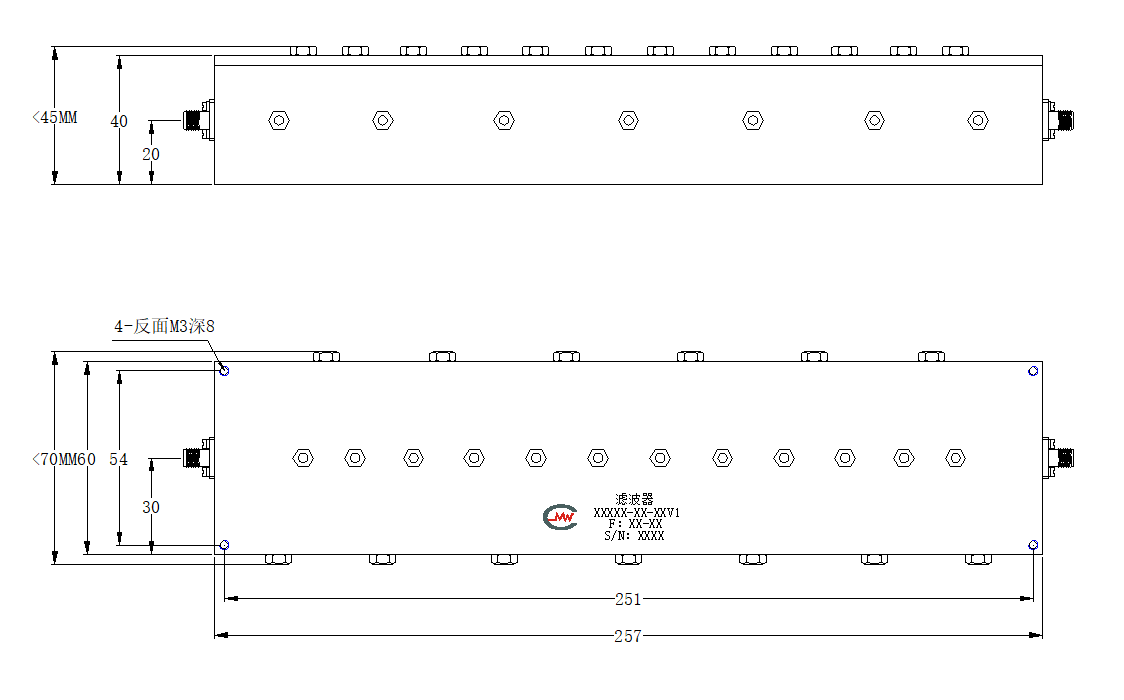

ZBF6-C800-300-3252 Band pass filter

Band pass filter ZBF6-C800-300-3252

Passband650~950MHz, DC-500MHz≥80dB, 1100-1600MHz≥80dB, SMA
View Details →
ZBF6-C800-100-2881 Filter

Filter ZBF6-C800-100-2881

Passband800, 600MHz≥40dB, 1000MHz≥40dB, SMA
View Details →
ZBF6-C796-20-5436 Filter

Filter ZBF6-C796-20-5436

Passband786~806MHz, DC-776MHz≥55dB, 816-2000MHz≥55dB, L29
View Details →
ZBF6-C795-10-2336 Filter

Filter ZBF6-C795-10-2336

Passband790~800MHz, DC-780MHz≥55dB, 810-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

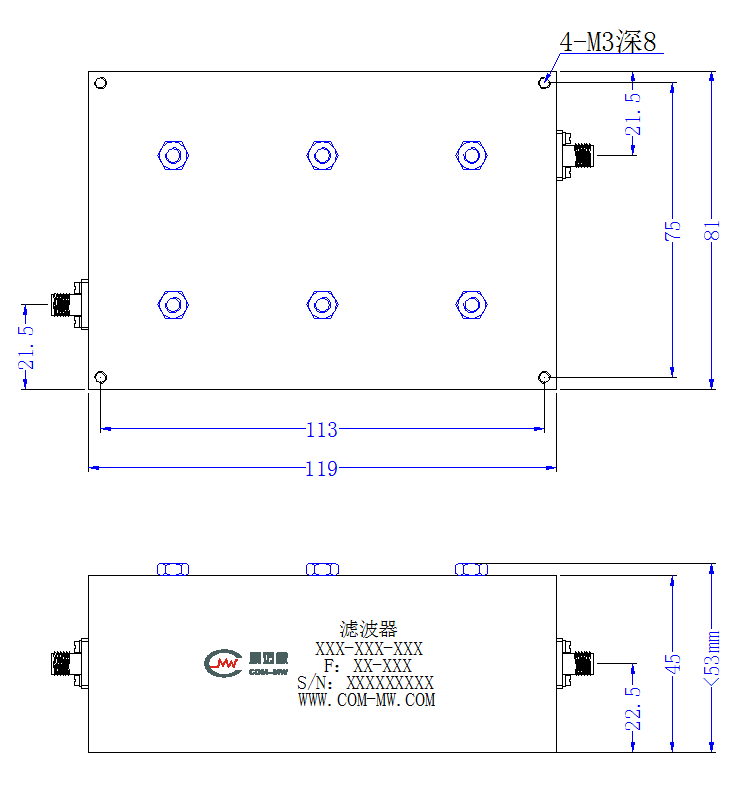

ZBF6-C782-10-3280 Filter

Filter ZBF6-C782-10-3280

Passband777~787MHz, DC~757MHz≥50dB, 807~2000MHz≥50dB, SMA
View Details →

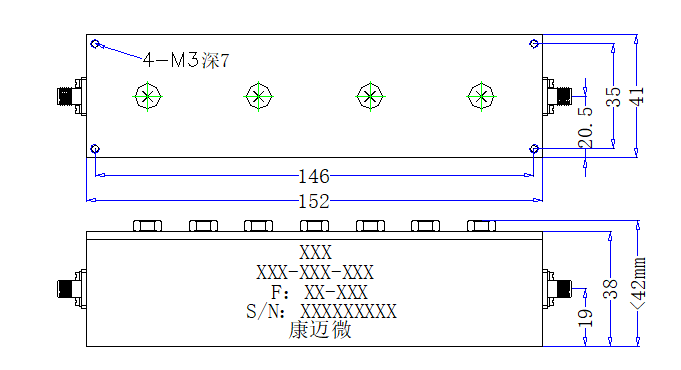

ZBF6-C781.5-11-4758 Filter

Filter ZBF6-C781.5-11-4758

Passband776~787MHz, DC-726MHz≥50dB, 837-1500MHz≥50dB, SMA
View Details →
ZBF5-L800-400-721 Filter

Filter ZBF5-L800-400-721

Passband600~1000MHz, DC-500MHz≥40dBc, 1500-3000MHz≥55dBc, Pin
View Details →
ZBF5-L800-0-1138 Filter

Filter ZBF5-L800-0-1138

Passband800MHz, DC-600MHz≥50dBc, 1100-2000MHz≥50dBc, Pin
View Details →
ZBF5-L789-140-217 Filter

Filter ZBF5-L789-140-217

Passband719~859MHz, DC-549MHz≥30dBc, 1029-1500MHz≥30dBc, Pin
View Details →
ZBF5-C800-400-3411 Filter

Filter ZBF5-C800-400-3411

Passband600~1000MHz, 1600-2800MHz≥50dBc, SMA
View Details →
ZBF5-C787.5-15-2036 Filter

Filter ZBF5-C787.5-15-2036

Passband780~795MHz, DC-771MHz≥60dB, 804-1000MHz≥60dB, SMA
View Details →

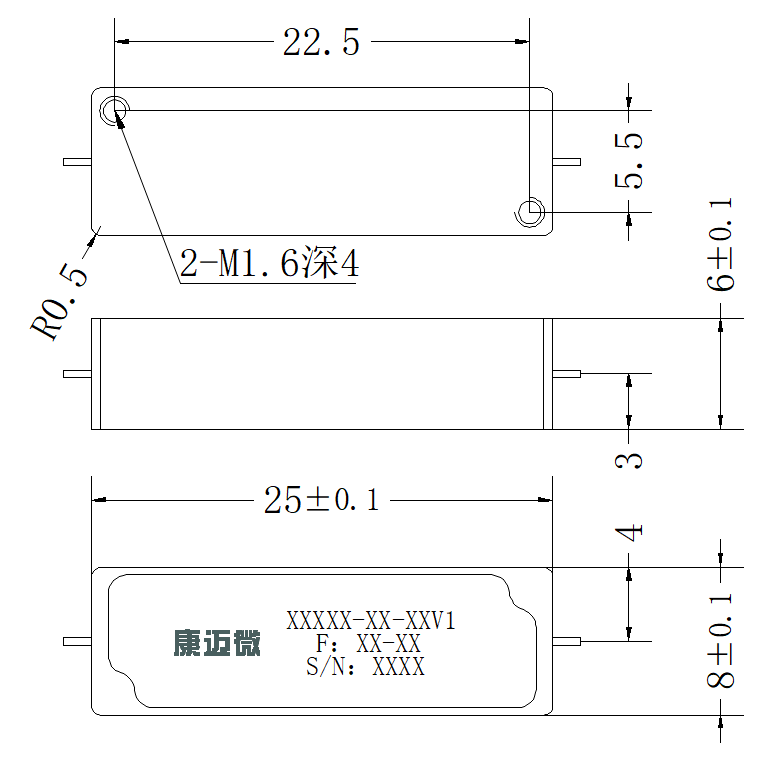

ZBF3-L800-550-4010 Filter

Filter ZBF3-L800-550-4010

Passband525~1075MHz, DC-440MHz≥45dB, 1190-1400MHz≥45dB, Pin
View Details →
ZBF3-L800-40-2080 Filter

Filter ZBF3-L800-40-2080

Passband780~820MHz, DC-580MHz≥40dBc, 1020-3000MHz≥40dBc, SMA
View Details →
ZBF3-L800-350-4009 Filter

Filter ZBF3-L800-350-4009

Passband625~975MHz, DC-535MHz≥45dB, 1080-2000MHz≥45dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
