Filters
Filters 1
Feature
Bandpass 20
F Low MHz
30 - 55 7 61.6 - 70 7 75.5 - 76.5 3 77.5 - 79.47 3
–
Center frequency MHz
77.6 1 78 1 80 17 81.22 1
–
F High MHz
80.5 - 82.5 3 82.97 - 84 3 90 - 93.6 7 105 - 130 7
–
IL on center frequency dB
1 - 2 16 3 - 4 2 6 - 10 2
–
Maximum loss of side frequency dB
1.2 - 1.8 2 2 - 3 14 4 - 5.5 2 8 - 12 2
–
Rejection dB
30 - 40 8 45 - 50 9 55 - 60 2 95 1
–
Connector
SMD 7 SMA 7 N 1 Microstrip needle 5
Power Handling
1 12 2 6 10 1 50 1
–
Filter type
LC 19 Cavity&waveguide 1
Center frequency：77.6 - 81.22 MHz× Clear all
matches 20 models Default Newest
ZBF15-L80-20-1099 Filter

Filter ZBF15-L80-20-1099

Passband70~90MHz, DC-60MHz≥40dB, 100-1000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L80-20-1100 Filter

Filter ZBF15-L80-20-1100

Passband70~90MHz, DC-60MHz≥40dB, 100-1000MHz≥40dB, SMA
In Stock View Details →
ZBF3-L80-22-4317 Filter

Filter ZBF3-L80-22-4317

Passband69~91MHz, DC-45MHz≥50dB, 140-180MHz≥50dB, SMD
In Stock View Details →
ZBF6-L80-20-1351 Filter

Filter ZBF6-L80-20-1351

Passband70~90MHz, DC-50MHz≥40dB, 110-300MHz≥40dB, SMA
View Details →
ZBF5-L80-50-1846 Filter

Filter ZBF5-L80-50-1846

Passband55~105MHz, DC-40MHz≥50dB, 123-200MHz≥50dB, SMA-K
View Details →
ZBF5-L80-50-1393 Filter

Filter ZBF5-L80-50-1393

Passband55~105MHz, DC-20MHz≥30dBc, 120-200MHz≥20dBc, Pin
View Details →
ZBF5-L80-50-1387 Filter

Filter ZBF5-L80-50-1387

Passband55~105MHz, DC-20MHz≥30dBc, 120-200MHz≥20dBc, Pin
View Details →
ZBF5-L80-5-612 Filter

Filter ZBF5-L80-5-612

Passband77.5~82.5MHz, DC-70MHz≥40dBc, 90-200MHz≥40dBc, SMA
View Details →
ZBF5-L78-5-1537 Filter

Filter ZBF5-L78-5-1537

Passband75.5~80.5MHz, DC-65MHz≥55dBc, 91-200MHz≥55dBc, Pin
View Details →
ZBF3-L80-7-1147 Filter

Filter ZBF3-L80-7-1147

Passband76.5~83.5MHz, DC-64MHz≥30dBc, 100-500MHz≥30dBc, SMA
View Details →
ZBF3-L80-50-4466 Filter

Filter ZBF3-L80-50-4466

Passband55~105MHz, DC-30MHz≥50dB, 150-250MHz≥50dB, SMD
View Details →
ZBF3-L80-22-4303 Filter

Filter ZBF3-L80-22-4303

Passband69~91MHz, DC-45MHz≥50dB, 140-180MHz≥50dB, SMD
View Details →
ZBF3-L80-100-4358 Filter

Filter ZBF3-L80-100-4358

Passband30~130MHz, DC-24MHz≥50dB, 155-500MHz≥50dB, SMD
View Details →
ZBF3-L80-1.87-4467 Filter

Filter ZBF3-L80-1.87-4467

Passband79.062~80.938MHz, DC-65MHz≥50dB, 100-200MHz≥50dB, SMD
View Details →
ZBF20-L80-50-043 Filter

Filter ZBF20-L80-50-043

Passband55~105MHz, DC-10MHz≥50dBc, 140-1000MHz≥50dBc, SMA
View Details →

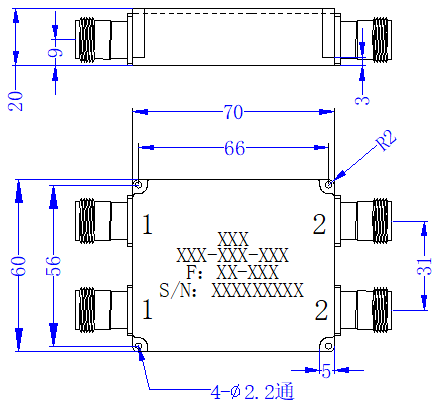

ZBF2-2L80-60-3258 Filter

Filter ZBF2-2L80-60-3258

F 1-250~110MHz, DC-35MHz≥60dB, 130-300MHz≥60dB, N
View Details →
ZBF15-L81.22-3.5-1108 Filter

Filter ZBF15-L81.22-3.5-1108

Passband79.47~82.97MHz, 0.6-2.3GHz≥50dB, dB, SMD
View Details →
ZBF13-L80-8-2247 Filter

Filter ZBF13-L80-8-2247

Passband76~84MHz, 160-240GHz≥85dBc, 240-400GHz≥95dBc, SMA
View Details →
ZBF13-L77.6-32-1285 Filter

Filter ZBF13-L77.6-32-1285

Passband61.6~93.6MHz, DC-38.4MHz≥45dBc, 106.4-150MHz≥20dBc, Pin
View Details →

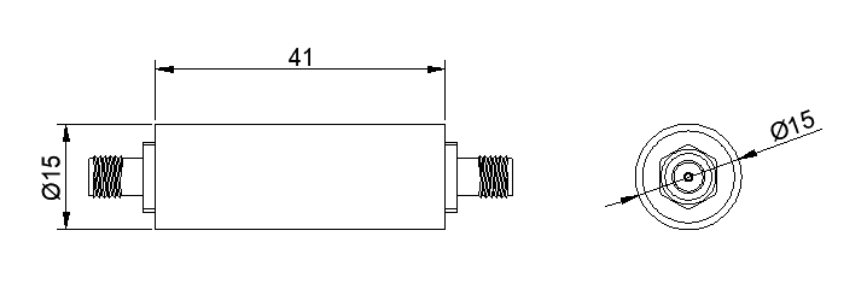

LB-SMAKK-00M-80M Filter

Filter LB-SMAKK-00M-80M

Passband70~90MHz, DC-60MHz≥40dBc, 100-200MHz≥40dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
