Filters
Filters 1
Feature
Bandpass 23
F Low MHz
200 - 600 6 625 - 675 5 698 - 750 5 775 - 790 5 800 2
–
Center frequency MHz
795 2 796 1 798 1 800 19
–
F High MHz
800 - 825 7 850 - 900 5 920 - 975 5 1000 - 1400 6
–
IL on center frequency dB
0.4 - 0.5 8 1 - 1.5 8 2 - 3 6 5 1
–
Maximum loss of side frequency dB
0.5 - 1 8 1.5 - 2 7 2.5 - 3 5 3.4 - 3.5 2 5 1
–
Rejection dB
20 - 40 4 45 - 50 9 55 - 60 5 65 - 70 3 80 - 100 2
–
Connector
Other 3 SMD 2 SMA 6 Microstrip needle 12
Power Handling
1 - 2 12 5 - 15 4 50 - 100 5 150 2
–
Filter type
LC 17 Cavity&waveguide 6
Center frequency：795 - 800 MHz× Clear all
matches 23 models Default Newest
ZBF6-C800-300-3252 Band pass filter

Band pass filter ZBF6-C800-300-3252

Passband650~950MHz, DC-500MHz≥80dB, 1100-1600MHz≥80dB, SMA
View Details →
ZBF6-C800-100-2881 Filter

Filter ZBF6-C800-100-2881

Passband800, 600MHz≥40dB, 1000MHz≥40dB, SMA
View Details →
ZBF6-C796-20-5436 Filter

Filter ZBF6-C796-20-5436

Passband786~806MHz, DC-776MHz≥55dB, 816-2000MHz≥55dB, L29
View Details →
ZBF6-C795-10-2336 Filter

Filter ZBF6-C795-10-2336

Passband790~800MHz, DC-780MHz≥55dB, 810-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →
ZBF5-L800-400-721 Filter

Filter ZBF5-L800-400-721

Passband600~1000MHz, DC-500MHz≥40dBc, 1500-3000MHz≥55dBc, Pin
View Details →
ZBF5-L800-0-1138 Filter

Filter ZBF5-L800-0-1138

Passband800MHz, DC-600MHz≥50dBc, 1100-2000MHz≥50dBc, Pin
View Details →
ZBF5-C800-400-3411 Filter

Filter ZBF5-C800-400-3411

Passband600~1000MHz, 1600-2800MHz≥50dBc, SMA
View Details →
ZBF3-L800-550-4010 Filter

Filter ZBF3-L800-550-4010

Passband525~1075MHz, DC-440MHz≥45dB, 1190-1400MHz≥45dB, Pin
View Details →
ZBF3-L800-40-2080 Filter

Filter ZBF3-L800-40-2080

Passband780~820MHz, DC-580MHz≥40dBc, 1020-3000MHz≥40dBc, SMA
View Details →
ZBF3-L800-350-4009 Filter

Filter ZBF3-L800-350-4009

Passband625~975MHz, DC-535MHz≥45dB, 1080-2000MHz≥45dB, Pin
View Details →
ZBF3-L800-110-4016 Filter

Filter ZBF3-L800-110-4016

Passband745~855MHz, DC-600MHz≥45dB, 1000-2000MHz≥45dB, Pin
View Details →
ZBF3-L795-250-2959 Filter

Filter ZBF3-L795-250-2959

Passband670~920MHz, DC-570MHz≥50dB, 1000-4000MHz≥50dB, Pin
View Details →
ZBF2-L800-200-2499 Filter

Filter ZBF2-L800-200-2499

Passband700~900MHz, DC-500MHz≥50dBc, 1.1-2GHz≥50dBc, SMD
View Details →
ZBF16-C800-200-433 Filter

Filter ZBF16-C800-200-433

Passband700~900MHz, 1400~2700MHz≥100dB, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L800-50-485 Filter

Filter ZBF15-L800-50-485

Passband775~825MHz, DC-675MHz≥60dBc, 875MHz≥20dBc, Pin
View Details →
ZBF15-L800-40-1762 Filter

Filter ZBF15-L800-40-1762

Passband780~820MHz, DC-670MHz≥65dBc, 930-3000MHz≥65dBc, Pin
View Details →
ZBF15-L800-300-486 Filter

Filter ZBF15-L800-300-486

Passband650~950MHz, DC-500MHz≥50dBc, 1200-3000MHz≥50dBc, Pin
View Details →
ZBF15-L800-250-799 Filter

Filter ZBF15-L800-250-799

Passband675~925MHz, DC-450MHz≥45dBc, 1.1GHz≥20dBc, Pin
View Details →

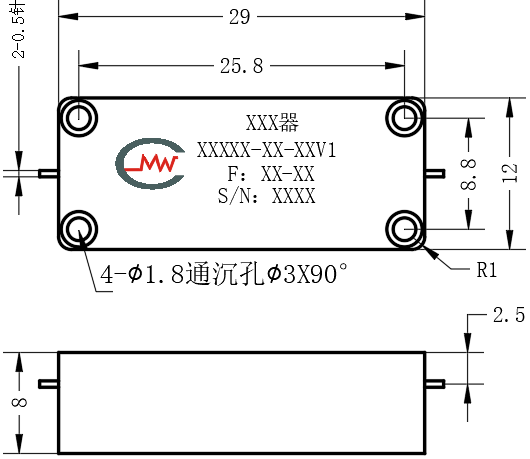

ZBF15-L800-1200-715 Filter

Filter ZBF15-L800-1200-715

Passband200~1400MHz, dB, 1.6-3GHz≥20dBc, Pin
View Details →
ZBF13-L800-0-3325 Filter

Filter ZBF13-L800-0-3325

Passband800MHz, DC-0.7GHz≥70dBc, 0.9-3GHz≥70dBc, Pin
View Details →
ZBF13-L798-200-2216 Filter

Filter ZBF13-L798-200-2216

Passband698~898MHz, 260-460MHz≥65dBc, 1300-1500MHz≥65dBc, MCX
View Details →
ZBF-L800-600-S2212 Filter

Filter ZBF-L800-600-S2212

Passband500~1100MHz, 1300-1800MHz≥55dBc, DC-300MHz≥35dBc, SMD
View Details →

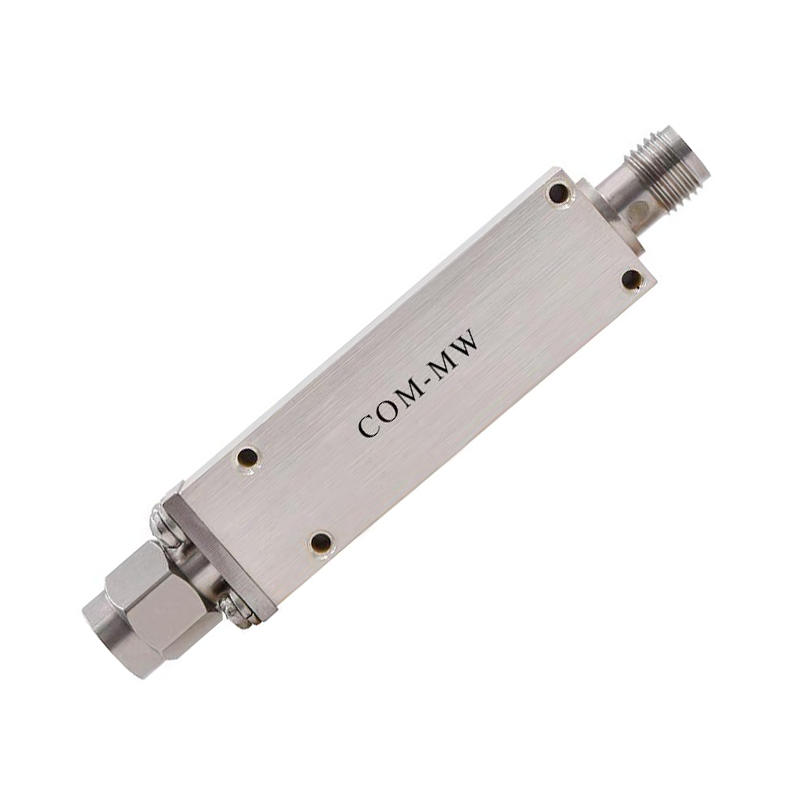

ATBF-800M-400M Filter

Filter ATBF-800M-400M

Passband600~1000MHz, DC-200MHz≥40dB, 1.4-3.0GHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
