Filters
Filters 1
Feature
Bandpass 52 Highpass 1
F Low MHz
30 - 480 9 500 - 550 18 570 - 630 13 636 - 668 9 670 - 679 4
–
Center frequency MHz
640 - 648 10 650 - 657.5 23 660 - 670 6 673 - 680.5 8 682 - 690.4 6
–
F High MHz
650 - 674 9 678 - 700 11 701 - 755 12 760 - 900 16 960 - 1350 5
–
IL on center frequency dB
0.3 - 0.4 3 0.5 - 1 29 1.5 - 2 14 3 - 4 5 5 - 6 2
–
Maximum loss of side frequency dB
0.7 - 1.2 8 1.5 - 2 22 2.5 - 3.5 17 4 - 9 6
–
Rejection dB
20 - 30 8 35 - 45 22 50 - 59.999 12 60 - 80 11
–
Connector
SMD 12 SMA 20 N 2 Microstrip needle 19
Power Handling
0.1 - 1 26 2 - 5 15 10 - 20 11 50 1
–
Filter type
LC 41 Cavity&waveguide 12
Center frequency：640 - 690.4 MHz× Clear all
matches 53 models Default Newest
BF059 Filter

Filter BF059

Passband600~680MHz, 500MHz≥20dB, 750MHz≥20dB, SMD, Replace SXBP-640+
In Stock View Details →

Filter ZTBF-640M-20M-L

Passband630~650MHz, 550MHz≥50dB, 730MHz≥50dB, SMA
View Details →

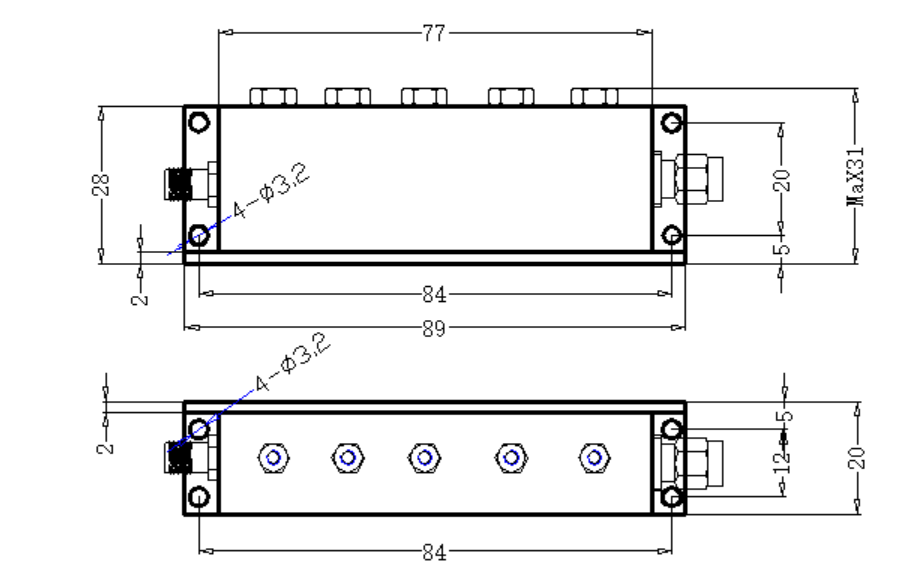

ZBF6-H673-10-2511 Spiral filter

Spiral filter ZBF6-H673-10-2511

Passband668~678MHz, DC-637MHz≥40dB, 709-1200MHz≥40dB, SMA
View Details →
ZBF6-H653-10-2511 Spiral filter

Spiral filter ZBF6-H653-10-2511

Passband648~658MHz, DC-617MHz≥40dB, 689-1200MHz≥40dB, SMA
View Details →

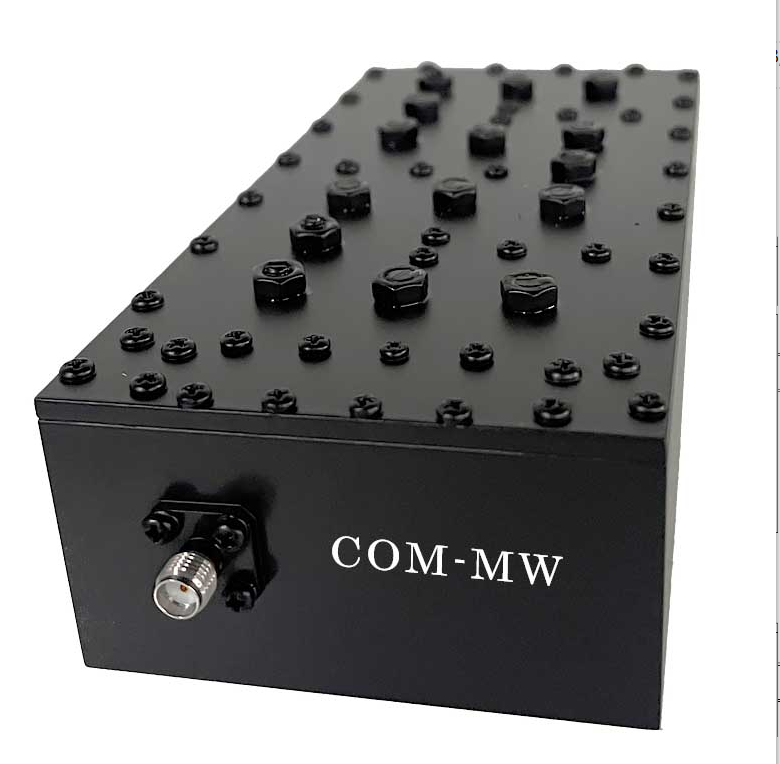

ZBF6-C657.5-81-5193 Filter

Filter ZBF6-C657.5-81-5193

Passband617~698MHz, DC-572MHz≥40dB, 743-4000MHz≥40dB, SMA
View Details →
ZBF5-L680-320-2064 Filter

Filter ZBF5-L680-320-2064

Passband520~840MHz, 1040-1680MHz≥50dBc, Pin
View Details →
ZBF5-L675-250-2518 Filter

Filter ZBF5-L675-250-2518

Passband550~800MHz, DC-400MHz≥40dBc, 1700-2000MHz≥60dBc, Pin
View Details →
ZBF5-L650-700-3875 Filter

Filter ZBF5-L650-700-3875

Passband300~1000MHz, DC-240MHz≥50dB, 1080-6000MHz≥50dB, SMA
View Details →
ZBF5-L650-700-3786 Filter

Filter ZBF5-L650-700-3786

Passband300~1000MHz, DC-200MHz≥40dB, 1080-6000MHz≥40dB, SMA
View Details →
ZBF5-L650-700-3282 Filter

Filter ZBF5-L650-700-3282

Passband300~1000MHz, DC-200MHz≥30dBc, 1200-2000MHz≥30dBc, SMA-K
View Details →
ZBF5-L650-300-2956 Filter

Filter ZBF5-L650-300-2956

Passband500~800MHz, DC-300MHz≥40dB, 1000-3000MHz≥40dB, SMA-K
View Details →
ZBF5-L650-300-1823 Filter

Filter ZBF5-L650-300-1823

Passband500~800MHz, 1000-2000MHz≥50dBc, SMA-K
View Details →
ZBF5-L645-30-3578 Filter

Filter ZBF5-L645-30-3578

Passband630~660MHz, DC-590MHz≥40dBc, 700-1000MHz≥40dBc, SMA
View Details →
ZBF5-C680.5-25-2038 Filter

Filter ZBF5-C680.5-25-2038

Passband668~693MHz, DC-659MHz≥60dB, 702-1000MHz≥60dB, SMA
View Details →

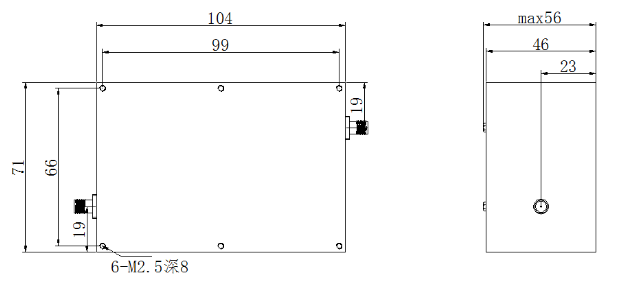

ZBF4-C668.5-11-212 Filter

Filter ZBF4-C668.5-11-212

Passband663~674MHz, DC-643MHz≥60dB, 694-1500MHz≥60dB, SMA
View Details →

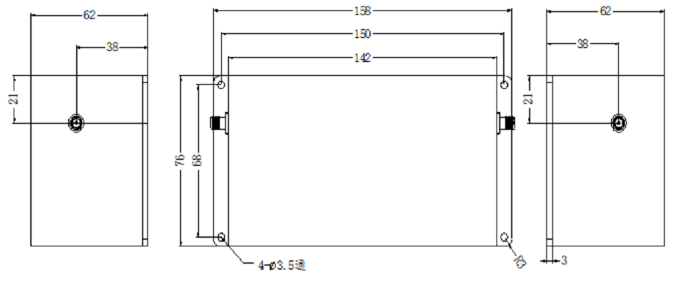

ZBF4-C660-80-695 Filter

Filter ZBF4-C660-80-695

Passband620~700MHz, DC-580MHz≥30dB, 740-1100MHz≥30dB, SMA
View Details →

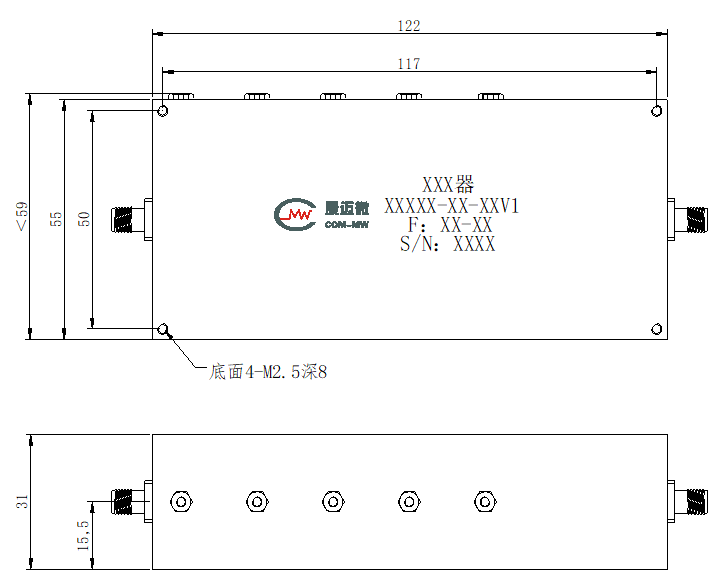

ZBF4-C645-30-1259 Filter

Filter ZBF4-C645-30-1259

Passband630~660MHz, DC-30080dB, 1100-270075dB, SMA
View Details →
ZBF3-L690-30-1155 Filter

Filter ZBF3-L690-30-1155

Passband675~705MHz, DC-620MHz≥40dB, 760-3000MHz≥40dB, Pin
View Details →
ZBF3-L690-22-4302 Filter

Filter ZBF3-L690-22-4302

Passband679~701MHz, DC-630MHz≥50dB, 750-950MHz≥65dB, SMD
View Details →
ZBF3-L670-400-4351 Filter

Filter ZBF3-L670-400-4351

Passband470~870MHz, DC-365MHz≥20dB, 965-2700MHz≥20dB, SMD
View Details →
ZBF3-L665-270-1845 Filter

Filter ZBF3-L665-270-1845

Passband530~800MHz, DC-477MHz≥30dB, 880-1600MHz≥30dB, Pin
View Details →
ZBF3-L660.4-100.8-894 Filter

Filter ZBF3-L660.4-100.8-894

Passband670~710.8MHz, DC-560MHz≥55dB, 760-1500MHz≥55dB, SMD
View Details →
ZBF3-L660-280-1623 Filter

Filter ZBF3-L660-280-1623

Passband520~800MHz, DC-400MHz≥50dB, 1000-2000MHz≥50dB, Pin
View Details →
ZBF3-L660-10-2622 Filter

Filter ZBF3-L660-10-2622

Passband655~665MHz, DC-645MHz≥40dB, 675-1500MHz≥40dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
