Filters
Filters 1
Feature
Bandpass 14
F Low MHz
4900 - 5668 2 5840 - 5850 5 5900 - 6000 5 6100 - 6180 2
–
Center frequency MHz
6287 1 6287.5 1 6300 12
–
F High MHz
6420 - 6500 2 6600 - 6700 5 6725 - 6735 2 6750 - 6912 4 7700 1
–
IL on center frequency dB
0.4 - 0.5 2 1 - 1.5 10 2.4 - 3 2
–
Maximum loss of side frequency dB
0.5 - 1 2 2 - 2.5 10 3.4 - 4 2
–
Rejection dB
19.999 - 30 2 35 - 40 3 55 - 65 4 70 - 75 3 80 - 95 2
–
Connector
SMD 1 SMA 5 N 1 Microstrip pad 2 Microstrip needle 5
Power Handling
0.32 - 2 2 5 - 10 10 20 - 30 2
–
Filter type
Cavity&waveguide 11 stripline 1 Thin film 1 MMIC 1
Center frequency：6287 - 6300 MHz× Clear all
matches 14 models Default Newest
STBP6R3-0R8-M549 Thin film filter

Thin film filter STBP6R3-0R8-M549

Bandwidth5.9-6.7GHz, Rejection35@DC-5.2GHz, 35@7.5-13.5GHz
In Stock View Details →
WLD060066K Filter

Filter WLD060066K

Passband6000~6600MHz, 5360MHz≥20dBc, 7400MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
ZBF13-C6.3-0.6G-805 Filter

Filter ZBF13-C6.3-0.6G-805

Passband6~6.6GHz, DC-5.4GHz≥65dBc, 6.95-15GHz≥65dBc, SMA
In Stock View Details →
ZBF5-C6300-400-1858 Filter

Filter ZBF5-C6300-400-1858

Passband6100~6500MHz, 1dB BW400~480MHz, DC-4500MHz≥65dB, 6700-11000MHz≥65dB, SMA-K
View Details →
ZBF5-C6300-1224-2671 Filter

Filter ZBF5-C6300-1224-2671

Passband5688~6912MHz, DC-4152MHz≥80dB, 7848-15000MHz≥80dB, SMA
View Details →
ZBF5-C6287.5-875-1612 Filter

Filter ZBF5-C6287.5-875-1612

Passband5850~6725MHz, DC-5250MHz≥40dB, 7425-8000MHz≥40dB,
View Details →
ZBF5-C6.3-0.24G-2553 Filter

Filter ZBF5-C6.3-0.24G-2553

Passband6.18~6.42GHz, DC-4.6GHz≥95dBc, 4.6-5GHz≥95dBc, Pin
View Details →
ZBF4-C6.3-0.6G-1781 Filter

Filter ZBF4-C6.3-0.6G-1781

Passband6000~6600MHz, DC-5700MHz≥65dB, 6900-14000MHz≥65dB, SMA
View Details →
ZBF4-C6.29-0.87G-404 Filter

Filter ZBF4-C6.29-0.87G-404

Passband5.85~6.75GHz, DC-5GHz≥70dB, 5-5.35GHz≥48dB, Pin
View Details →
ZBF13-C6287.5-895-885 Filter

Filter ZBF13-C6287.5-895-885

Passband5840~6735MHz, DC-1450MHz≥75dBc, 5440MHz≥60dBc, SMA
View Details →
ZBF13-C6.3-0.9G-397 Filter

Filter ZBF13-C6.3-0.9G-397

Passband5850~6750MHz, DC-5.5GHz≥55dBc, 7.0-13GHz≥55dBc, Pin
View Details →
ZBF13-C6.3-0.9G-396 Filter

Filter ZBF13-C6.3-0.9G-396

Passband5.85~6.75GHz, DC-4.3GHz≥40dBc, 7.4-13GHz≥40dBc, Pin
View Details →

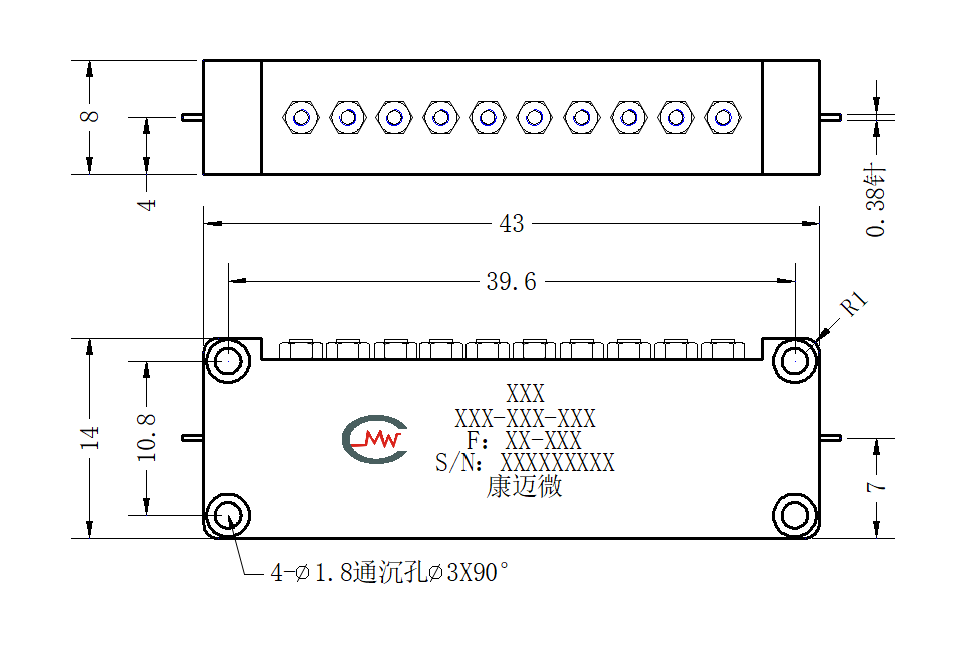

ZBF13-C6.3-0.6G-639 Filter

Filter ZBF13-C6.3-0.6G-639

Passband6~6.6GHz, DC-4.6GHz≥70dB, 4.6-5.3GHz≥60dB, Pin
View Details →
CA0506 SMD Filter

SMD Filter CA0506

Bandwidth4.9-7.7GHz, Rejection30@DC-3.9GHz, 30@8.9-12.5GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
